UDEP RMSC 2

Mounting board, data technology

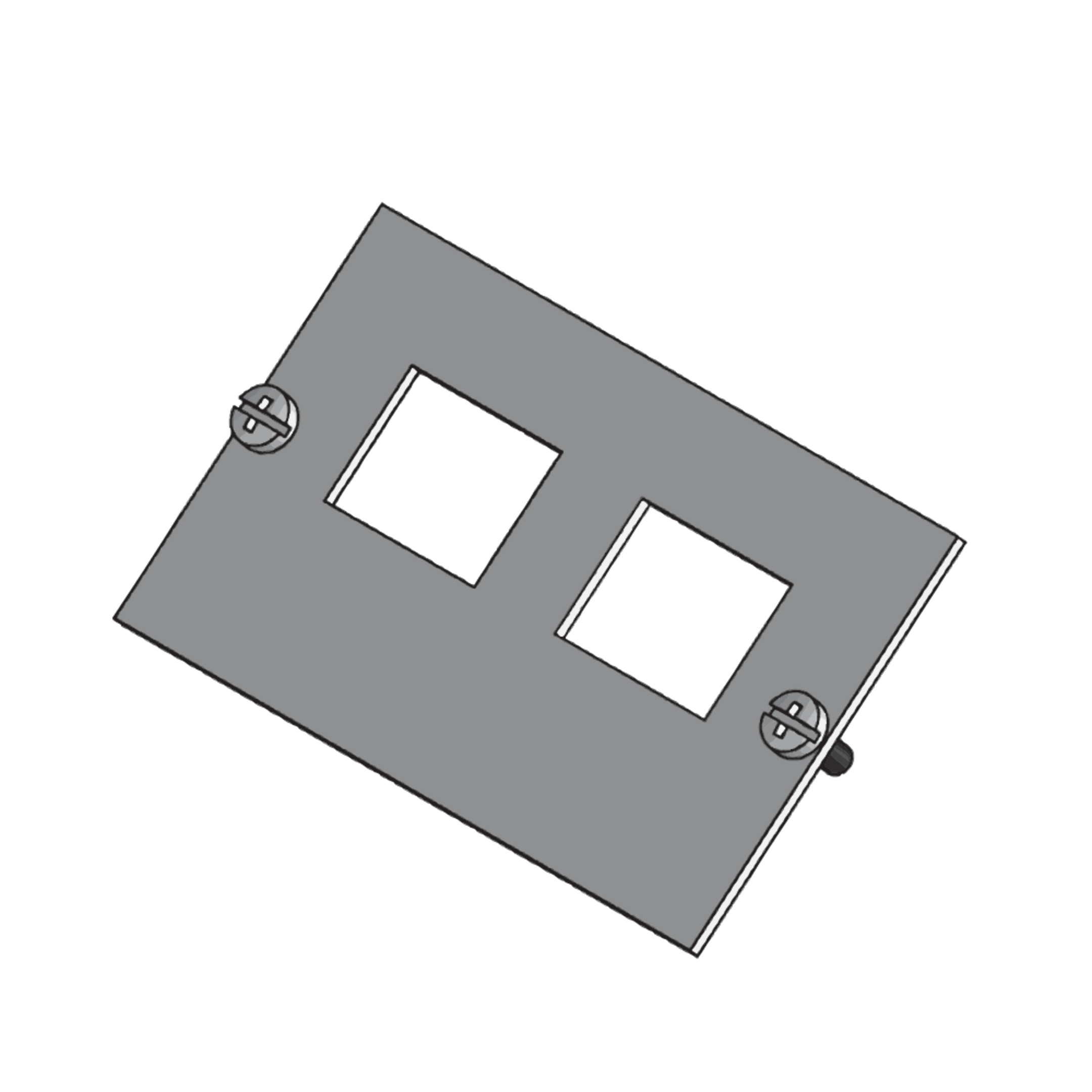

UDEP RMSC 2 components are installation boards from the underfloor system range. The boards are bolted into data device carriers and are used to accommodate up to 2 snap-in data jacks made by R&M. The installation boards are made of aluminium with a black coating on one side and have the installation dimensions of E1 14.9 mm and E2 19.5 mm.

Get in touch Download datasheet

Variants

Article

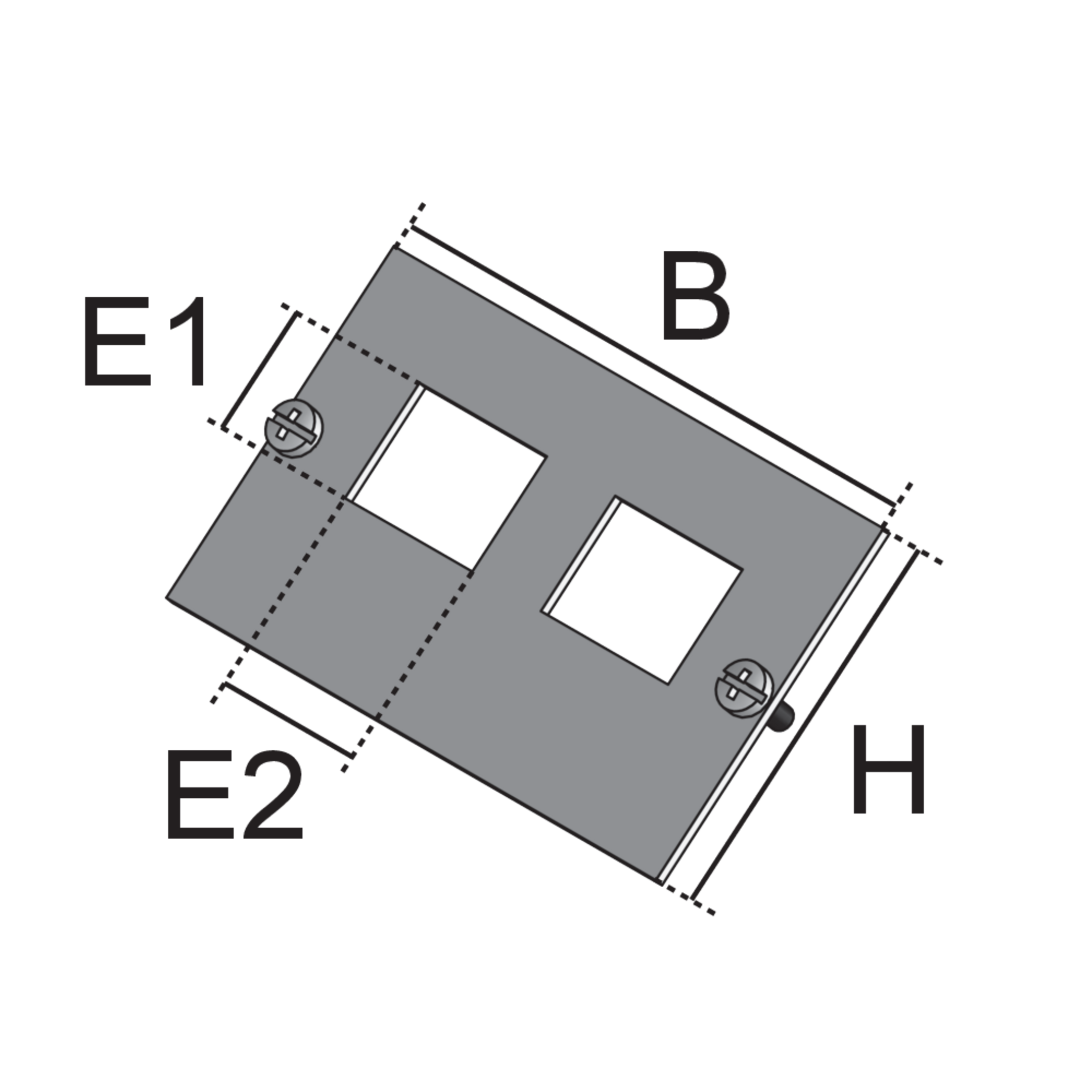

H

B

data jacks

E1

E2

colour

W

  • UDEP-RMSC 2
    adapter board,
    46 mm
    75 mm
    2
    14.9 mm
    19.5 mm
    black
    0.015 kg
