UDEP KEL

Mounting board, data technology

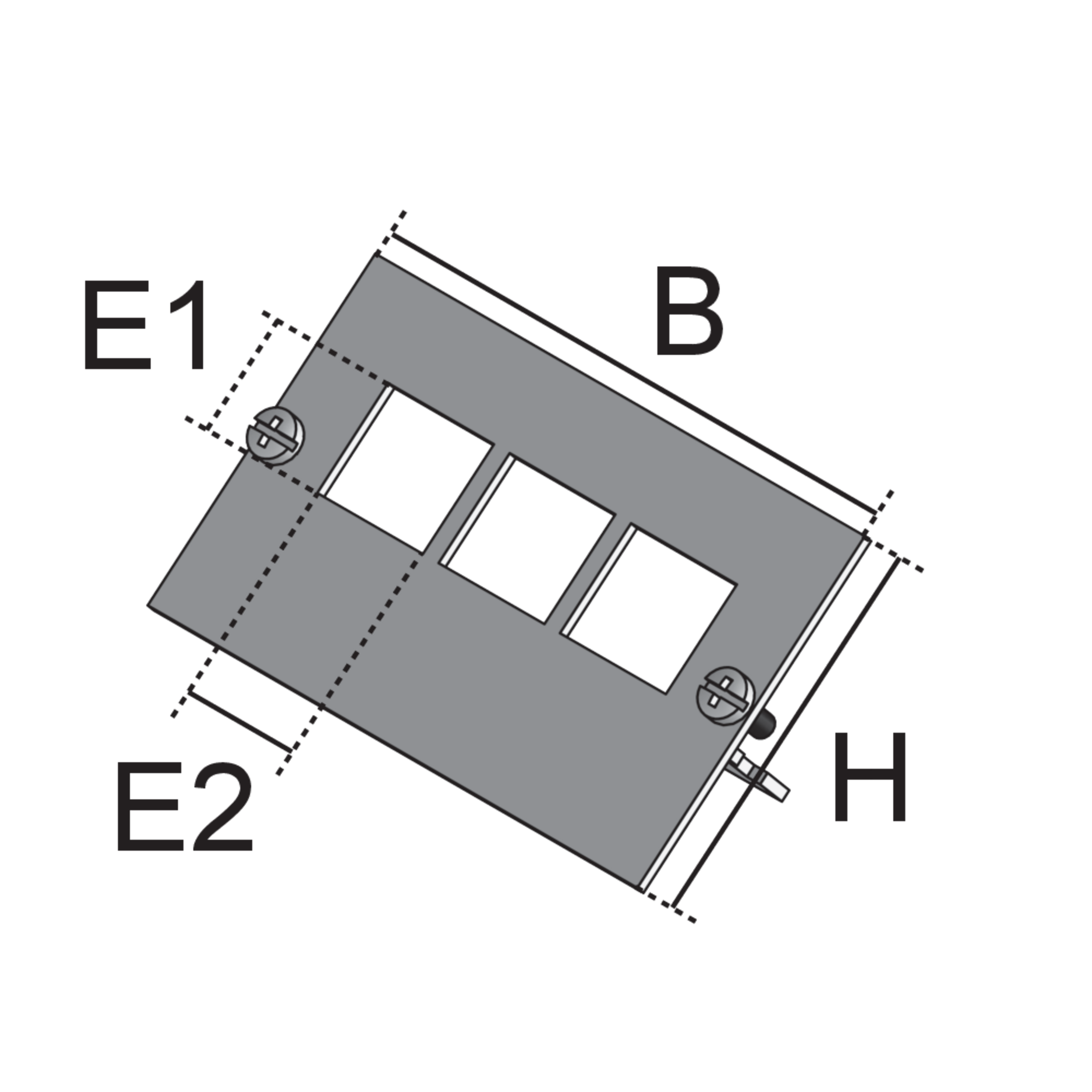

UDEP KEL components are installation boards from the underfloor system range. The boards are bolted into data device carriers and are used to accommodate up to 3 sockets made by LEONI Kerpen. The installation boards are made of aluminium with a black coating on one side and have the installation dimensions of E1 14.2 mm and E2 16.2 mm.

Get in touch Download datasheet

Variants

Article

H

B

Datenjacks

E1

E2

Farbe

G

  • UDEP-KEL 3
    Einbauplatine,
    46 mm
    75 mm
    3
    14.2 mm
    16.2 mm
    Schwarz
    0.032 kg
