UDEP GG45

Mounting board, data technology

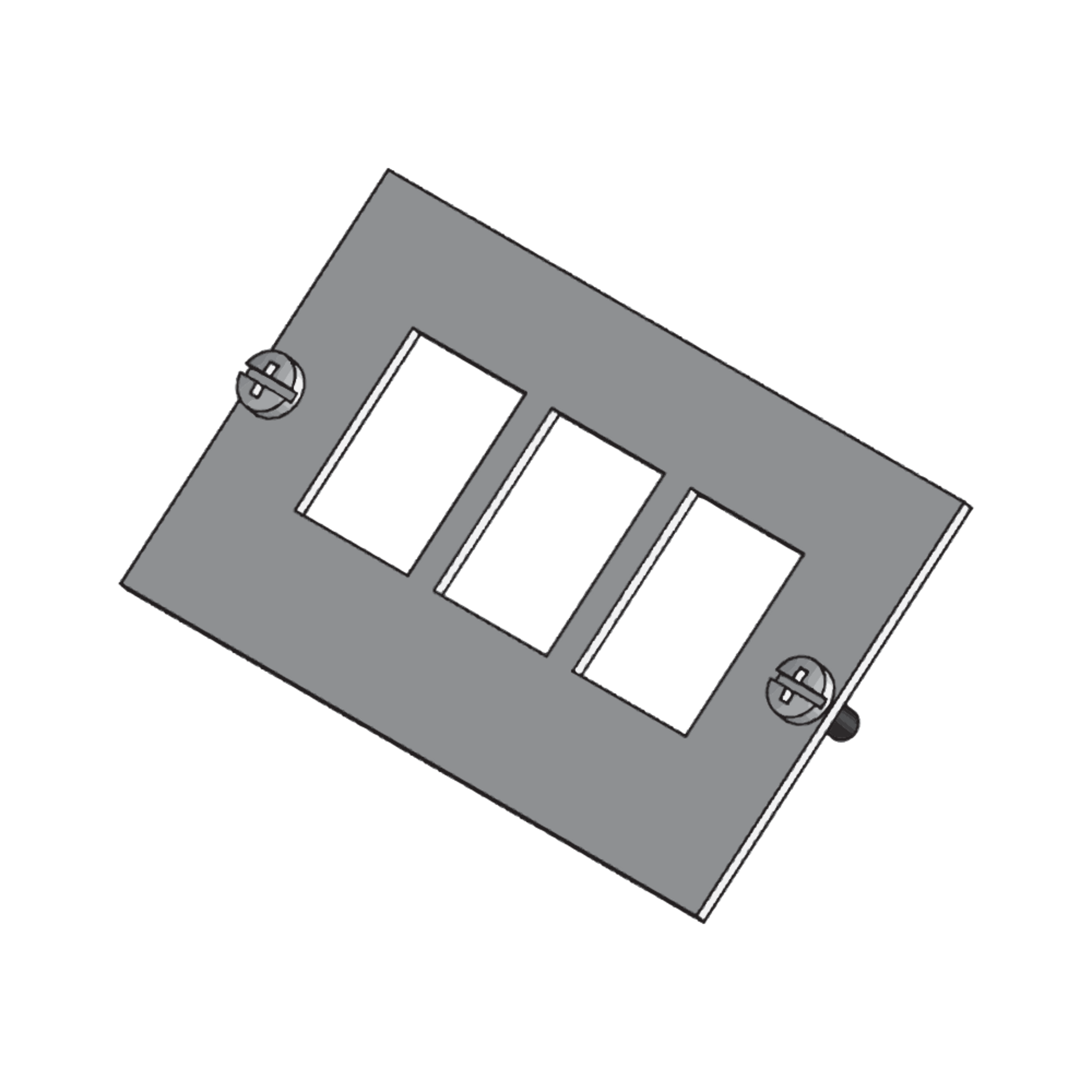

UDEP GG45 components are installation boards from the underfloor system range. The boards are bolted into data device carriers and are used to accommodate up to 3 Unilan PS-GG45 7A data jacks from Dätwyler or plug-in technology components from other manufacturers, such as 3M Deutschland GmbH or Brand-Rex. The installation boards are made of aluminium with a black coating on one side and have the installation dimensions of E1 20.1 mm and E2 14.7 mm.

Get in touch Download datasheet

Variants

Article

H

B

Datenjacks

E1

E2

Farbe

G

  • UDEP-GG45 3
    Einbauplatine,
    46 mm
    75 mm
    3
    20.1 mm
    14.7 mm
    Schwarz
    0.014 kg
