UBDHB250 2R

False floor socket, 2x, round

The UBDHB250 2R components are false floor sockets that are installed as pull boxes and built-in boxes on screed-covered underfloor ducts. They have a mounting hole to accommodate a formwork pipe, which is replaced by a round plastic installation unit during final assembly. The supplied earthing clamps are used for equipotential bonding. The floor sockets with side walls that can be bent open on all sides are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346 and have VDE/TÜV approval in accordance with DIN EN 50085.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

H

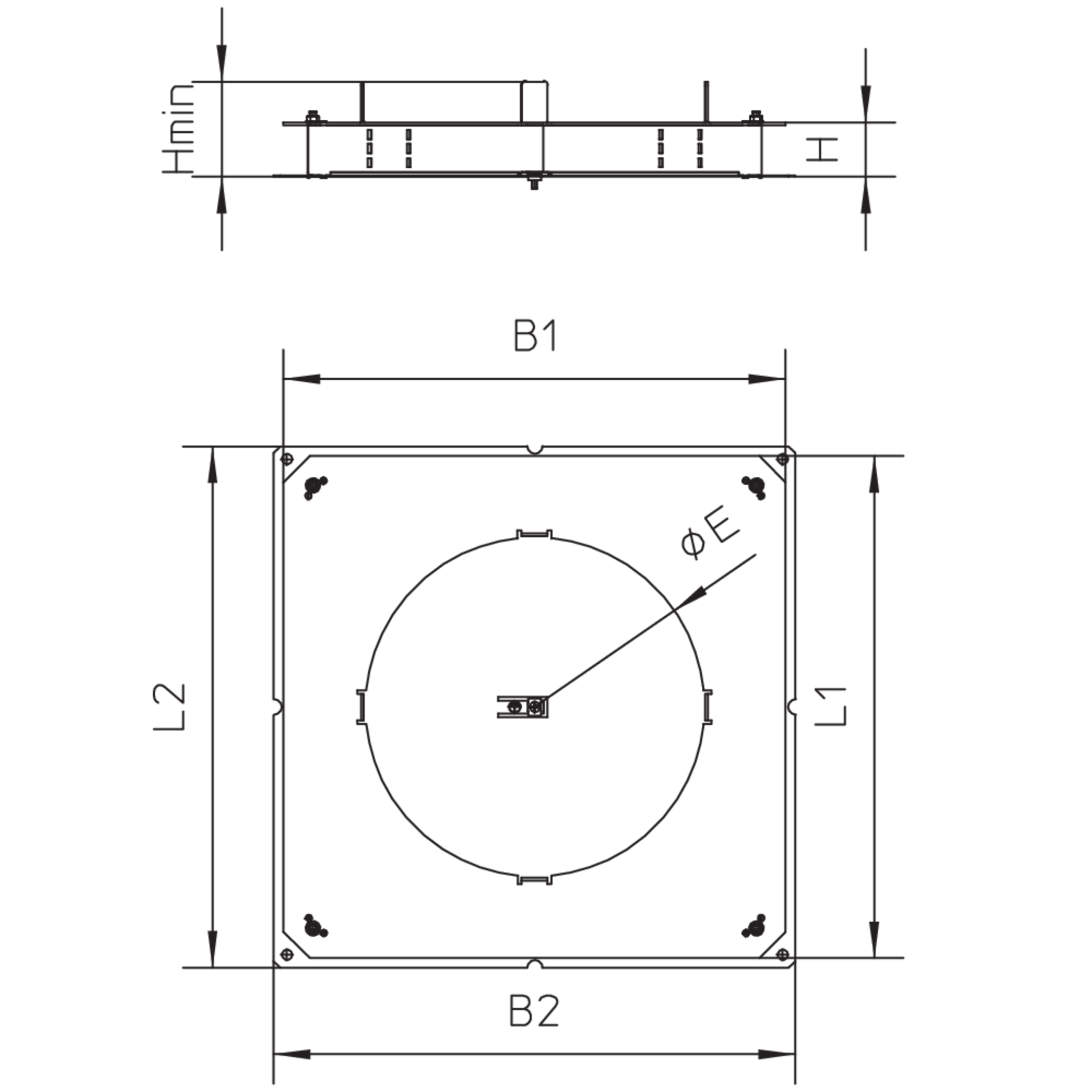

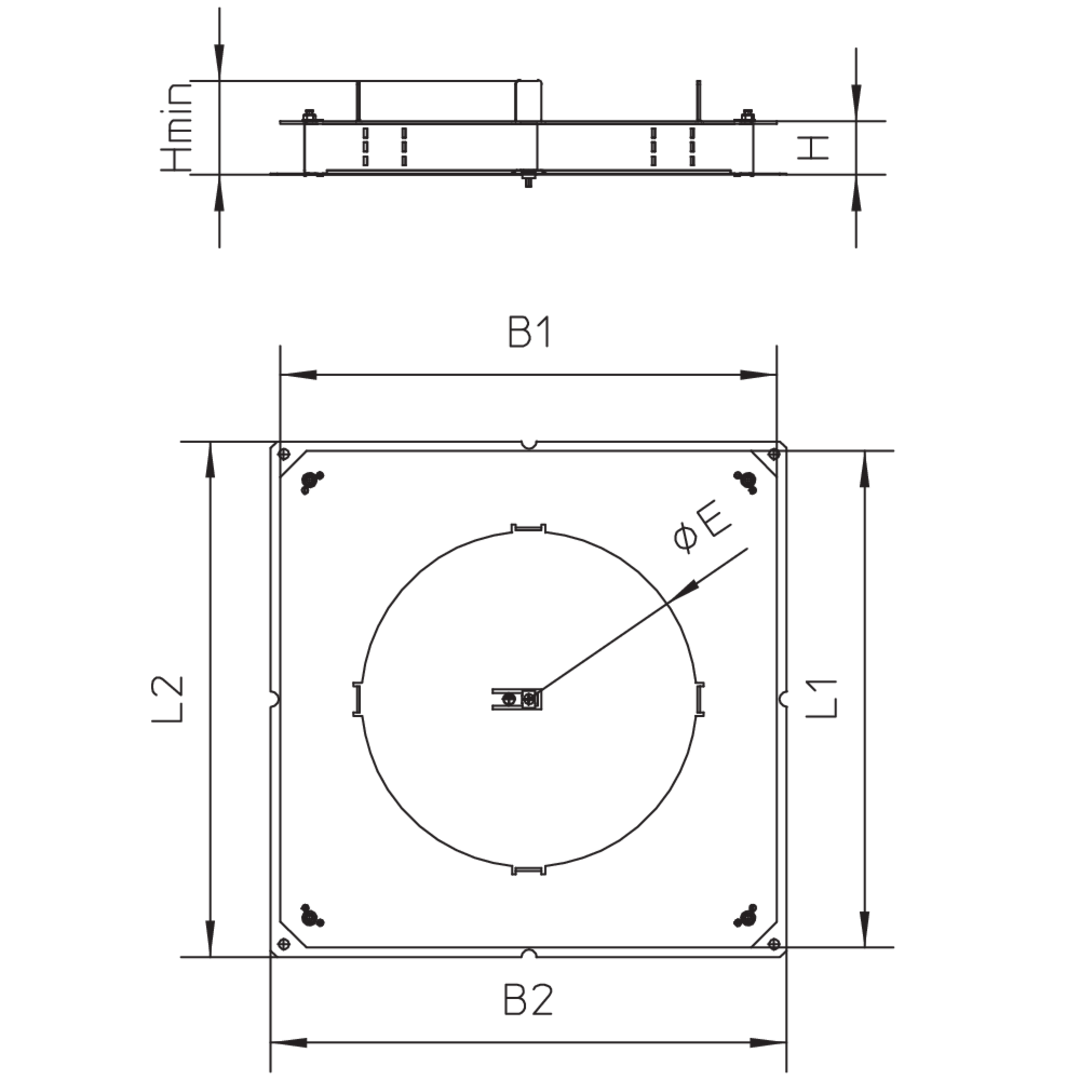

height

Hmin

minimum installation height

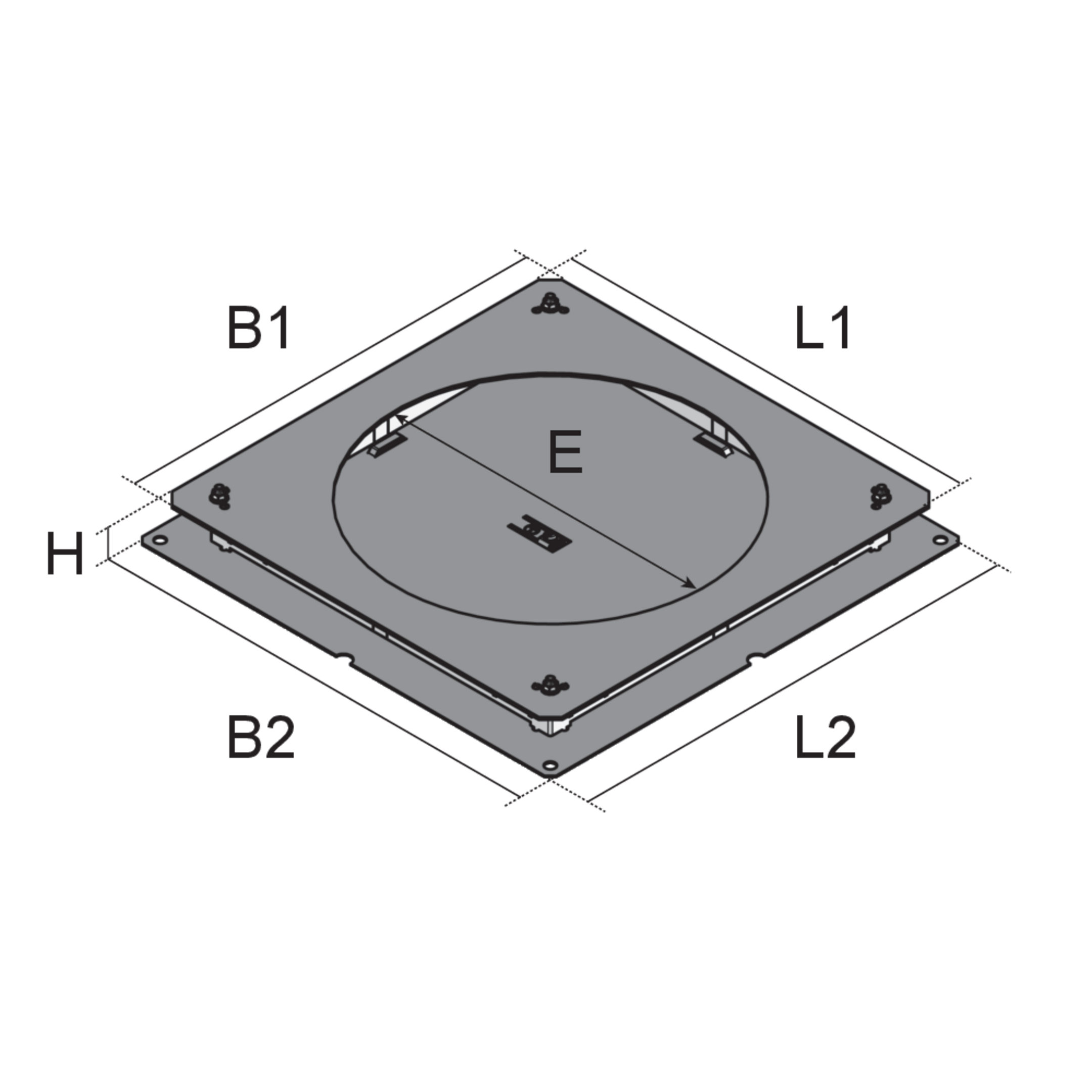

B1

width 1

B2

width 2

L1

length 1

L2

length 2

mounting box

maximum number of installable device casings

E

fitting dimension

Geeignet für estrichbündigen geschlossenen Unterflurkanal

Geeignet für estrichüberdeckten Unterflurkanal

G

Weight per storage unit
  • UBDHB250 28-259R

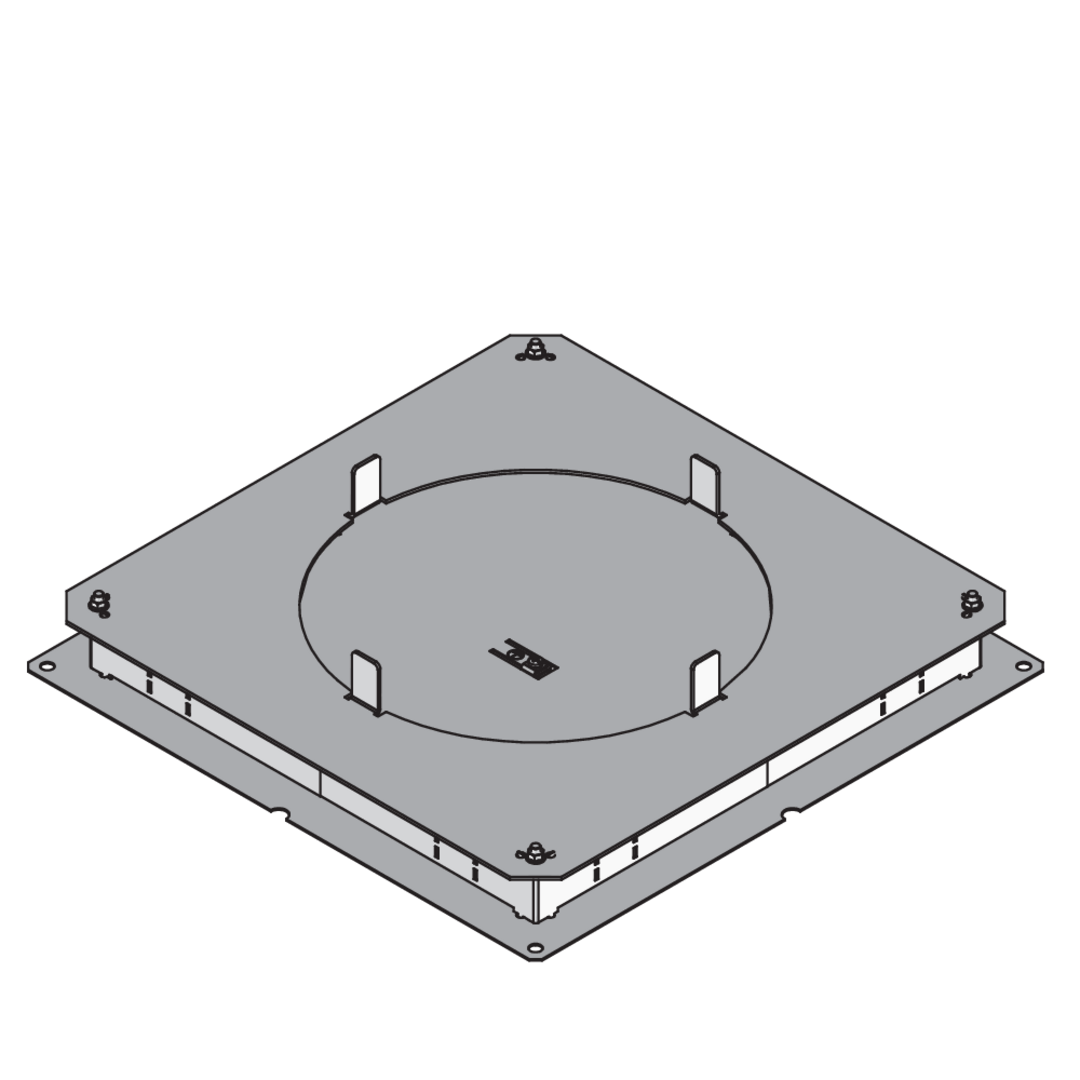

    floor box-hollow space UBDHB250 28-259R,
    31 mm
    67 mm
    385 mm
    400 mm
    385 mm
    400 mm
    2
    260 mm
    Nein (0)
    Ja (1)
    2.718 kg
    Included accessories
    More information
  • UBDHB250 38-259R

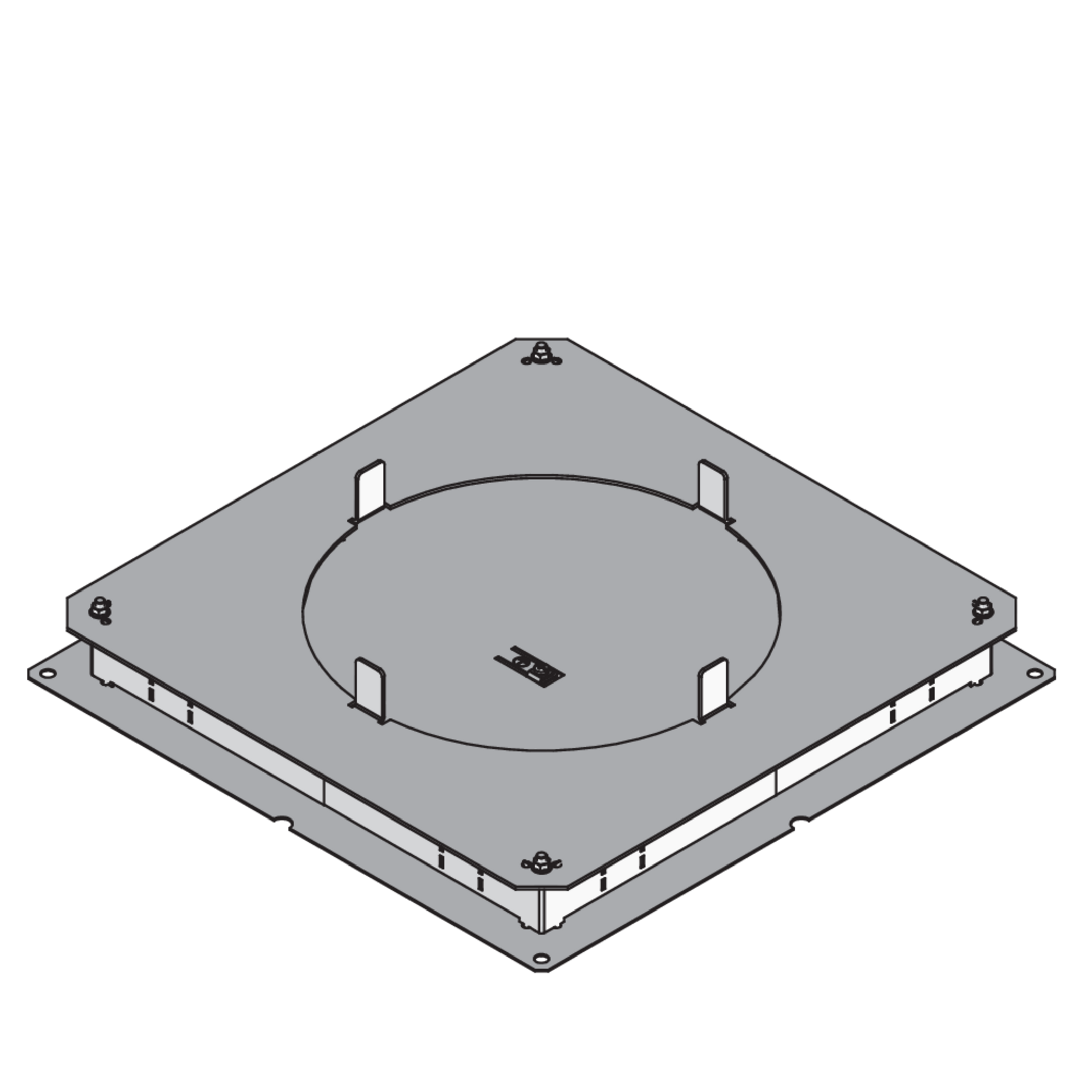

    floor box-hollow space UBDHB250 38-259R,
    41 mm
    77 mm
    385 mm
    400 mm
    385 mm
    400 mm
    2
    260 mm
    Nein (0)
    Ja (1)
    2.802 kg
    Included accessories
    More information
  • UBDHB250 48-259R
    floor box-hollow space UBDHB250 48-259R,
    51 mm
    87 mm
    385 mm
    400 mm
    385 mm
    400 mm
    2
    260 mm
    Nein (0)
    Ja (1)
    2.890 kg
    Included accessories
    More information
