Cover plate for 3x UDAE22
UARM-3-1 components from the underfloor system product range are round, one-piece cover plates with a square opening. Three 22x45 mm latching data junction boxes or one 45x45 mm latching Schuko socket with a 22x45 mm data junction box can be installed in the opening. The panels are made of high-quality ABS copolymer (ABS) in graphite black (RAL 9011). They have the installation dimensions of E1 40.5 mm and E2 63 mm.

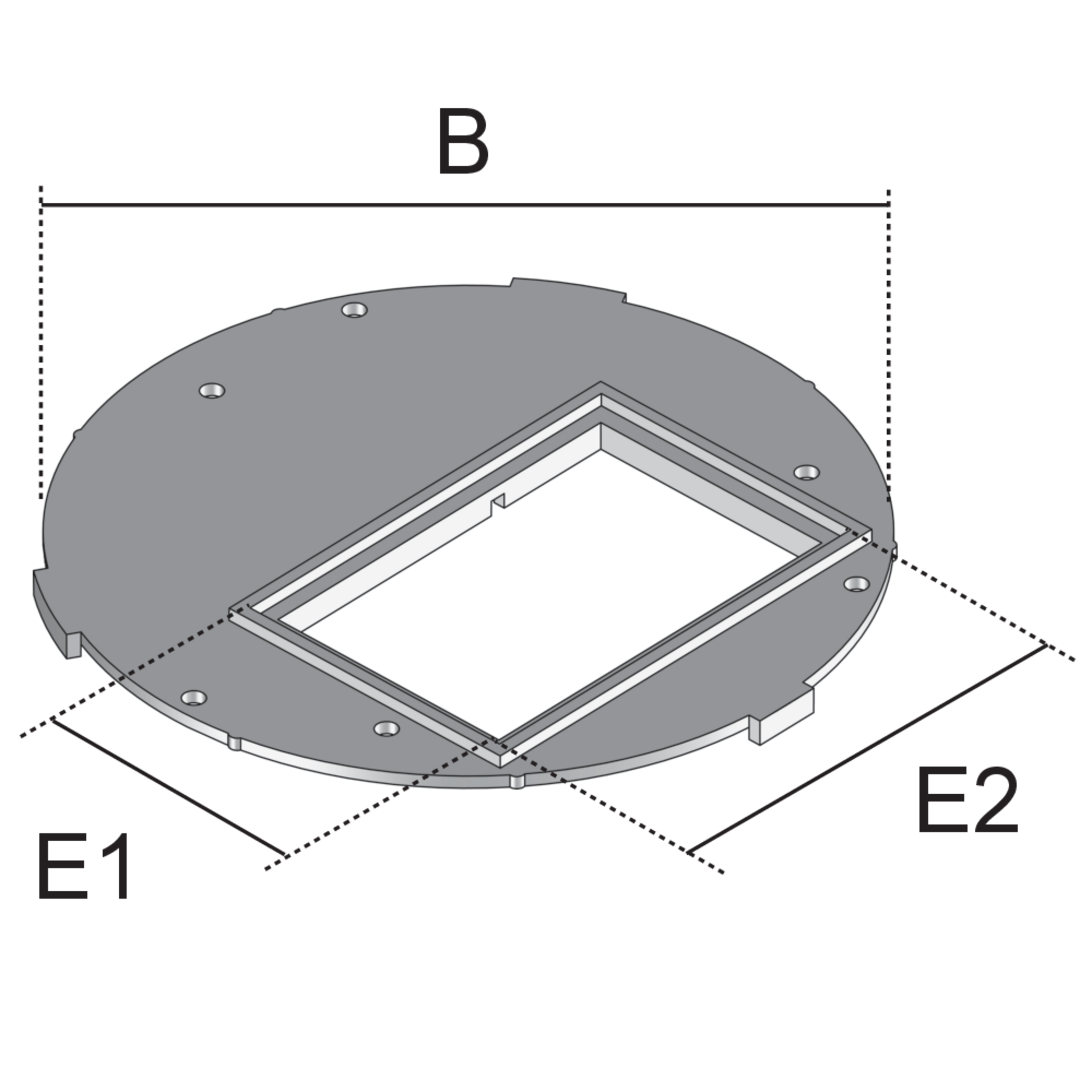

E1
fitting dimension E1
E2
fitting dimension E2
colour
color
G
Weight per storage unit
Price list Building extension 2025
Valid from February 1st, 2025, updated version from 27/01/2025.
PDF, 46 MB
Electrical and Electronic Devices – Information from Manufacturers for Commercial Users
Erklärung
PDF, 106 KB
EC Declaration of Conformity for Underfloor systems
Installation equipment for electric cables and circuits
PDF, 59 KB
Underfloor Systems - Catalogue
Catalogue
PDF, 34 MB

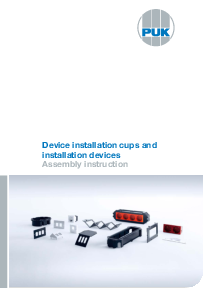

Assembly instruction for device installation cups and installation devices
Montageanleitung
PDF, 562 KB
Technical Information Device Sockets and Installation Devices
Technische Information
PDF, 14 MB
