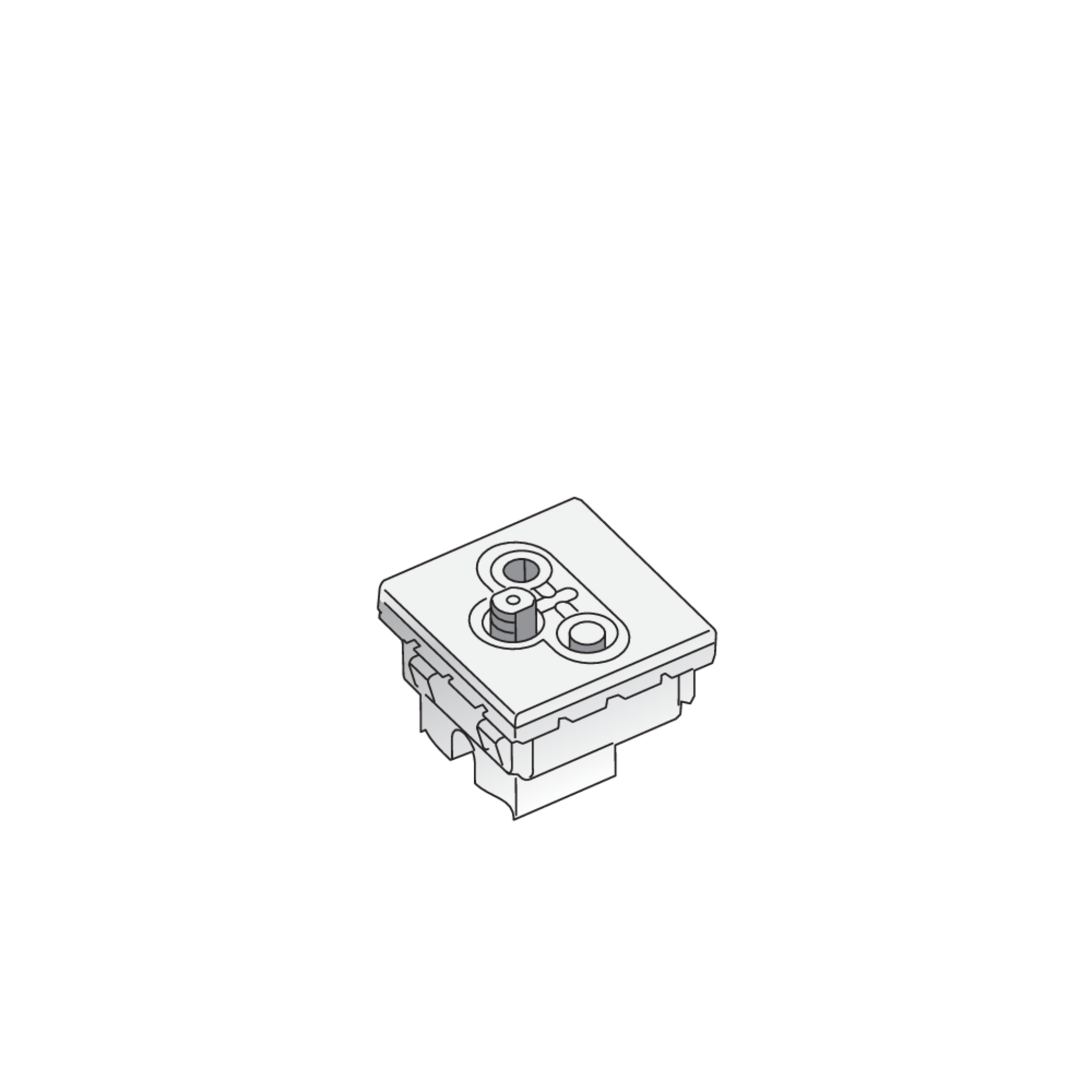

UANT45

TV/radio/SAT single socket, 45x45 mm

UANT45 components are single sockets. They are snapped into 45x45 mm installation openings where they accommodate TV, radio and SAT network cables. These single sockets are suitable for: TV IEC male connector IEC 60 169-2, FM IEC female connector IEC 60 169-2 and SAT F female connector IEC 60 169-24 with corresponding TV, FM and SAT frequencies. The connection impedance is 75 ohms and the screening attenuation corresponds to UHF > 65 dB, VHF > 75 dB and SAT > 55 dB. They are made of high-quality polycarbonate in white.

Get in touch Download datasheet

Variants

Article

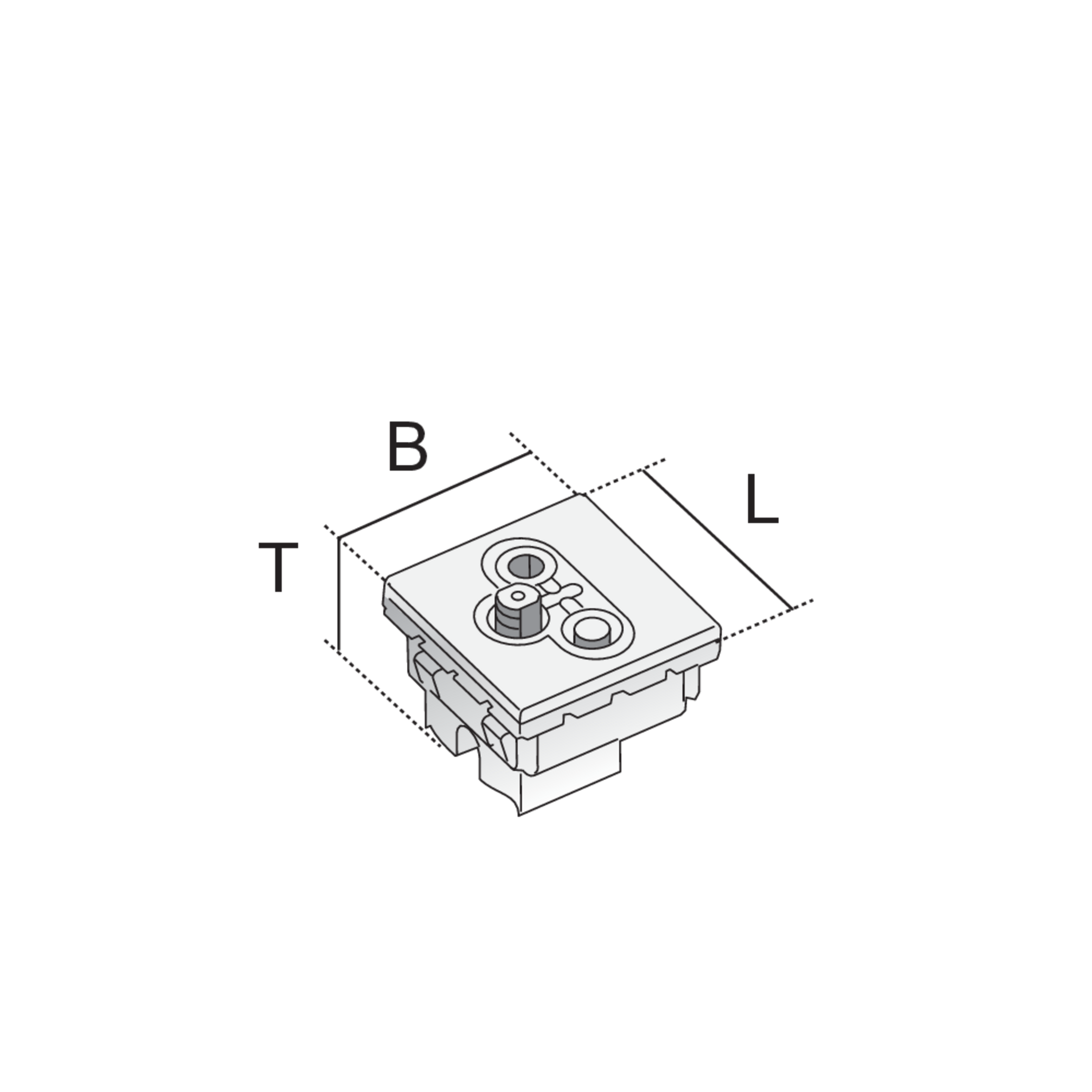

B

L

colour

W

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Elektro- und Elektronikgeräte – Informationen von Herstellern für gewerbliche Nutzer

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Assembly instruction for device installation cups and installation devices

    Montageanleitung

    PDF, 562 KB

    de en

  • Technical Information Device Sockets and Installation Devices

    Technische Information

    PDF, 14 MB

    de en

Included accessories
