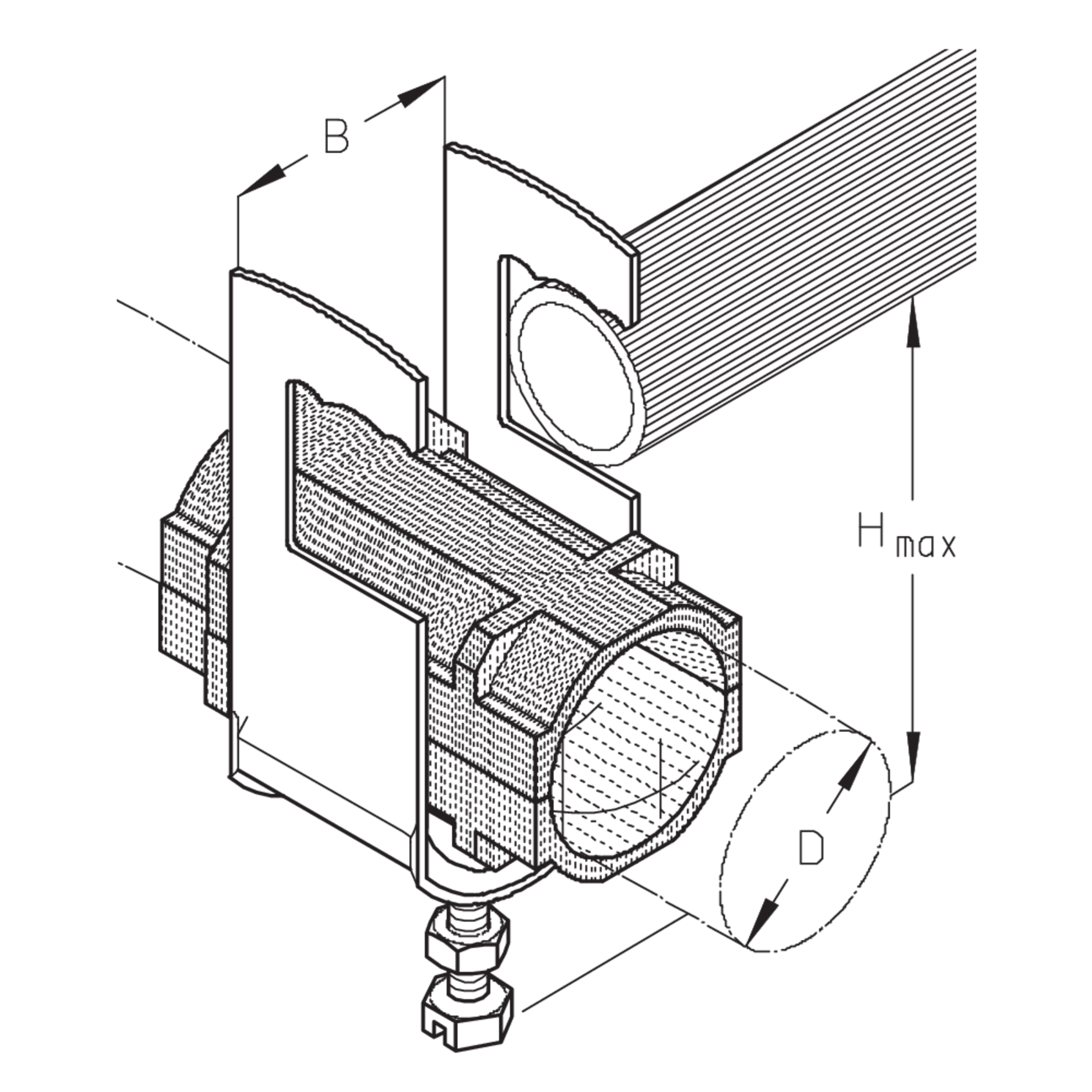

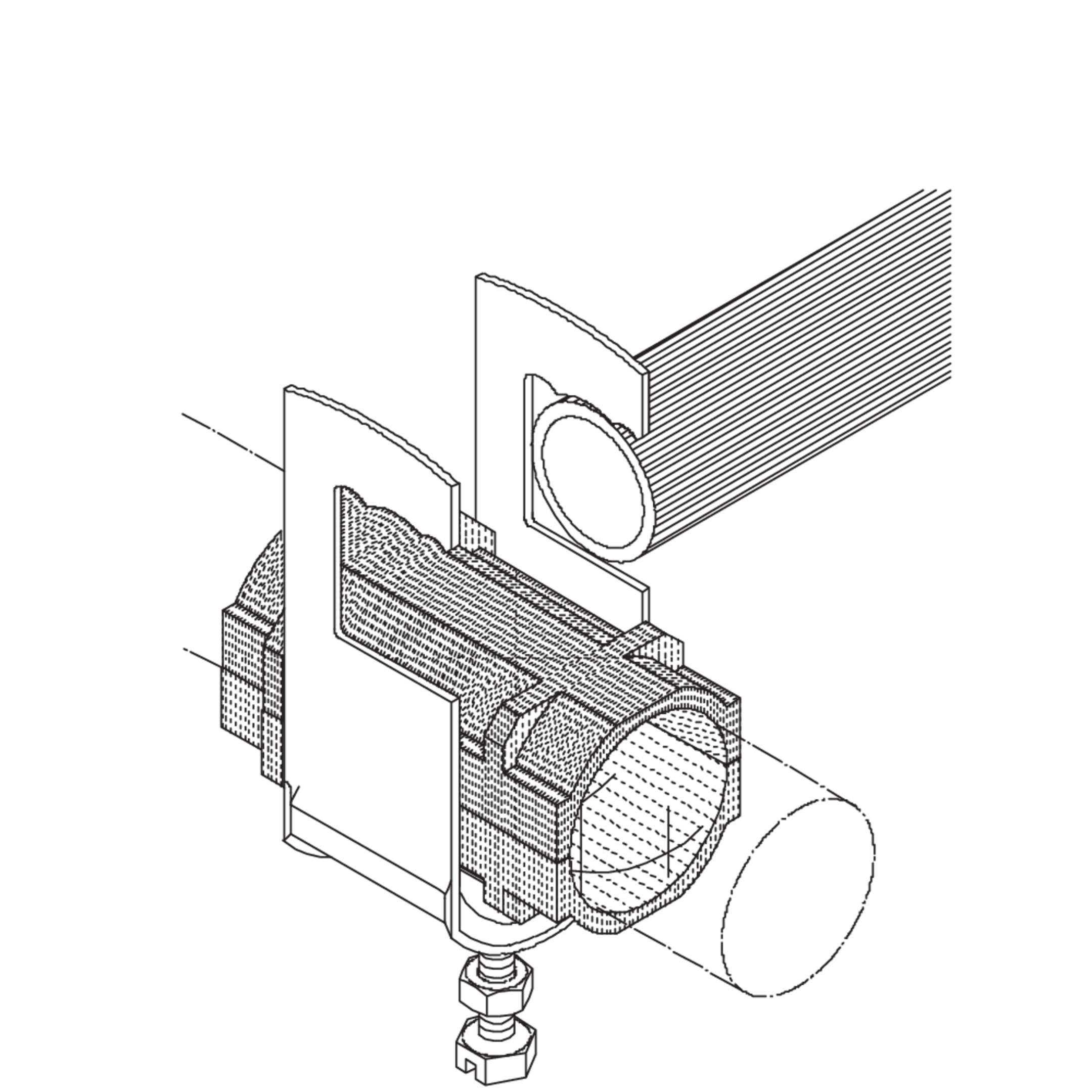

Cable clamp for fastening to round and flat profiles

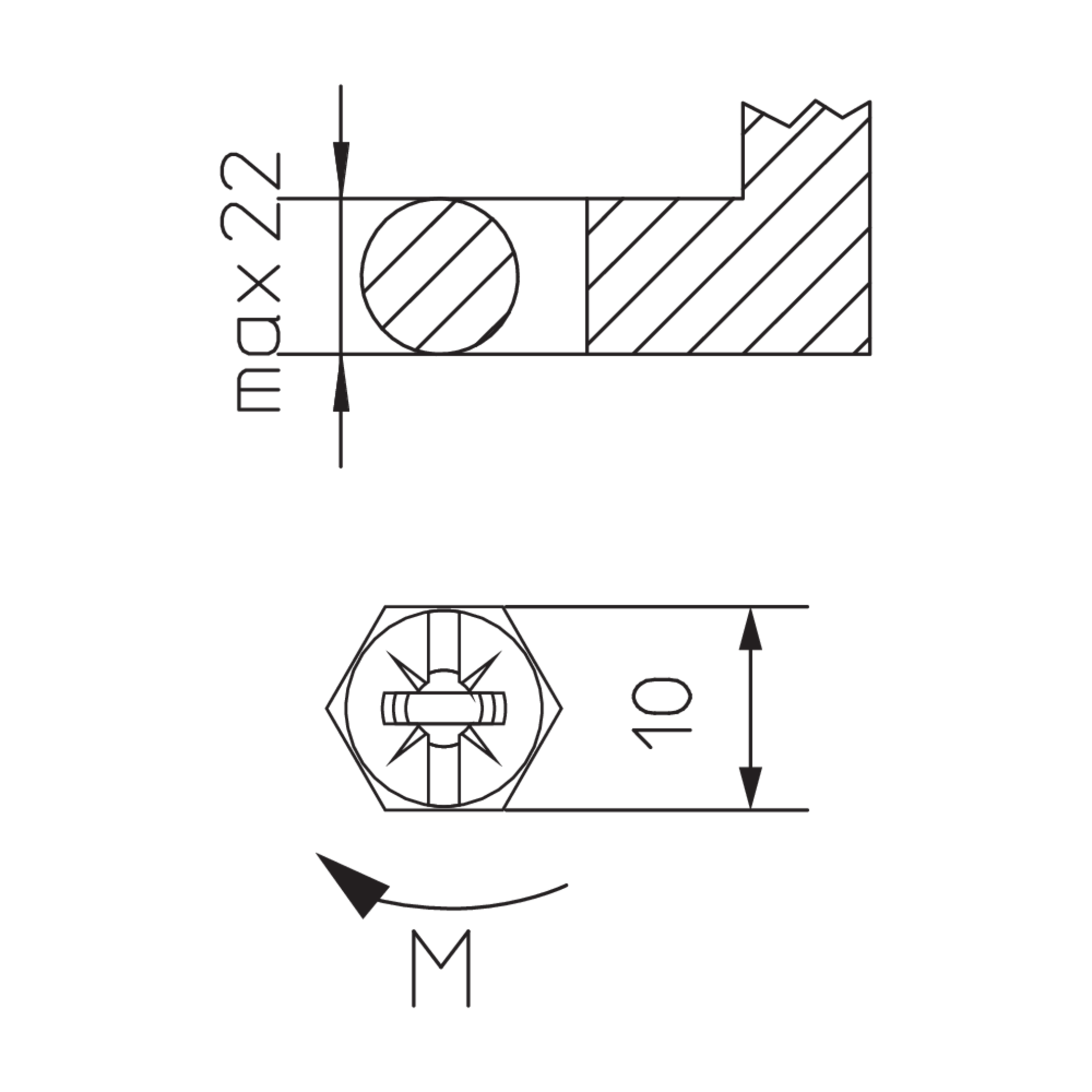

The HF cable clamp RU-HW with full-surface pressure trough made of galvanised steel and plastic half troughs made of polystyrene can route fibre-optic/high-frequency cables with a maximum diameter of 1 5/8 inches. It is suitable for fastening to round and flat profiles made from material max. 22 mm thick. We provide components in various materials and surface finishes to ensure that various requirements for different areas of application are met.

Get in touch Download datasheet

Variants

steel, zinc plated

20 RU-HW
HF cable clamp 20 RU-HW
maximum height
53 mm
width
20 mm
clamping range
17 mm
diameter
1/2 inch
max. number of cables
1
Weight per storage unit
0.053 kg
More information
32 RU-HW
HF cable clamp 32 RU-HW
maximum height
68 mm
width
32 mm
clamping range
29 mm
diameter
7/8 inch
max. number of cables
1
Weight per storage unit
0.102 kg
More information
44 RU-HW
HF cable clamp 44 RU-HW
maximum height
83 mm
width
44 mm
clamping range
39 mm
diameter
1 1/4 inch
max. number of cables
1
Weight per storage unit
0.141 kg
More information
56 RU-HW
HF cable clamp 56 RU-HW
maximum height
106 mm
width
56 mm
clamping range
51 mm
diameter
1 5/8 inch
max. number of cables
1
Weight per storage unit
0.181 kg
More information
20/2 RU-HW
HF cable clamp 20/2 RU-HW
maximum height
73 mm
width
20 mm
clamping range
17 mm
diameter
1/2 inch
max. number of cables
2
Weight per storage unit
0.079 kg
More information
32/2 RU-HW
HF cable clamp 32/2 RU-HW
maximum height
102 mm
width
32 mm
clamping range
29 mm
diameter
7/8 inch
max. number of cables
2
Weight per storage unit
0.157 kg
More information
44/2 RU-HW
HF cable clamp 44/2 RU-HW
maximum height
129 mm
width
44 mm
clamping range
39 mm
diameter
1 1/4 inch
max. number of cables
2
Weight per storage unit
0.223 kg
More information
56/2 RU-HW
HF cable clamp 56/2 RU-HW
maximum height
164 mm
width
56 mm
clamping range
51 mm
diameter
1 5/8 inch
max. number of cables
2
Weight per storage unit
0.283 kg
More information
20/3 RU-HW
HF cable clamp 20/3 RU-HW
maximum height
93 mm
width
20 mm
clamping range
17 mm
diameter
1/2 inch
max. number of cables
3
Weight per storage unit
0.100 kg
More information
32/3 RU-HW
HF cable clamp 32/3 RU-HW
maximum height
136 mm
width
32 mm
clamping range
29 mm
diameter
7/8 inch
max. number of cables
3
Weight per storage unit
0.213 kg
More information
44/3 RU-HW
HF cable clamp 44/3 RU-HW
maximum height
176 mm
width
44 mm
clamping range
39 mm
diameter
1 1/4 inch
max. number of cables
3
Weight per storage unit
0.314 kg
More information

Stainless steel, acc. to AISI 304 (BS 304S31)

20 RU-HW-E
HF cable clamp 20 RU-HW-VA
maximum height
53 mm
width
20 mm
clamping range
17 mm
diameter
1/2 inch
max. number of cables
1
Weight per storage unit
0.008 kg
More information
32 RU-HW-E
HF cable clamp 32 RU-HW-VA
maximum height
68 mm
width
32 mm
clamping range
29 mm
diameter
7/8 inch
max. number of cables
1
Weight per storage unit
0.103 kg
More information
44 RU-HW-E
HF cable clamp 44 RU-HW-VA
maximum height
83 mm
width
44 mm
clamping range
39 mm
diameter
1 1/4 inch
max. number of cables
1
Weight per storage unit
0.141 kg
More information
56 RU-HW-E
HF cable clamp 56 RU-HW-VA
maximum height
106 mm
width
56 mm
clamping range
51 mm
diameter
1 5/8 inch
max. number of cables
1
Weight per storage unit
0.182 kg
More information
20/2 RU-HW-E
HF cable clamp 20/2 RU-HW-VA
maximum height
73 mm
width
20 mm
clamping range
17 mm
diameter
1/2 inch
max. number of cables
2
Weight per storage unit
0.076 kg
More information
32/2 RU-HW-E
HF cable clamp 32/2 RU-HW-VA
maximum height
102 mm
width
32 mm
clamping range
29 mm
diameter
7/8 inch
max. number of cables
2
Weight per storage unit
0.155 kg
More information
44/2 RU-HW-E
HF cable clamp 44/2 RU-HW-VA
maximum height
129 mm
width
44 mm
clamping range
39 mm
diameter
1 1/4 inch
max. number of cables
2
Weight per storage unit
0.215 kg
More information
56/2 RU-HW-E
HF cable clamp 56/2 RU-HW-VA
maximum height
164 mm
width
56 mm
clamping range
51 mm
diameter
1 5/8 inch
max. number of cables
2
Weight per storage unit
0.287 kg
More information
20/3 RU-HW-E
HF cable clamp 20/3 RU-HW-VA
maximum height
93 mm
width
20 mm
clamping range
17 mm
diameter
1/2 inch
max. number of cables
3
Weight per storage unit
0.000 kg
More information
32/3 RU-HW-E
HF cable clamp 32/3 RU-HW-VA
maximum height
136 mm
width
32 mm
clamping range
29 mm
diameter
7/8 inch
max. number of cables
3
Weight per storage unit
0.208 kg
More information
44/3 RU-HW-E
HF cable clamp 44/3 RU-HW-VA
maximum height
176 mm
width
44 mm
clamping range
39 mm
diameter
1 1/4 inch
max. number of cables
3
Weight per storage unit
0.297 kg
More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link

Heinze.de

Tender texts for this product

Open Link

Downloads

**Price list 2025 Building extension**
Valid from February 1st, 2025, updated version from 31/03/2025.
de
en

**EC Declaration of Conformity Cable clamps**
Installation equipment for electric cables and circuits
de
en

**3335-772-11-3 - Expert statement**
DIN 4102-12
Standardised supporting structure: Cable clamps
Fire resistance duration: F30; F60; F90
Functional maintenance classes: E30; E60; F90
Fastening distance: ≤ 0.3 m; ≤ 0.4 m
Period of validity: 06.07.2027
PDF, 834.47 KB
