RG 60

Cable tray, perforated for escape route installation

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

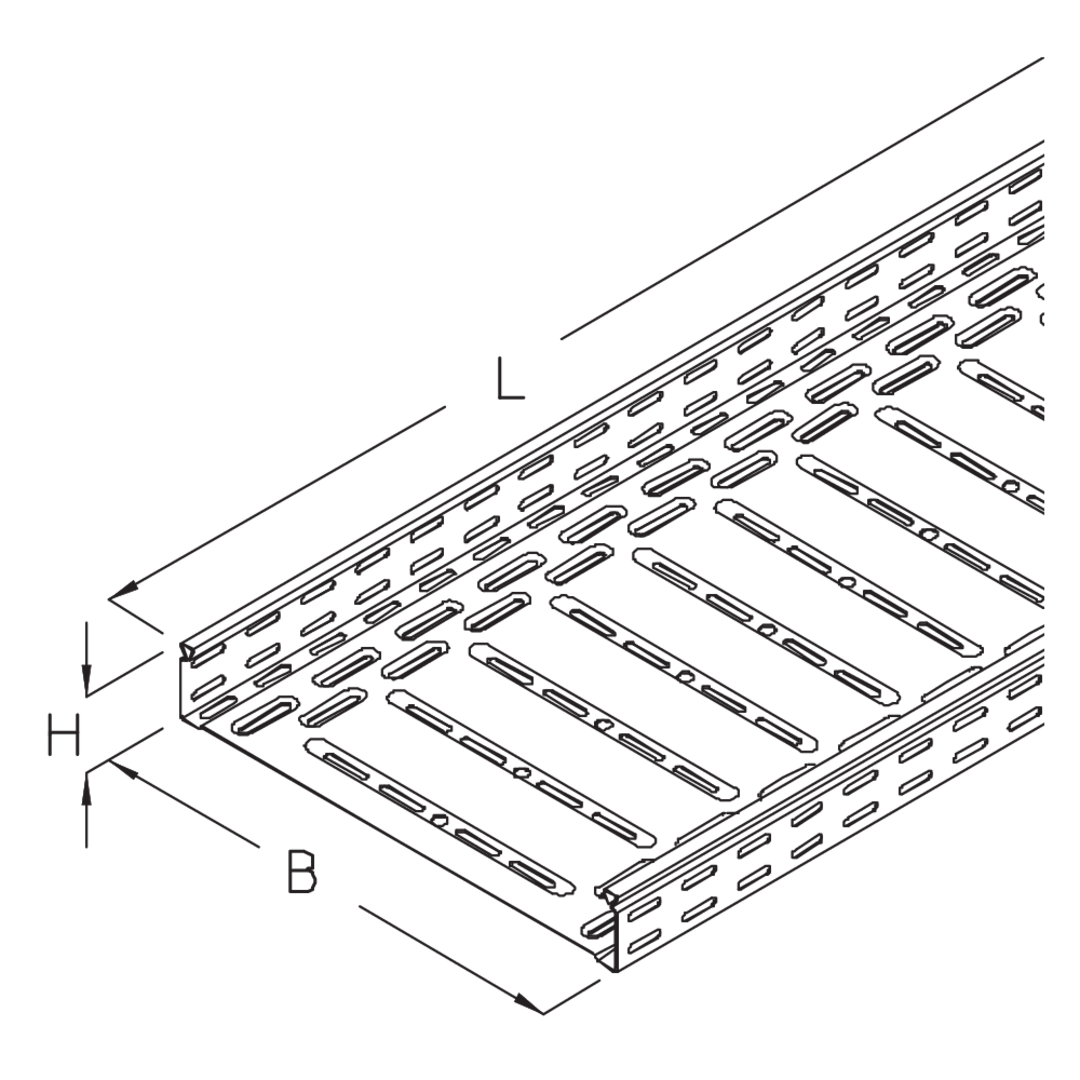

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

  • RG 60-10S
    Cable tray
    height
    60 mm
    width
    100 mm
    length
    3000 mm
    material thickness
    0.75 mm
    distributed load control cable
    0.09 kN/m
    cross section area
    57 cm2
    Weight per storage unit
    4.300 kg
    More information
  • RG 60-20S
    Cable tray
    height
    60 mm
    width
    200 mm
    length
    3000 mm
    material thickness
    0.75 mm
    distributed load control cable
    0.17 kN/m
    cross section area
    117 cm2
    Weight per storage unit
    5.800 kg
    More information
  • RG 60-30S
    Cable tray
    height
    60 mm
    width
    300 mm
    length
    3000 mm
    material thickness
    0.75 mm
    distributed load control cable
    0.26 kN/m
    cross section area
    177 cm2
    Weight per storage unit
    7.400 kg
    More information
  • RG 60-40S
    Cable tray
    height
    60 mm
    width
    400 mm
    length
    3000 mm
    material thickness
    0.88 mm
    distributed load control cable
    0.34 kN/m
    cross section area
    237 cm2
    Weight per storage unit
    10.600 kg
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    • de

    • en

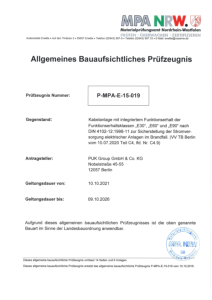

    P-MPA-E-15-019 - KDU57 - Functional maintenance certificate

    General building authority test certificate
    DIN 4102-12
    Cable manufacturers: Dätwyler, Eupen, Leoni Studer, Prysmian, Nexans
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: ≤ 20 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Period of validity: 09.10.2026

    PDF, 10.27 MB

    • de

    Download

    P-MPA-E-14-010 - KDU57/KDU 60 - Functional maintenance certificate

    General building authority test certificate
    DIN 4102-12
    Cable manufacturer: Kabelwerke Eupen AG
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: 20 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Period of validity: 23/07/2029

    PDF, 4.94 MB

    • de

    Download

    P-MPA-E-16-013 - KDU57/KDU 60 - Functional maintenance certificate

    General building authority test certificate
    DIN 4102-12
    Cable manufacturer: Studer Cables AG
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: 20 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Period of validity: 30.08.2027

    PDF, 7.84 MB

    • de

    Download

    MPABS-2402543 - Fire protection statement

    DIN 4102-12
    Standardised supporting structure: Cable trays
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: ≤ 10 kg/m
    Fastening distance: ≤ 1.2 m
    Period of validity: 15.01.2030

    PDF, 11.03 MB

    • de

    Download
