LGG 100

Cable ladder, L profile, height = 100 mm

The perforated and welded cable ladders LGG 100 have rails 100 mm high and are available in widths of 200 to 600 mm and in lengths of 3000 and 6000 mm. The rungs consist of profile rails (30 x 15 mm). We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

No stepping
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

QLK

Line load power cable

A

cross section area

G

Weight per storage unit

  • LGG 100-20-3S
    Cable ladder LGG 100-20-3S
    height
    100 mm
    width
    200 mm
    length
    3000 mm
    Line load power cable
    0.45 kN/m
    cross section area
    161 cm2
    Weight per storage unit
    10.340 kg
    More information
  • LGG 100-30-3S
    Cable ladder LGG 100-30-3S
    height
    100 mm
    width
    300 mm
    length
    3000 mm
    Line load power cable
    0.68 kN/m
    cross section area
    242 cm2
    Weight per storage unit
    11.030 kg
    More information
  • LGG 100-40-3S
    Cable ladder LGG 100-40-3S
    height
    100 mm
    width
    400 mm
    length
    3000 mm
    Line load power cable
    0.9 kN/m
    cross section area
    322 cm2
    Weight per storage unit
    11.720 kg
    More information
  • LGG 100-50-3S
    Cable ladder LGG 100-50-3S
    height
    100 mm
    width
    500 mm
    length
    3000 mm
    Line load power cable
    1.13 kN/m
    cross section area
    403 cm2
    Weight per storage unit
    12.400 kg
    More information
  • LGG 100-60-3S
    Cable ladder LGG 100-60-3S
    height
    100 mm
    width
    600 mm
    length
    3000 mm
    Line load power cable
    1.35 kN/m
    cross section area
    483 cm2
    Weight per storage unit
    13.090 kg
    More information
  • LGG 100-20S
    Cable ladder
    height
    100 mm
    width
    200 mm
    length
    6000 mm
    Line load power cable
    0.45 kN/m
    cross section area
    161 cm2
    Weight per storage unit
    20.680 kg
    More information
  • LGG 100-30S
    Cable ladder
    height
    100 mm
    width
    300 mm
    length
    6000 mm
    Line load power cable
    0.68 kN/m
    cross section area
    242 cm2
    Weight per storage unit
    22.060 kg
    More information
  • LGG 100-40S
    Cable ladder
    height
    100 mm
    width
    400 mm
    length
    6000 mm
    Line load power cable
    0.9 kN/m
    cross section area
    322 cm2
    Weight per storage unit
    23.440 kg
    More information
  • LGG 100-50S
    Cable ladder
    height
    100 mm
    width
    500 mm
    length
    6000 mm
    Line load power cable
    1.13 kN/m
    cross section area
    403 cm2
    Weight per storage unit
    24.800 kg
    More information
  • LGG 100-60S
    Cable ladder
    height
    100 mm
    width
    600 mm
    length
    6000 mm
    Line load power cable
    1.35 kN/m
    cross section area
    483 cm2
    Weight per storage unit
    26.180 kg
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

QLK

Line load power cable

A

cross section area

G

Weight per storage unit

  • LGG 100-20-3F
    cable ladder LGG 100-20-3F
    height
    100 mm
    width
    200 mm
    length
    3000 mm
    Line load power cable
    0.45 kN/m
    cross section area
    161 cm2
    Weight per storage unit
    10.060 kg
    More information
  • LGG 100-30-3F
    cable ladder LGG 100-30-3F
    height
    100 mm
    width
    300 mm
    length
    3000 mm
    Line load power cable
    0.68 kN/m
    cross section area
    242 cm2
    Weight per storage unit
    11.800 kg
    More information
  • LGG 100-40-3F
    cable ladder LGG 100-40-3F
    height
    100 mm
    width
    400 mm
    length
    3000 mm
    Line load power cable
    0.9 kN/m
    cross section area
    322 cm2
    Weight per storage unit
    12.540 kg
    More information
  • LGG 100-50-3F
    cable ladder LGG 100-50-3F
    height
    100 mm
    width
    500 mm
    length
    3000 mm
    Line load power cable
    1.13 kN/m
    cross section area
    403 cm2
    Weight per storage unit
    13.270 kg
    More information
  • LGG 100-60-3F
    Cable Ladder LGG 100-60-3F
    height
    100 mm
    width
    600 mm
    length
    3000 mm
    Line load power cable
    1.35 kN/m
    cross section area
    483 cm2
    Weight per storage unit
    14.010 kg
    More information
  • LGG 100-20F
    cable ladder LGG 100-20F
    height
    100 mm
    width
    200 mm
    length
    6000 mm
    Line load power cable
    0.45 kN/m
    cross section area
    161 cm2
    Weight per storage unit
    22.130 kg
    More information
  • LGG 100-30F
    cable ladder LGG 100-30F
    height
    100 mm
    width
    300 mm
    length
    6000 mm
    Line load power cable
    0.68 kN/m
    cross section area
    242 cm2
    Weight per storage unit
    23.600 kg
    More information
  • LGG 100-40F
    Cable ladder LGG 100-40F
    height
    100 mm
    width
    400 mm
    length
    6000 mm
    Line load power cable
    0.9 kN/m
    cross section area
    322 cm2
    Weight per storage unit
    25.080 kg
    More information
  • LGG 100-50F
    cable ladder LGG 100-50F
    height
    100 mm
    width
    500 mm
    length
    6000 mm
    Line load power cable
    1.13 kN/m
    cross section area
    403 cm2
    Weight per storage unit
    26.540 kg
    More information
  • LGG 100-60F
    cable ladder LGG 100-60F
    height
    100 mm
    width
    600 mm
    length
    6000 mm
    Line load power cable
    1.35 kN/m
    cross section area
    483 cm2
    Weight per storage unit
    28.010 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

QLK

Line load power cable

A

cross section area

G

Weight per storage unit

  • LGG 100-20-3E
    cable ladder LGG 100-20-3E
    height
    100 mm
    width
    200 mm
    length
    3000 mm
    Line load power cable
    0.45 kN/m
    cross section area
    161 cm2
    Weight per storage unit
    10.299 kg
    More information
  • LGG 100-30-3E
    cable ladder LGG 100-30-3E
    height
    100 mm
    width
    300 mm
    length
    3000 mm
    Line load power cable
    0.68 kN/m
    cross section area
    242 cm2
    Weight per storage unit
    10.994 kg
    More information
  • LGG 100-40-3E
    cable ladder LGG 100-40-3E
    height
    100 mm
    width
    400 mm
    length
    3000 mm
    Line load power cable
    0.9 kN/m
    cross section area
    322 cm2
    Weight per storage unit
    11.679 kg
    More information
  • LGG 100-50-3E
    cable ladder LGG 100-50-3E
    height
    100 mm
    width
    500 mm
    length
    3000 mm
    Line load power cable
    1.13 kN/m
    cross section area
    403 cm2
    Weight per storage unit
    12.379 kg
    More information
  • LGG 100-60-3E
    cable ladder LGG 100-60-3E
    height
    100 mm
    width
    600 mm
    length
    3000 mm
    Line load power cable
    1.35 kN/m
    cross section area
    483 cm2
    Weight per storage unit
    13.034 kg
    More information
  • LGG 100-20E
    Cable ladder LGG 100-20E
    height
    100 mm
    width
    200 mm
    length
    6000 mm
    Line load power cable
    0.45 kN/m
    cross section area
    161 cm2
    Weight per storage unit
    20.880 kg
    More information
  • LGG 100-30E
    Cable ladder LGG 100-30E
    height
    100 mm
    width
    300 mm
    length
    6000 mm
    Line load power cable
    0.68 kN/m
    cross section area
    242 cm2
    Weight per storage unit
    22.260 kg
    More information
  • LGG 100-40E
    Cable ladder LGG 100-40E
    height
    100 mm
    width
    400 mm
    length
    6000 mm
    Line load power cable
    0.9 kN/m
    cross section area
    322 cm2
    Weight per storage unit
    23.640 kg
    More information
  • LGG 100-50E
    Cable ladder LGG 100-50E
    height
    100 mm
    width
    500 mm
    length
    6000 mm
    Line load power cable
    1.13 kN/m
    cross section area
    403 cm2
    Weight per storage unit
    25.030 kg
    More information
  • LGG 100-60E
    Cable ladder LGG 100-60E
    height
    100 mm
    width
    600 mm
    length
    6000 mm
    Line load power cable
    1.35 kN/m
    cross section area
    483 cm2
    Weight per storage unit
    26.410 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

QLK

Line load power cable

A

cross section area

G

Weight per storage unit

  • LGG 100-20-3E4
    cable ladder LGG 100-20-3E
    height
    100 mm
    width
    200 mm
    length
    3000 mm
    Line load power cable
    0.45 kN/m
    cross section area
    161 cm2
    Weight per storage unit
    10.299 kg
    More information
  • LGG 100-30-3E4
    cable ladder
    height
    100 mm
    width
    300 mm
    length
    3000 mm
    Line load power cable
    0.68 kN/m
    cross section area
    242 cm2
    Weight per storage unit
    10.994 kg
    More information
  • LGG 100-40-3E4
    cable ladder
    height
    100 mm
    width
    400 mm
    length
    3000 mm
    Line load power cable
    0.9 kN/m
    cross section area
    322 cm2
    Weight per storage unit
    11.679 kg
    More information
  • LGG 100-50-3E4
    cable ladder LGG 100-50-3E
    height
    100 mm
    width
    500 mm
    length
    3000 mm
    Line load power cable
    1.13 kN/m
    cross section area
    403 cm2
    Weight per storage unit
    12.379 kg
    More information
  • LGG 100-60-3E4
    cable ladder LGG 100-60-3E
    height
    100 mm
    width
    600 mm
    length
    3000 mm
    Line load power cable
    1.35 kN/m
    cross section area
    483 cm2
    Weight per storage unit
    13.034 kg
    More information
  • LGG 100-20E4
    Cable ladder
    height
    100 mm
    width
    200 mm
    length
    6000 mm
    Line load power cable
    0.45 kN/m
    cross section area
    161 cm2
    Weight per storage unit
    20.880 kg
    More information
  • LGG 100-30E4
    Cable ladder
    height
    100 mm
    width
    300 mm
    length
    6000 mm
    Line load power cable
    0.68 kN/m
    cross section area
    242 cm2
    Weight per storage unit
    22.280 kg
    More information
  • LGG 100-40E4
    Cable ladder LGG 100-40E
    height
    100 mm
    width
    400 mm
    length
    6000 mm
    Line load power cable
    0.9 kN/m
    cross section area
    322 cm2
    Weight per storage unit
    22.280 kg
    More information
  • LGG 100-50E4
    Cable ladder LGG 100-50E
    height
    100 mm
    width
    500 mm
    length
    6000 mm
    Line load power cable
    1.13 kN/m
    cross section area
    403 cm2
    Weight per storage unit
    25.030 kg
    More information
  • LGG 100-60E4
    Cable ladder LGG 100-60E
    height
    100 mm
    width
    600 mm
    length
    6000 mm
    Line load power cable
    1.35 kN/m
    cross section area
    483 cm2
    Weight per storage unit
    26.410 kg
    More information

Details

  • No stepping
  • Electr. conductivity checked according to DIN EN 61537

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Accessories

Downloads

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    • de

    • en

    Cable ladders - Assembly instructions

    Assembly Instructions

    • de

    • en

    Cable ladders - Technical information

    Technical information for LGG cable ladders

    • de

    • en

    Cable Ladder LGG, LGGS - Compact overview

    Compact overview of cable ladders and accessories: LGG, LGGS, LGTR, LGKAB, KLTL, LGIB, LGAB, LGA, LGVB, LGK, SL, LGV, LGBH, LGVHV, LGVV

    PDF, 1.51 MB

    • de

    Download

    Cable support systems - Complete catalogue

    Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.

    • de

    • en

    Electrical conductivity (LGG 60)

    Certificate, according to DIN EN 61537 Pkt. 11.1

    • de

    • en

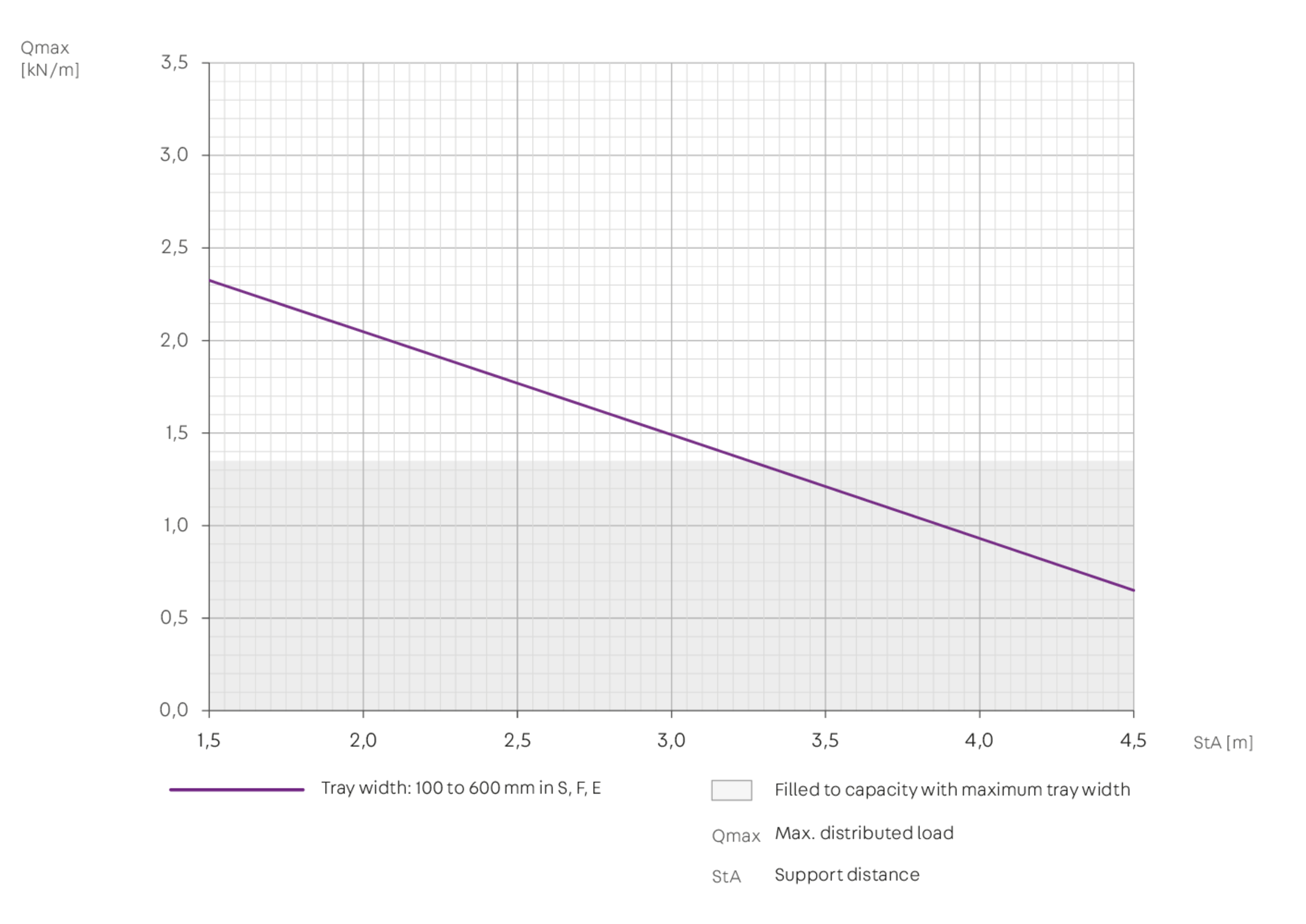

Load diagram

Included accessories

    Our finishing services

    Whether apartment blocks, office complexes or industrial plants: as your reliable partner for numerous applications and construction phases, we support you in every project with expert advice and support services. This allows you to concentrate fully on your core business.

    Consulting, planning, design

    Installation services

    Individualised solutions
