JXA PC W 53/34

Anchor channel, hot-rolled, toothed, ribbed anchor with large undercut profile

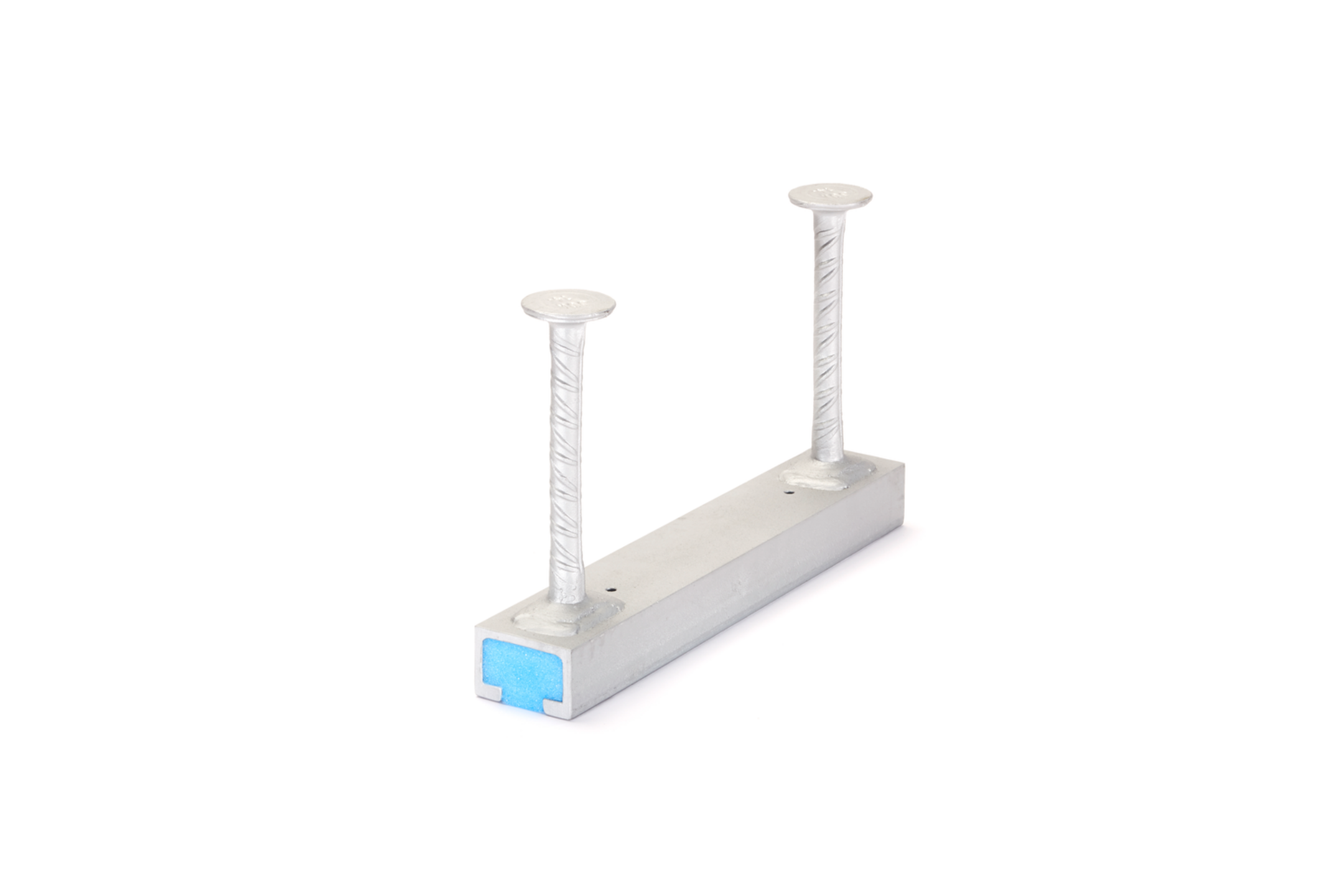

The anchor channel JXA PC W 53/34 is made of hot-dip galvanised steel (fv) or stainless steel (A4). The material is 4 mm thick and it can be supplied in any desired length up to a maximum of 6 m. It is paired with the bolts JXB M16 - JXB M20. The profile is 53 mm wide and 34 mm high. The filling is made of polyethylene (PE).

Brandschutz
Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

Article

H

HP

BP

L

t

W

  • JXAPCW5334-0150-FVK
    JORDAHL anchor channel toothed PC W53/34
    180 mm
    34 mm
    53 mm
    150 mm
    4 mm
    1.351 kg
    More information
  • JXAPCW5334-0200-FVK
    JORDAHL anchor channel toothed PC W53/34
    180 mm
    34 mm
    53 mm
    200 mm
    4 mm
    1.606 kg
    More information
  • JXAPCW5334-0250-FVK
    JORDAHL anchor channel toothed PC W53/34
    180 mm
    34 mm
    53 mm
    250 mm
    4 mm
    1.862 kg
    More information
  • JXAPCW5334-0300-FVK
    JORDAHL anchor channel toothed PC W53/34
    180 mm
    34 mm
    53 mm
    300 mm
    4 mm
    2.117 kg
    More information
  • JXAPCW5334-0350-FVK
    JORDAHL anchor channel toothed PC W53/34
    180 mm
    34 mm
    53 mm
    350 mm
    4 mm
    2.665 kg
    More information
  • JXAPCW5334-0400-FVK
    JORDAHL anchor channel toothed PC W53/34
    180 mm
    34 mm
    53 mm
    400 mm
    4 mm
    2.920 kg
    More information
  • JXAPCW5334-0550-FVK
    JORDAHL anchor channel toothed PC W53/34
    180 mm
    34 mm
    53 mm
    550 mm
    4 mm
    3.686 kg
    More information
  • JXAPCW5334-0800-FVK
    JORDAHL anchor channel toothed PC W53/34
    180 mm
    34 mm
    53 mm
    800 mm
    4 mm
    5.256 kg
    More information
  • JXAPCW5334-1050-FVK
    JORDAHL anchor channel toothed PC W53/34
    180 mm
    34 mm
    53 mm
    1050 mm
    4 mm
    6.825 kg
    More information
  • JXAPCW5334-3000-FVK
    JORDAHL anchor channel toothed PC W53/34
    180 mm
    34 mm
    53 mm
    3000 mm
    4 mm
    19.125 kg
    More information
  • JXAPCW5334-6000-FVK
    JORDAHL anchor channel toothed PC W53/34
    180 mm
    34 mm
    53 mm
    6000 mm
    4 mm
    6.326 kg
    More information

Details

  • Brandschutz

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
