JXA PC W 29/20

Anchor channel, hot-rolled, toothed, ribbed anchor with large undercut profile

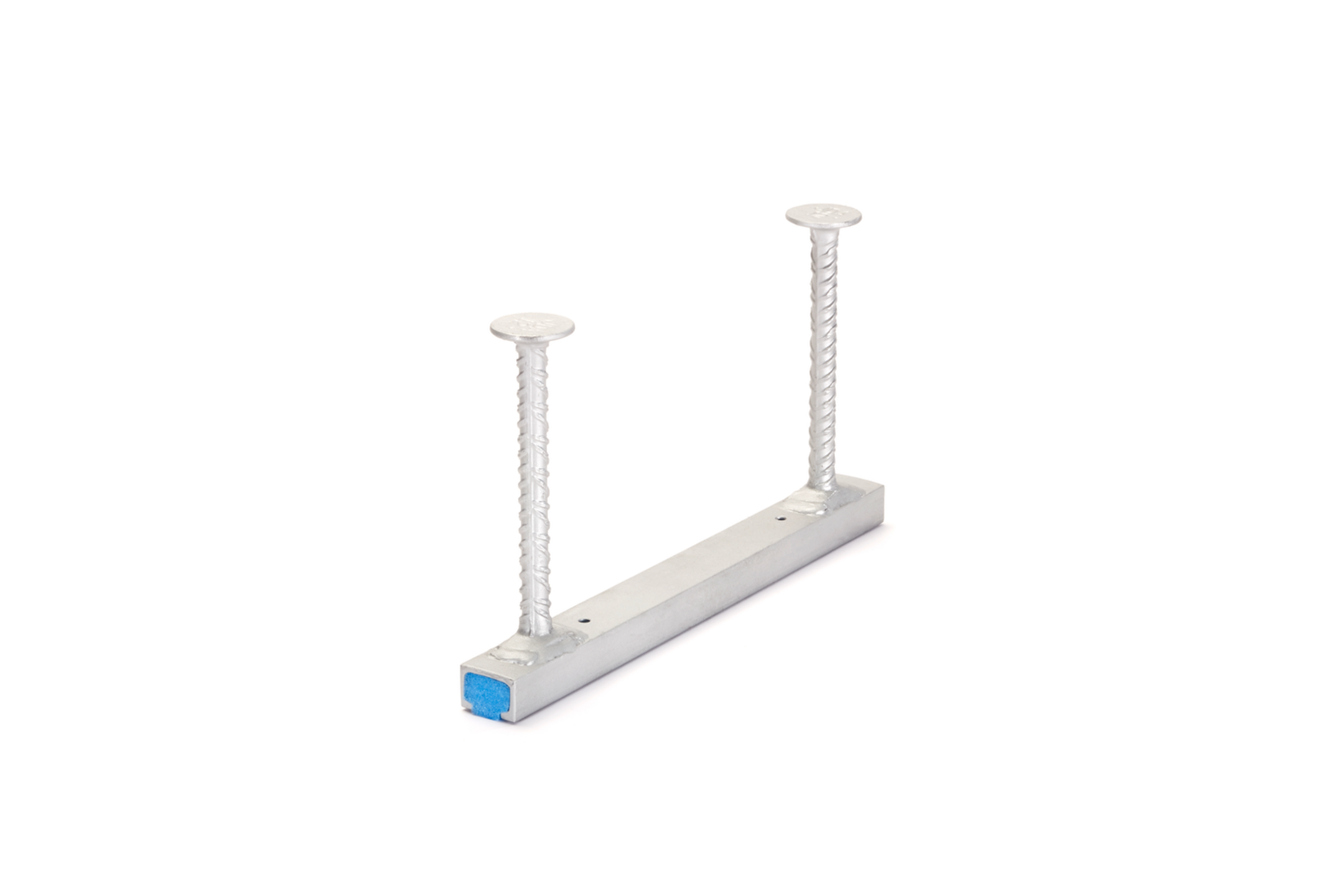

The anchor channel JXA PC W 29/20 is made of hot-dip galvanised steel (fv) or stainless steel (A4). The material is 2.5 mm thick and it can be supplied in any desired length up to a maximum of 6 m. It is paired with the bolts JXD M10 - JXD M12. The profile is 29 mm wide and 20 mm high. The filling is made of polyethylene (PE).

Brandschutz
Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

Article

H

installation height

HP

profile height

BP

profile width

L

length

t

Material strength

Anzahl der Anker

G

Weight per storage unit
  • JXAPCW2920-0150-FVK
    JORDAHL anchor channel toothed PC W29/20
    165 mm
    20 mm
    29 mm
    150 mm
    2.5 mm
    2 pcs
    0.653 kg
    More information
  • JXAPCW2920-0200-FVK
    JORDAHL anchor channel toothed PC W29/20
    165 mm
    20 mm
    29 mm
    200 mm
    2.5 mm
    2 pcs
    0.738 kg
    More information
  • JXAPCW2920-0250-FVK
    JORDAHL anchor channel toothed PC W29/20
    165 mm
    20 mm
    29 mm
    250 mm
    2.5 mm
    2 pcs
    0.823 kg
    More information
  • JXAPCW2920-0300-FVK
    JORDAHL anchor channel toothed PC W29/20
    165 mm
    20 mm
    29 mm
    300 mm
    2.5 mm
    3 pcs
    0.909 kg
    More information
  • JXAPCW2920-0350-FVK
    JORDAHL anchor channel toothed PC W29/20
    165 mm
    20 mm
    29 mm
    350 mm
    2.5 mm
    3 pcs
    1.193 kg
    More information
  • JXAPCW2920-0400-FVK
    JORDAHL anchor channel toothed PC W29/20
    165 mm
    20 mm
    29 mm
    400 mm
    2.5 mm
    3 pcs
    1.278 kg
    More information
  • JXAPCW2920-0550-FVK
    JORDAHL anchor channel toothed PC W29/20
    165 mm
    20 mm
    29 mm
    550 mm
    2.5 mm
    4 pcs
    1.533 kg
    More information
  • JXAPCW2920-0800-FVK
    JORDAHL anchor channel toothed PC W29/20
    165 mm
    20 mm
    29 mm
    800 mm
    2.5 mm
    5 pcs
    2.158 kg
    More information
  • JXAPCW2920-1050-FVK
    JORDAHL anchor channel toothed PC W29/20
    165 mm
    20 mm
    29 mm
    1050 mm
    2.5 mm
    6 pcs
    2.783 kg
    More information
  • JXAPCW2920-3000-FVK
    JORDAHL anchor channel toothed PC W29/20
    165 mm
    20 mm
    29 mm
    3000 mm
    2.5 mm
    16 pcs
    7.696 kg
    More information
  • JXAPCW2920-6000-FVK
    JORDAHL anchor channel toothed PC W29/20
    165 mm
    20 mm
    29 mm
    6000 mm
    2.5 mm
    31 pcs
    2.532 kg
    More information

Details

  • Brandschutz

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • Anchor Channels for new buildings

    Compact overview

    PDF, 797 KB

    de en

  • CABR certificate anchor channels JTA, JZA and JXA

    Zertifikat

    PDF, 6 MB

    en
    Download
  • EXPERT Software Anchor channels

    EXPERT Software Anchor channels

    ZIP, 186 MB

    de en

  • Installation instructions Anchor Channels JTA

    Montageanleitung

    PDF, 1 MB

    de en

  • Processing note cutting of anchor channels JTA and JXA

    Erklärung

    PDF, 90 KB

    de en

  • EPD Environmental Product Declaration Channel Systems

    Erklärung

    PDF, 2 MB

    de en

  • Declaration of Performance Anchor Channels JTA, JZA, JXA und JXA-PC

    Erklärung

    PDF, 28 KB

    de en

  • ETA 09/0338 Anchor Channels JTA, JZA, JXA and JXA-PC

    Zulassung

    PDF, 2 MB

    de en

  • Technical information Channels and Accessories

    Technical information

    PDF, 14 MB

    de en

BIM- and CAD-Data

  • BIM Data Toothed Anchor Channels JXA-PC

    BIM Data Toothed Anchor Channels JXA-PC

    ZIP, 821 KB

    de en
  • CAD Details Toothed Anchor Channels JXA-PC

    CAD Details Toothed Anchor Channels JXA-PC

    ZIP, 515 KB

    de en

Included accessories
