JTA W 55/42

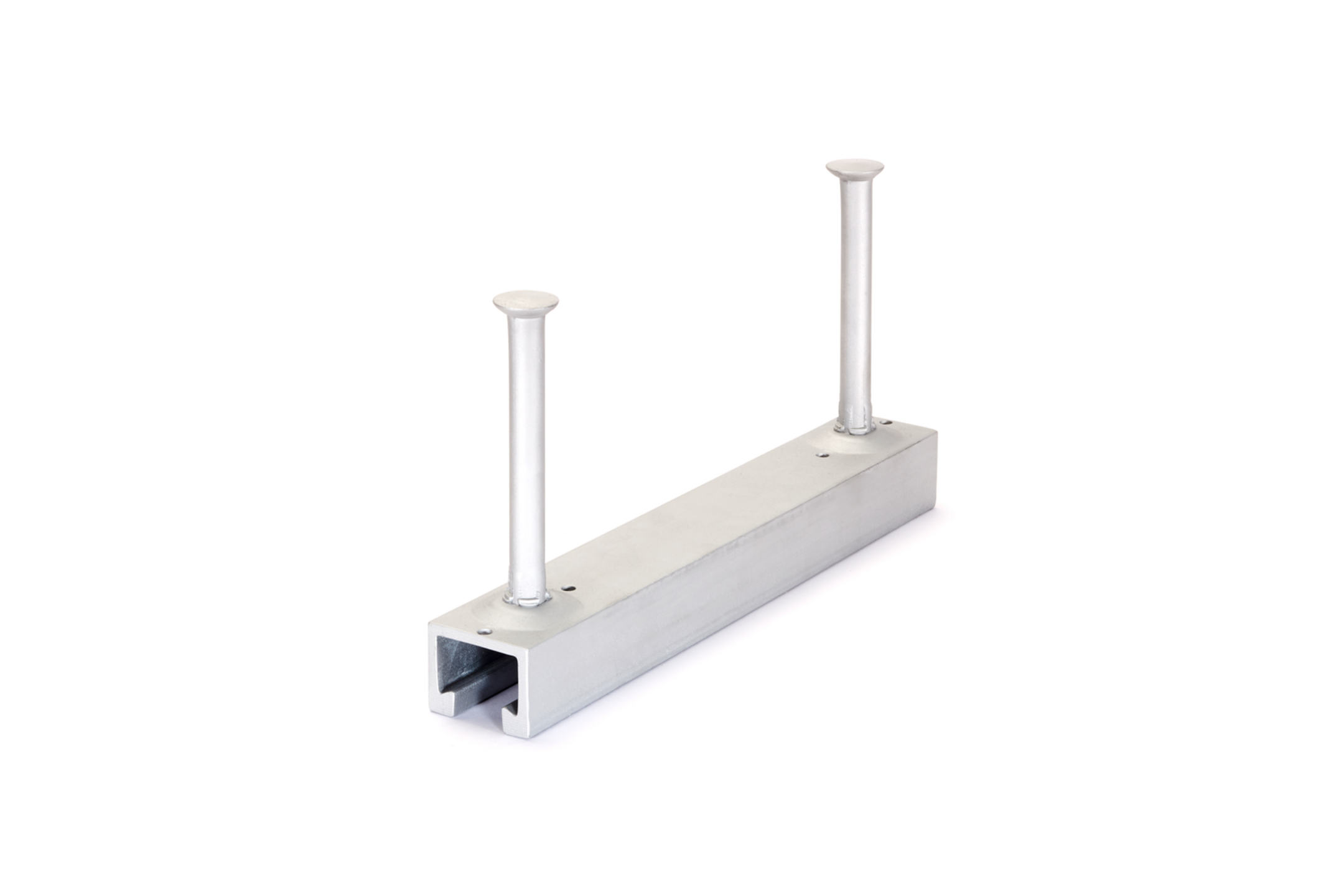

Anchor channel, hot-rolled, with round or I anchor

The anchor channel JTA W 55/42 is approved throughout Europe by ETA-09/0338 and almost worldwide by ICC-ES ESR‐2854. It also has environmental product declaration EPD-JDL-20200260-IBB1-DE. It is made of hot-dip galvanised steel (fv) or stainless steel (A4). It can be supplied in any desired length up to a maximum of 6 m and is paired with the bolts JB M16 - JB M24. The profile is 55 mm wide and 42 mm high. The filling is made of polyethylene (PE).

Fire protection
Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
European Technical Assessment: ETA-09/0338
Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

Article

H

installation height

HP

profile height

BP

profile width

L

length

t

Material strength

Number of anchors

G

Weight per storage unit
  • JTAW5542-0150-FVKCE
    JORDAHL anchor channel W55/42
    installation height
    190 mm
    profile height
    42 mm
    profile width
    55 mm
    length
    150 mm
    Material strength
    5 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    1.705 kg
    More information
  • JTAW5542-0200-FVKCE
    JORDAHL anchor channel W55/42
    installation height
    190 mm
    profile height
    42 mm
    profile width
    55 mm
    length
    200 mm
    Material strength
    5 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    2.077 kg
    More information
  • JTAW5542-0250-FVKCE
    JORDAHL anchor channel W55/42
    installation height
    190 mm
    profile height
    42 mm
    profile width
    55 mm
    length
    250 mm
    Material strength
    5 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    2.448 kg
    More information
  • JTAW5542-0300-FVKCE
    JORDAHL anchor channel W55/42
    installation height
    190 mm
    profile height
    42 mm
    profile width
    55 mm
    length
    300 mm
    Material strength
    5 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    2.820 kg
    More information
  • JTAW5542-0350-FVKCE
    JORDAHL anchor channel W55/42
    installation height
    190 mm
    profile height
    42 mm
    profile width
    55 mm
    length
    350 mm
    Material strength
    5 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    3.191 kg
    More information
  • JTAW5542-0400-FVKCE
    JORDAHL anchor channel W55/42
    installation height
    190 mm
    profile height
    42 mm
    profile width
    55 mm
    length
    400 mm
    Material strength
    5 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    3.859 kg
    More information
  • JTAW5542-0550-FVKCE
    JORDAHL anchor channel W55/42
    installation height
    190 mm
    profile height
    42 mm
    profile width
    55 mm
    length
    550 mm
    Material strength
    5 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    4.973 kg
    More information
  • JTAW5542-6000-FVKCE
    JORDAHL anchor channel W55/42
    installation height
    190 mm
    profile height
    42 mm
    profile width
    55 mm
    length
    6000 mm
    Material strength
    5 mm
    Number of anchors
    21 pcs
    Weight per storage unit
    8.466 kg
    More information

Details

  • Fire protection
  • Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
  • European Technical Assessment: ETA-09/0338
