JTA K 72/48

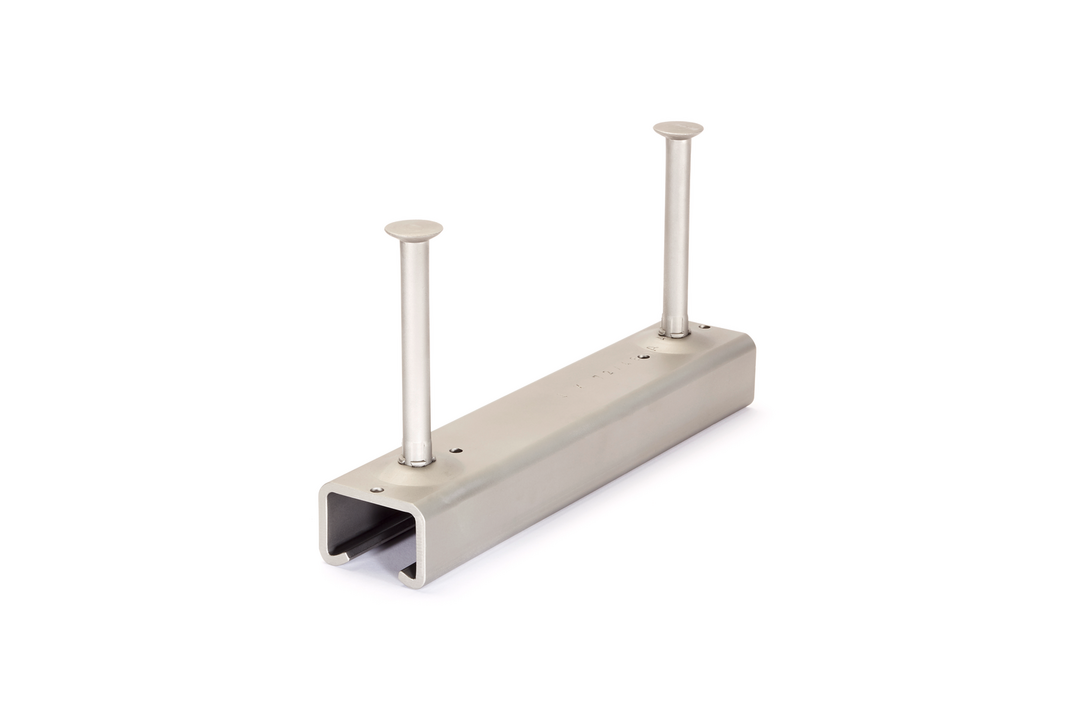

Anchor channel, cold-formed, with round or I anchor

The JTA K 72/48 anchor channel is approved throughout Europe by ETA-09/0338. It also has environmental product declaration EPD-JDL-20200260-IBB1-DE. It is made of hot-dip galvanised steel (fv) or stainless steel (A4). It can be supplied in any desired length up to a maximum of 6 m and is paired with the bolts JA M20 - JA M30. The profile is 72 mm wide and 48 mm high. The filling is made of polyethylene (PE).

Fire protection
Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
European Technical Assessment: ETA-09/0338

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

H

Einbauhöhe

HP

Profilhöhe

BP

Profilbreite

L

Länge

t

Materialstärke

Anzahl der Anker

G

Gewicht je Lagermengeneinheit

  • JTAK7248-0150-FVKCE
    JORDAHL Ankerschiene K72/48
    Einbauhöhe
    195 mm
    Profilhöhe
    48 mm
    Profilbreite
    72 mm
    Länge
    150 mm
    Materialstärke
    6 mm
    Anzahl der Anker
    2 Stk
    Gewicht je Lagermengeneinheit
    1.941 kg
  • JTAK7248-0200-FVKCE
    JORDAHL Ankerschiene K72/48
    Einbauhöhe
    195 mm
    Profilhöhe
    48 mm
    Profilbreite
    72 mm
    Länge
    200 mm
    Materialstärke
    6 mm
    Anzahl der Anker
    2 Stk
    Gewicht je Lagermengeneinheit
    2.387 kg
  • JTAK7248-0250-FVKCE
    JORDAHL Ankerschiene K72/48
    Einbauhöhe
    195 mm
    Profilhöhe
    48 mm
    Profilbreite
    72 mm
    Länge
    250 mm
    Materialstärke
    6 mm
    Anzahl der Anker
    2 Stk
    Gewicht je Lagermengeneinheit
    2.832 kg
  • JTAK7248-0300-FVKCE
    JORDAHL Ankerschiene K72/48
    Einbauhöhe
    195 mm
    Profilhöhe
    48 mm
    Profilbreite
    72 mm
    Länge
    300 mm
    Materialstärke
    6 mm
    Anzahl der Anker
    2 Stk
    Gewicht je Lagermengeneinheit
    3.278 kg
  • JTAK7248-0350-FVKCE
    JORDAHL Ankerschiene K72/48
    Einbauhöhe
    195 mm
    Profilhöhe
    48 mm
    Profilbreite
    72 mm
    Länge
    350 mm
    Materialstärke
    6 mm
    Anzahl der Anker
    2 Stk
    Gewicht je Lagermengeneinheit
    3.724 kg
  • JTAK7248-0400-FVKCE
    JORDAHL Ankerschiene K72/48
    Einbauhöhe
    195 mm
    Profilhöhe
    48 mm
    Profilbreite
    72 mm
    Länge
    400 mm
    Materialstärke
    6 mm
    Anzahl der Anker
    3 Stk
    Gewicht je Lagermengeneinheit
    4.472 kg
  • JTAK7248-0550-FVKCE
    JORDAHL Ankerschiene K72/48
    Einbauhöhe
    195 mm
    Profilhöhe
    48 mm
    Profilbreite
    72 mm
    Länge
    550 mm
    Materialstärke
    6 mm
    Anzahl der Anker
    3 Stk
    Gewicht je Lagermengeneinheit
    5.810 kg
  • JTAK7248-0800-FVKCE
    JORDAHL Ankerschiene K72/48
    Einbauhöhe
    195 mm
    Profilhöhe
    48 mm
    Profilbreite
    72 mm
    Länge
    800 mm
    Materialstärke
    6 mm
    Anzahl der Anker
    4 Stk
    Gewicht je Lagermengeneinheit
    8.341 kg
  • JTAK7248-1050-FVKCE
    JORDAHL Ankerschiene K72/48
    Einbauhöhe
    195 mm
    Profilhöhe
    48 mm
    Profilbreite
    72 mm
    Länge
    1050 mm
    Materialstärke
    6 mm
    Anzahl der Anker
    5 Stk
    Gewicht je Lagermengeneinheit
    10.872 kg
  • JTAK7248-6000-FVKCE
    JORDAHL Ankerschiene K72/48
    Einbauhöhe
    195 mm
    Profilhöhe
    48 mm
    Profilbreite
    72 mm
    Länge
    6000 mm
    Materialstärke
    6 mm
    Anzahl der Anker
    21 Stk
    Gewicht je Lagermengeneinheit
    9.974 kg

Edelstahl, Werkstoff Nr. 1.4571/1.4404 (V4A)

Article

H

Einbauhöhe

HP

Profilhöhe

BP

Profilbreite

L

Länge

t

Materialstärke

Anzahl der Anker

G

Gewicht je Lagermengeneinheit

  • JTAK7248-6000-A4KCE
    JORDAHL Ankerschiene K72/48
    Einbauhöhe
    195 mm
    Profilhöhe
    48 mm
    Profilbreite
    72 mm
    Länge
    6000 mm
    Materialstärke
    6 mm
    Anzahl der Anker
    21 Stk
    Gewicht je Lagermengeneinheit
    9.241 kg

Details

  • Fire protection
  • Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
  • European Technical Assessment: ETA-09/0338
  • Approved throughout Europe by ETA-09/0338
  • Environmental Product Declaration EPD-JDL-20200260-IBB1-DE
