Art.-Nr. JMK4826 FV-6000

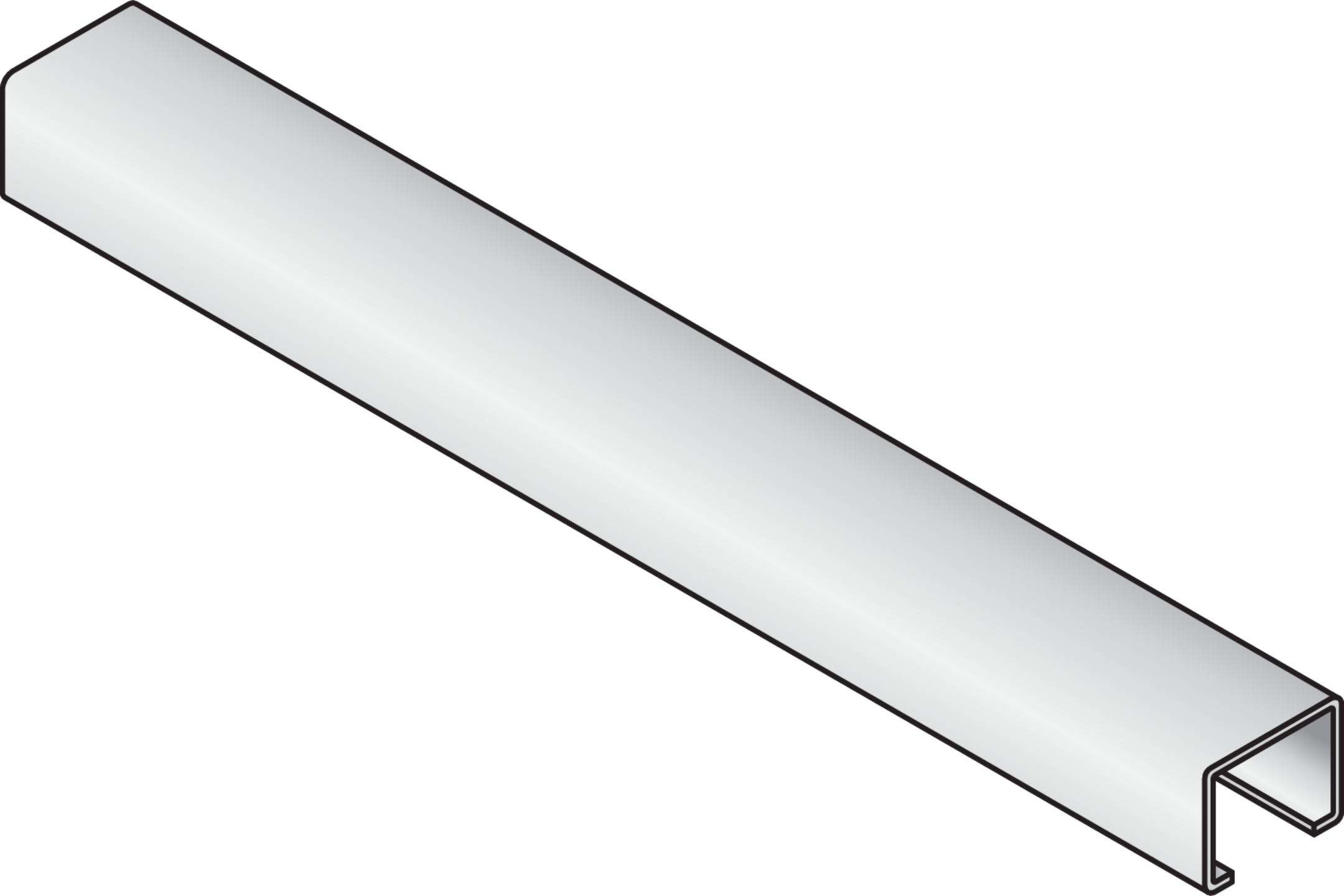

JORDAHL mounting channel K48/26

Mounting channels, cold-formed

The mounting channel JM K 48/26 has environmental product declaration EPD-JDL-20200260-IBB1-DE and is made of hot-dip galvanised steel (fv), stainless steel (A4) or rolled plain steel (wb). It has a static load-bearing capacity of the normal force (NRd) of 11.2 kN. The mounting channel is available in the standard length of 6000 mm and is paired with the bolts JB M10 - JB M20. The profile is 48 mm wide and 26 mm high.

Art.-Nr.
JMK4826 FV-6000
profile height
26 mm
profile width
48 mm
length
6000 mm
Material strength
2.5 mm
cross section area
2.866 cm2
Weight per storage unit
14.850 kg
Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
Get in touch Download datasheet

Variants

Stahl, blank

Article

HP

Profilhöhe

BP

Profilbreite

L

Länge

t

Materialstärke

A

Querschnittsfläche

G

Gewicht je Lagermengeneinheit
  • JMK4826 R-6000
    JORDAHL Montageschiene K48/26
    Profilhöhe
    26 mm
    Profilbreite
    48 mm
    Länge
    6000 mm
    Materialstärke
    2.5 mm
    Querschnittsfläche
    2.866 cm2
    Gewicht je Lagermengeneinheit
    13.500 kg
    More information

Stahl, stück-/tauchfeuerverzinkt

Article

HP

Profilhöhe

BP

Profilbreite

L

Länge

t

Materialstärke

A

Querschnittsfläche

G

Gewicht je Lagermengeneinheit
  • JMK4826 FV-6000
    JORDAHL Montageschiene K48/26
    Profilhöhe
    26 mm
    Profilbreite
    48 mm
    Länge
    6000 mm
    Materialstärke
    2.5 mm
    Querschnittsfläche
    2.866 cm2
    Gewicht je Lagermengeneinheit
    14.850 kg
    More information

Details

  • Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • Technical information Channels and Accessories

    Technical information

    PDF, 14 MB

    de en

  • Declaration of Performance Mounting Channels JM (Polish)

    Erklärung

    PDF, 26 KB

    de en

BIM- and CAD-Data

  • CAD Details Mounting Channels JM

    CAD Details Mounting Channels JM

    ZIP, 527 KB

    de en
  • BIM Data Mounting Channels JM

    BIM Data Mounting Channels JM

    ZIP, 267 KB

    de en

Included accessories
