Lift shaft sling
The JLS 25 lift shaft sling has CE marking in accordance with the Machinery Directive 2006/42/EC. The load-bearing components (threaded rod, anchor plate, cable sling and sleeve) are made of steel. The threaded rod with the cable sling, which is subsequently inserted into the concrete, ensures a secure and permanent connection in the lift shaft ceiling. Both are securely connected to each other by the pressed sleeve. The lift shaft sling is suitable for centric tensile loads and therefore for a diagonal tensile load of up to ± 12.5°. It has a load capacity of up to 25 kN, which is also indicated by the colour of the label and tag.
G
Weight per storage unit
Load capacity
M
Threaded rod diameter
L
Threaded rod length
h
Rope Sling Length
B
Plate width
t
Plate thickness

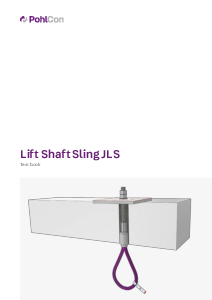

Test book
de
en
Declaration
de
en
Compact overview for Lift shaft sling JLS
de
en
Installation instructions
de
en
CAD data
de
en
Anzahl:
We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.
