JGB K 38/17 G

Railing fastening channel for secure fastening of railing posts

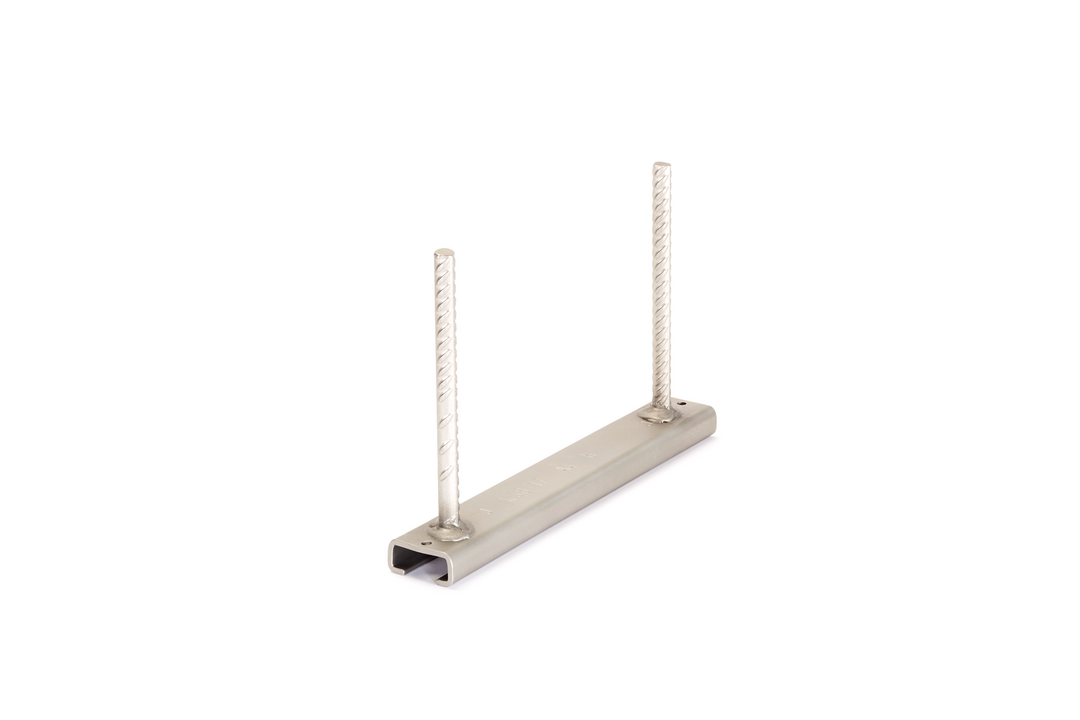

The railing fastening channel JGB K 38/17 G has general building authority approval and is made of hot-dip galvanised steel (fv) for indoor use or stainless steel (A4) for outdoor use. The railing fastening channel has a static load-bearing capacity of the normal force (NRd) of 10 kN and transverse force (VRd) of 10 kN. It is available in lengths of 100 to 250 mm and is paired with the bolts JH M12 - JH M16. The profile is 38 mm wide and 17 mm high. The filling is made of polyethylene (PE).

General building approval: Z-21.4-1913
Get in touch Download datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

HP

Profilhöhe

BP

Profilbreite

L

Länge

t

Materialstärke

Anzahl der Anker

G

Gewicht je Lagermengeneinheit
  • JGBK3817G FVK-0100
    JORDAHL Geländerbefestigung K38/17
    17 mm
    38 mm
    100 mm
    3 mm
    2 Stk
    0.391 kg
    More information
  • JGBK3817G FVK-0120
    JORDAHL Geländerbefestigung K38/17
    17 mm
    38 mm
    120 mm
    3 mm
    2 Stk
    0.431 kg
    More information
  • JGBK3817G FVK-0150
    JORDAHL Geländerbefestigung K38/17
    17 mm
    38 mm
    150 mm
    3 mm
    2 Stk
    0.490 kg
    More information
  • JGBK3817G FVK-0200
    JORDAHL Geländerbefestigung K38/17
    17 mm
    38 mm
    200 mm
    3 mm
    2 Stk
    0.590 kg
    More information
  • JGBK3817G FVK-0220
    JORDAHL Geländerbefestigung K38/17
    17 mm
    38 mm
    220 mm
    3 mm
    2 Stk
    0.726 kg
    More information
  • JGBK3817G FVK-0250
    JORDAHL Geländerbefestigung K38/17
    17 mm
    38 mm
    250 mm
    3 mm
    2 Stk
    0.785 kg
    More information

Edelstahl, Werkstoff Nr. 1.4571/1.4404 (V4A)

Article

HP

Profilhöhe

BP

Profilbreite

L

Länge

t

Materialstärke

Anzahl der Anker

G

Gewicht je Lagermengeneinheit
  • JGBK3817G A4K-0100
    JORDAHL Geländerbefestigung K38/17
    17 mm
    38 mm
    100 mm
    3 mm
    2 Stk
    0.359 kg
    More information
  • JGBK3817G A4K-0120
    JORDAHL Geländerbefestigung K38/17
    17 mm
    38 mm
    120 mm
    3 mm
    2 Stk
    0.396 kg
    More information
  • JGBK3817G A4K-0150
    JORDAHL Geländerbefestigung K38/17
    17 mm
    38 mm
    150 mm
    3 mm
    2 Stk
    0.451 kg
    More information
  • JGBK3817G A4K-0200
    JORDAHL Geländerbefestigung K38/17
    17 mm
    38 mm
    200 mm
    3 mm
    2 Stk
    0.543 kg
    More information
  • JGBK3817G A4K-0220
    JORDAHL Geländerbefestigung K38/17
    17 mm
    38 mm
    220 mm
    3 mm
    2 Stk
    0.667 kg
    More information
  • JGBK3817G A4K-0250
    JORDAHL Geländerbefestigung K38/17
    17 mm
    38 mm
    250 mm
    3 mm
    2 Stk
    0.723 kg
    More information

Details

  • General building approval: Z-21.4-1913

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • Technical information Channels and Accessories

    Technical information

    PDF, 14 MB

    de en

  • Installation Instruction Railing Attachment JGB

    Montageanleitung

    PDF, 2 MB

    de
    Download

  • General building approval Z-21.4-1913 Railing Attachment JGB

    Zulassung

    PDF, 2 MB

    de
    Download

BIM- and CAD-Data

  • CAD Details Railing Fastening JGB

    CAD Details Railing Fastening JGB

    ZIP, 3 MB
