JBRM

Fire-protection collar

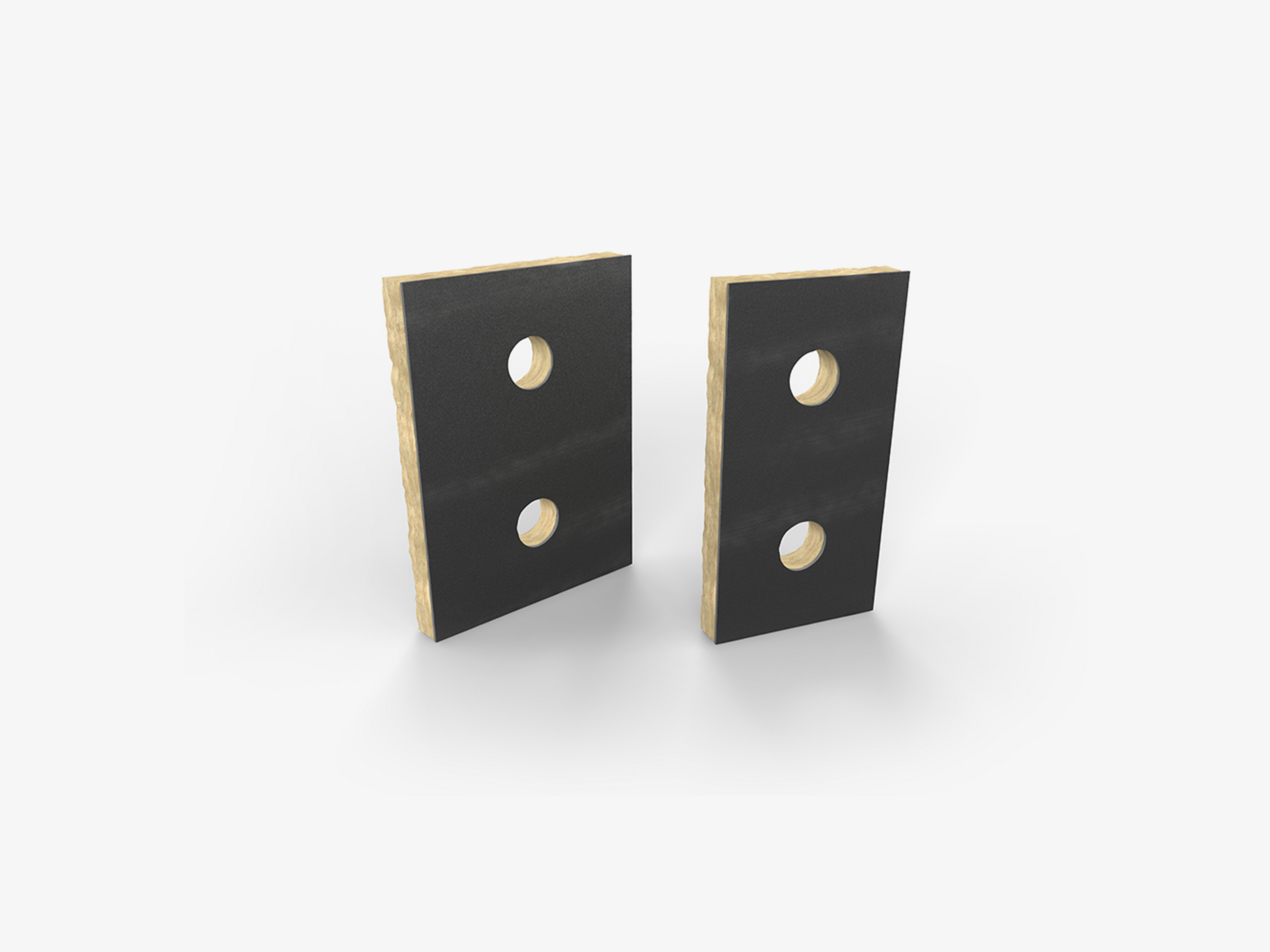

The fire protection collar JBRM is a mineral wool insulation board with a coating on one side and is mounted on the JDSD double shear connector. As a system solution, it meets high fire protection requirements and has a fire resistance of 120 minutes (R120) in accordance with DIN EN 13501-2. The coating foams up in case of fire and completely seals the joint. The fire protection collar is available in versions 20 and 30 mm thick for the corresponding joint widths. Fire protection collars can be combined to protect larger joint widths. A maximum clearance of 10 mm is permitted in the joint. The fire protection collars are designed for different mandrel sizes.

Fire protection
Get in touch Download datasheet

Variants

Article

H

height

B

width

L

length

G

Weight per storage unit
  • BRM120-20
    JORDAHL fire protection collars R90
    height
    210 mm
    width
    110 mm
    length
    20 mm
    Weight per storage unit
    0.135 kg
    More information
  • BRM120-30
    JORDAHL fire protection collars R90
    height
    210 mm
    width
    110 mm
    length
    30 mm
    Weight per storage unit
    0.173 kg
    More information
  • BRM130-20
    JORDAHL fire protection collars R90
    height
    220 mm
    width
    120 mm
    length
    20 mm
    Weight per storage unit
    0.154 kg
    More information
  • BRM130-30
    JORDAHL fire protection collars R90
    height
    220 mm
    width
    120 mm
    length
    30 mm
    Weight per storage unit
    0.198 kg
    More information
  • BRM150-20
    JORDAHL fire protection collars R90
    height
    245 mm
    width
    130 mm
    length
    20 mm
    Weight per storage unit
    0.186 kg
    More information
  • BRM150-30
    JORDAHL fire protection collars R90
    height
    245 mm
    width
    130 mm
    length
    30 mm
    Weight per storage unit
    0.238 kg
    More information
  • BRM2530-20
    JORDAHL fire protection collars R90
    height
    150 mm
    width
    110 mm
    length
    20 mm
    Weight per storage unit
    0.096 kg
    More information
  • BRM2530-30
    JORDAHL fire protection collars R90
    height
    150 mm
    width
    110 mm
    length
    30 mm
    Weight per storage unit
    0.123 kg
    More information
  • BRM400-20
    JORDAHL fire protection collars R90
    height
    295 mm
    width
    150 mm
    length
    20 mm
    Weight per storage unit
    0.259 kg
    More information
  • BRM45-20
    JORDAHL fire protection collars R90
    height
    165 mm
    width
    110 mm
    length
    20 mm
    Weight per storage unit
    0.106 kg
    More information
  • BRM45-30
    JORDAHL fire protection collars R90
    height
    165 mm
    width
    110 mm
    length
    30 mm
    Weight per storage unit
    0.136 kg
    More information
  • BRM450-20
    JORDAHL fire protection collars R90
    height
    325 mm
    width
    150 mm
    length
    20 mm
    Weight per storage unit
    0.286 kg
    More information
  • BRM60-20
    JORDAHL fire protection collars R90
    height
    180 mm
    width
    110 mm
    length
    20 mm
    Weight per storage unit
    0.116 kg
    More information
  • BRM60-30
    JORDAHL fire protection collars R90
    height
    180 mm
    width
    110 mm
    length
    30 mm
    Weight per storage unit
    0.148 kg
    More information
  • BRM90-20
    JORDAHL fire protection collars R90
    height
    195 mm
    width
    110 mm
    length
    20 mm
    Weight per storage unit
    0.125 kg
    More information
  • BRM90-30
    JORDAHL fire protection collars R90
    height
    195 mm
    width
    110 mm
    length
    30 mm
    Weight per storage unit
    0.160 kg
    More information

Details

  • Fire protection

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • Expert Report Fire Protection JDSD and HED

    Gutachten

    PDF, 636 KB

    de
    Download

  • Technical Information Double Shear Dowels JDSD

    Technische Information

    PDF, 7 MB

    de en

  • Certificate of Conformity JDSD/JDSDQ

    Zertifikat

    PDF, 103 KB

    de
    Download

  • General building approval Double Shear Dowels JDSD/JDSDQ

    Zulassung

    PDF, 2 MB

    de
    Download
