HF-ES 80 1-4

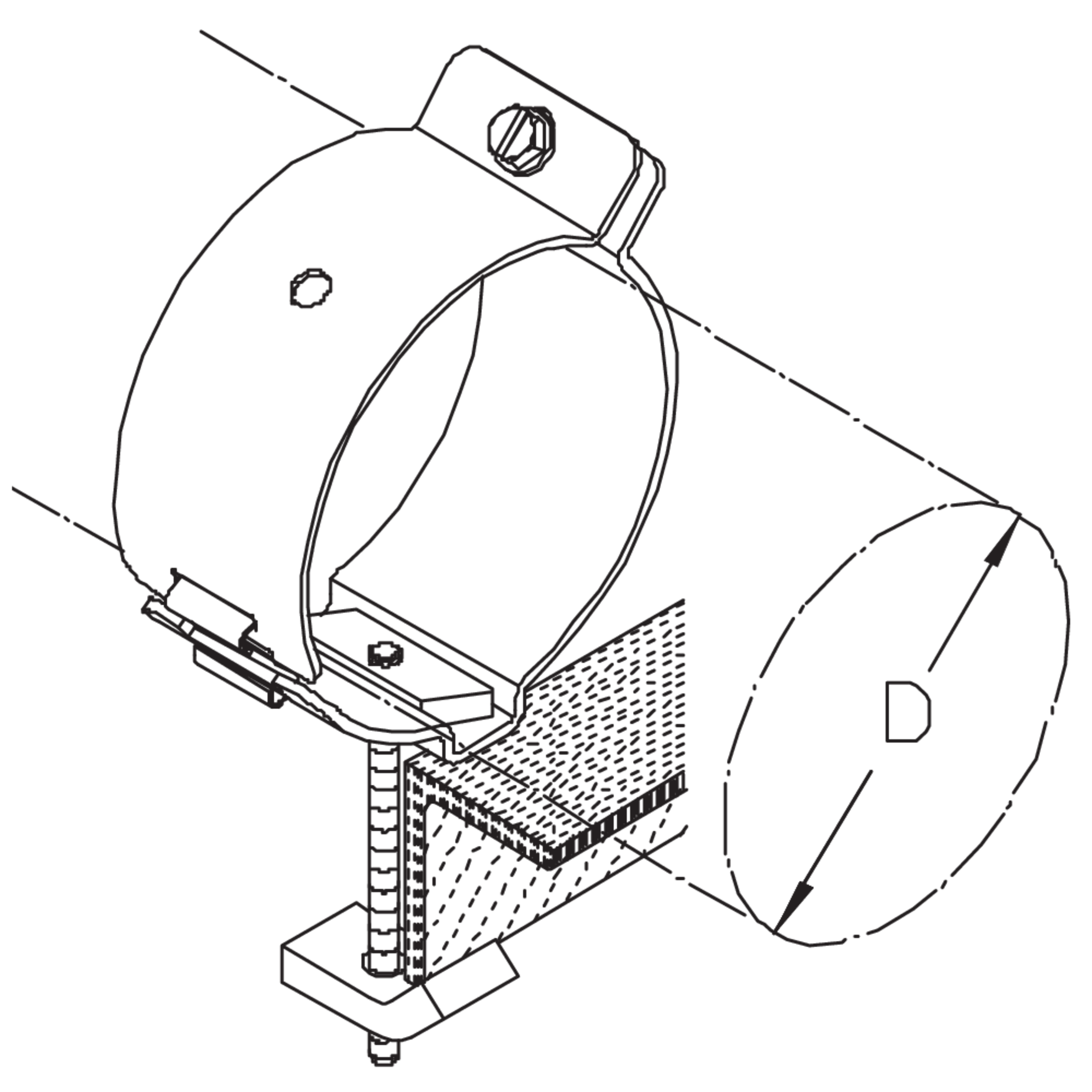

HF cable clamp for fastening to angle profiles

The HF cable clamps HF-ES 80 1-4 can be used to route fibre-optic/high-frequency cables with a maximum diameter of 100 mm. They are suitable for attachment to angle profiles with a leg length of up to 80 mm. They are made of galvanised steel. Use HF-EE clamp inserts to accommodate various elliptical cables.

Get in touch Download datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

D

Durchmesser

Kabeltyp

Kabeltyp

G

Gewicht je Lagermengeneinheit
  • HF-ES 80 1
    HF-Schellen E 108/19-220
    Durchmesser
    37 mm
    Kabeltyp
    E 130-190
    Gewicht je Lagermengeneinheit
    0.249 kg
    More information
  • HF-ES 80 2
    HF-Schellen E 75-100
    Durchmesser
    50 mm
    Kabeltyp
    E 78-105
    Gewicht je Lagermengeneinheit
    0.263 kg
    More information
  • HF-ES 80 3
    HF-Schellen E 48-70
    Durchmesser
    62 mm
    Kabeltyp
    E 60-70
    Gewicht je Lagermengeneinheit
    0.283 kg
    More information
  • HF-ES 80 4
    HF-Schellen E 38-46
    Durchmesser
    100 mm
    Kabeltyp
    E 38-46
    Gewicht je Lagermengeneinheit
    0.354 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • EC Declaration of Conformity Cable clamps

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • 3335-772-11-3 - Expert statement

    DIN 4102-12
    Standardised supporting structure: Cable clamps
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Fastening distance: ≤ 0.3 m; ≤ 0.4 m
    Period of validity: 06.07.2027

    PDF, 834 KB

    de
    Download

  • Cable Clamps Catalogue

    Katalog

    PDF, 5 MB

    de en
