HF-ES 50 1-4

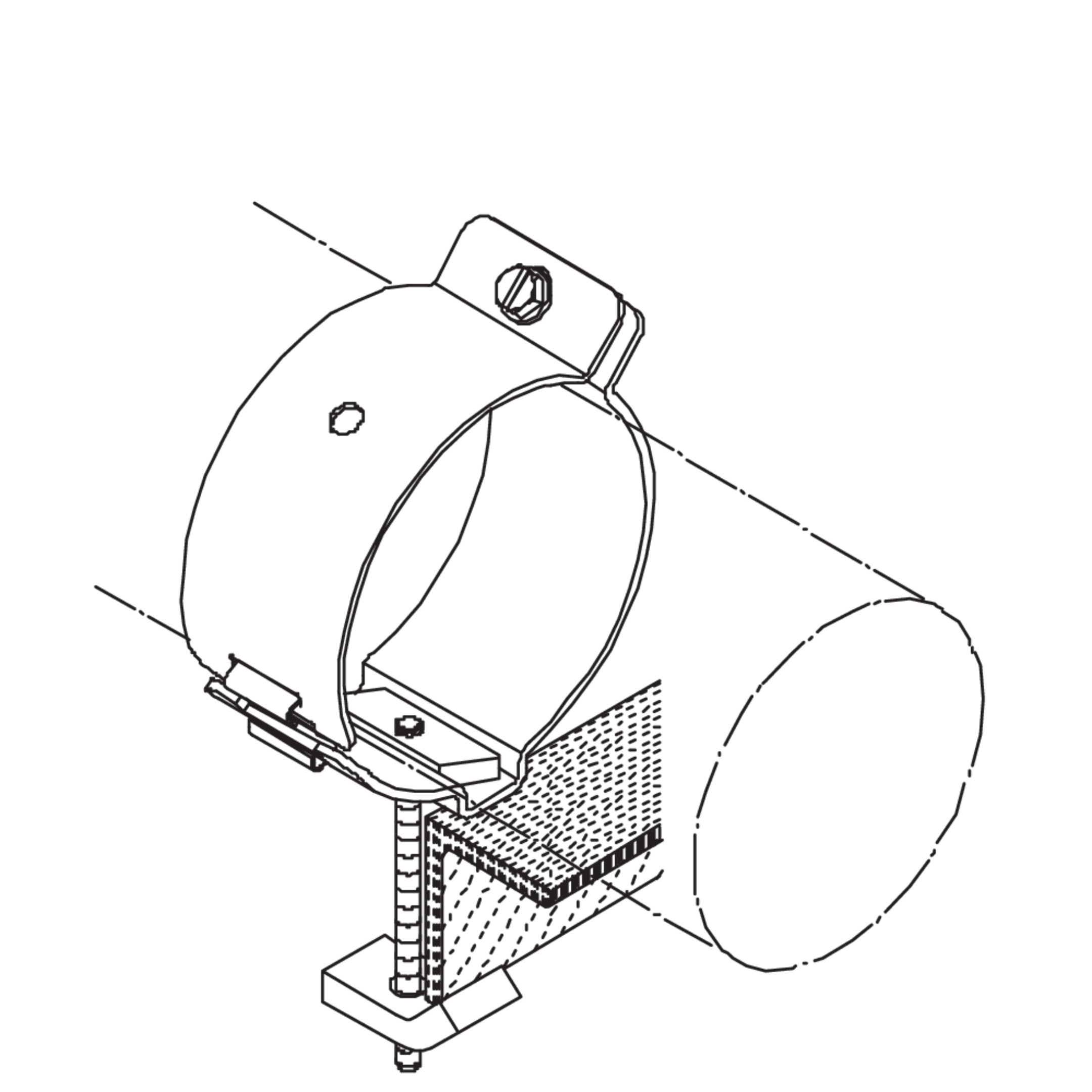

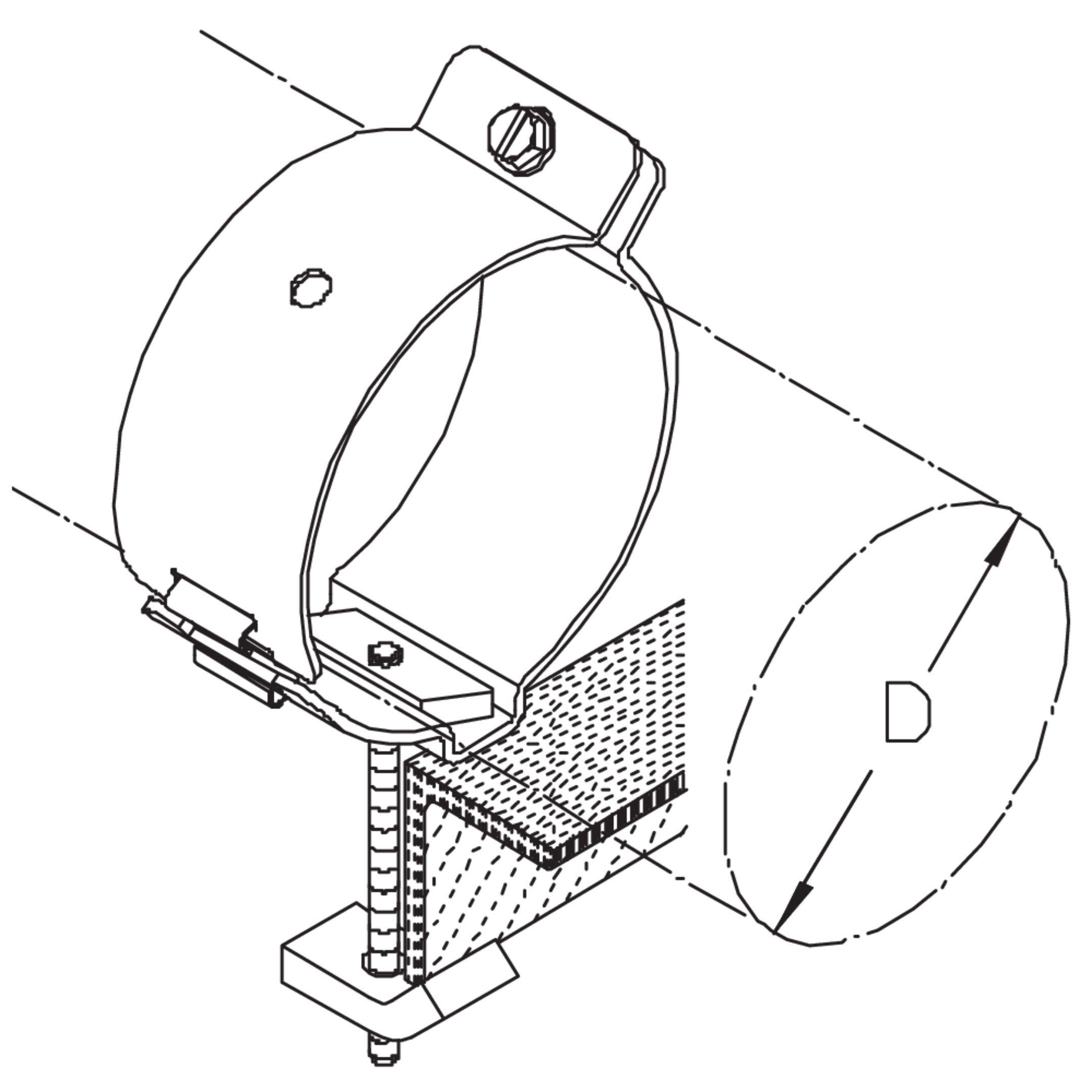

HF cable clamp for fastening to angle profiles

The HF cable clamps HF-ES 50 1-4 can be used to route fibre-optic/high-frequency cables with a maximum diameter of 100 mm. They are suitable for attachment to angle profiles with a leg length of max. 50 mm. They are made of galvanised steel. Use HF-EE clamp inserts to accommodate various elliptical cables.

Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

HF-ES 50 1
HF cable clamp HF-ES 50 1
diameter
37 mm
Cable type
E 130-190
Weight per storage unit
0.239 kg
More information
HF-ES 50 2
HF cable clamp HF-ES 50 2
diameter
50 mm
Cable type
E 78-105
Weight per storage unit
0.253 kg
More information
HF-ES 50 3
HF cable clamp HF-ES 50 3
diameter
62 mm
Cable type
E 60-70
Weight per storage unit
0.273 kg
More information
HF-ES 50 4
HF cable clamp HF-ES 50 4
diameter
100 mm
Cable type
E 38-46
Weight per storage unit
0.345 kg
More information

Tender texts

Ausschreiben.de

Tender texts for this product

Heinze.de

Tender texts for this product

Accessories

HF-EE
HF clamp insert

Downloads

Price list 2025 Building extension
Valid from February 1st, 2025, updated version from 31/03/2025.
de
en

EC Declaration of Conformity Cable clamps
Installation equipment for electric cables and circuits
de
en

3335-772-11-3 - Expert statement
DIN 4102-12
Standardised supporting structure: Cable clamps
Fire resistance duration: F30; F60; F90
Functional maintenance classes: E30; E60; F90
Fastening distance: ≤ 0.3 m; ≤ 0.4 m
Period of validity: 06.07.2027
PDF, 834.47 KB
de
Download
