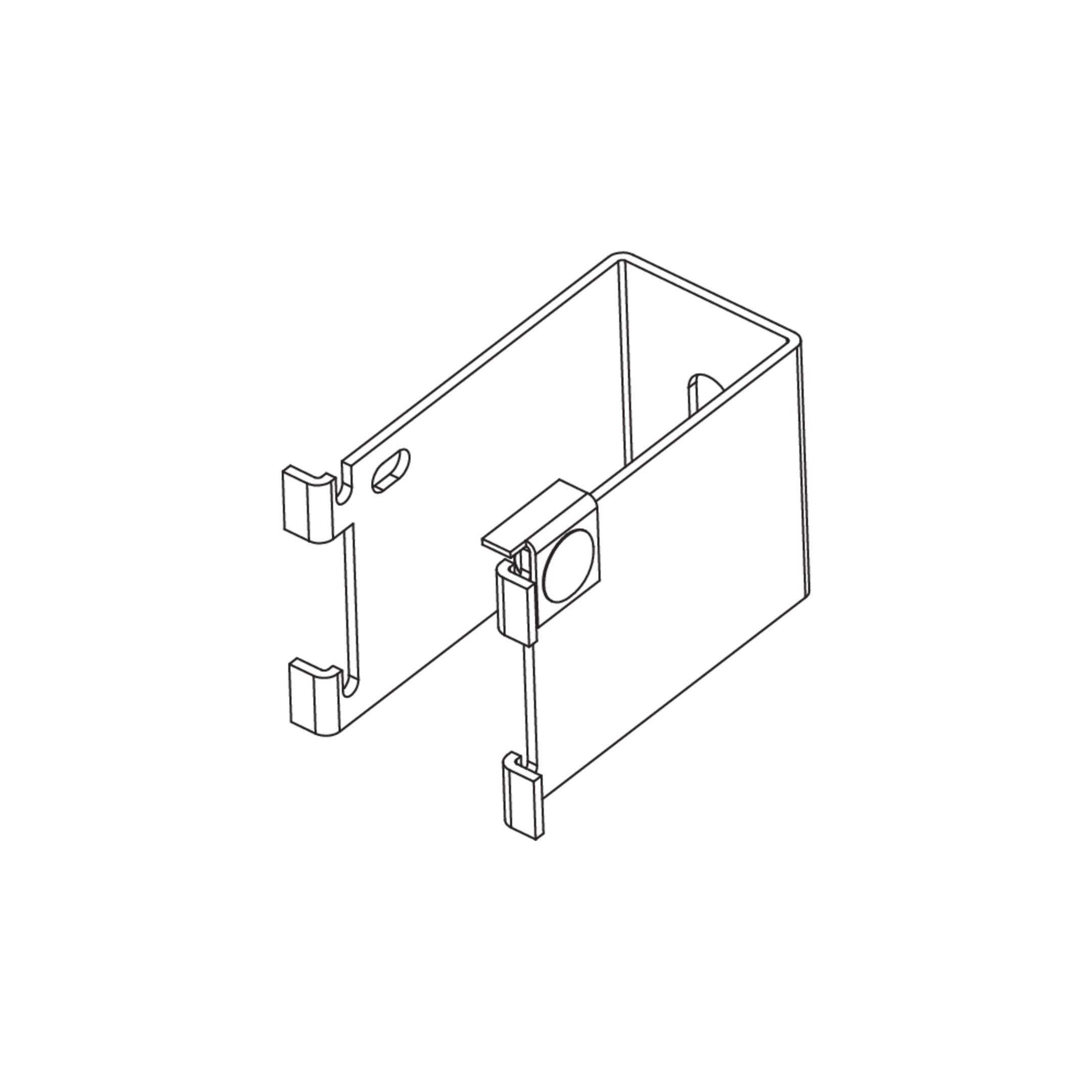

GBH 50

Spacer bracket for mesh cable tray grid size 50

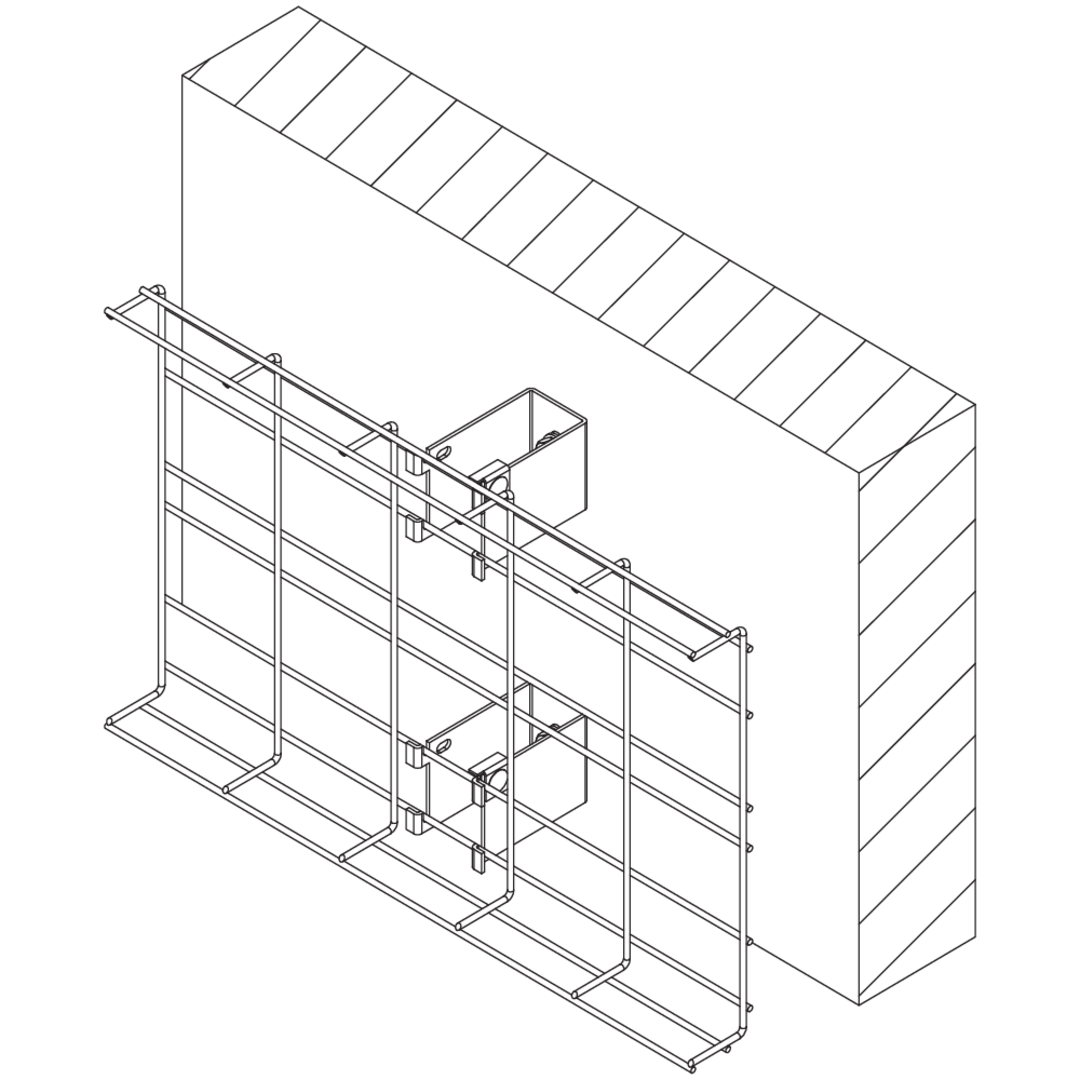

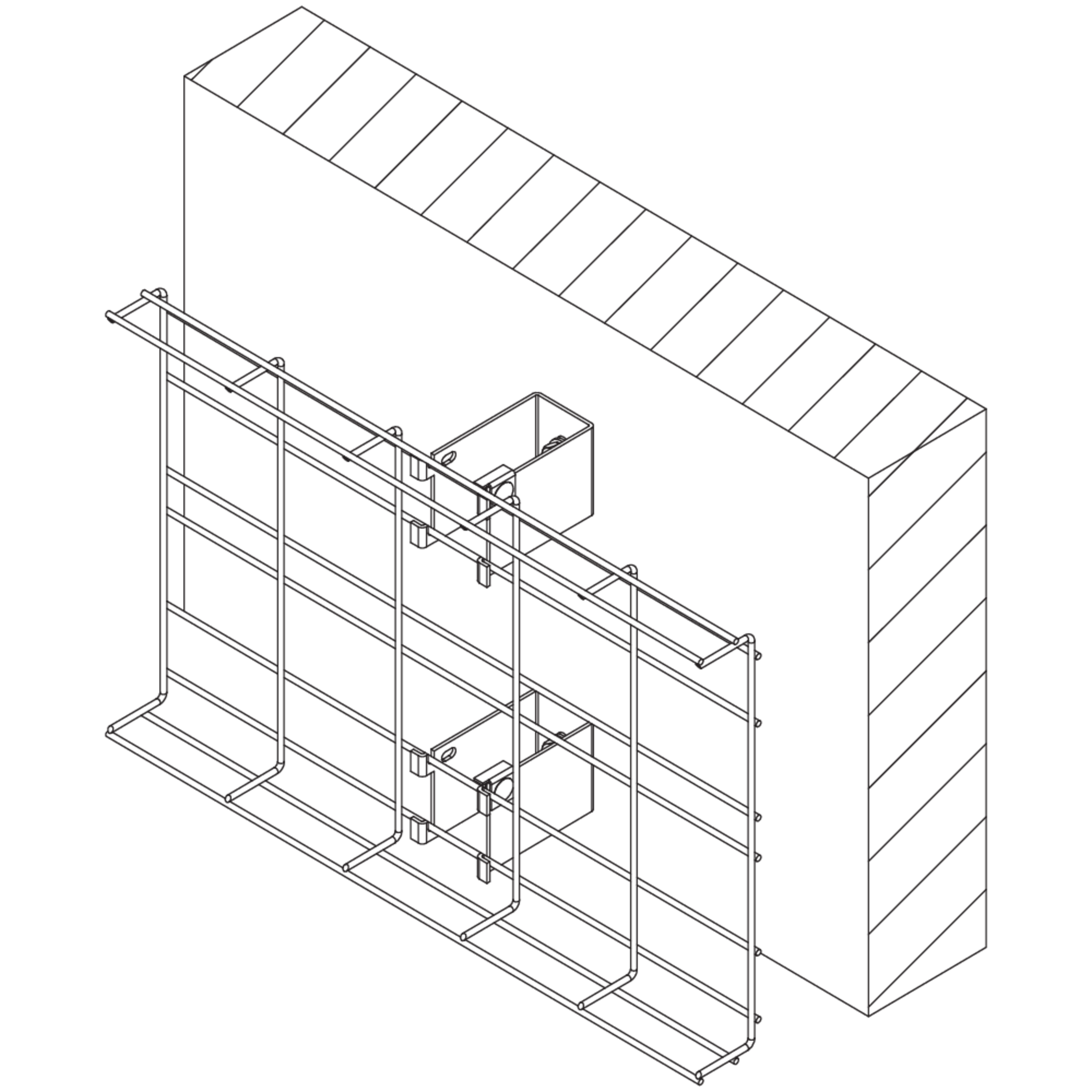

Mesh cable trays G can be mounted horizontally tilted on the longitudinal wires of the mesh cable tray at a distance from the wall using the spacer bracket GBH 50, whereby two spacer brackets arranged one above the other are required for larger mesh cable tray widths. The spacer bracket GBH 50 is suitable for a mesh cable tray grid size (wire spacing) of 50 mm and support spacings of up to 1500 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Variants

steel, continously hot galvanized/Sendzimir process

Article

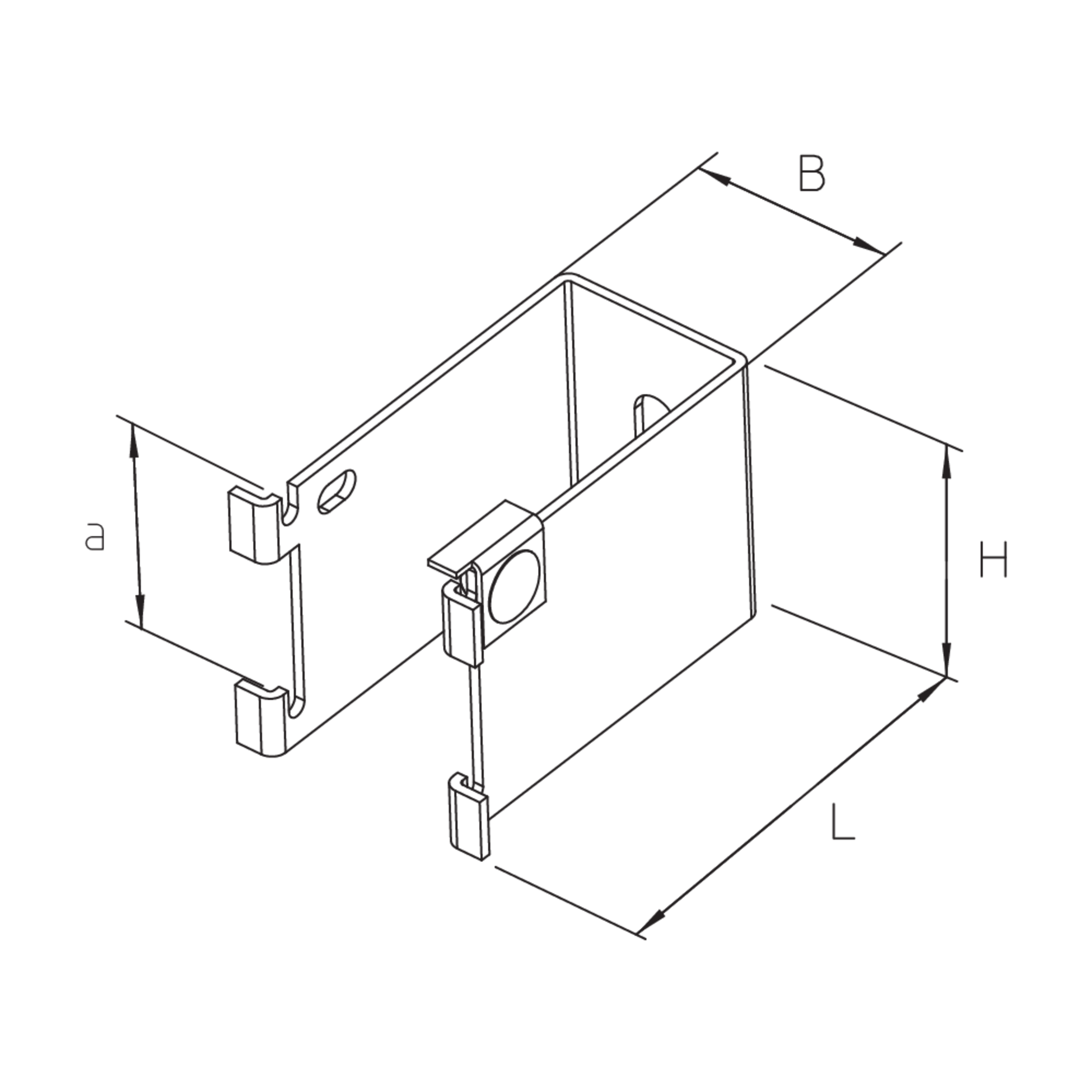

H

B

L

a

W

Included accessories

  • GBH 50S
    spacer clamp
    65 mm
    50 mm
    100 mm
    50 mm
    0.312 kg
    Included accessories

steel, batch/hot-dip galvanized

Article

H

B

L

a

W

Included accessories

  • GBH 50F
    spacer clamp
    65 mm
    50 mm
    100 mm
    50 mm
    0.329 kg
    Included accessories

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

B

L

a

W

Included accessories

  • GBH 50E
    spacer clamp
    65 mm
    50 mm
    100 mm
    50 mm
    0.315 kg
    Included accessories
