BODO T

Single outlet with single floor socket, dry-clean, round

The BODO T components are round single outlets with a protective frame for the floor covering. They are equipped with a rotating cover with a cable outlet, a mounting box with a strain relief device, a Schuko socket and an RJ45 data dummy cover. The single outlets are suitable for dry-cleaned rooms with office traffic loads and can be installed in screed and raised or false floor openings. The product is made of high quality plastic (ABS copolymer) and is available in iron grey or graphite black. BODO T has an installation dimension of 122 mm and a minimum installation height of 102 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

H

height

Hmin

minimum installation height

Pmax

maximum load

ØB

Installation diameter

ØE

fitting dimension

colour

color

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

G

Weight per storage unit
  • BODO T-G
    single outlet,
    height
    125 mm
    minimum installation height
    102 mm
    maximum load
    1.50 kN
    Installation diameter
    140 mm
    fitting dimension
    122 mm
    color
    RAL 7011 (iron gray)
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Weight per storage unit
    0.309 kg
    Included accessories
    More information
  • BODO T-S
    single outlet,
    height
    125 mm
    minimum installation height
    102 mm
    maximum load
    1.50 kN
    Installation diameter
    140 mm
    fitting dimension
    122 mm
    color
    RAL 9011 (graphite black)
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Weight per storage unit
    0.309 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Units for screed and hollow floors - Technical information

    Technische Information

    PDF, 14 MB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Notice for types of protection and floor maintenance

    Notice for installation units

    PDF, 328 KB

    de en

  • VDE Certificate 40035721 BODO

    Zertifikat

    PDF, 254 KB

    de
    Download

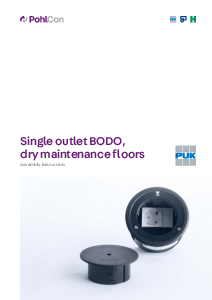

  • Installation Instructions BODO-T
