BODO N

Single outlet with one floor socket and one data module, wet-clean, round

The BODO N components are round single outlets with a floor covering protection frame. They are equipped with a swivelling tube as a cable outlet, a mounting box, a protective socket and an RJ45 data socket. The single outlets are suitable for dry-cleaned and wet-cleaned rooms with high traffic loads and can be installed in screed and raised or false floor openings. The tube with cover and tube holder is made of aluminium, brass or stainless steel, material no. 1.4301 (V2A). The frame and the mounting box are made of high-quality plastic. The single outlets are available in different sizes depending on the material.

Load requirements according to: DIN EN 50085

Variants

Article

H

height

Hmin

minimum installation height

Pmax

maximum load

ØB

Installation diameter

ØE

fitting dimension

colour

color

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

G

Weight per storage unit

  • BODO N
    single outlet,
    124 mm
    87 mm
    15.00 kN
    140 mm
    122 mm
    aluminium
    IP 43
    IP 66
    0.744 kg
    Included accessories
  • BODO N-CR
    single outlet,
    124 mm
    87 mm
    15.00 kN
    140 mm
    122 mm
    chrome
    IP 43
    IP 66
    0.744 kg
    Included accessories
  • BODO N-E
    single outlet,
    124 mm
    87 mm
    15.00 kN
    140 mm
    122 mm
    stainless steel, massive
    IP 43
    IP 66
    1.492 kg
    Included accessories
  • BODO N-MMS
    single outlet,
    124 mm
    87 mm
    15.00 kN
    140 mm
    122 mm
    messing, massive
    IP 43
    IP 66
    1.570 kg
    Included accessories
  • BODO N-SW
    single outlet,
    124 mm
    87 mm
    15.00 kN
    140 mm
    122 mm
    black
    IP 43
    IP 66
    0.744 kg
    Included accessories

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link


Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en
  • Elektro- und Elektronikgeräte – Informationen von Herstellern für gewerbliche Nutzer

    Erklärung

    PDF, 106 KB

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en
  • Units for screed and hollow floors - Technical information

    Technische Information

    PDF, 14 MB

    de en
  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en
  • Notice for types of protection and floor maintenance

    Notice for installation units

    PDF, 328 KB

    de en

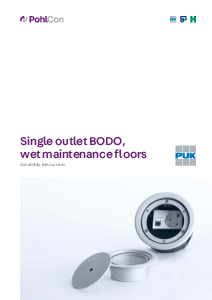

  • Installation Instructions BODO-N
