BKGL 110

Floor duct with miter cut, left, height = 110 mm

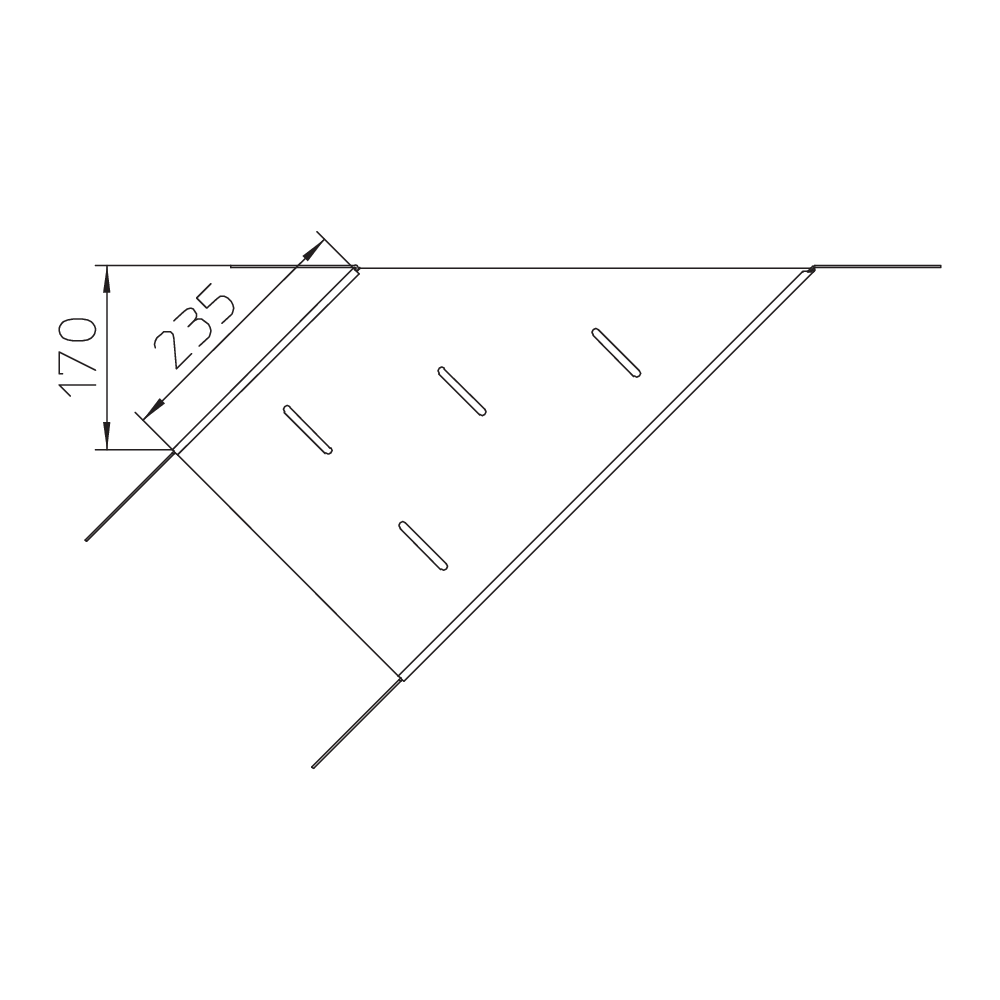

The floor duct branch BKGL 110 with a mitre cut on the left and integrated connectors allows the direction of cable routing to be changed horizontally in the form of a 45° branch. It is 110 mm high and 100 to 600 mm wide. It is made of sendzimir hot-dip galvanised steel. To dissipate vertical live loads, one separating strip must be installed in the floor duct for widths ≥ 300 mm and two separating strips for widths ≥ 500 mm. The side rail of the main floor duct is cut out accordingly at the point where the connecting floor duct will branch off. The BKGL branch is positioned and bolted in place at this point. The branching floor duct can then be pushed in.

Get in touch Download datasheet

Variants

Stahl, band-/sendzimirverzinkt

Article

H

Höhe

B

Breite

t

Materialstärke

W

Winkel

G

Gewicht je Lagermengeneinheit
  • BKGL 110-10S
    Bodenkanal-Abzweig mit Gehrungsschnitt,
    Höhe
    110 mm
    Breite
    100 mm
    Materialstärke
    2.00 mm
    Winkel
    45°
    Gewicht je Lagermengeneinheit
    2.872 kg

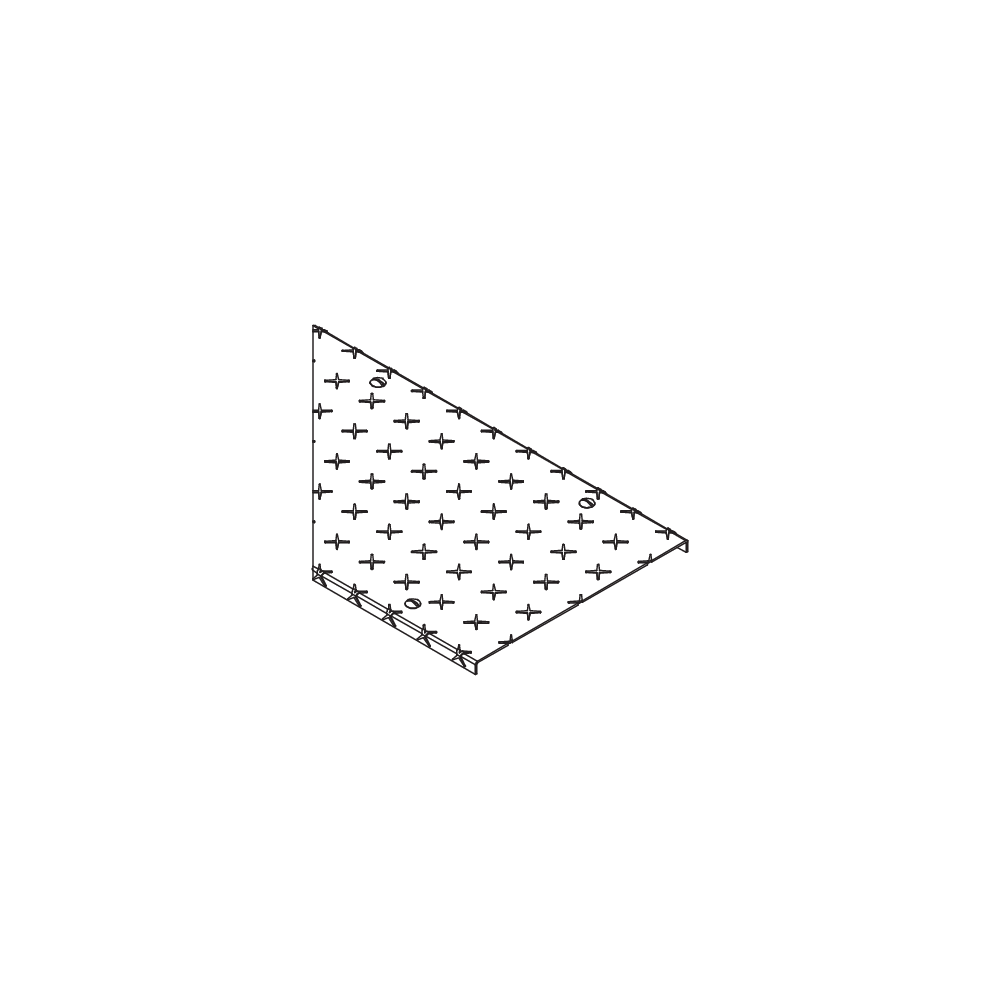

    Included accessories
    More information
  • BKGL 110-15S
    Bodenkanal-Abzweig mit Gehrungsschnitt,
    Höhe
    110 mm
    Breite
    150 mm
    Materialstärke
    2.00 mm
    Winkel
    45°
    Gewicht je Lagermengeneinheit
    3.242 kg
    Included accessories
    More information
  • BKGL 110-20S
    Bodenkanal-Abzweig mit Gehrungsschnitt,
    Höhe
    110 mm
    Breite
    200 mm
    Materialstärke
    2.00 mm
    Winkel
    45°
    Gewicht je Lagermengeneinheit
    3.652 kg
    Included accessories
    More information
  • BKGL 110-30S
    Bodenkanal-Abzweig mit Gehrungsschnitt,
    Höhe
    110 mm
    Breite
    300 mm
    Materialstärke
    2.00 mm
    Winkel
    45°
    Gewicht je Lagermengeneinheit
    4.592 kg
    Included accessories
    More information
  • BKGL 110-40S
    Bodenkanal-Abzweig mit Gehrungsschnitt,
    Höhe
    110 mm
    Breite
    400 mm
    Materialstärke
    2.00 mm
    Winkel
    45°
    Gewicht je Lagermengeneinheit
    5.702 kg
    Included accessories
    More information
  • BKGL 110-50S
    Bodenkanal-Abzweig mit Gehrungsschnitt,
    Höhe
    110 mm
    Breite
    500 mm
    Materialstärke
    2.00 mm
    Winkel
    45°
    Gewicht je Lagermengeneinheit
    6.982 kg
    Included accessories
    More information
  • BKGL 110-60S
    Bodenkanal-Abzweig mit Gehrungsschnitt,
    Höhe
    110 mm
    Breite
    600 mm
    Materialstärke
    2.00 mm
    Winkel
    45°
    Gewicht je Lagermengeneinheit
    8.352 kg
    Included accessories
    More information

Details

  • Changes the cable routing direction horizontally in the form of a branch of 45°.
  • Cable-friendly guide

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • BK Floor Duct - Technical Information

    Technische Information

    PDF, 6 MB

    de en

  • Floor ducts - Assembly instructions

    Montageanleitung

    PDF, 2 MB

    de en

BIM- and CAD-Data

  • BIM for BK floor ducts

    BIM for BK floor ducts

    BIM data

    ZIP, 6 MB

    de en
