BKGLDR-RHP

Floor duct cover, mitre cut on left and anti-slip embossing

The BKGLDR-RHP floor duct cover with a mitre cut on the left is placed on top of the BKGL floor duct branch and protects cables and supply lines from flying sparks and other mechanical effects. It is 100 to 600 mm wide corresponding to the branch. The floor duct cover is made of sendzimir hot-dip galvanised steel with slip resistance class R11. With a maximum compartment size of 200 mm, we guarantee a tested load capacity of 5.00 kN according to EN 50085-2-2. They come with pre-assembled turning bolts.

Load requirements according to: EN 50085-2-2
Slip resistance and slip resistance according to: DIN EN 16165
Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

B

width

t

material thickness

Pmax

maximum load

G

Weight per storage unit

Slip resistance and slip resistance according to

  • BKGLDR-RHP 10S
    Floor duct branch cover with mitre
    width
    100 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    0.630 kg
    Slip resistance and slip resistance according to
    DIN EN 16165
    More information
  • BKGLDR-RHP 15S
    Floor duct branch cover with mitre
    width
    150 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    0.930 kg
    Slip resistance and slip resistance according to
    DIN EN 16165
    More information
  • BKGLDR-RHP 20S
    Floor duct branch cover with mitre
    width
    200 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    1.263 kg
    Slip resistance and slip resistance according to
    DIN EN 16165
    More information
  • BKGLDR-RHP 30S
    Floor duct branch cover with mitre
    width
    300 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    2.040 kg
    Slip resistance and slip resistance according to
    DIN EN 16165
    More information
  • BKGLDR-RHP 40S
    Floor duct branch cover with mitre
    width
    400 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    2.990 kg
    Slip resistance and slip resistance according to
    DIN EN 16165
    More information
  • BKGLDR-RHP 50S
    Floor duct branch cover with mitre
    width
    500 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    4.090 kg
    Slip resistance and slip resistance according to
    DIN EN 16165
    More information
  • BKGLDR-RHP 60S
    Floor duct branch cover with mitre
    width
    600 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    5.350 kg
    Slip resistance and slip resistance according to
    DIN EN 16165
    More information

Details

  • Load requirements according to: EN 50085-2-2
  • Slip resistance and slip resistance according to: DIN EN 16165
  • Loadable up to 5.00 kN
  • Non-slip embossing R11
  • Easy assembly

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

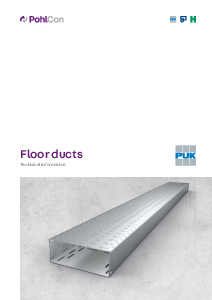

  • BK Floor Duct - Technical Information

    Technische Information

    PDF, 6 MB

    de en

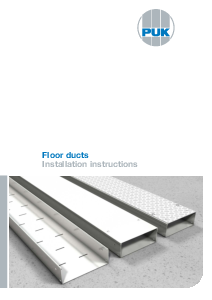

  • Floor ducts - Assembly instructions

    Montageanleitung

    PDF, 2 MB

    de en

BIM- and CAD-Data

  • BIM for BK floor ducts

    BIM for BK floor ducts

    BIM data

    ZIP, 6 MB

    de en
