BKB45 100

Floor duct bend 45°, height = 100 mm

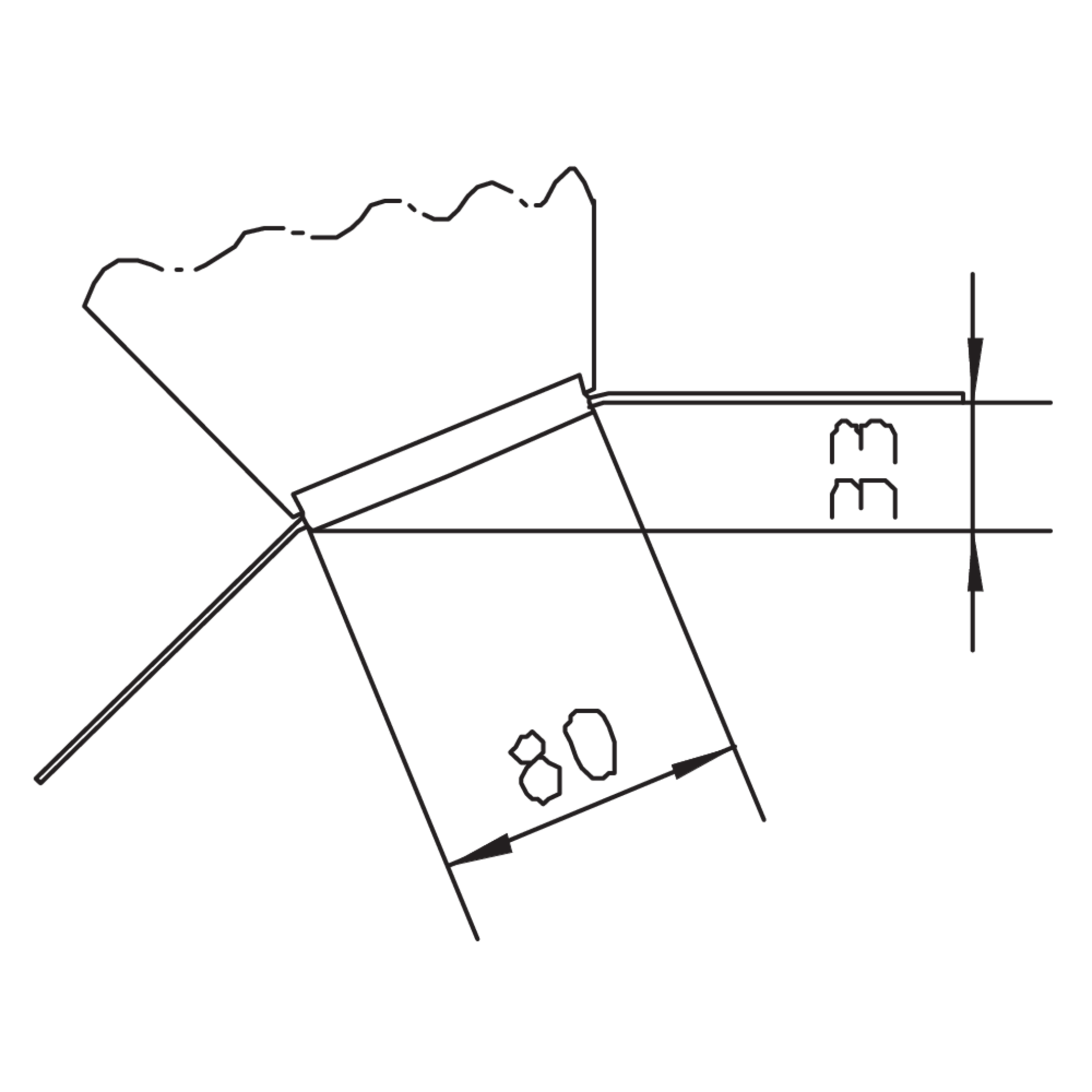

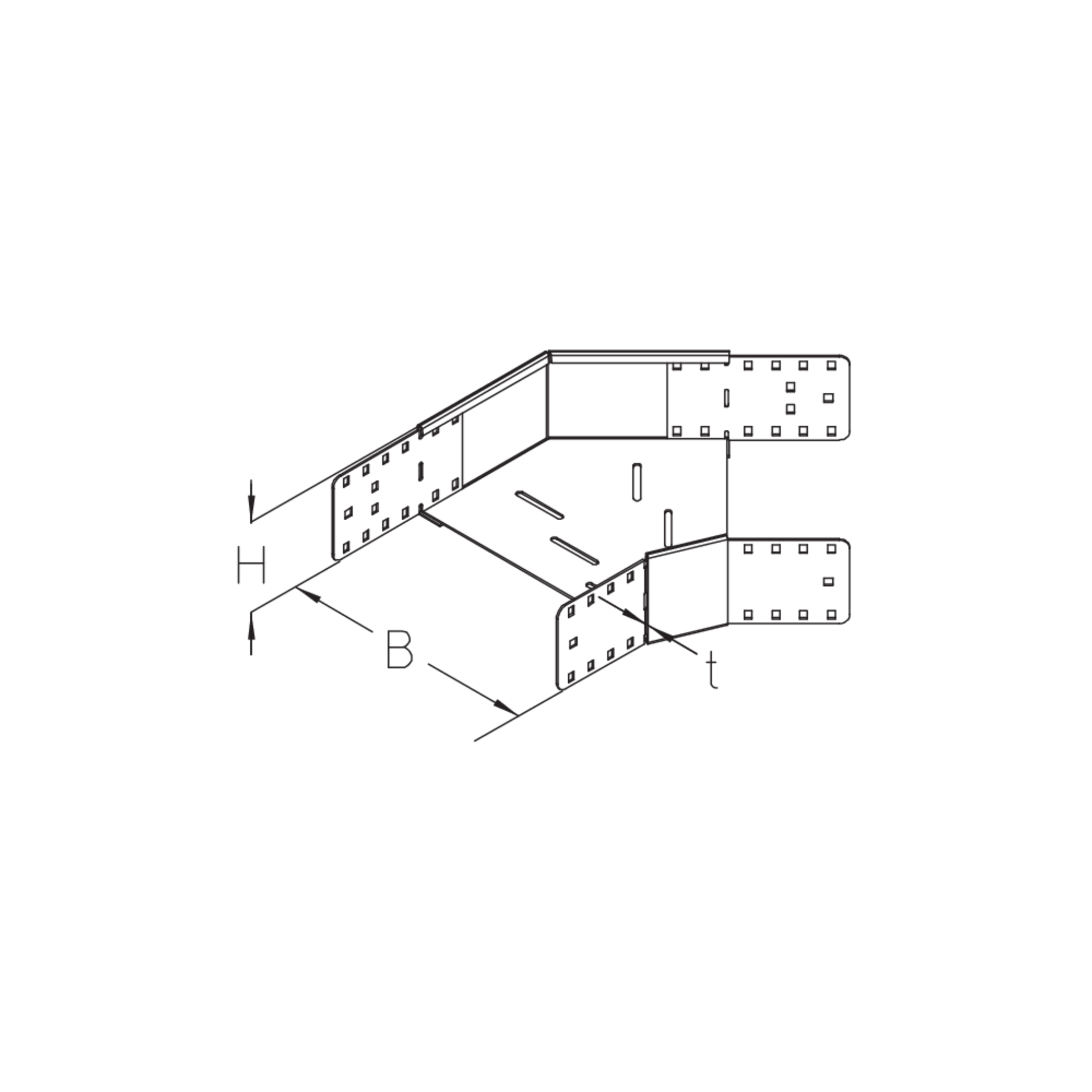

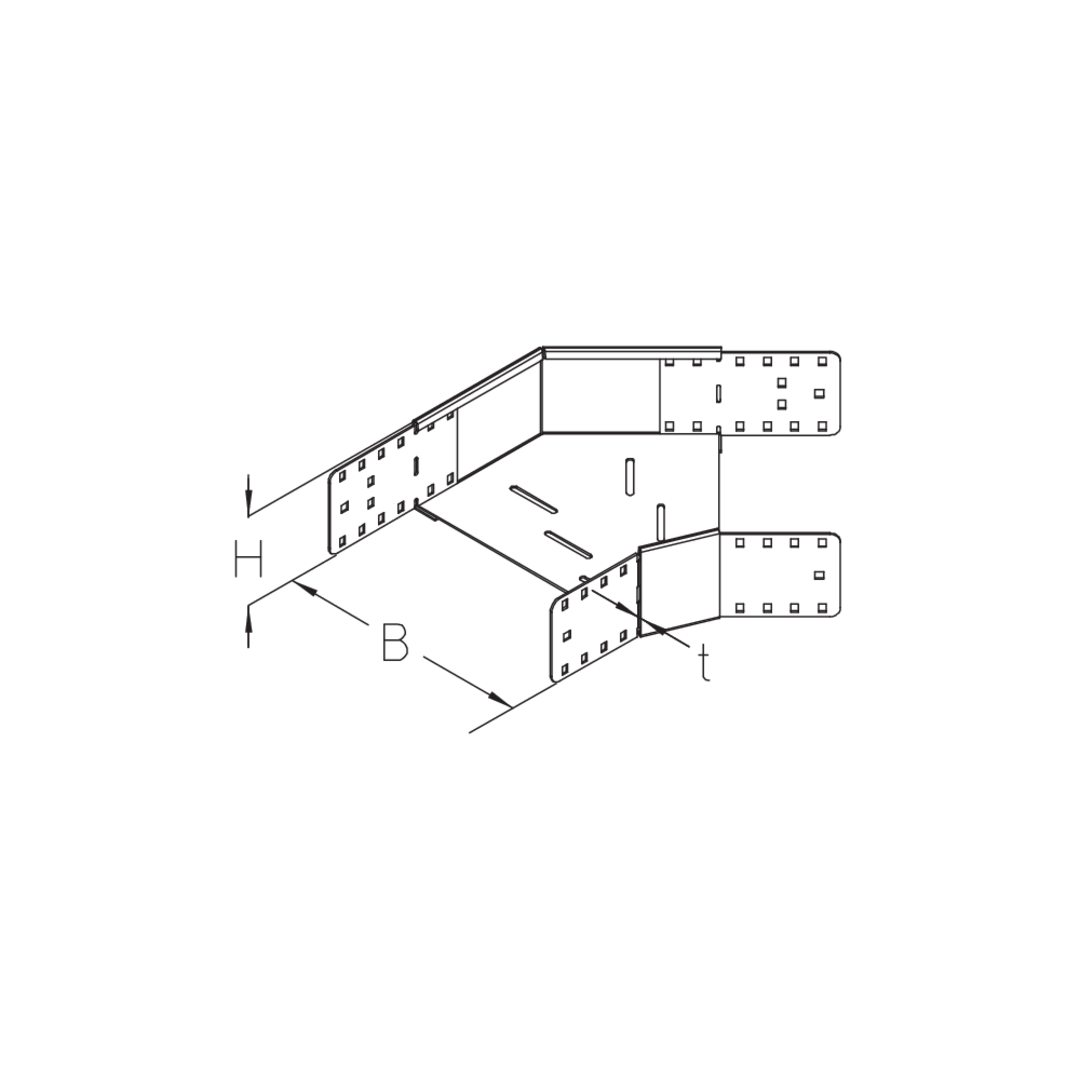

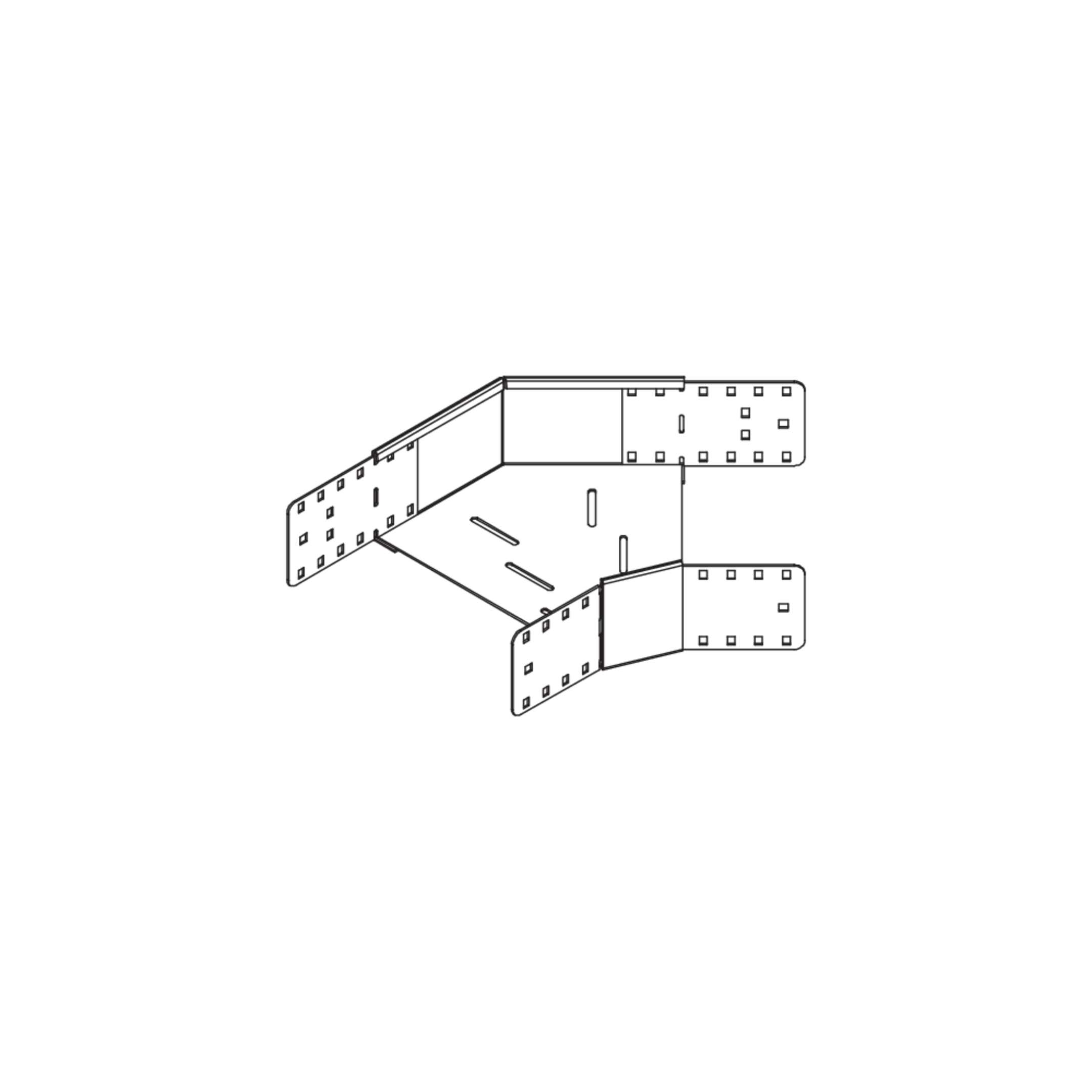

The floor duct bend BKB45 100 with integrated connectors allows the direction of cable routing to be changed horizontally by 45°. It is 100 mm high and 100 to 600 mm wide. It is made of sendzimir hot-dip galvanised steel. To dissipate vertical live loads, one separating strip must be installed in the floor duct for widths ≥ 300 mm and two separating strips for widths ≥ 500 mm. The bend is pushed into the floor ducts and then bolted in place.

Get in touch Download datasheet

Variants

Stahl, band-/sendzimirverzinkt

Article

H

Höhe

B

Breite

t

Materialstärke

Richtung

Richtungsänderung

W

Winkel

G

Gewicht je Lagermengeneinheit
  • BKB45 100-10S
    Bodenkanal-Bogen 45°,
    Höhe
    100 mm
    Breite
    100 mm
    Materialstärke
    2.00 mm
    Richtungsänderung
    Horizontal
    Winkel
    45°
    Gewicht je Lagermengeneinheit
    1.700 kg
