BGUDW

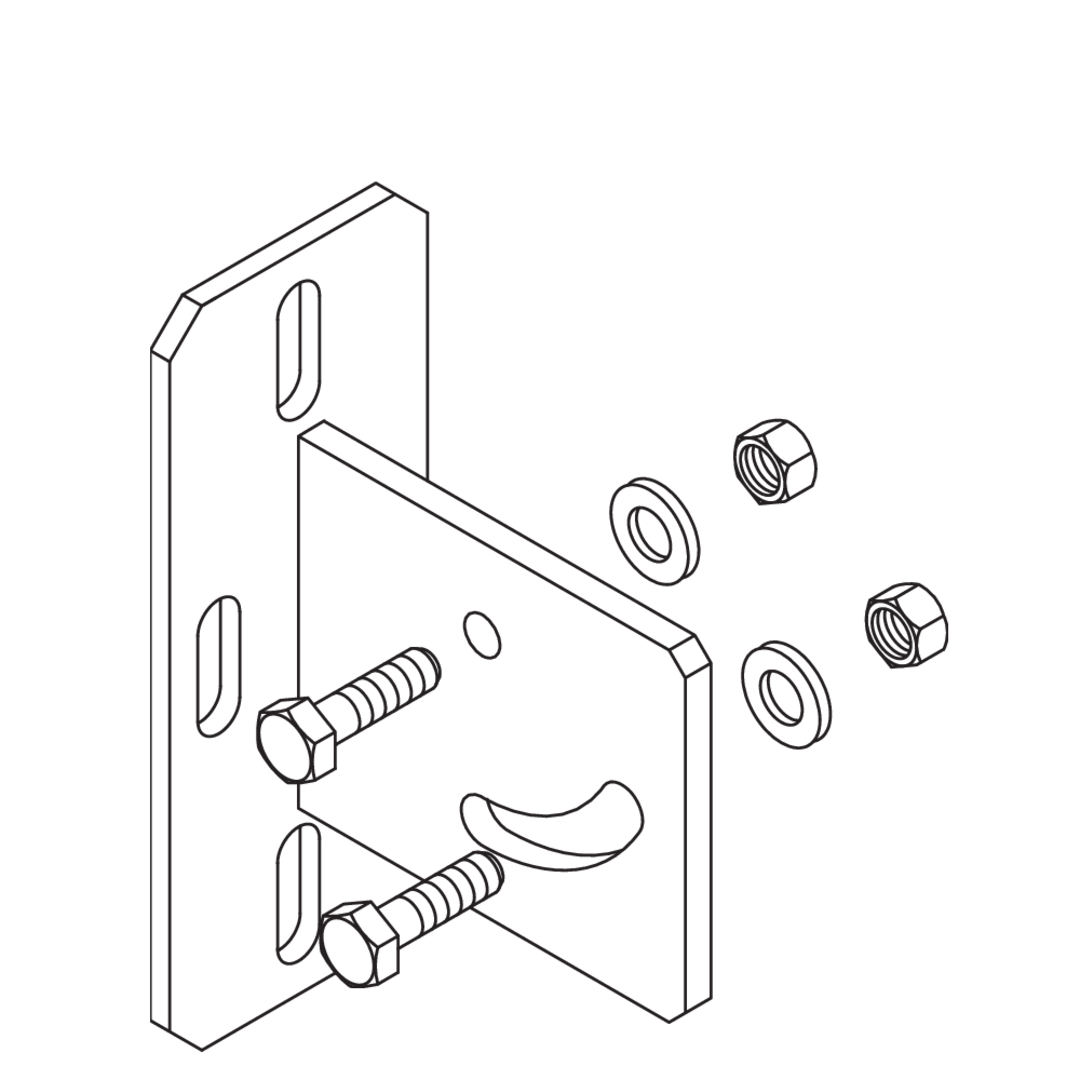

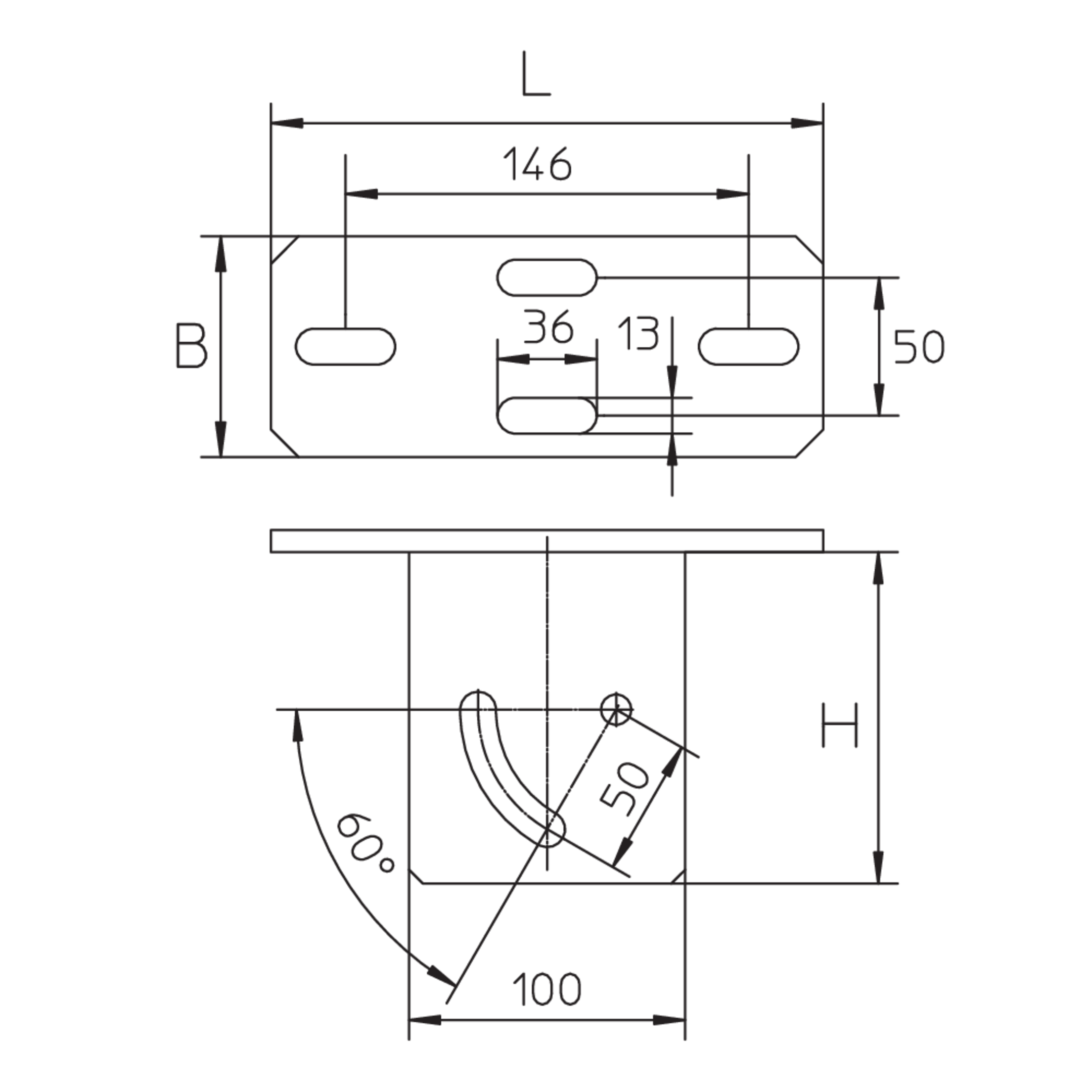

Screw-on head plate, 30°-90°, KHU 40/57/60

The head plate BGUDW is used for mounting bracket holders KHU 40, 57 and 60 on ceilings. It is bolted to the profile and dowelled to the ceiling. Bracing in the range of 30° to 90° can be installed. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit
  • BGUDW F
    Kopfplatte
    Höhe
    120 mm
    Breite
    80 mm
    Länge
    200 mm
    Gewicht je Lagermengeneinheit
    1.340 kg
    Included accessories
    More information

Edelstahl, Werkstoff Nr. 1.4571/1.4404 (V4A)

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit
  • BGUDW E4
    Kopfplatte
    Höhe
    120 mm
    Breite
    80 mm
    Länge
    200 mm
    Gewicht je Lagermengeneinheit
    1.250 kg
    Included accessories
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Support systems Assembling instruction

    Montageanleitung

    PDF, 2 MB

    de en

  • Support systems - Technical information

    Technical information

    PDF, 19 MB

    de en
