BGUD

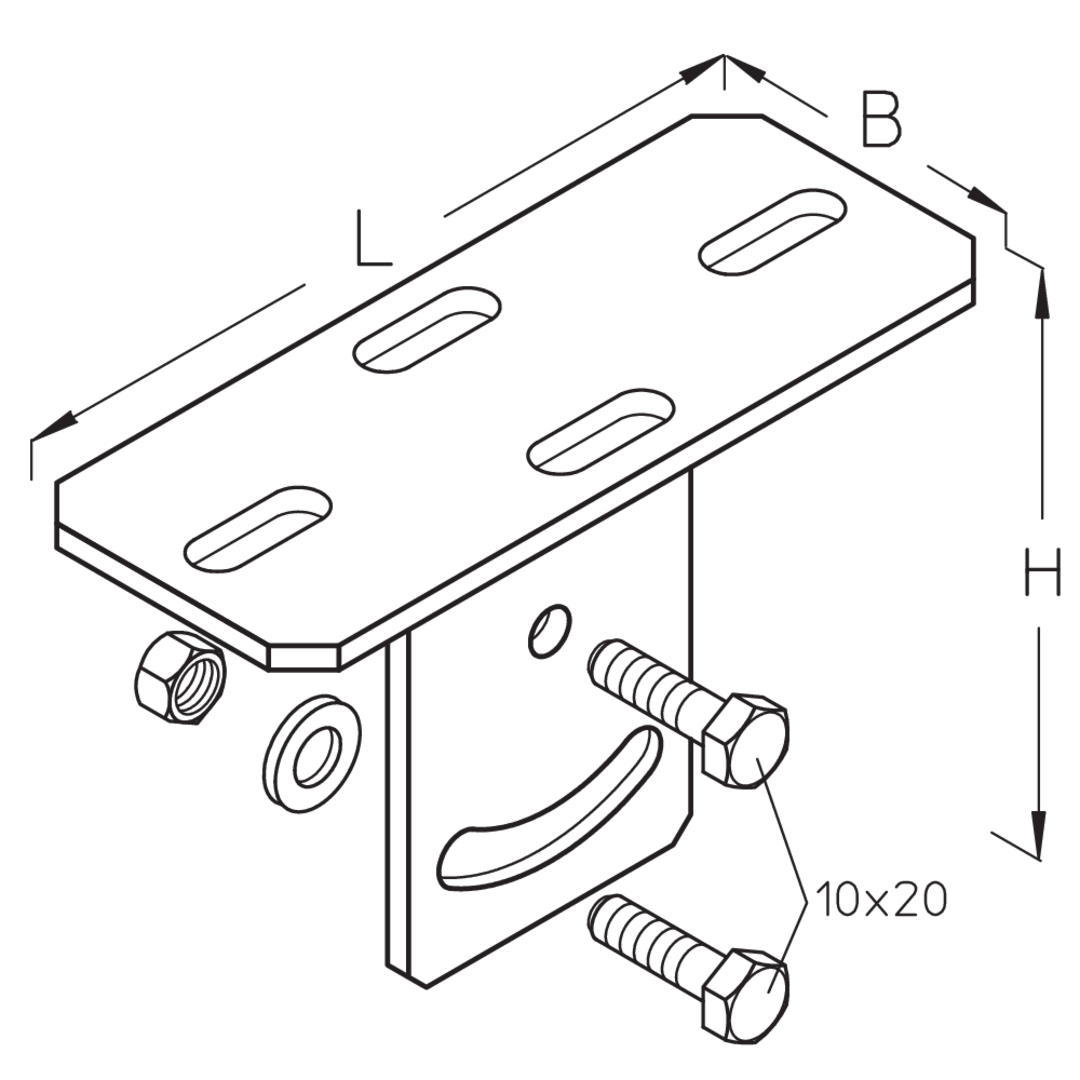

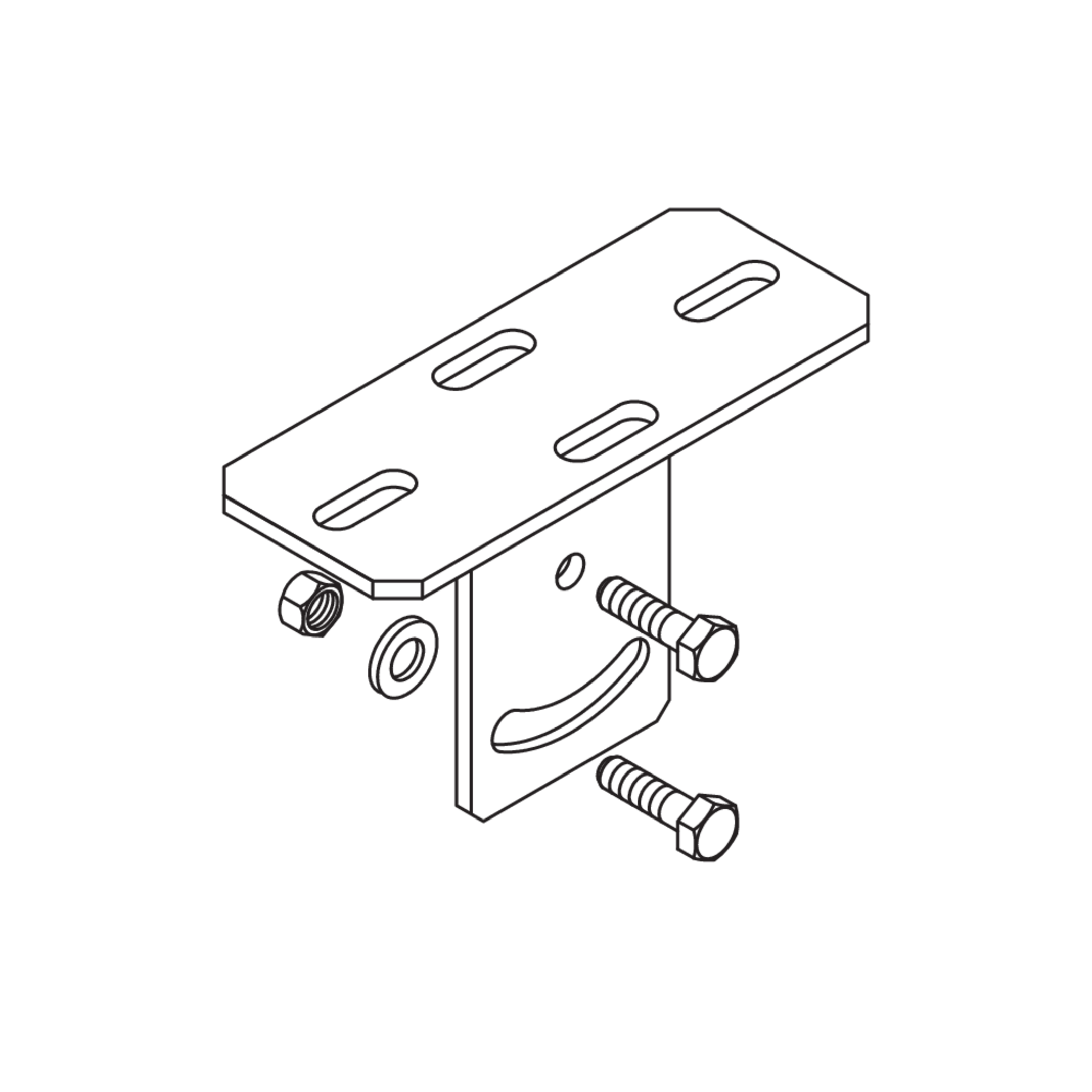

Screw-on head plate, ±30°, KHU 40/57/60

The head plate BGUD is used for mounting bracket holders KHU 40, 57 and 60 on ceilings. It is bolted to the profile and dowelled to the ceiling. Inclined bracing in the range of +/- 30° can be installed. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

BGUD F
Postbase BGUD F
height
125 mm
width
80 mm
length
200 mm
Weight per storage unit
1.239 kg
Included accessories
More information

steel, galvanic zinc plated

BGUD GV
Postbase BGUD F
height
125 mm
width
80 mm
length
200 mm
Weight per storage unit
1.165 kg
Included accessories
More information

Stainless steel, acc. to AISI 304 (BS 304S31)

BGUD E
Postbase BGUD E
height
125 mm
width
80 mm
length
200 mm
Weight per storage unit
1.172 kg
Included accessories
More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link

Heinze.de

Tender texts for this product

Open Link

Accessories

SD
Expansion anchor, maintenance of function
