BGU 60

Bolted head plate, KHU 60

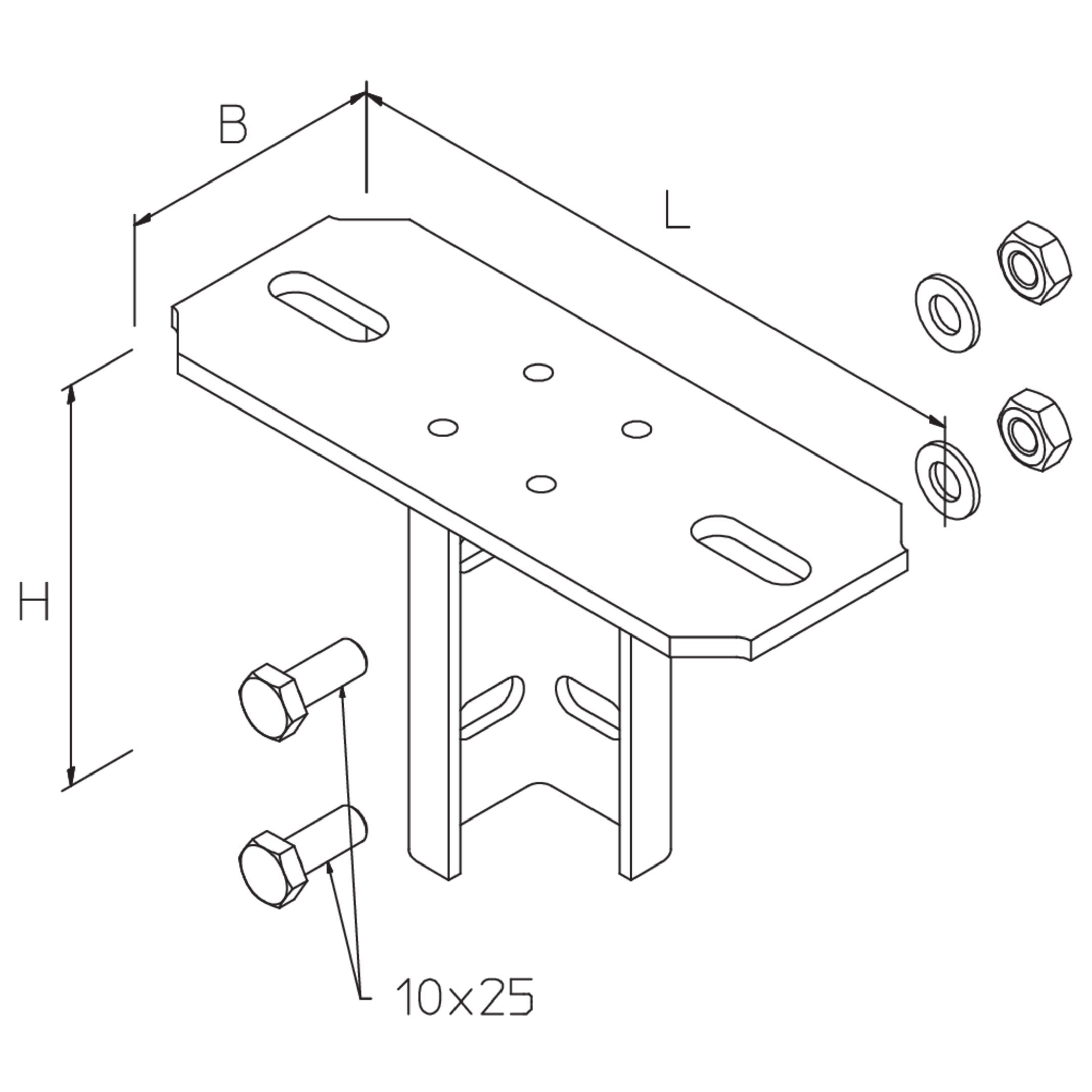

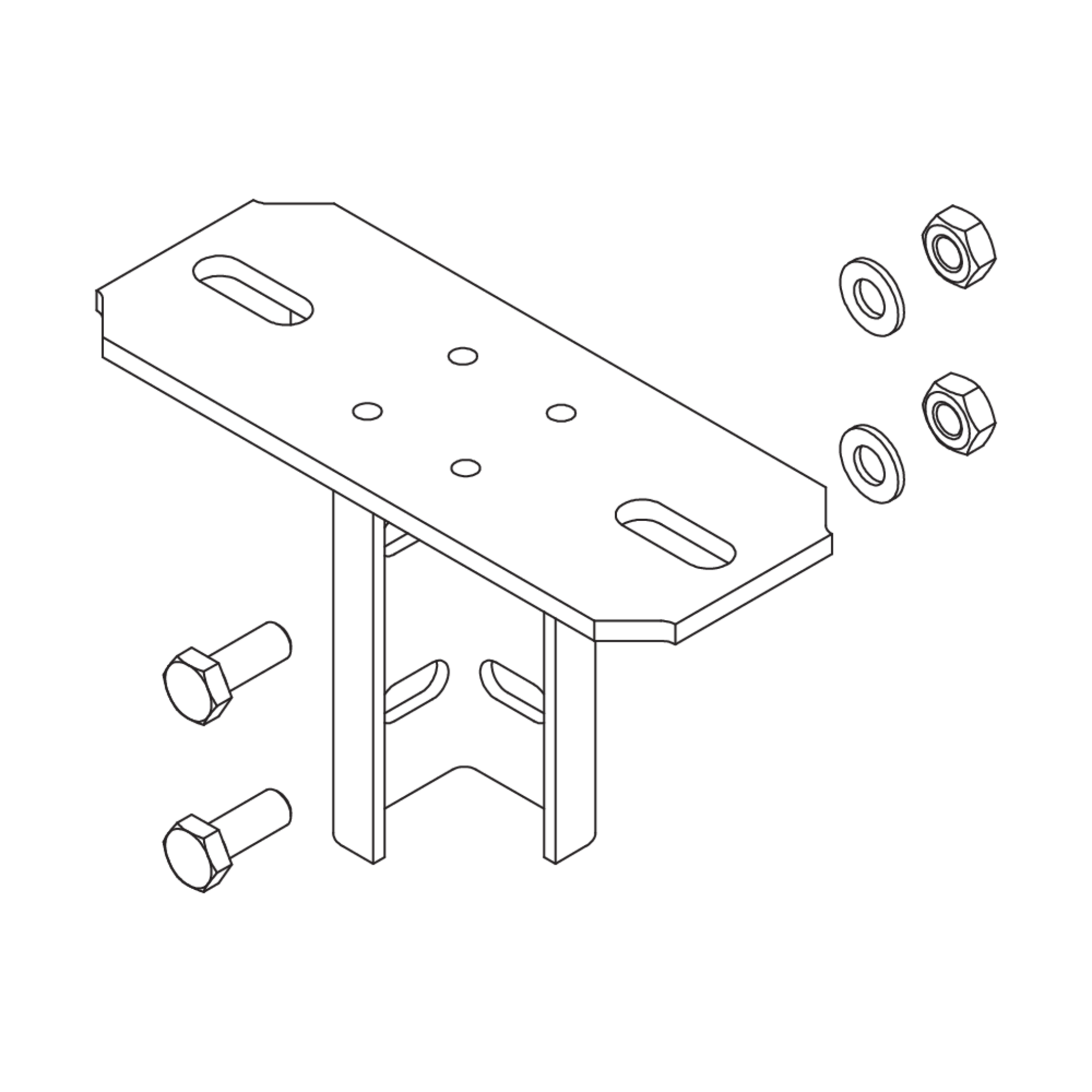

The head plate BGU 60 is used for mounting bracket holder KHU 60 on ceilings. It is bolted to the bracket holder and dowelled to the ceiling. STU 60 and STU 62 vertical ladders can also be attached to the ceiling and/or floor using the head plate BGU 60. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

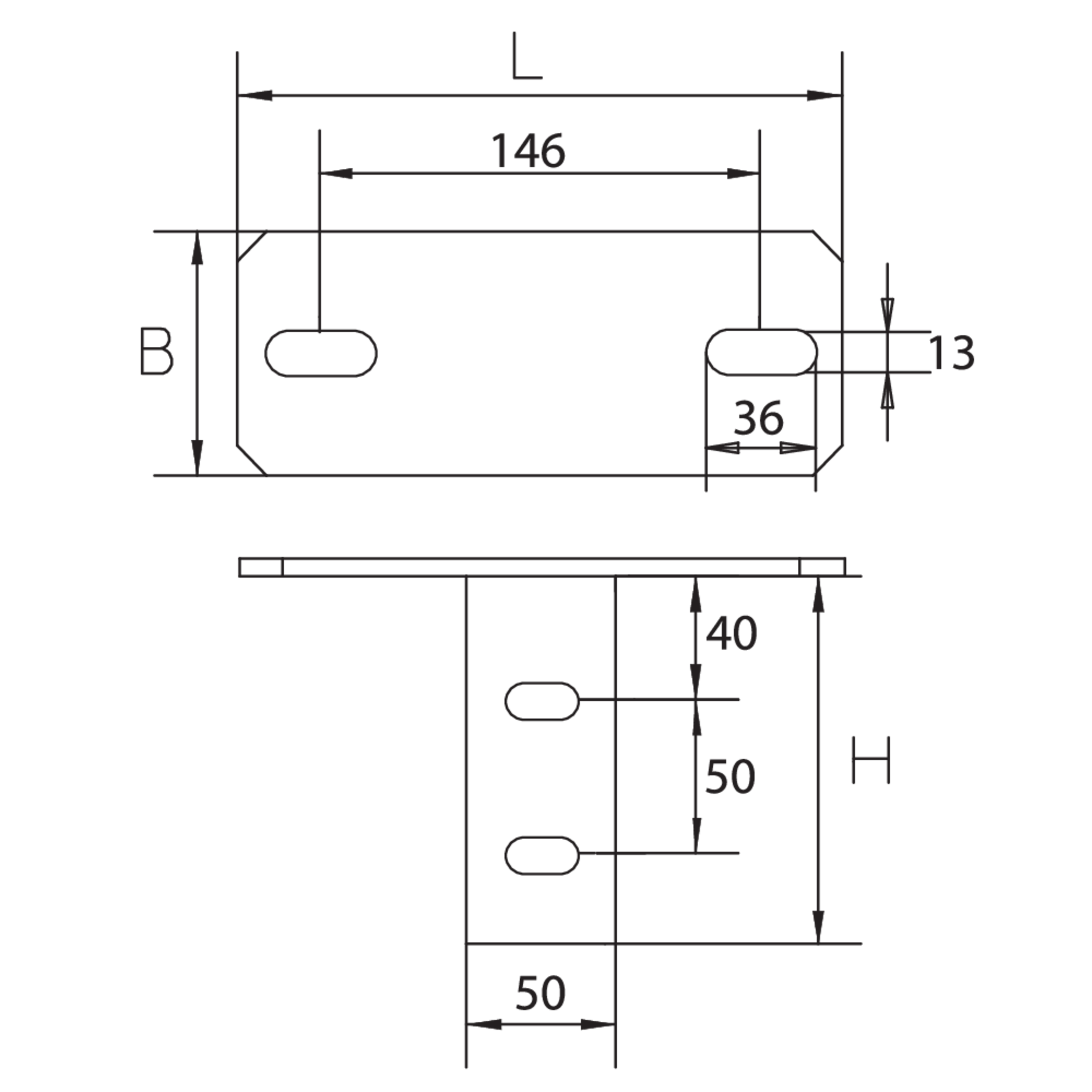

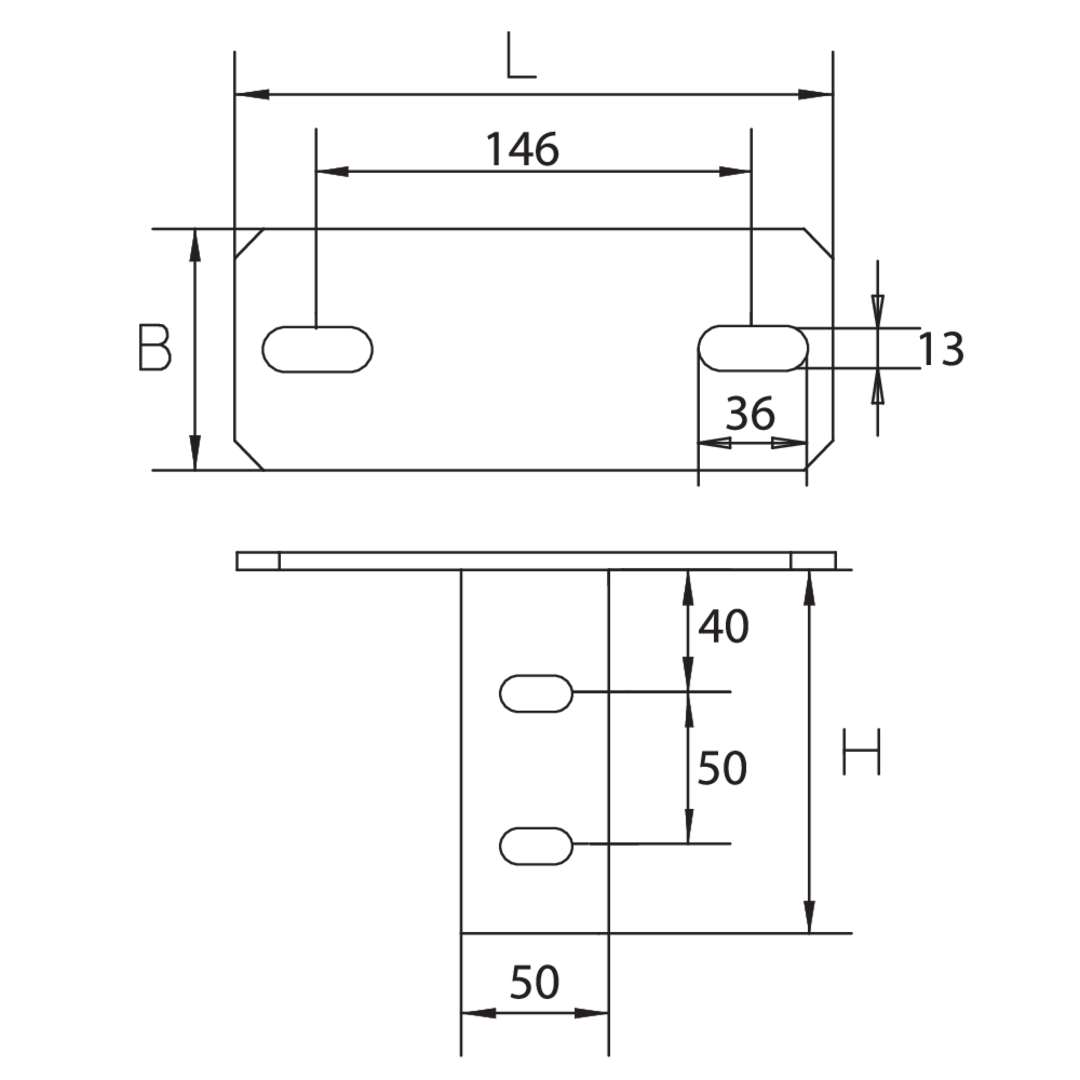

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit
  • BGU 60F
    Kopfplatte
    Höhe
    120 mm
    Breite
    80 mm
    Länge
    200 mm
    Gewicht je Lagermengeneinheit
    1.289 kg
    Included accessories
    More information

Stahl, galvanisch verzinkt

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit
  • BGU 60GV
    Kopfplatte
    Höhe
    120 mm
    Breite
    80 mm
    Länge
    200 mm
    Gewicht je Lagermengeneinheit
    1.251 kg
    Included accessories
    More information

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit
  • BGU 60E
    Kopfplatte
    Höhe
    120 mm
    Breite
    80 mm
    Länge
    200 mm
    Gewicht je Lagermengeneinheit
    1.259 kg
    Included accessories
    More information

Edelstahl, Werkstoff Nr. 1.4571/1.4404 (V4A)

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit
  • BGU 60E4
    Kopfplatte
    Höhe
    120 mm
    Breite
    80 mm
    Länge
    200 mm
    Gewicht je Lagermengeneinheit
    1.256 kg
    Included accessories
    More information
