BGU 57

Screw-on head plate, KHU 57

The head plate BGU 57 is used to mount bracket holder KHU 57 on ceilings. It is bolted to the bracket holder and dowelled to the ceiling. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

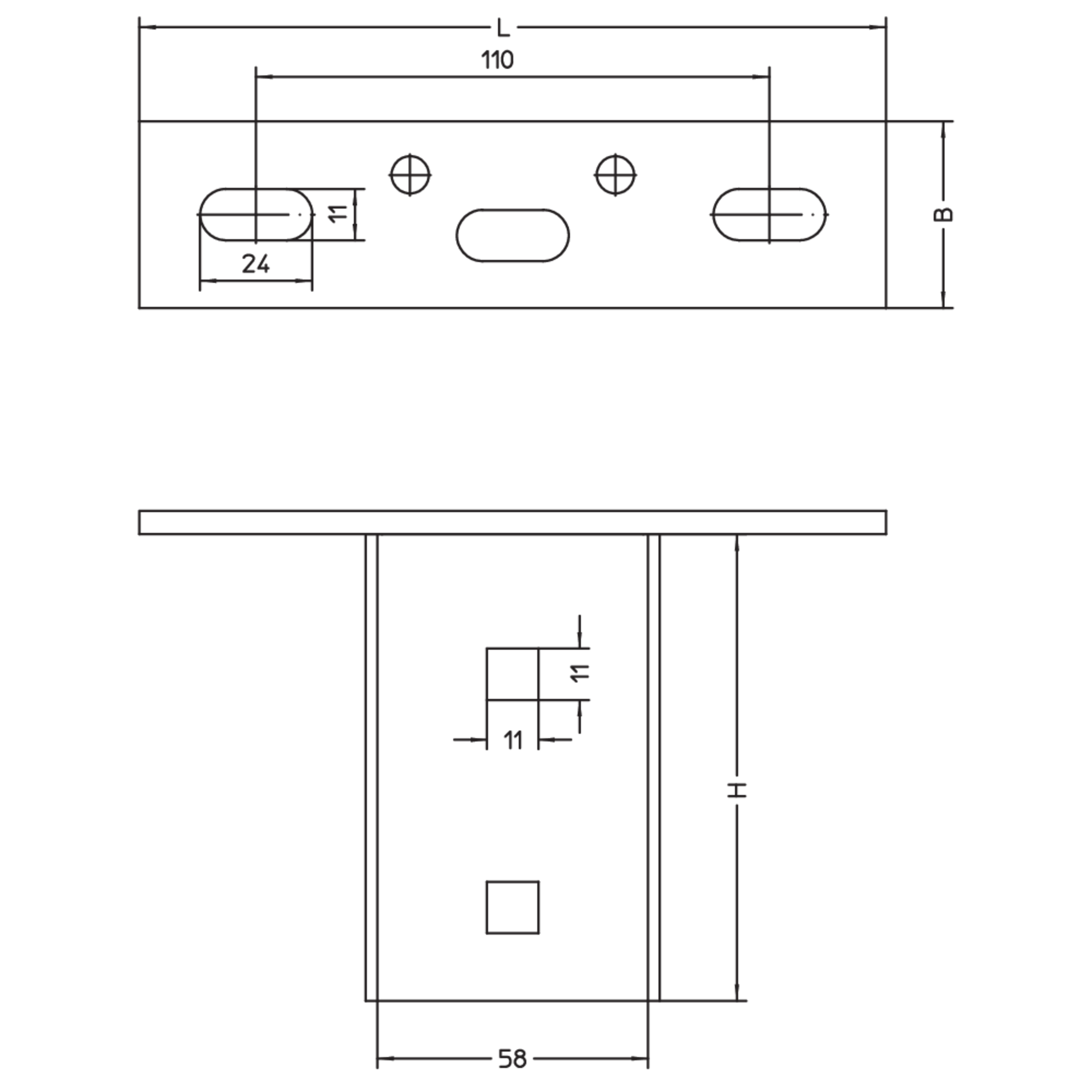

Variants

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit
  • BGU 57F
    Postbase BGU 57F
    height
    120 mm
    width
    80 mm
    length
    200 mm
    material thickness
    5.00 mm
    Weight per storage unit
    0.541 kg
    Included accessories
    More information

steel, galvanic zinc plated

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit
  • BGU 57GV
    Postbase BGU 57F
    height
    120 mm
    width
    80 mm
    length
    200 mm
    material thickness
    5.00 mm
    Weight per storage unit
    0.505 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit
  • BGU 57E
    Postbase BGU 57E
    height
    120 mm
    width
    80 mm
    length
    200 mm
    material thickness
    5.00 mm
    Weight per storage unit
    0.520 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit
  • BGU 57E4
    Postbase BGU 57E4
    height
    120 mm
    width
    80 mm
    length
    200 mm
    material thickness
    5.00 mm
    Weight per storage unit
    0.524 kg
    Included accessories
    More information
