BGU 40

Screw-on head plate, KHU 40

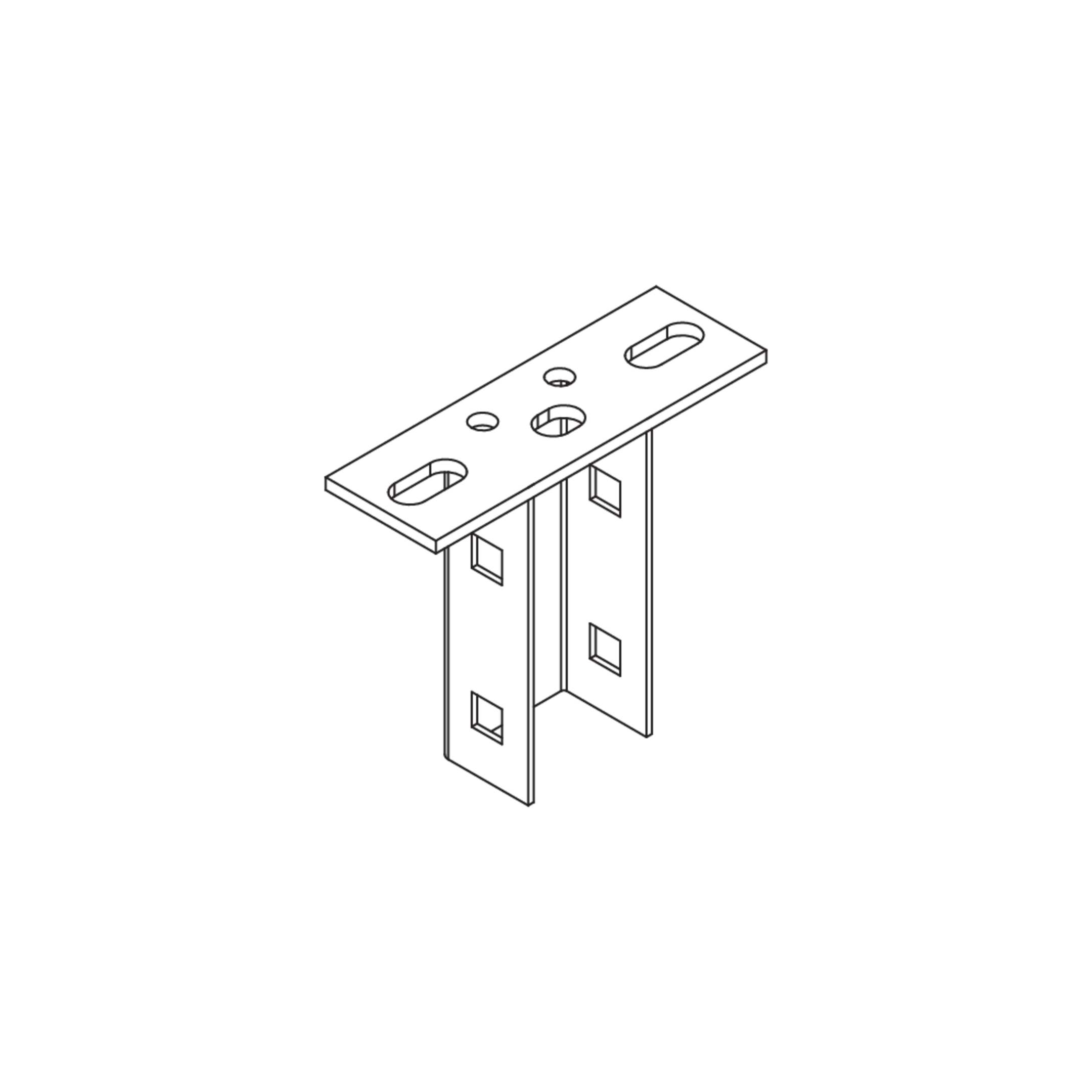

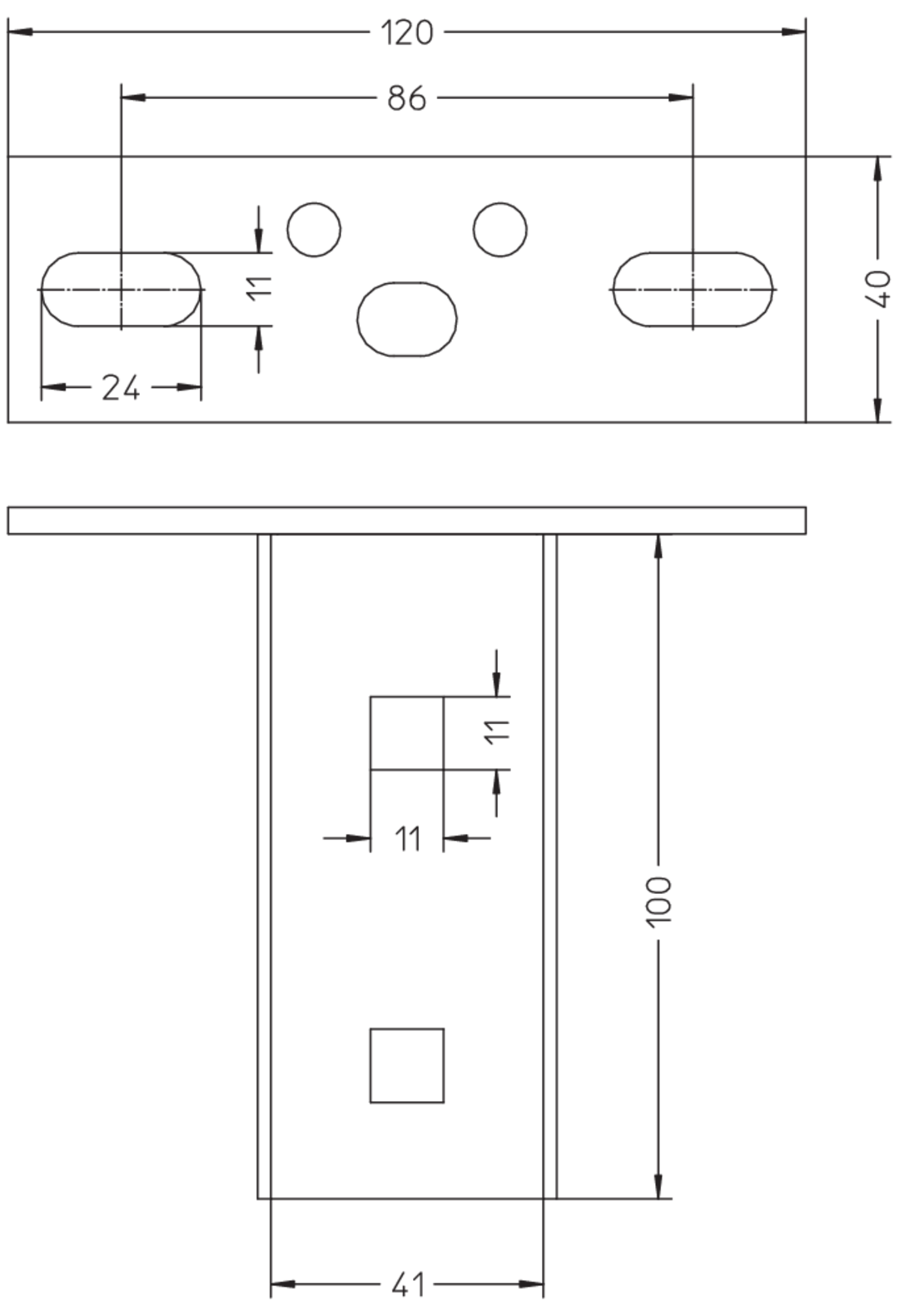

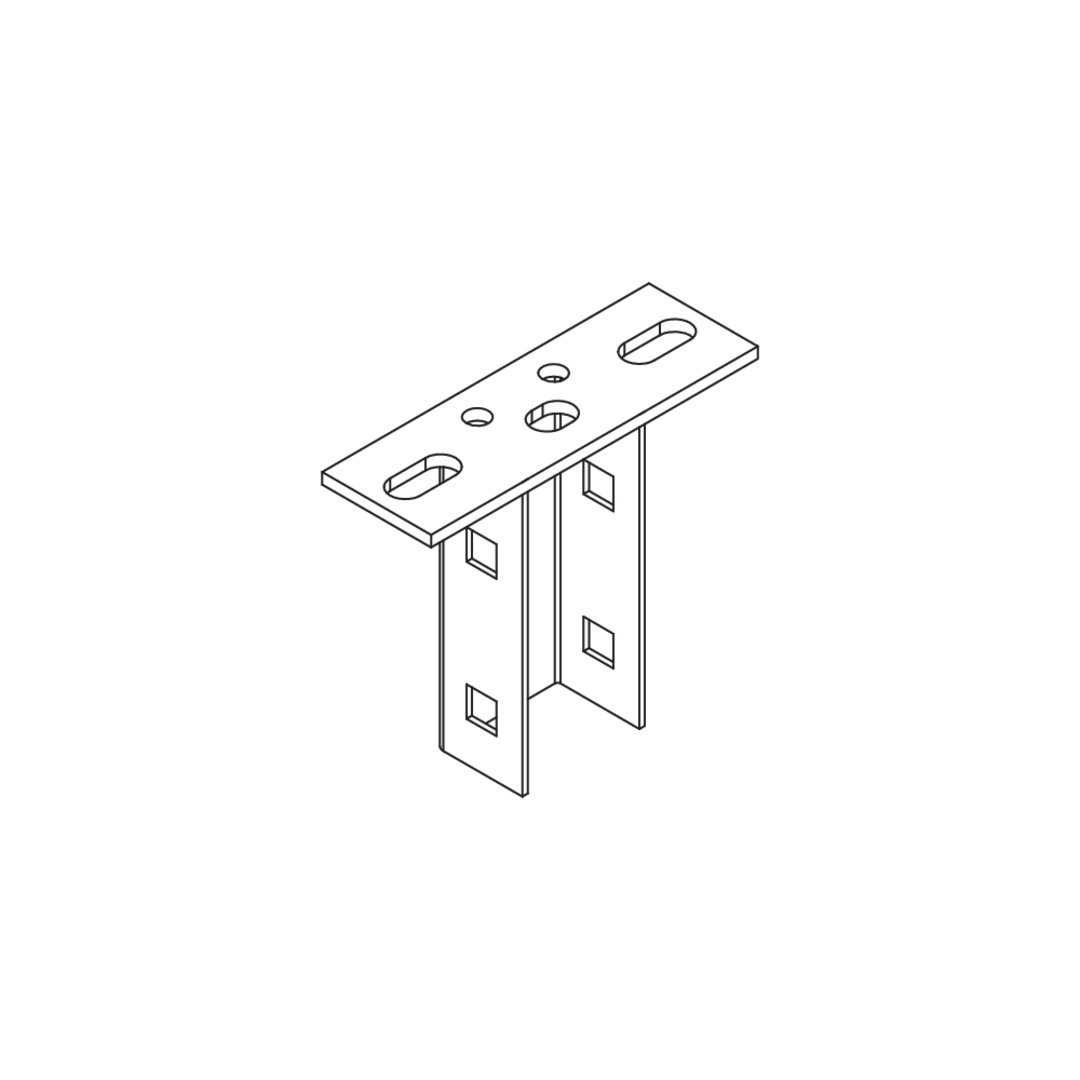

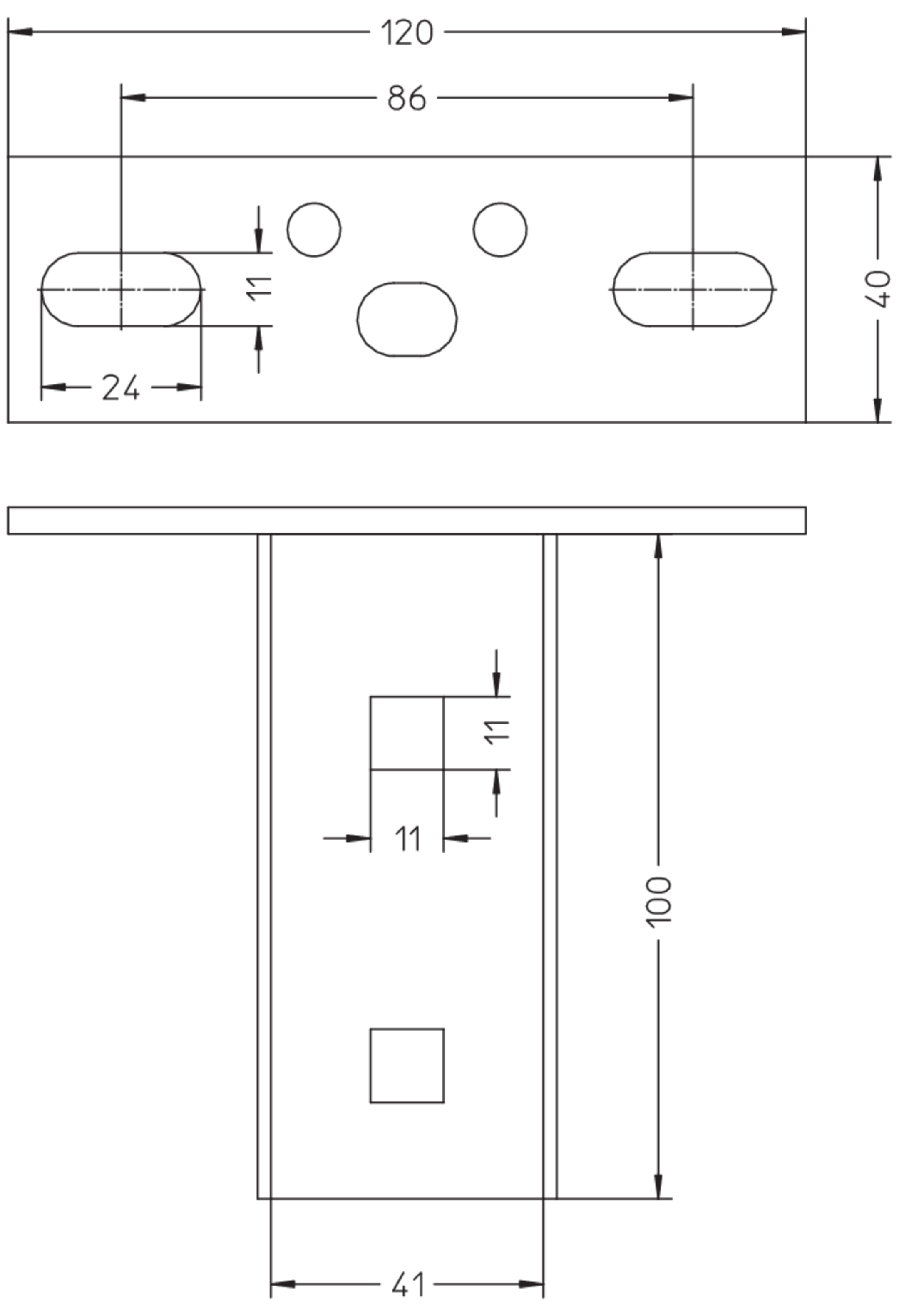

The head plate BGU 40 is used to mount bracket holder KHU 40 on ceilings. It is bolted to the bracket holder and dowelled to the ceiling. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

B

Breite

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit
  • BGU 40F
    Kopfplatte
    Höhe
    120 mm
    Breite
    80 mm
    Länge
    200 mm
    Materialstärke
    4.00 mm
    Gewicht je Lagermengeneinheit
    0.367 kg
    Included accessories
    More information

Stahl, galvanisch verzinkt

Article

H

Höhe

B

Breite

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit
  • BGU 40GV
    Kopfplatte
    Höhe
    120 mm
    Breite
    80 mm
    Länge
    200 mm
    Materialstärke
    4.00 mm
    Gewicht je Lagermengeneinheit
    0.342 kg
    Included accessories
    More information

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

H

Höhe

B

Breite

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit
  • BGU 40E
    Kopfplatte
    Höhe
    120 mm
    Breite
    80 mm
    Länge
    200 mm
    Materialstärke
    4.00 mm
    Gewicht je Lagermengeneinheit
    0.352 kg
    Included accessories
    More information

Edelstahl, Werkstoff Nr. 1.4571/1.4404 (V4A)

Article

H

Höhe

B

Breite

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit
  • BGU 40E4
    Kopfplatte
    Höhe
    120 mm
    Breite
    80 mm
    Länge
    200 mm
    Materialstärke
    4.00 mm
    Gewicht je Lagermengeneinheit
    0.357 kg
    Included accessories
    More information
