AVSKH

Beam clamp for mounting channels

The beam clamp AVSKH is used to attach mounting channels (A 41, KHA 41, KHAL 41, KHA 42, KHA 82) to horizontal steel beams. The maximum flange thickness of the steel beam to be fastened is 22 mm. It is made of hot-dip galvanised steel.

Get in touchDownload datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

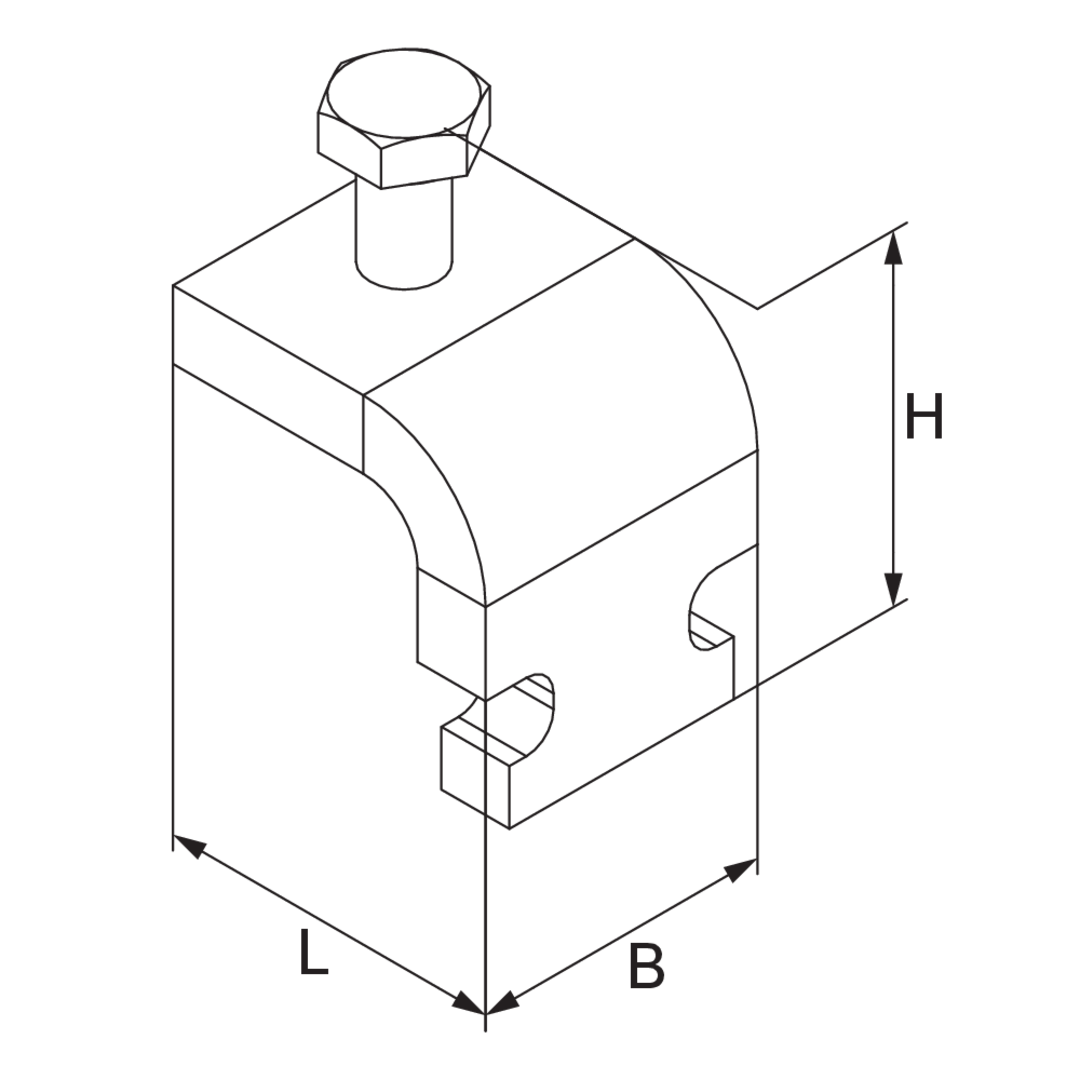

Article

H

Höhe

B

Breite

L

Länge

t

Materialstärke

k

Klemmbereich

G

Gewicht je Lagermengeneinheit

  • AVSKH F
    Profilklemme
    Höhe
    48 mm
    Breite
    40 mm
    Länge
    46 mm
    Materialstärke
    10 mm
    Klemmbereich
    22 mm
    Gewicht je Lagermengeneinheit
    0.342 kg
    Included accessories
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Included accessories
