AVSKA

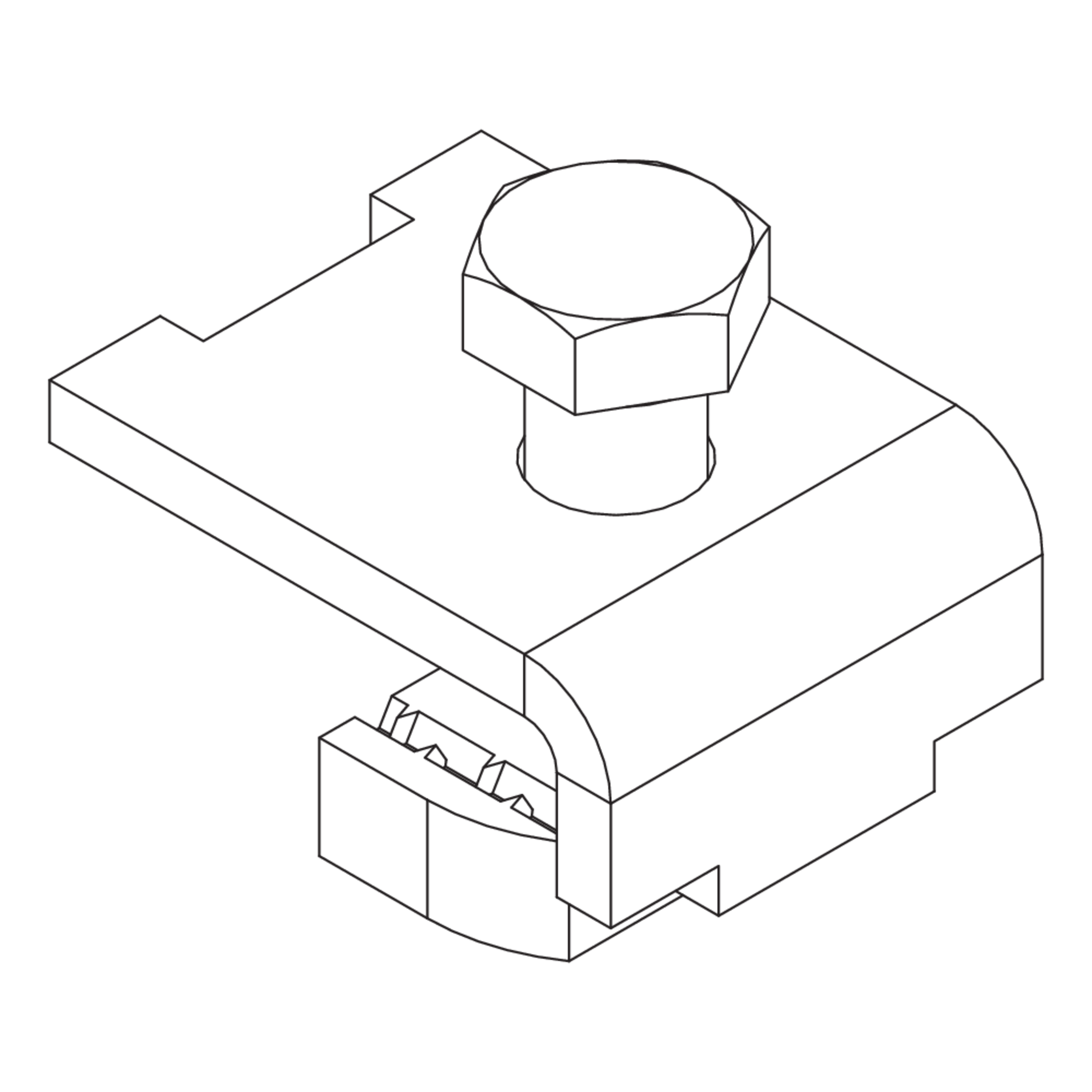

Beam clamp for mounting channels

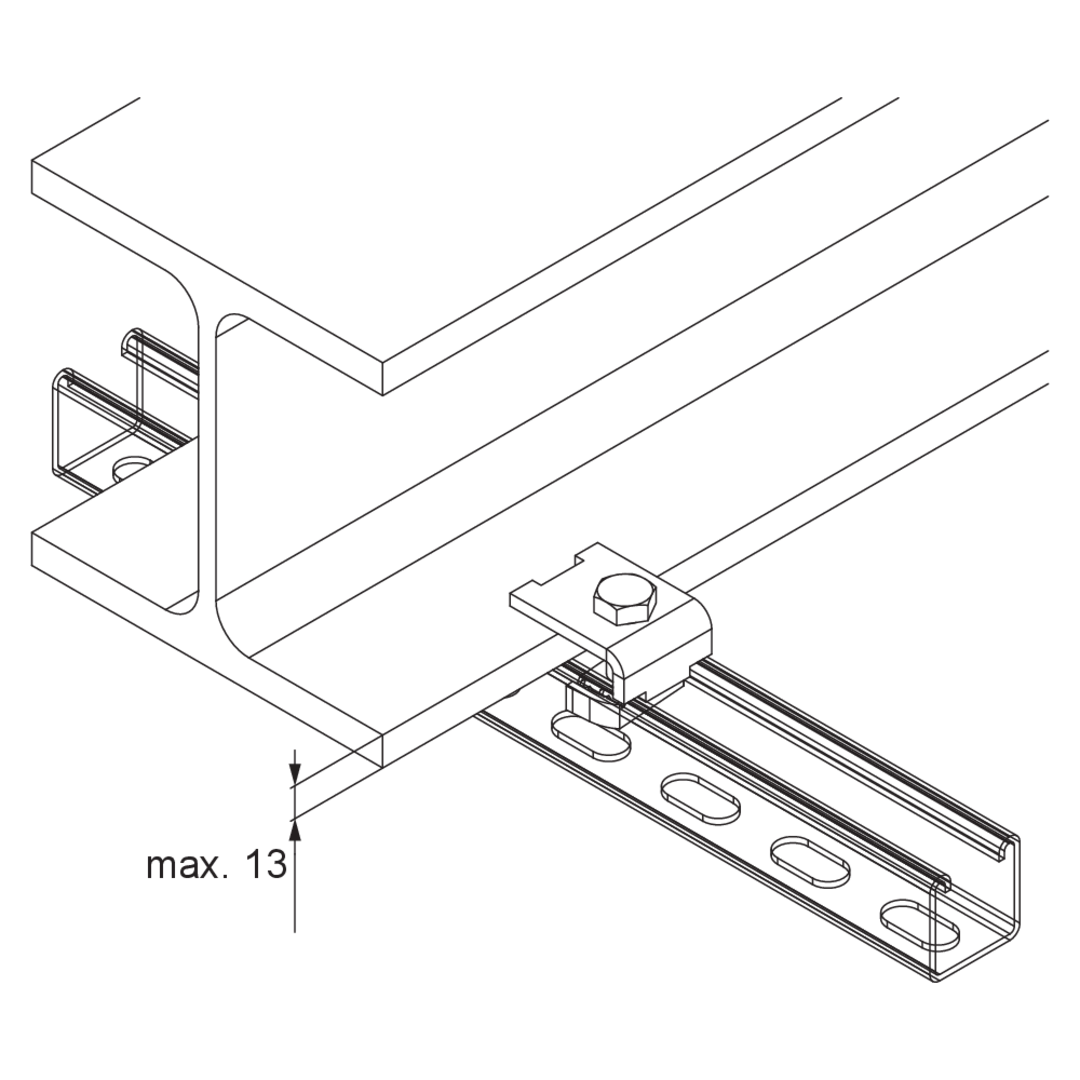

The beam clamp AVSKA is used to fasten mounting channels (A 41, KHA 41, KHAL 41) with 22 mm slot width to horizontal steel beams. The maximum flange thickness of the steel beam to be fastened is 13 mm. It is made of hot-dip galvanised steel.

Variants

Stahl, stück-/tauchfeuerverzinkt

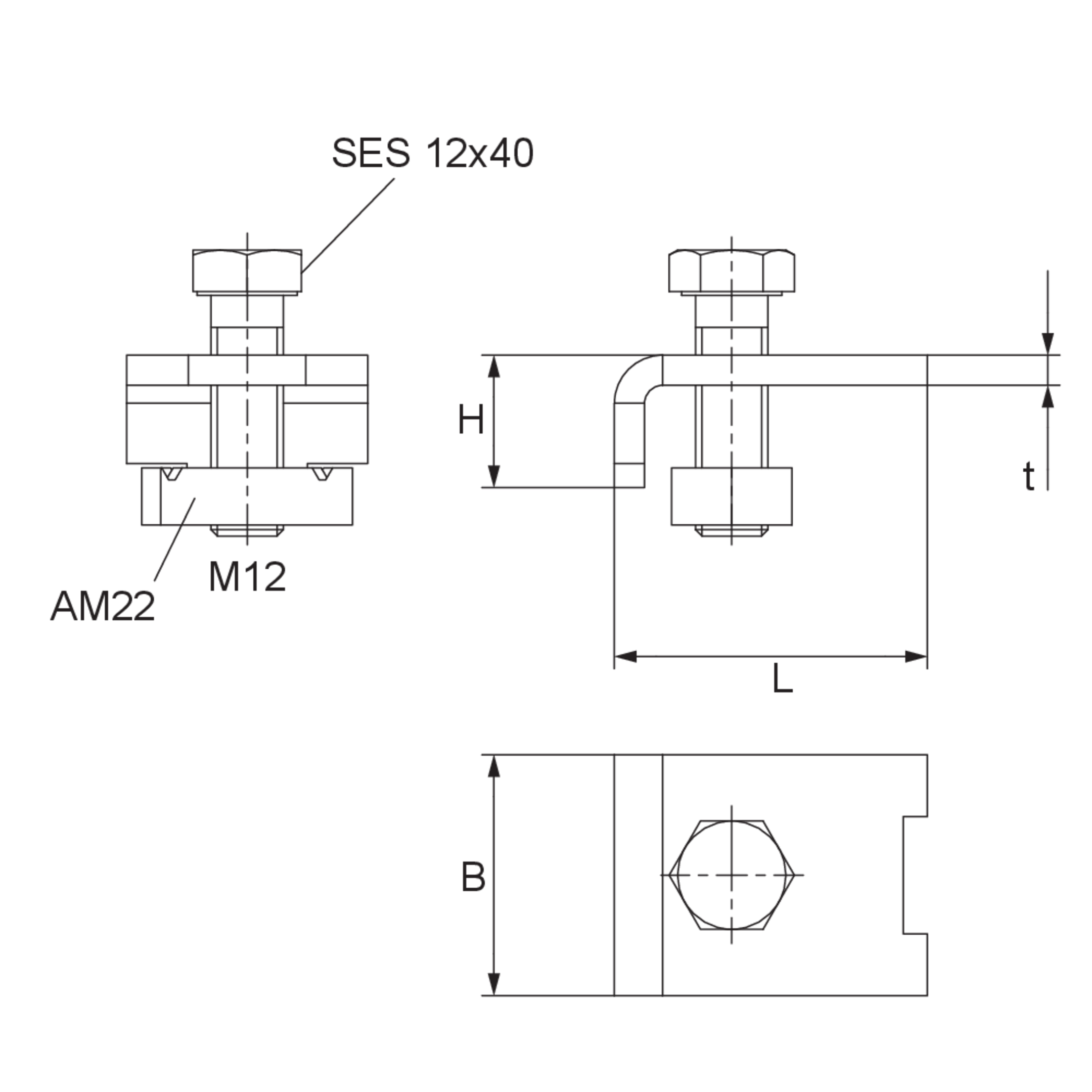

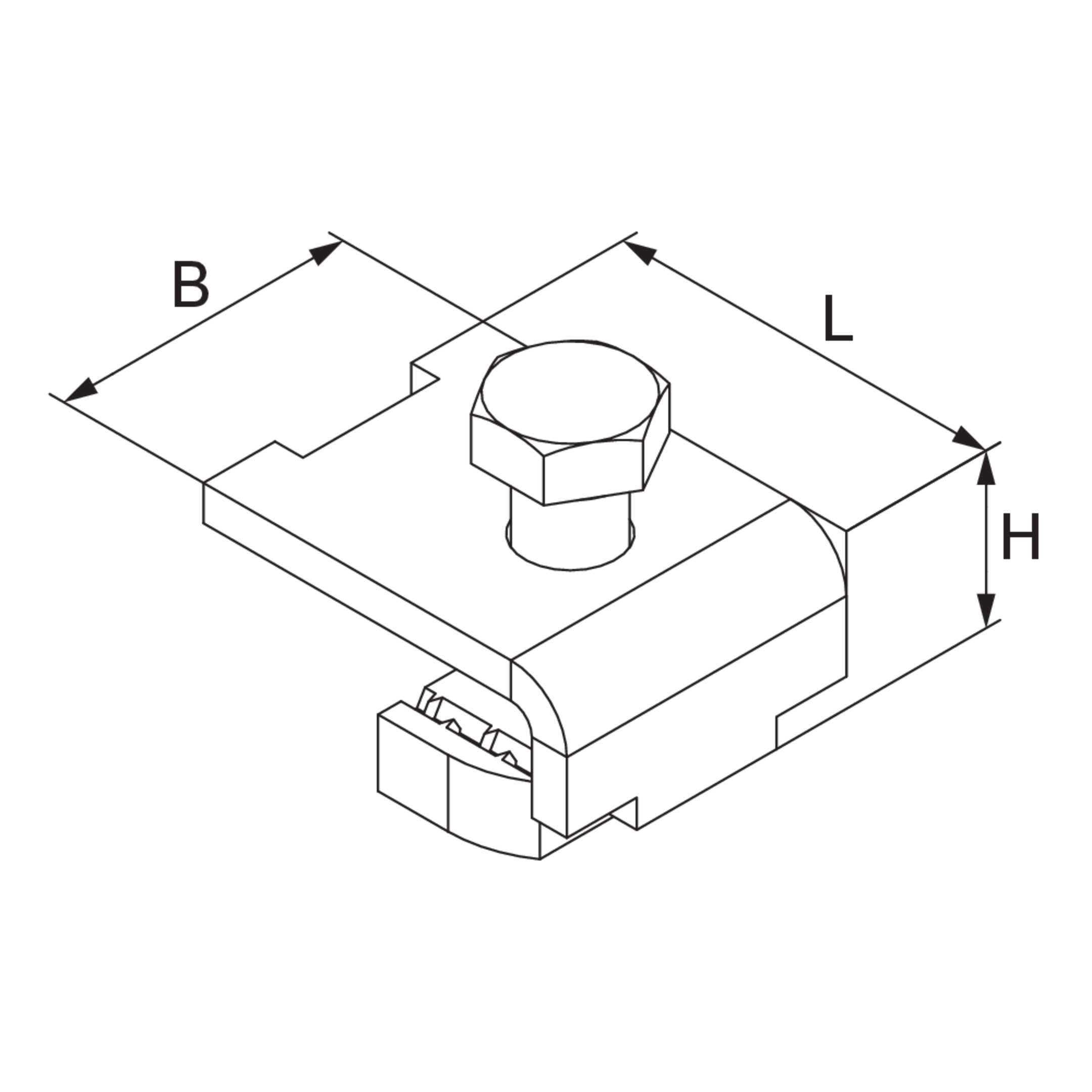

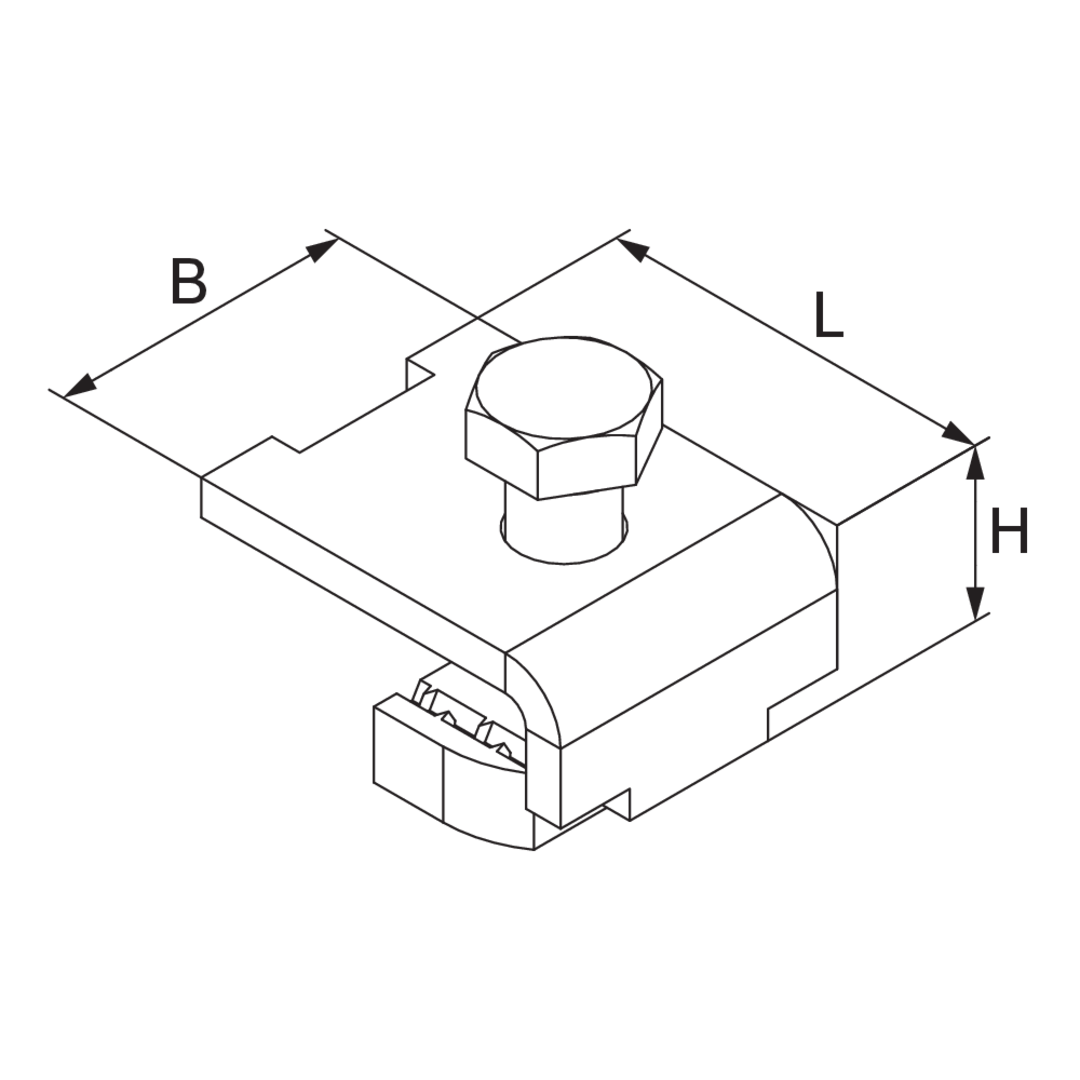

Article

H

Höhe

B

Breite

L

Länge

t

Materialstärke

k

Klemmbereich

G

Gewicht je Lagermengeneinheit

  • AVSKA F
    Profilklemme
    Höhe
    22 mm
    Breite
    40 mm
    Länge
    52 mm
    Materialstärke
    5 mm
    Klemmbereich
    13 mm
    Gewicht je Lagermengeneinheit
    0.189 kg
    Included accessories

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
