AVE-R

Right-hand channel joint connector

The right-hand channel joint connector AVE-R is used to connect three mounting channels (A 41, KHA 41, KHAL 41), one continuous channel and two in a T-joint. The two joints are vertical, orientated to the right of the continuous channel. It has fixing holes with Ø 13 mm and is made of hot-dip galvanised steel. Fastening accessories must be ordered separately, depending on the application.

Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

Article

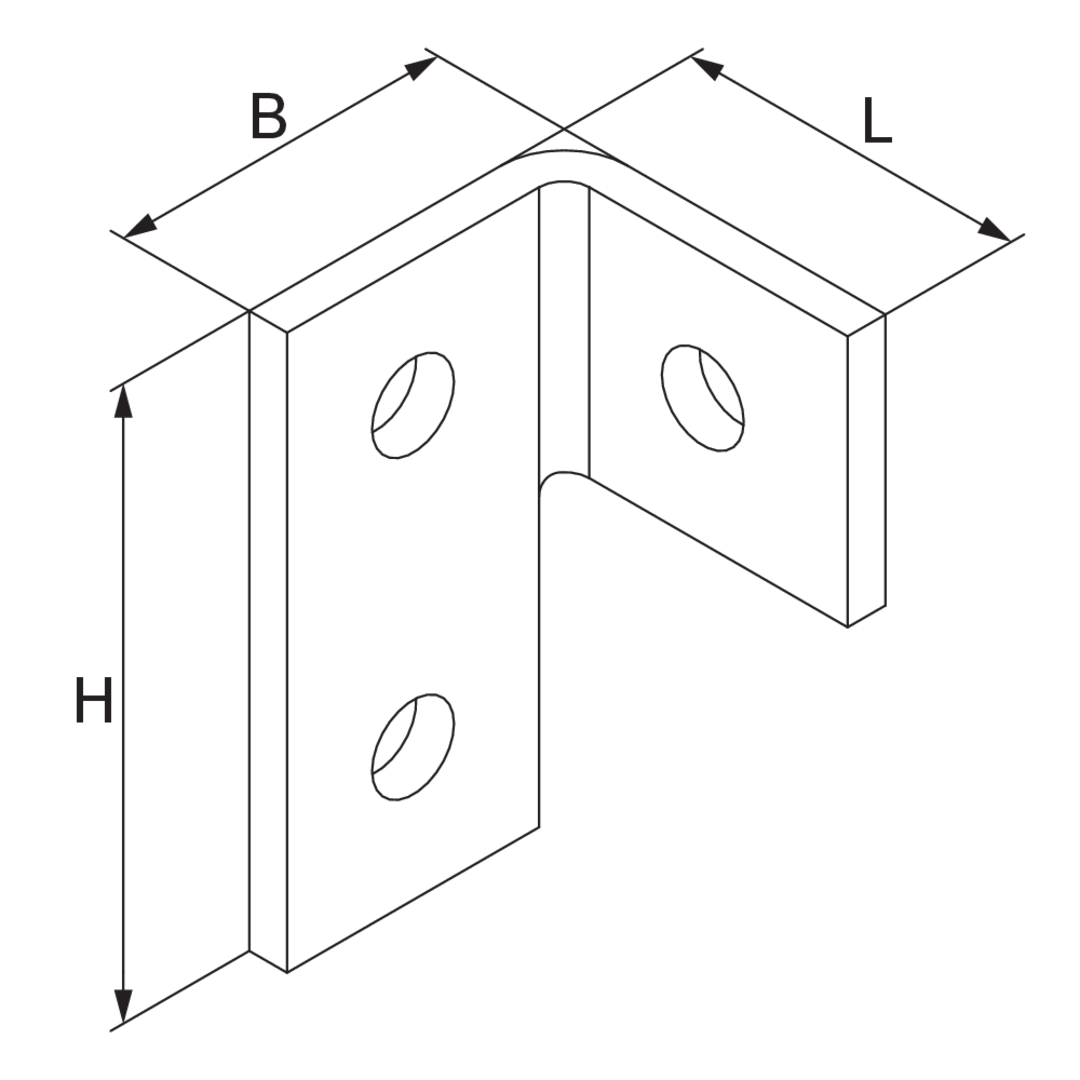

H

B

L

t

W

W

  • AVE-R F
    Rail coupler corner AVE F
    88 mm
    50 mm
    51 mm
    6.00 mm
    90°
    0.260 kg
