Left-hand channel joint connector

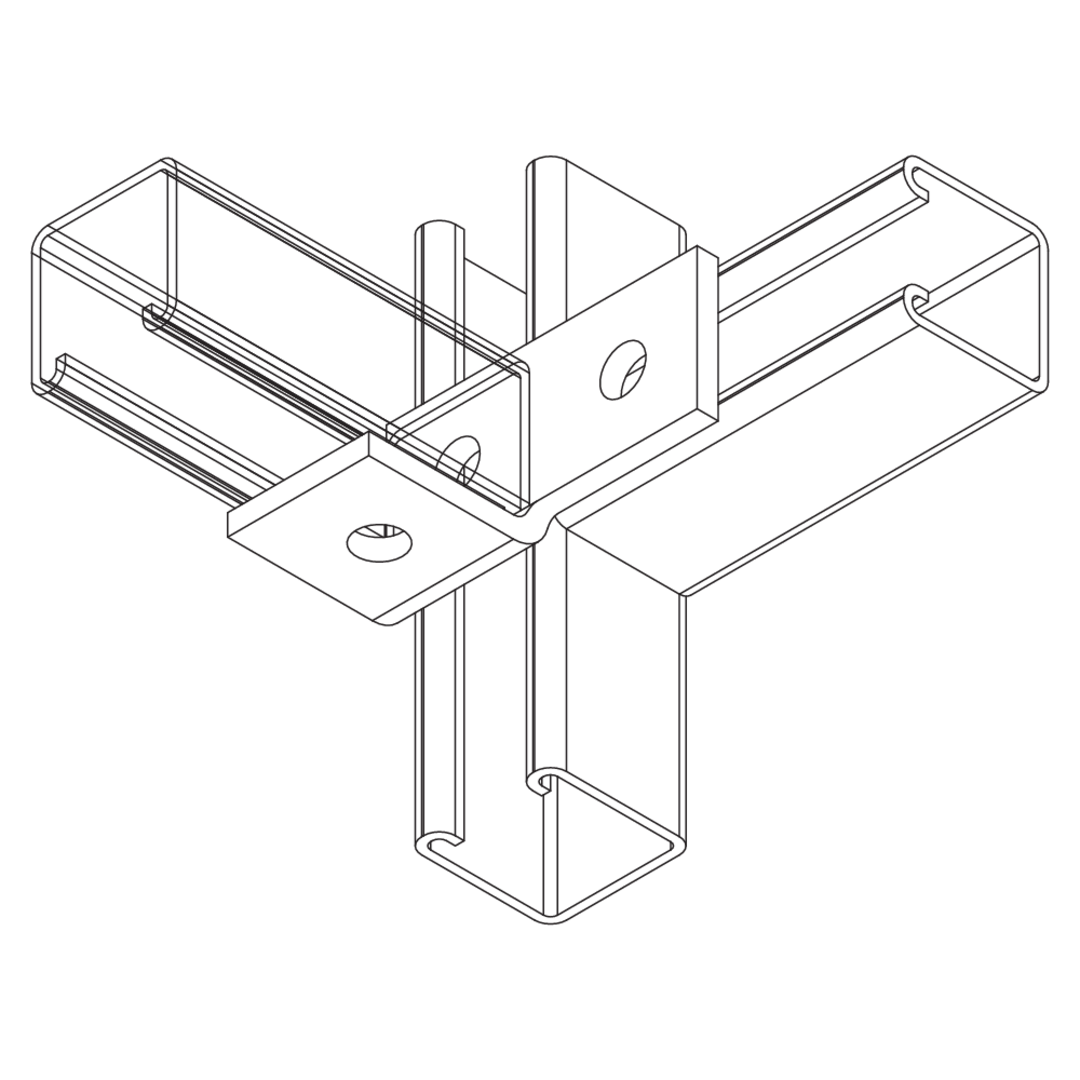

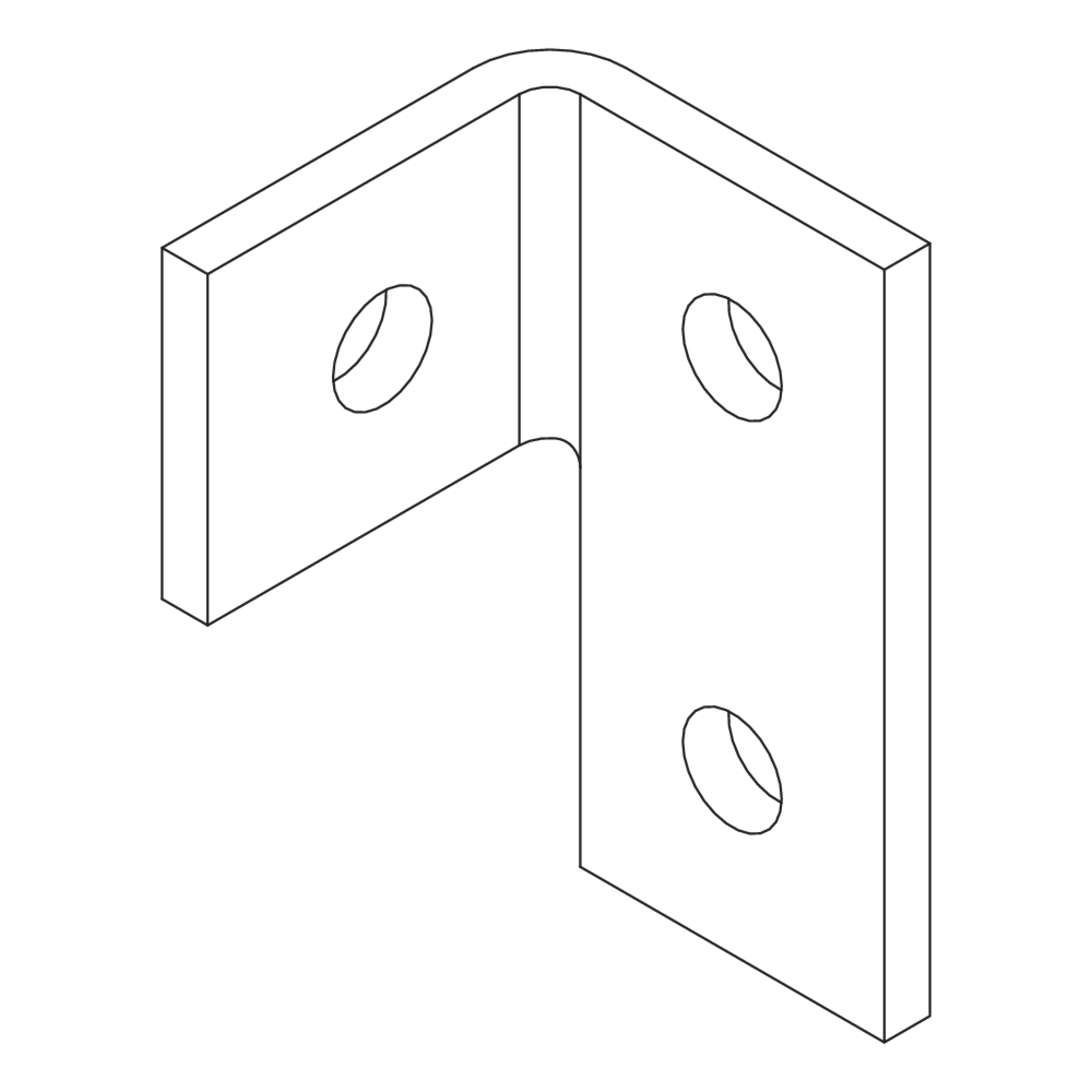

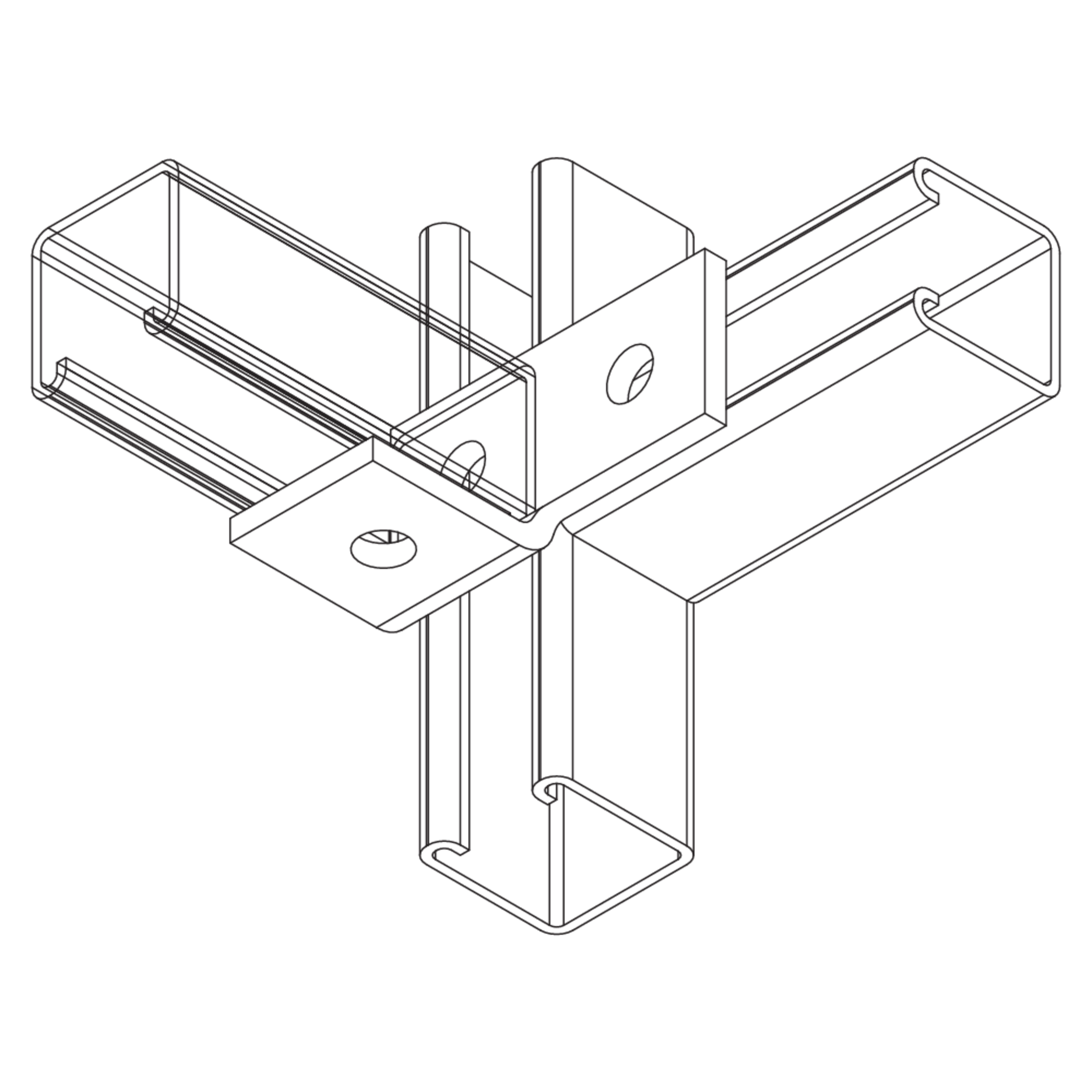

The left-hand channel joint connector AVE-L is used to connect three mounting channels (A 41, KHA 41, KHAL 41), one continuous channel and two in a T-joint. The two joints are vertical, orientated to the left of the continuous channel. It has fixing holes with Ø 13 mm and is made of hot-dip galvanised steel. Fastening accessories must be ordered separately, depending on the application.

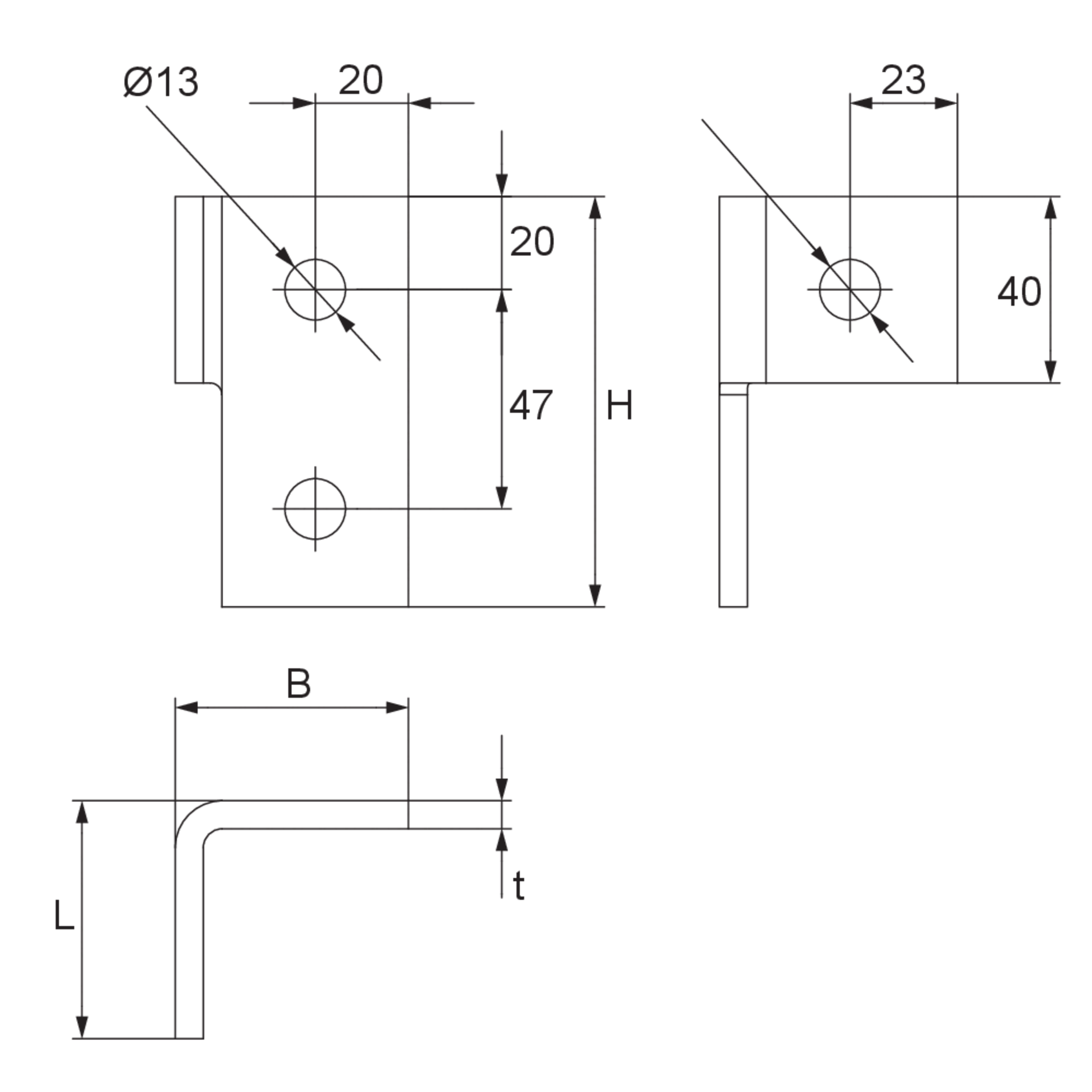

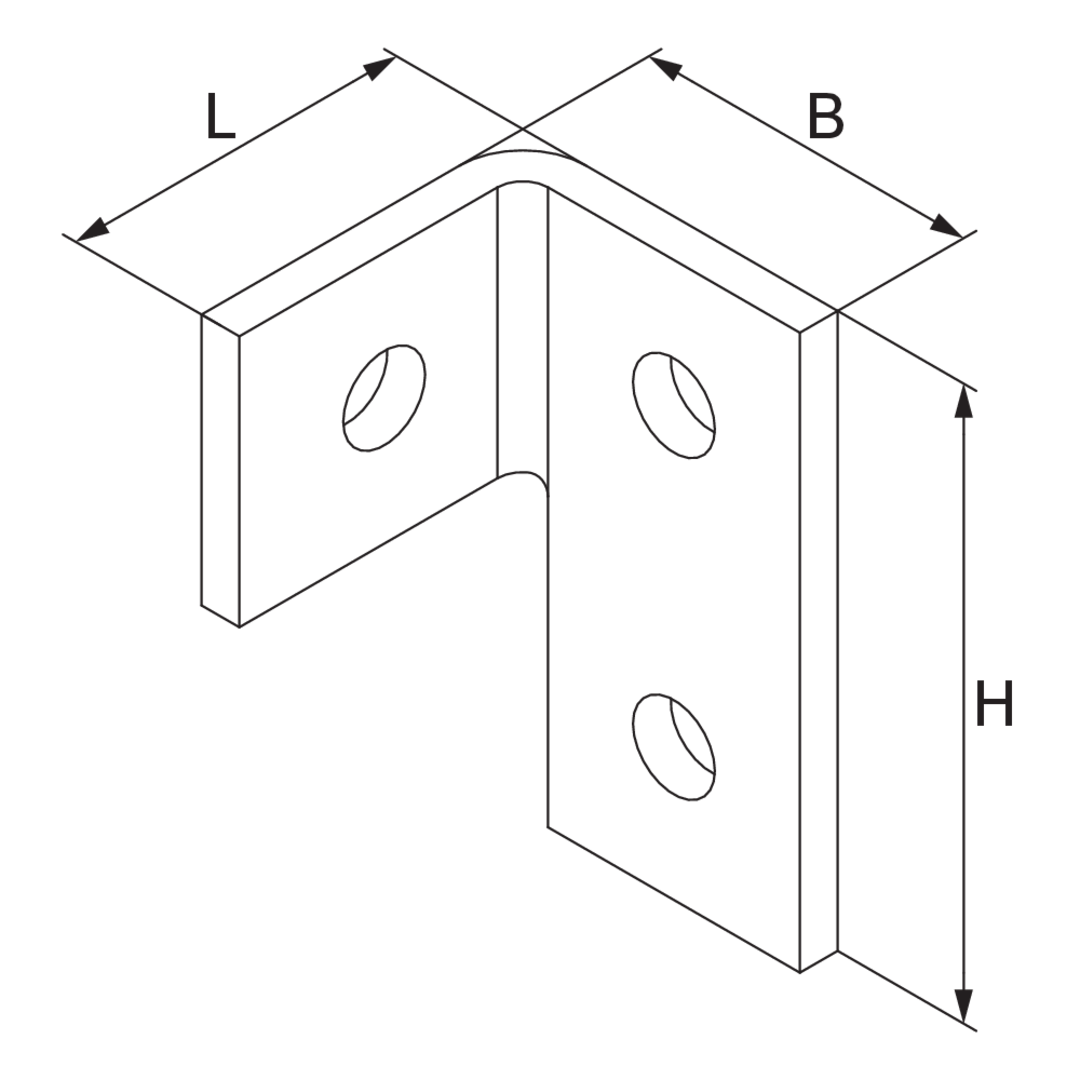

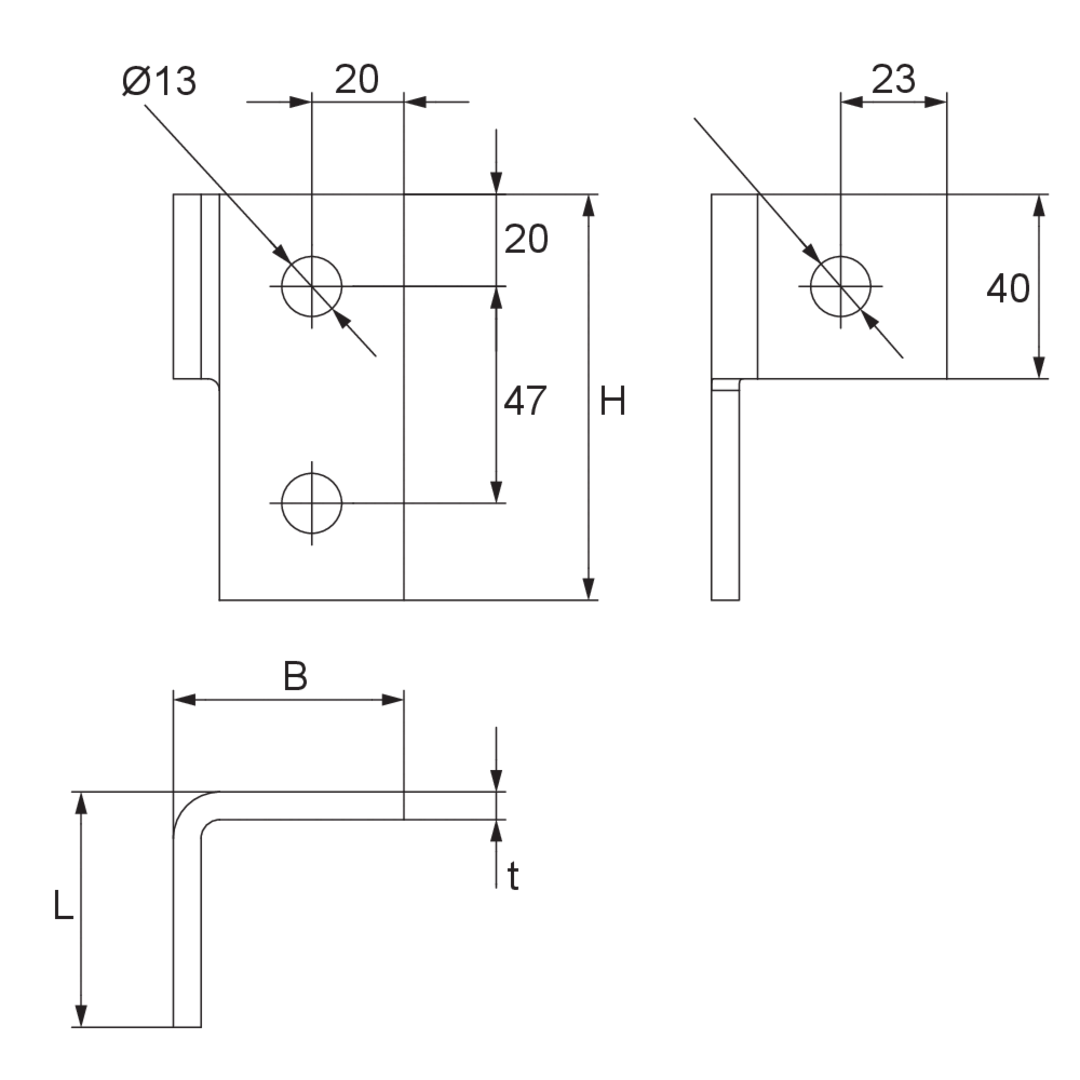

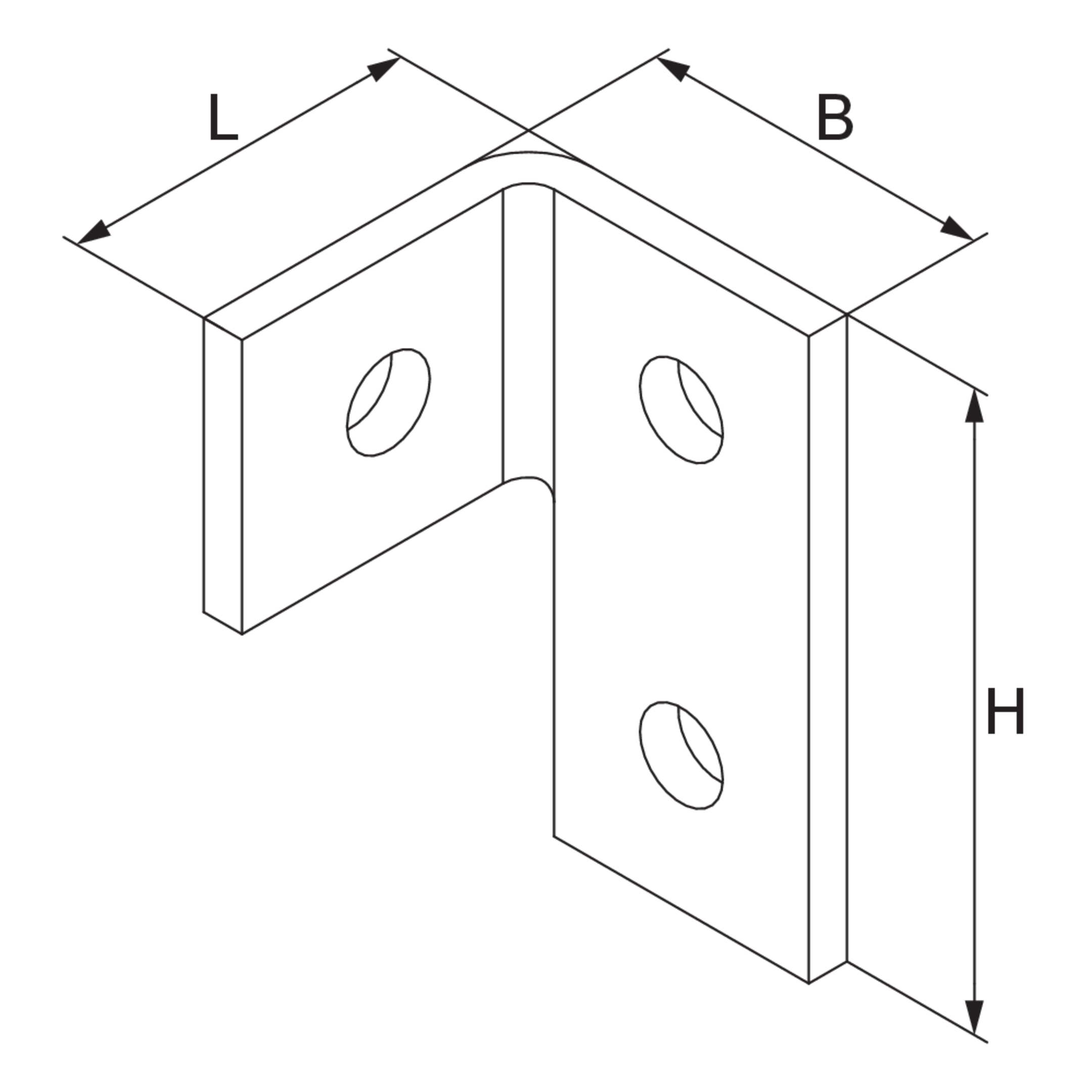

H
height
B
width
L
length
t
material thickness
W
Angle
G
Weight per storage unit
