AVBL

Channel support bracket

The channel support bracket AVBL is used to connect two intersecting mounting channels on one side. It has fixing holes with Ø 13 mm and is made of hot-dip galvanised steel. Fastening accessories must be ordered separately, depending on the application.

Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit
  • AVBL 21F
    Profile rail connector
    height
    28 mm
    width
    40 mm
    length
    90 mm
    material thickness
    6 mm
    Weight per storage unit
    0.190 kg
    More information

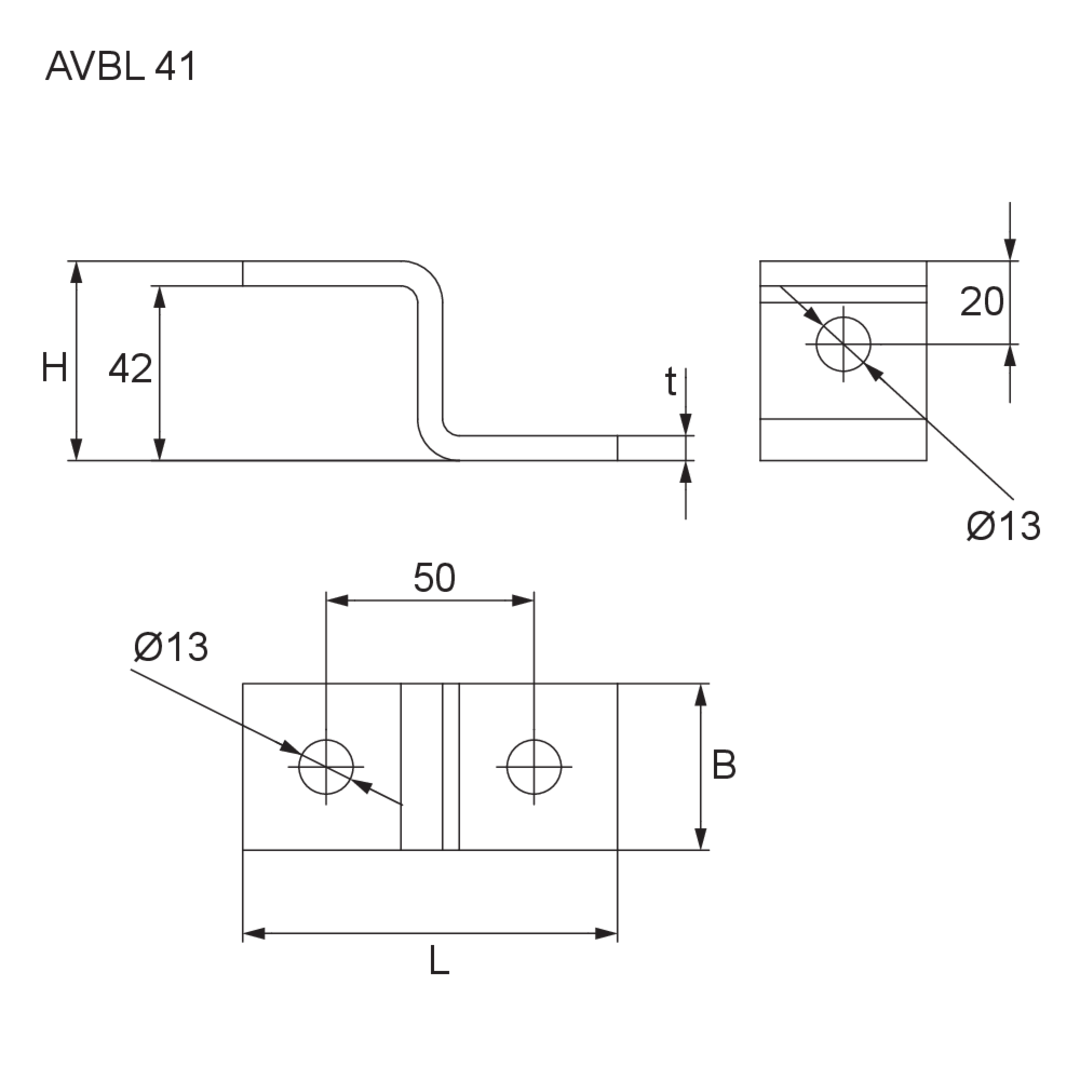

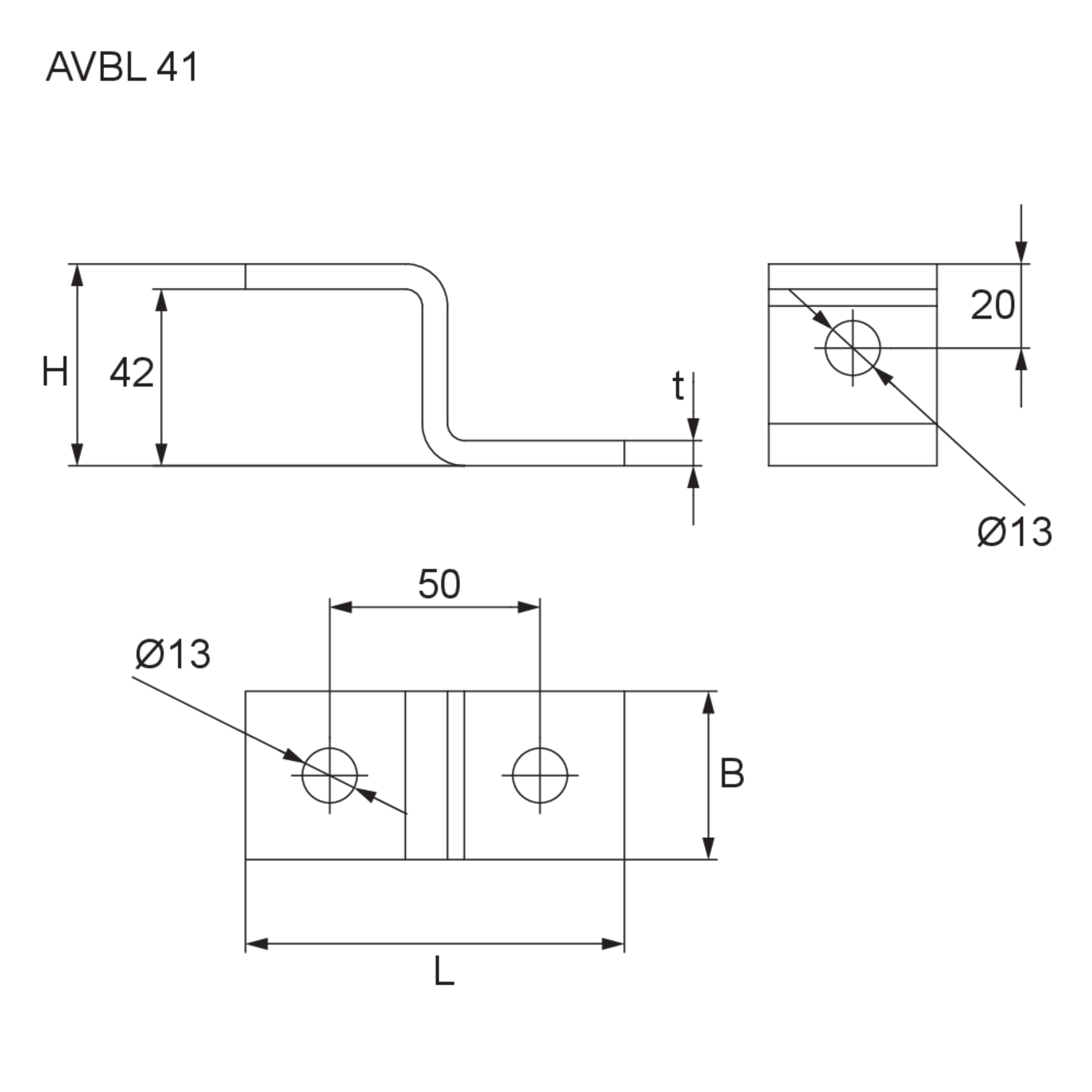

  • AVBL 41F
    Profile rail connector
    height
    48 mm
    width
    40 mm
    length
    90 mm
    material thickness
    6 mm
    Weight per storage unit
    0.220 kg
    More information

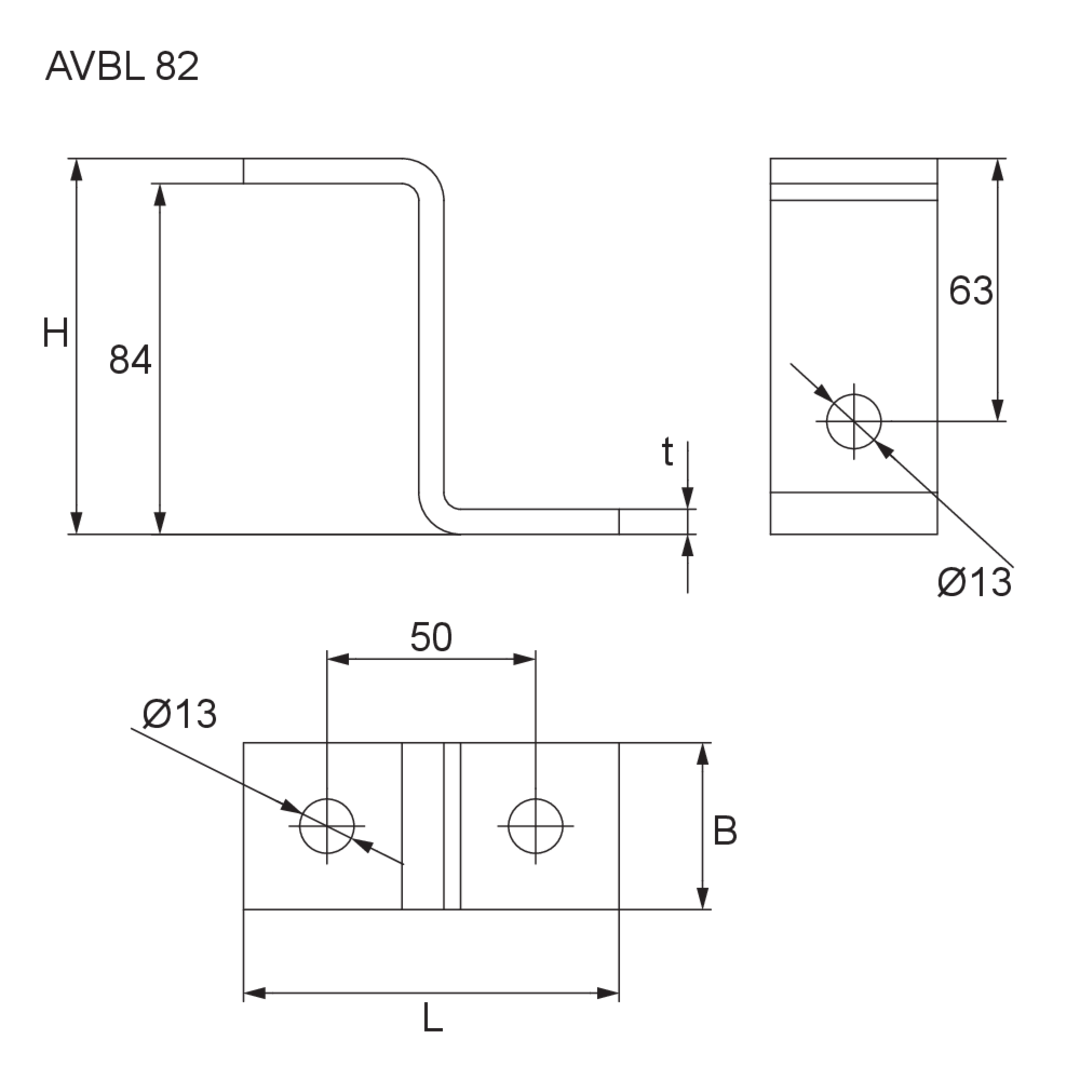

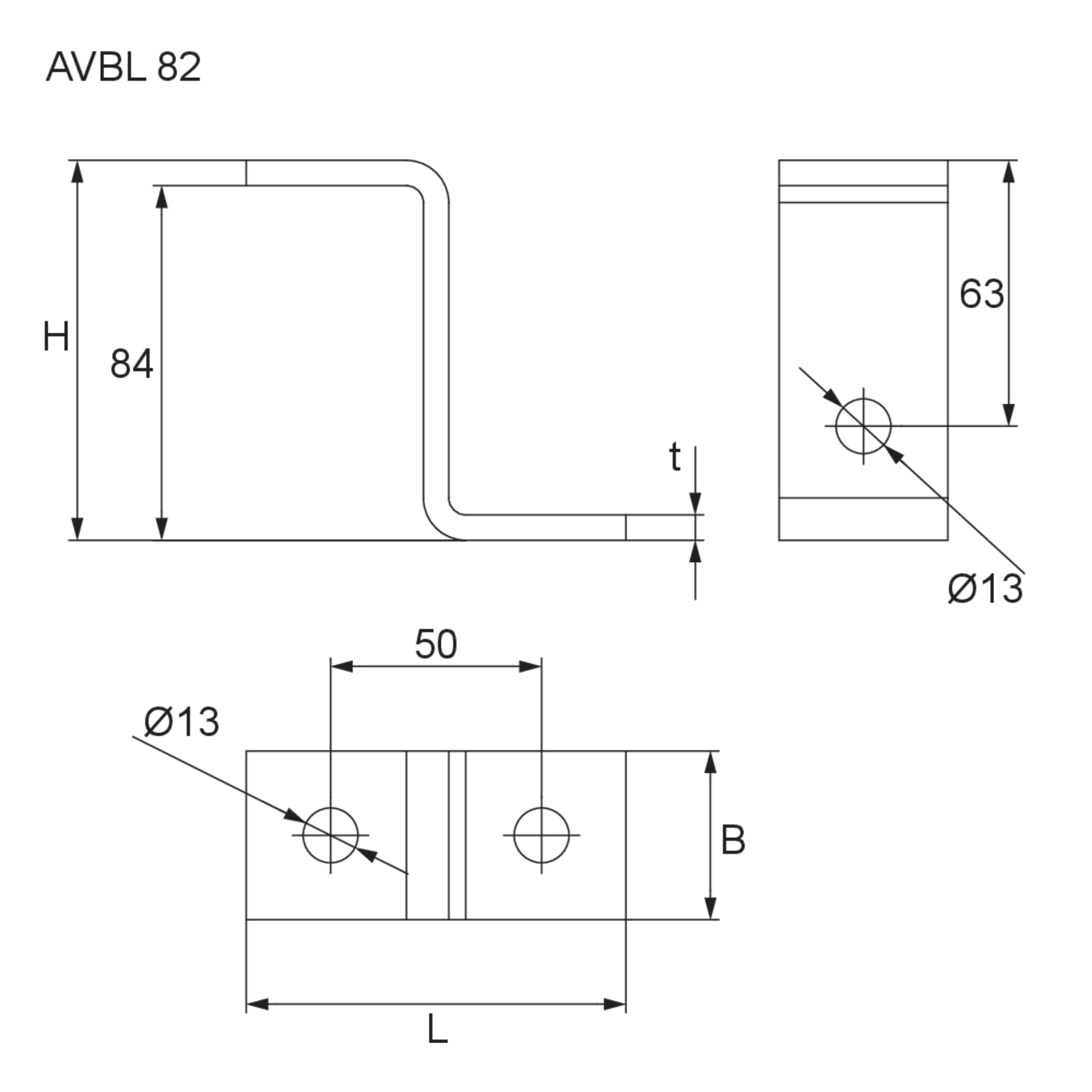

  • AVBL 82F
    Profile rail connector
    height
    90 mm
    width
    40 mm
    length
    90 mm
    material thickness
    6 mm
    Weight per storage unit
    0.310 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
