AHB

Suspension bracket

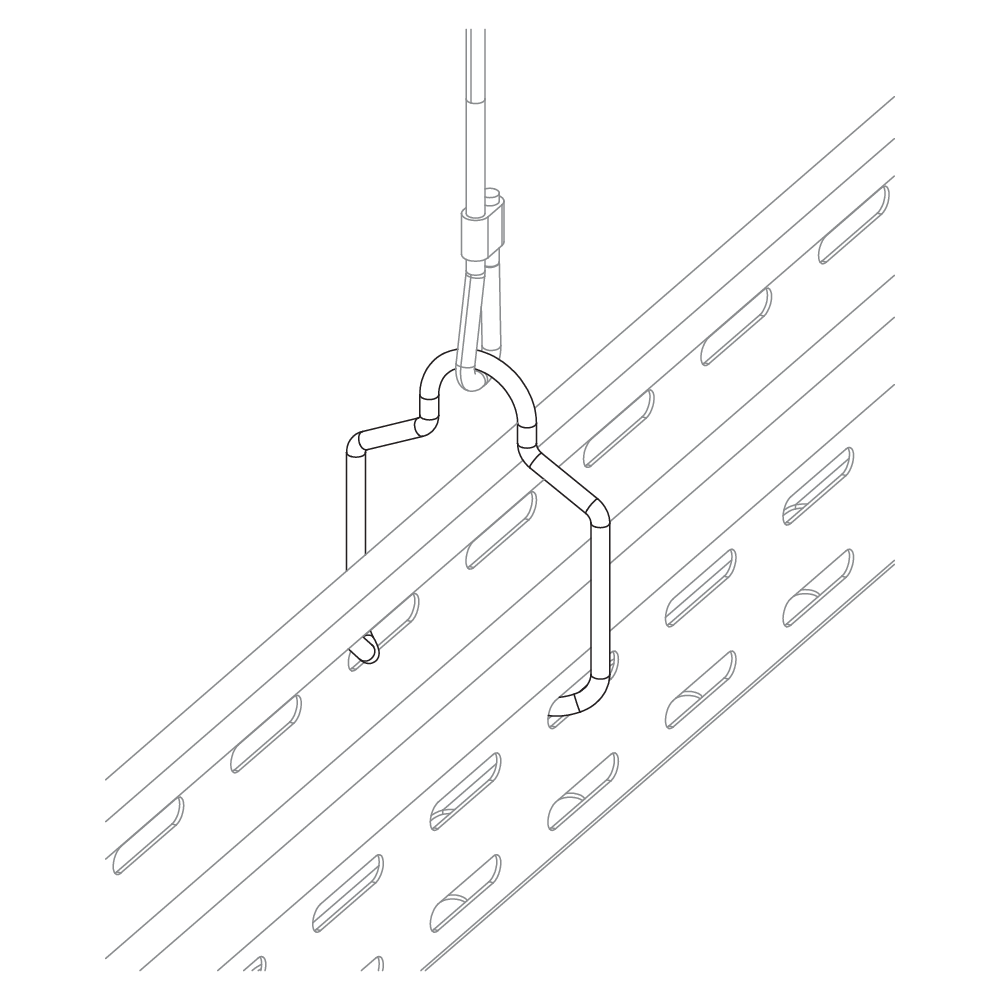

The suspension bracket AHB is used to suspend cable trays from chains and cables. It is designed for cable tray widths of 50 or 100 mm and for a maximum load of 0.70 kN.

Get in touch Download datasheet

Variants

Stahl, band-/sendzimirverzinkt

Article

H

Höhe

B

Breite

B2

Breite 2

Pmax

max. Belastung

Ø

Drahtdurchmesser

G

Gewicht je Lagermengeneinheit
  • AHB 05S
    Aufhängebügel
    Höhe
    80 mm
    Breite
    64 mm
    Breite 2
    35 mm
    max. Belastung
    0.70 kN
    Drahtdurchmesser
    4 mm
    Gewicht je Lagermengeneinheit
    0.024 kg
