BL 6

Mounting bracket

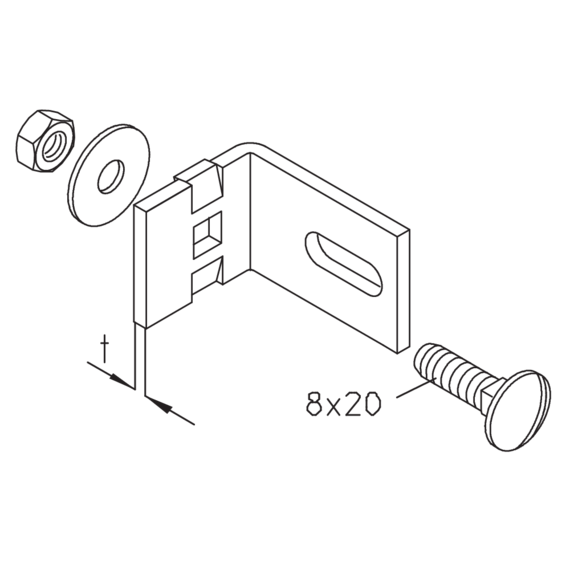

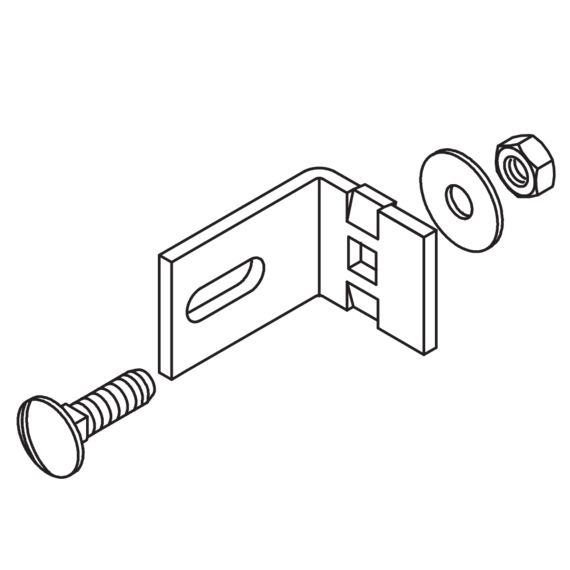

Rungs can be retrofitted to the STU 50 vertical ladder using the corner angle BL 6. The angle locks the rung to the side rail from the inside. BL 6 is available as a piece galvanised or hot-dip galvanised steel version as well as a stainless steel version (V2A).

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

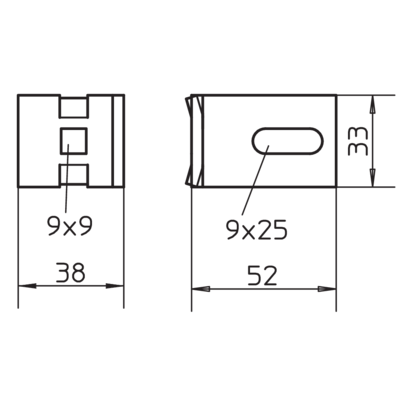

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • BL 6S
    Corner angle BL 6S
    height
    33 mm
    width
    38 mm
    length
    52 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.103 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • BL 6F
    Corner angle BL 6F
    height
    33 mm
    width
    38 mm
    length
    52 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.103 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • BL 6E
    Corner angle BL 6E
    height
    33 mm
    width
    38 mm
    length
    52 mm
    material thickness
    3.00 mm
    Weight per storage unit
    0.083 kg
    Included accessories
    More information
