BL 6

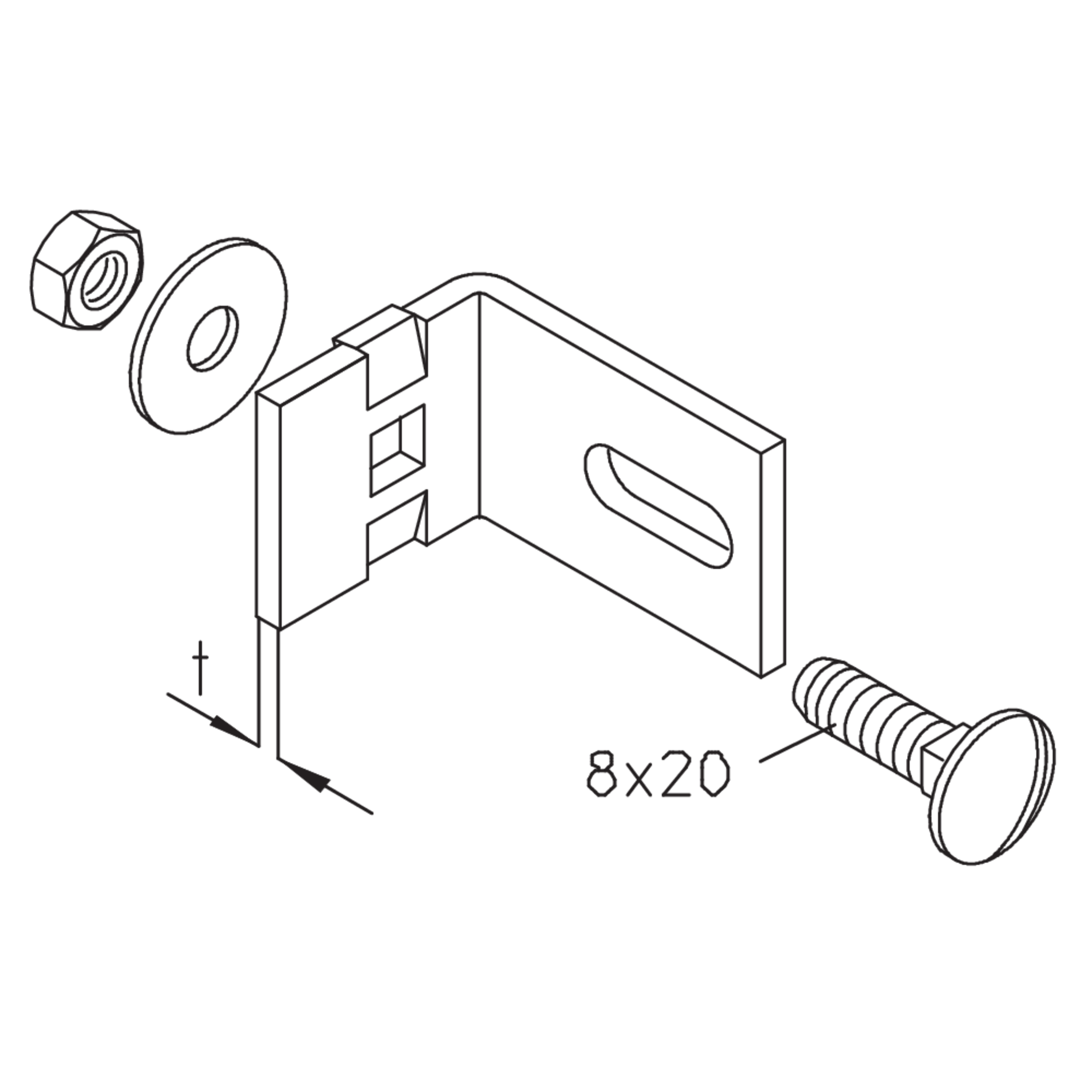

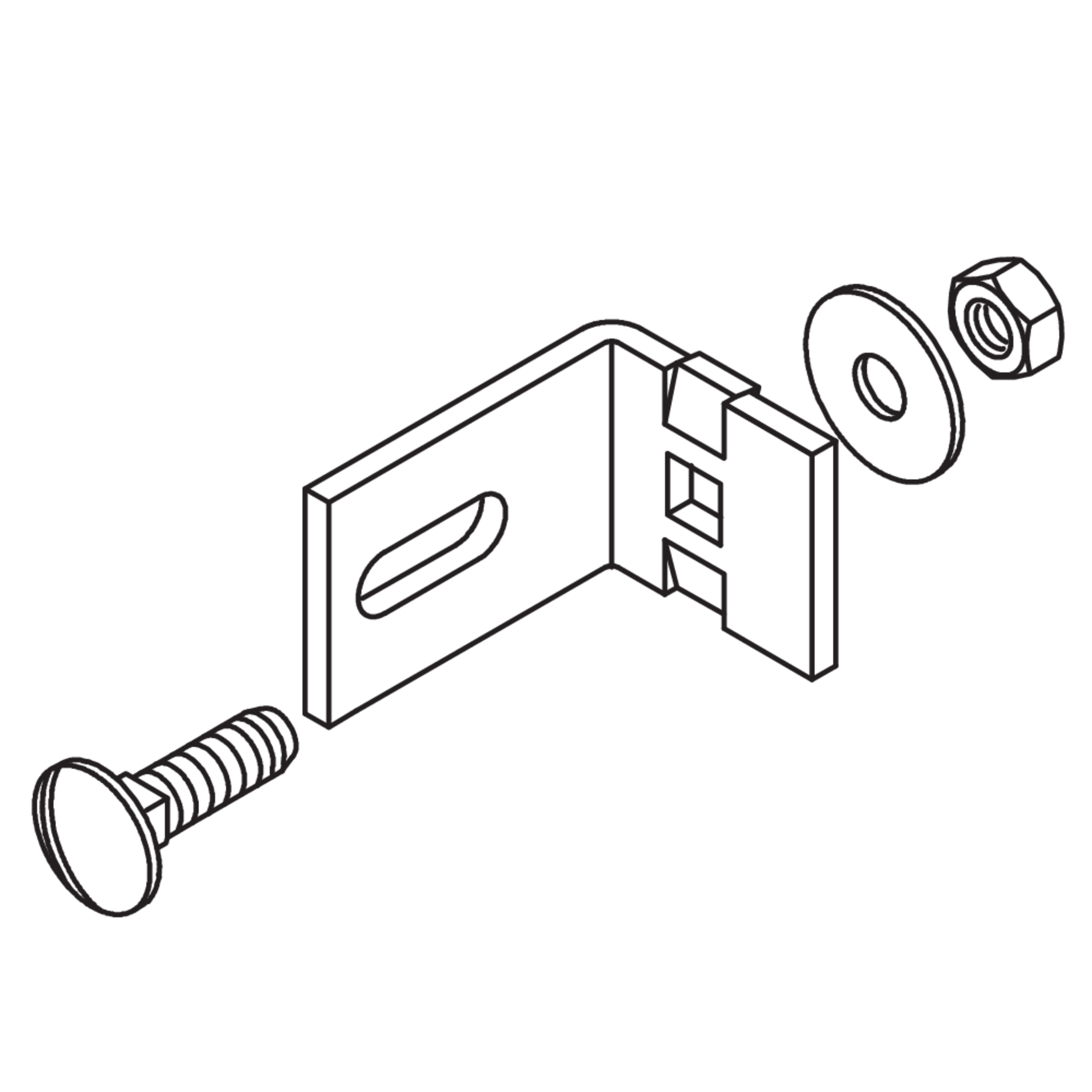

Corner angle

Rungs can be retrofitted to the STU 50 vertical ladder using the corner angle BL 6. The angle locks the rung to the side rail from the inside. BL 6 is available as a piece galvanised or hot-dip galvanised steel version as well as a stainless steel version (V2A).

Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

Article

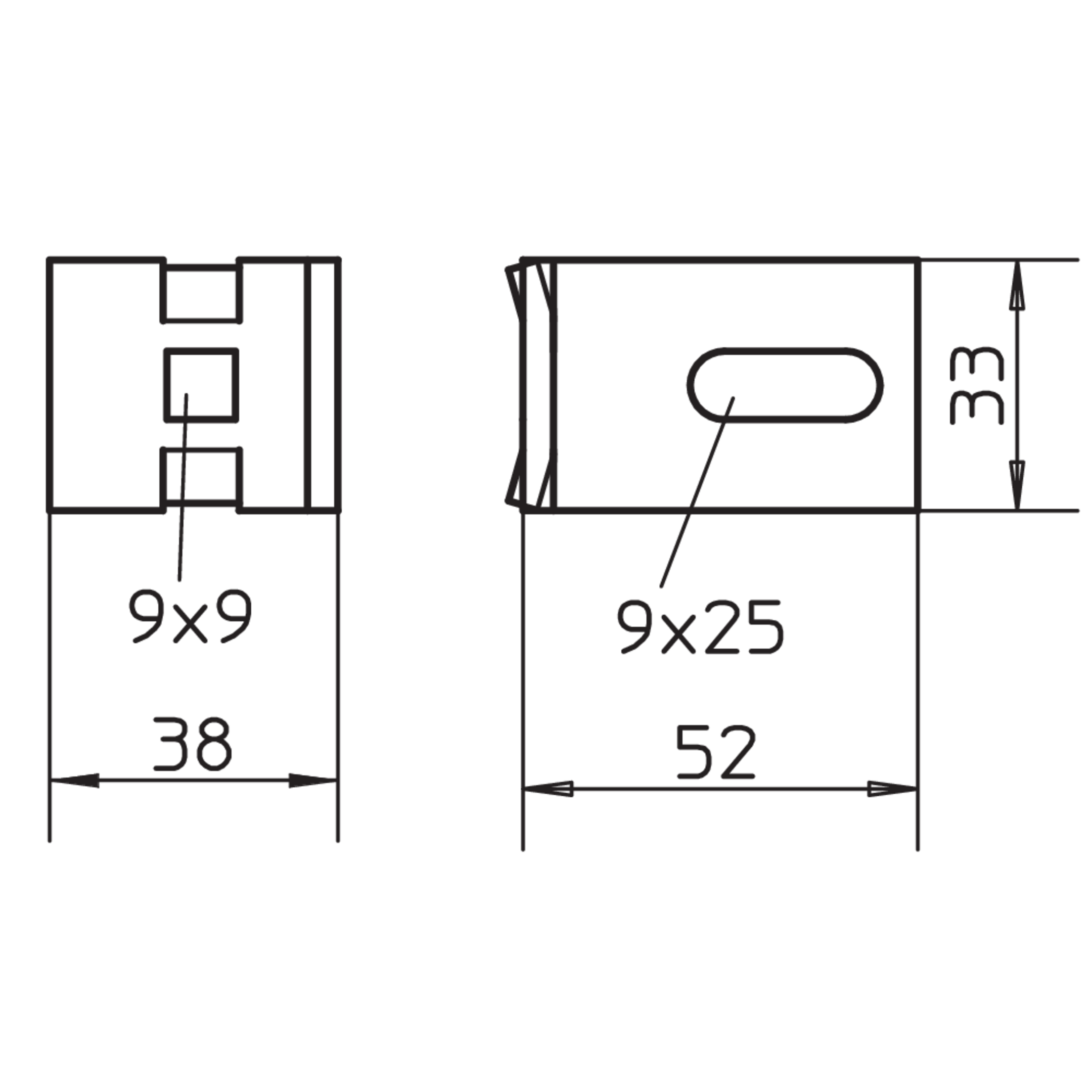

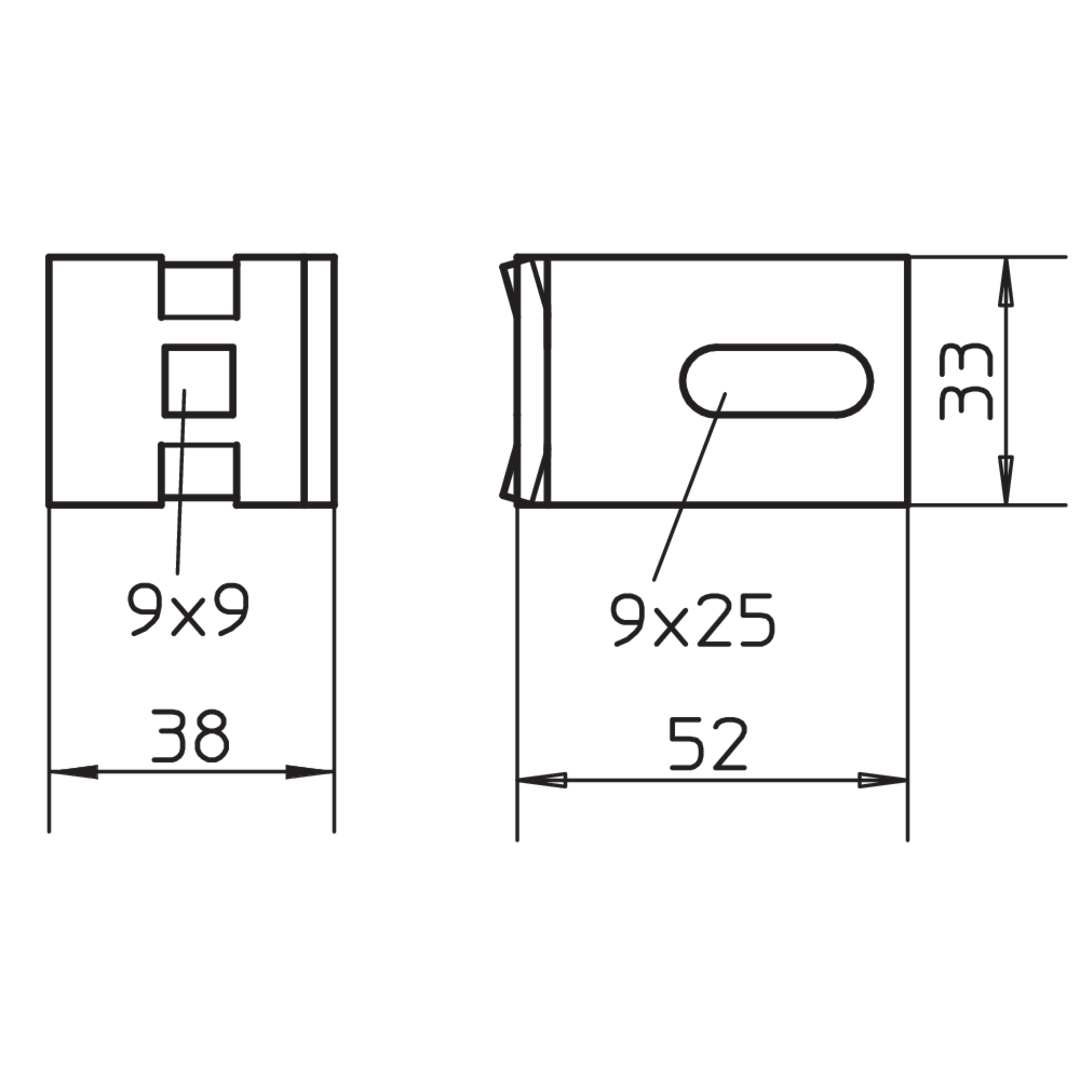

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit
  • BL 6S
    Corner angle BL 6S
    33 mm
    38 mm
    52 mm
    4.00 mm
    0.103 kg
    Included accessories
    More information

steel, batch/hot-dip galvanized

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit
  • BL 6F
    Corner angle BL 6F
    33 mm
    38 mm
    52 mm
    4.00 mm
    0.103 kg
    Included accessories
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit
  • BL 6E
    Corner angle BL 6E
    33 mm
    38 mm
    52 mm
    3.00 mm
    0.083 kg
    Included accessories
    More information
