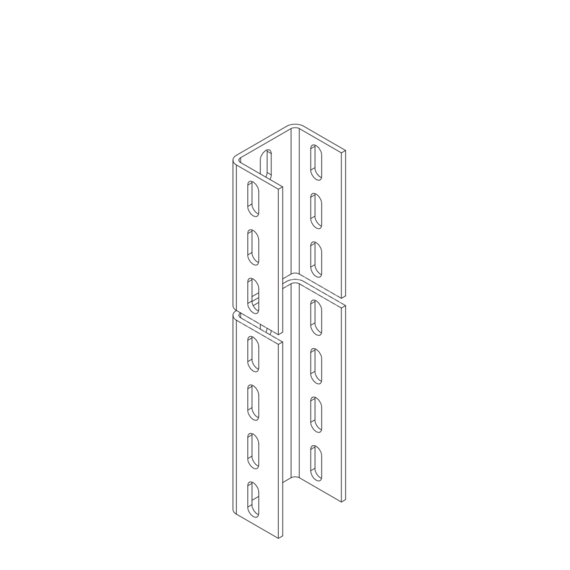

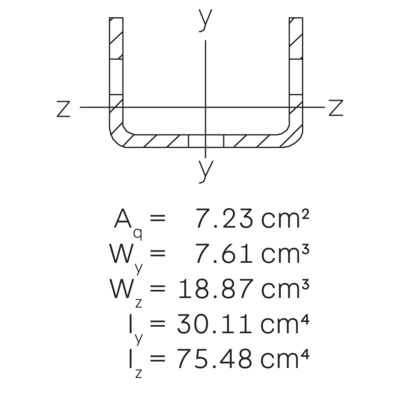

The bracket holder KHU 80 can be easily used as a construction profile due to its continuous perforation on three sides. It consists of a U profile 80 x 60 mm (material thickness 5 mm thick). Using the support piece enables higher load-bearing capacities to be achieved. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, batch/hot-dip galvanized

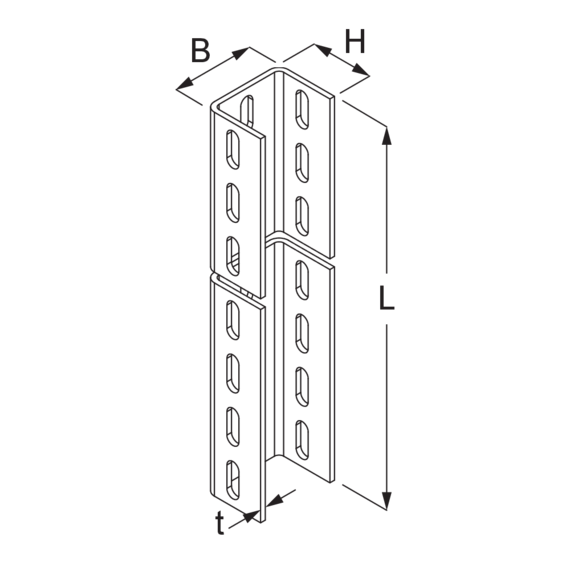

| Products | H height | B width | L length | HP profile height | BP profile width | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|
| KHU 80-02F | 60 mm | 80 mm | 200 mm | 60 mm | 80 mm | 1,330 kg | |
| KHU 80-03F | 60 mm | 80 mm | 3 mm | 60 mm | 80 mm | 2,000 kg | |
| KHU 80-04F | 60 mm | 80 mm | 400 mm | 60 mm | 80 mm | 2,660 kg | |
| KHU 80-05F | 60 mm | 80 mm | 500 mm | 60 mm | 80 mm | 3,330 kg | |
| KHU 80-06F | 60 mm | 80 mm | 600 mm | 60 mm | 80 mm | 3,990 kg | |
| KHU 80-07F | 60 mm | 80 mm | 700 mm | 60 mm | 80 mm | 4,660 kg | |
| KHU 80-08F | 60 mm | 80 mm | 800 mm | 60 mm | 80 mm | 5,320 kg | |
| KHU 80-09F | 60 mm | 80 mm | 900 mm | 60 mm | 80 mm | 5,990 kg | |
| KHU 80-10F | 60 mm | 80 mm | 1000 mm | 60 mm | 80 mm | 6,650 kg | |
| KHU 80-11F | 60 mm | 80 mm | 1100 mm | 60 mm | 80 mm | 7,320 kg | |
| KHU 80-12F | 60 mm | 80 mm | 1200 mm | 60 mm | 80 mm | 7,980 kg | |
| KHU 80-13F | 60 mm | 80 mm | 1300 mm | 60 mm | 80 mm | 8,650 kg | |
| KHU 80-14F | 60 mm | 80 mm | 1400 mm | 60 mm | 80 mm | 9,320 kg | |
| KHU 80-15F | 60 mm | 80 mm | 1500 mm | 60 mm | 80 mm | 9,980 kg | |
| KHU 80-16F | 60 mm | 80 mm | 1600 mm | 60 mm | 80 mm | 10,650 kg | |
| KHU 80-17F | 60 mm | 80 mm | 1700 mm | 60 mm | 80 mm | 11,310 kg | |
| KHU 80-18F | 60 mm | 80 mm | 1800 mm | 60 mm | 80 mm | 11,980 kg | |
| KHU 80-19F | 60 mm | 80 mm | 1900 mm | 60 mm | 80 mm | 12,640 kg | |
| KHU 80-20F | 60 mm | 80 mm | 2000 mm | 60 mm | 80 mm | 13,310 kg | |
| KHU 80-30F | 60 mm | 80 mm | 3000 mm | 60 mm | 80 mm | 19,960 kg | |
| KHU 80-60F | 60 mm | 80 mm | 6000 mm | 60 mm | 80 mm | 41,544 kg |
