KHU 80

Bracket support, heavy, 80x60 mm

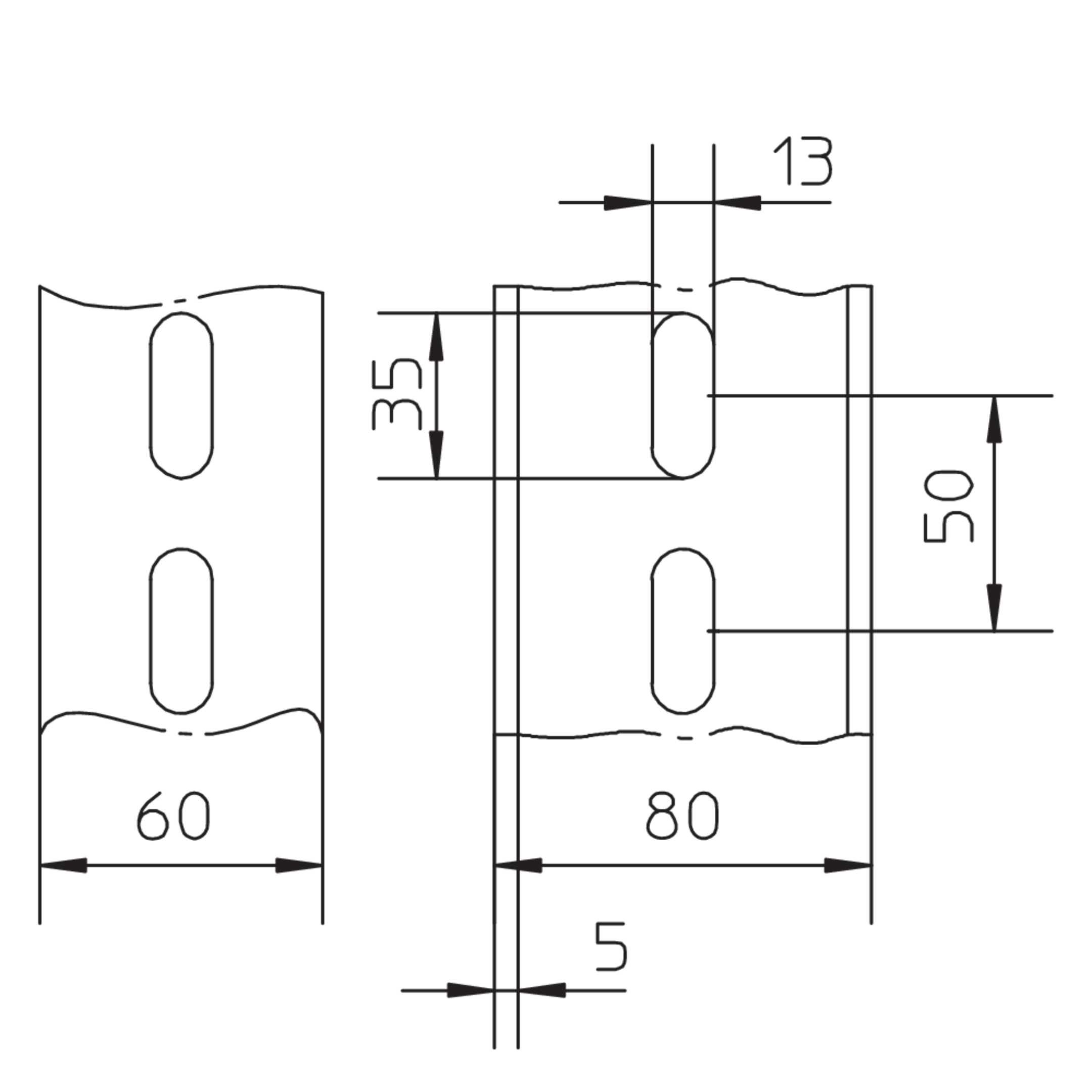

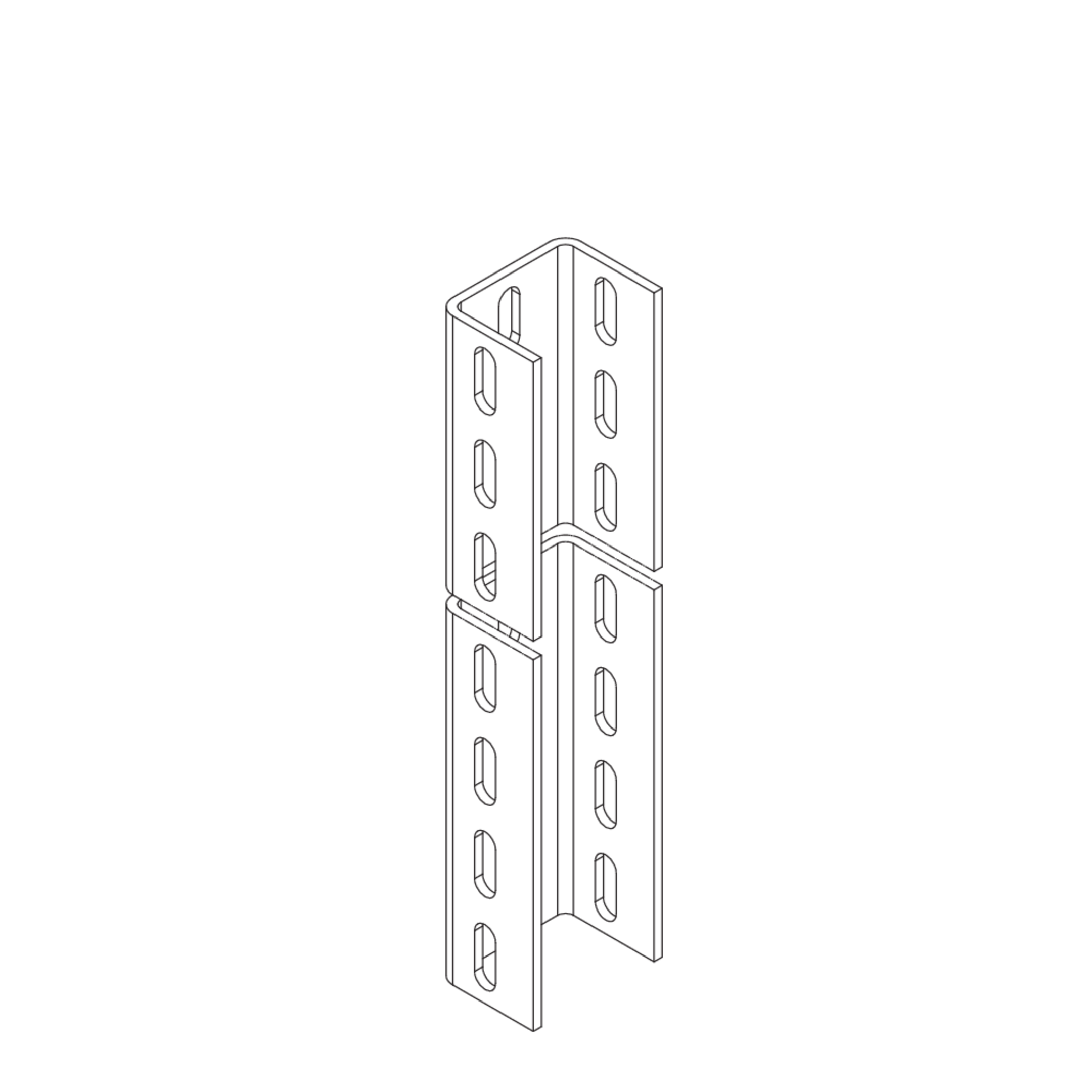

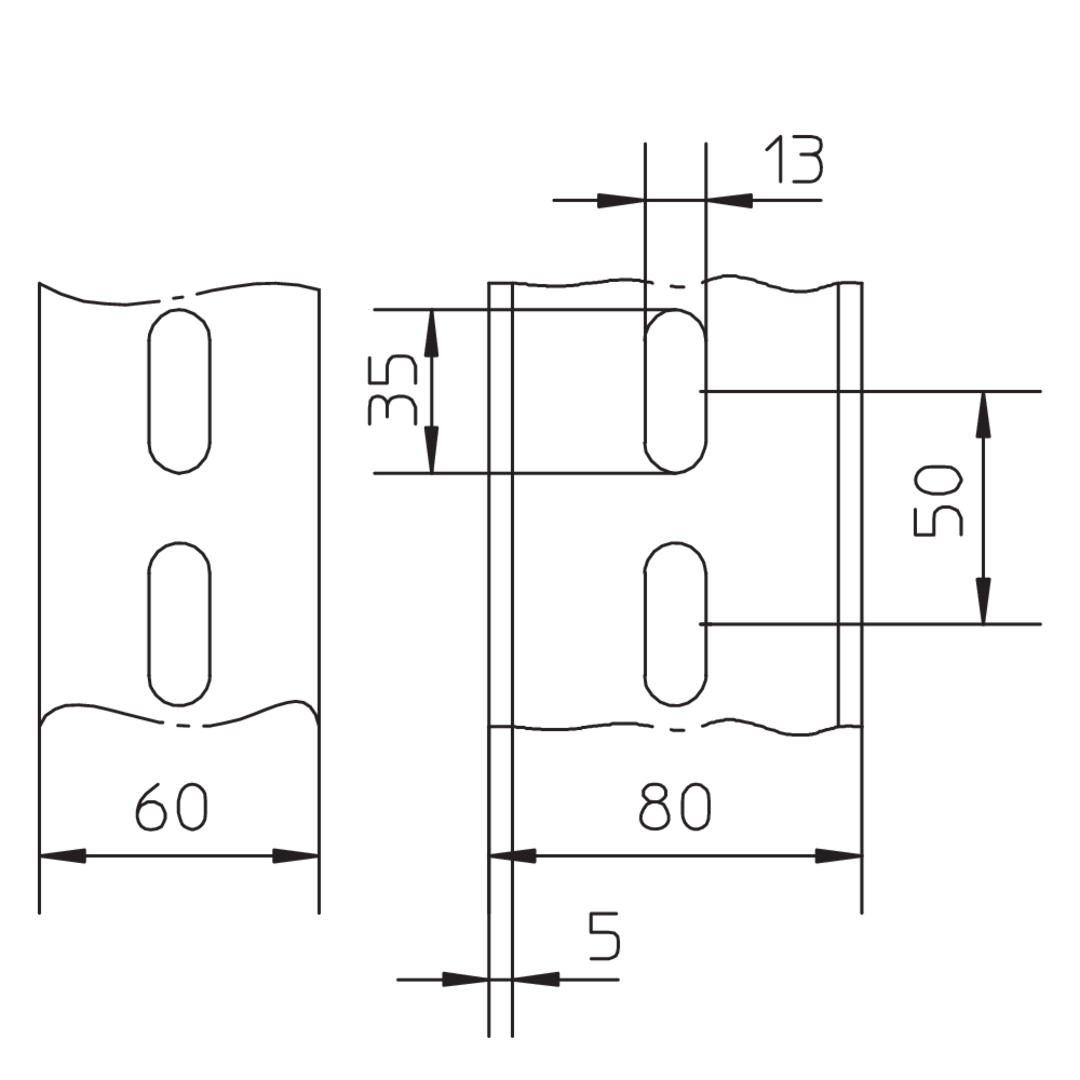

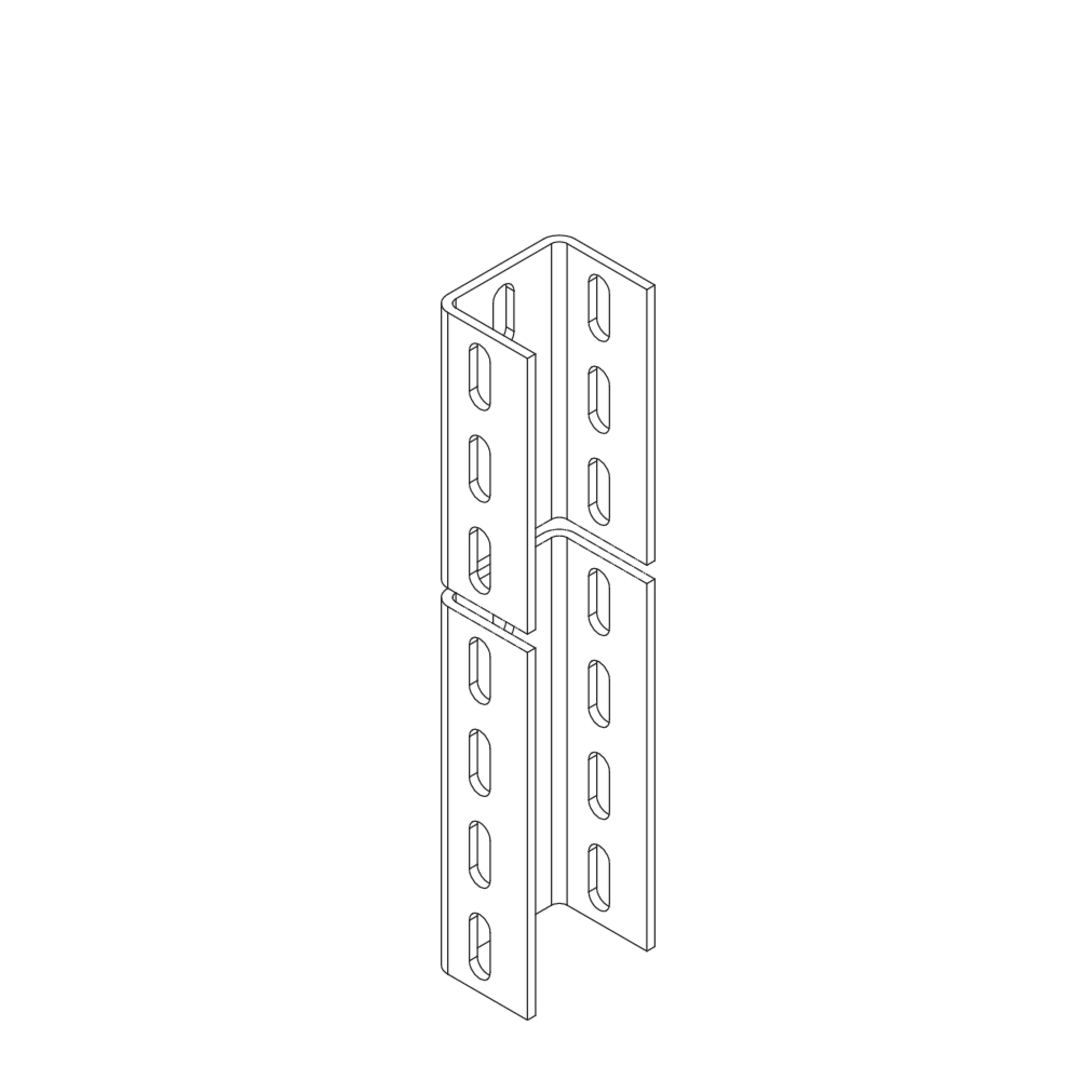

The bracket holder KHU 80 can be easily used as a construction profile due to its continuous perforation on three sides. It consists of a U profile 80 x 60 mm (material thickness 5 mm thick). Using the support piece enables higher load-bearing capacities to be achieved. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

Article

HP

BP

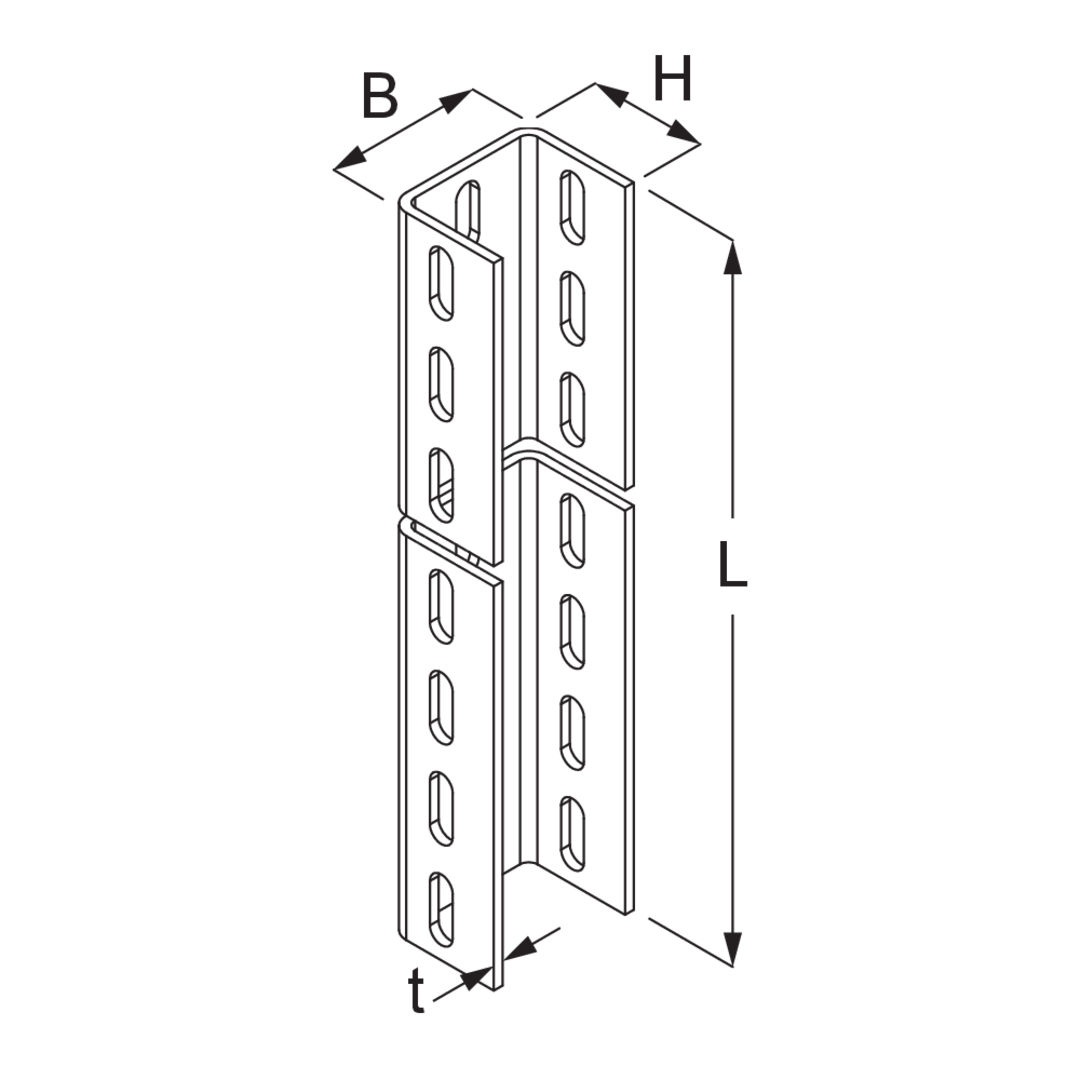

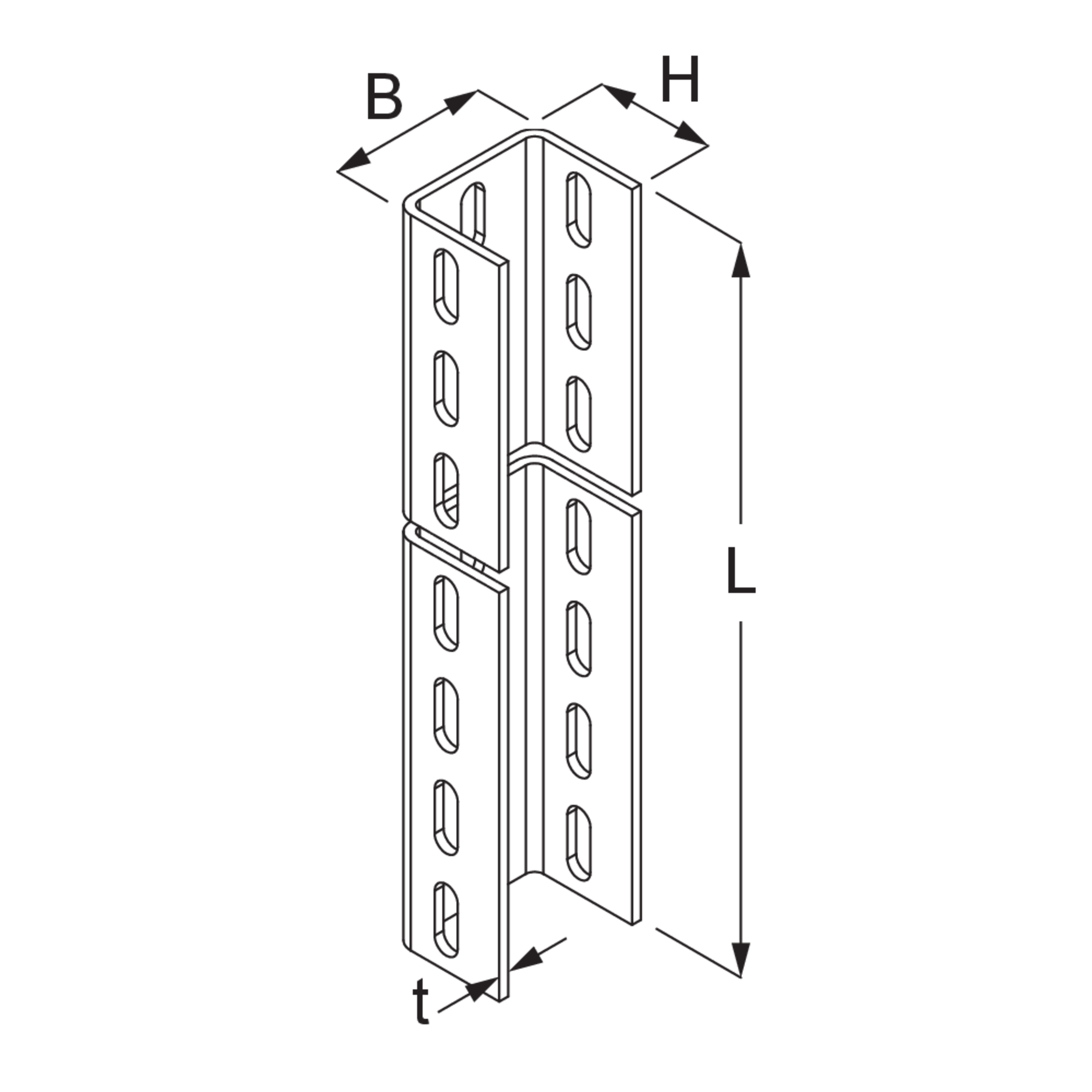

L

t

W

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Support systems Assembling instruction

    Montageanleitung

    PDF, 2 MB

    de en

  • Support systems - Technical information

    Technical information

    PDF, 19 MB

    de en

Included accessories
