WPRF 100

Wide-span cable tray riser, height = 100 mm

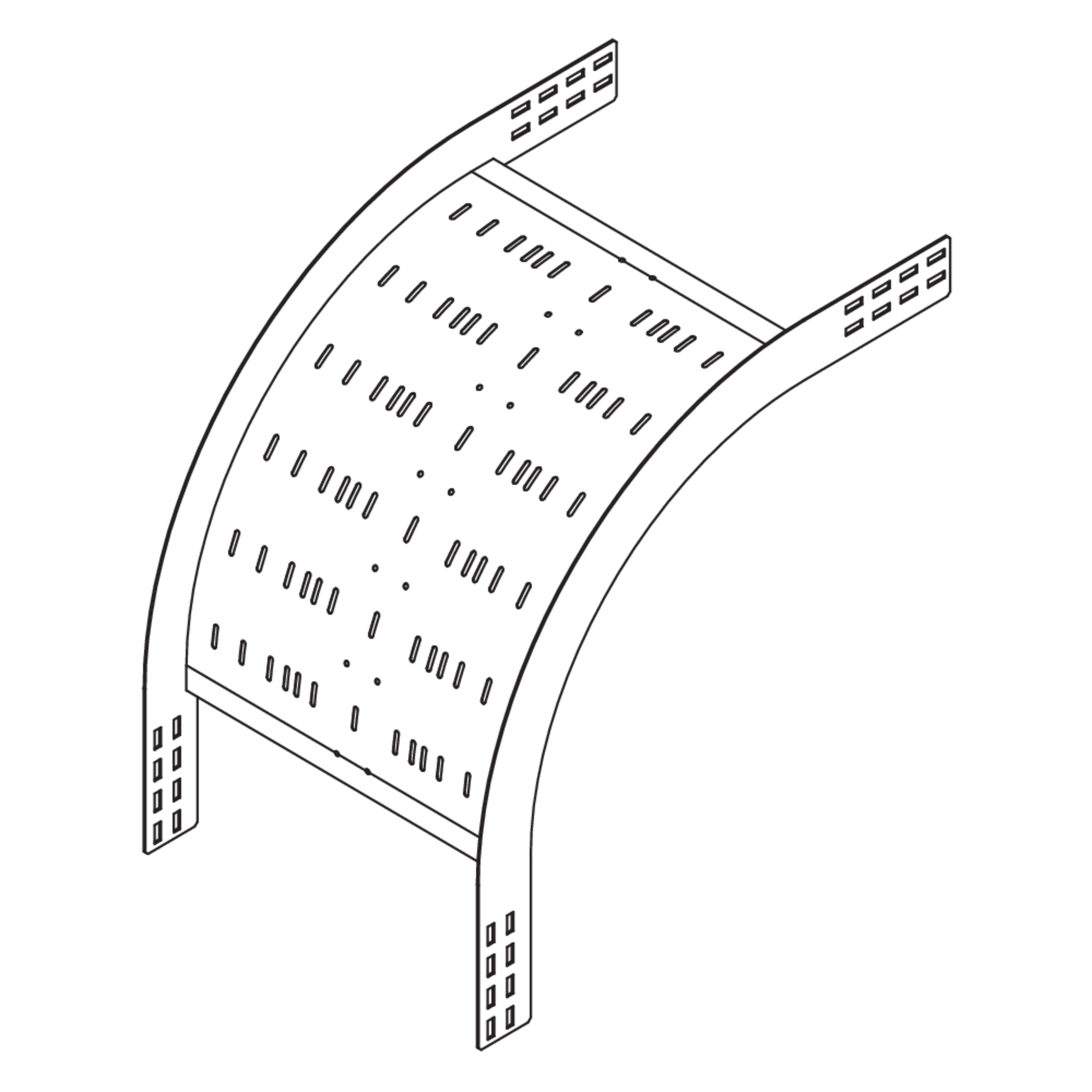

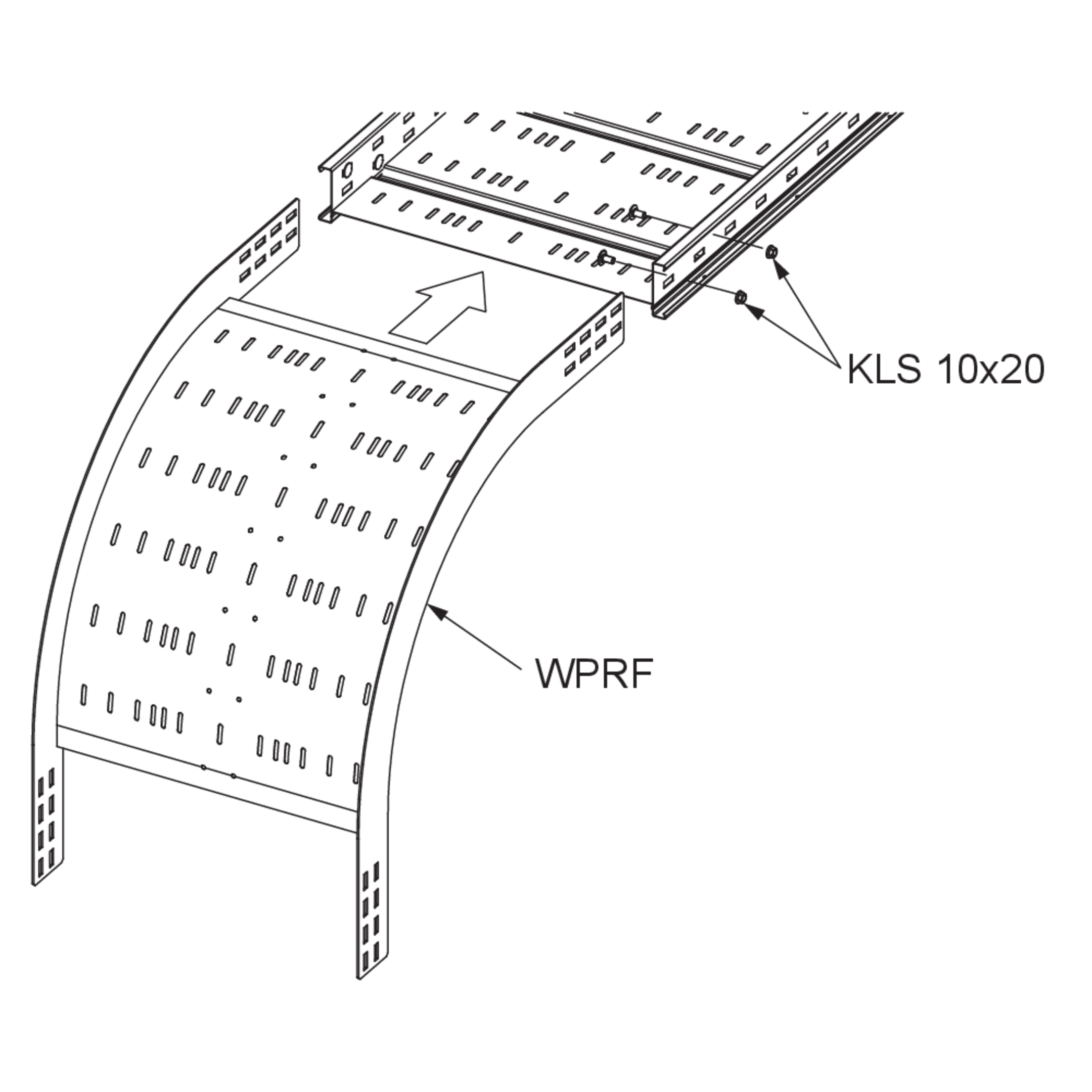

The wide-span cable tray riser WPRF 100 with integrated connectors allows the direction of cable routing to be changed vertically by 90° downwards. It is suitable for wide-span cable trays with rails 100 mm high and is 200 to 600 mm wide. The riser is pushed into the wide-span cable tray and then bolted in place. The connecting cable tray is then mounted on the riser. It has a radius of 510 mm.

Get in touch Download datasheet

Variants

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

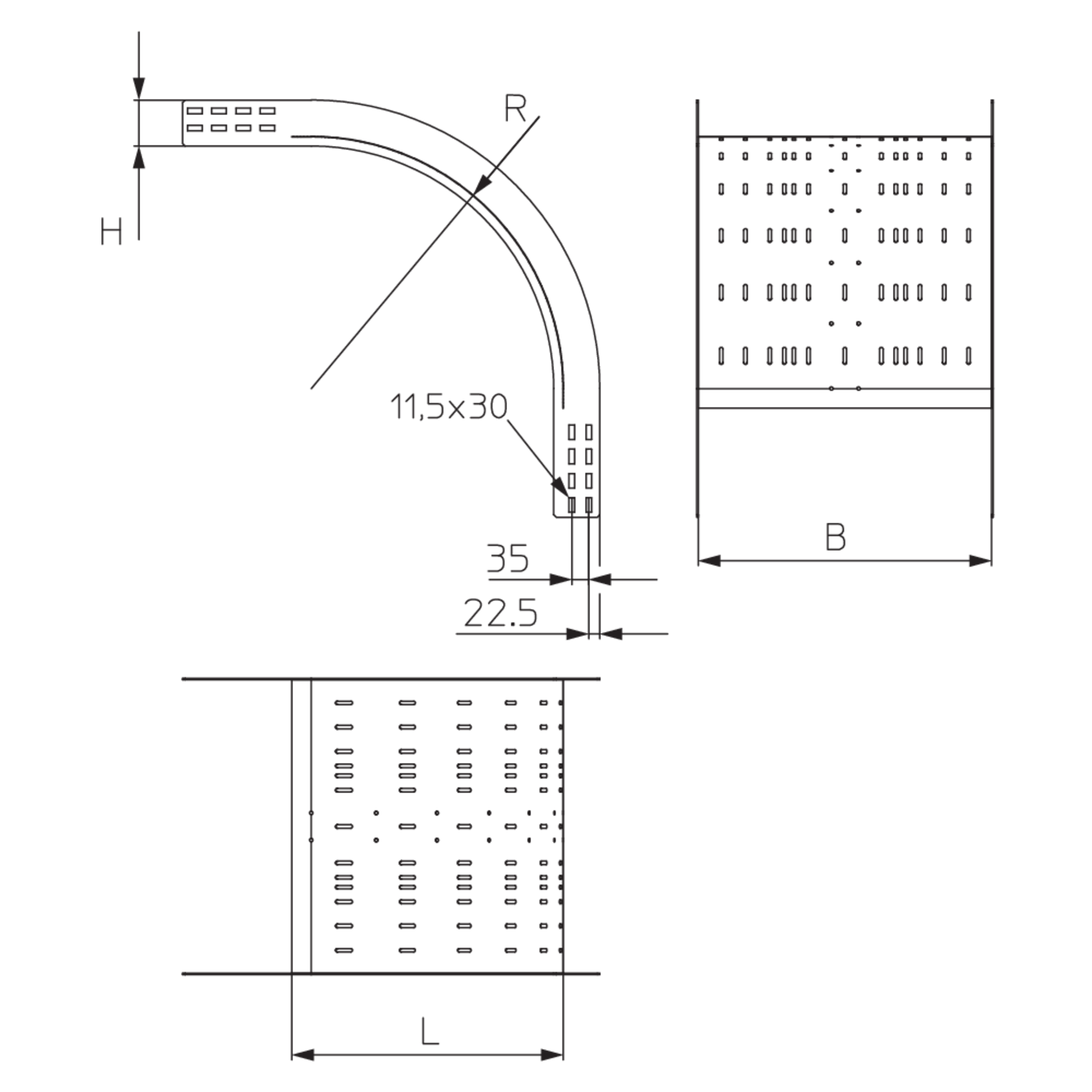

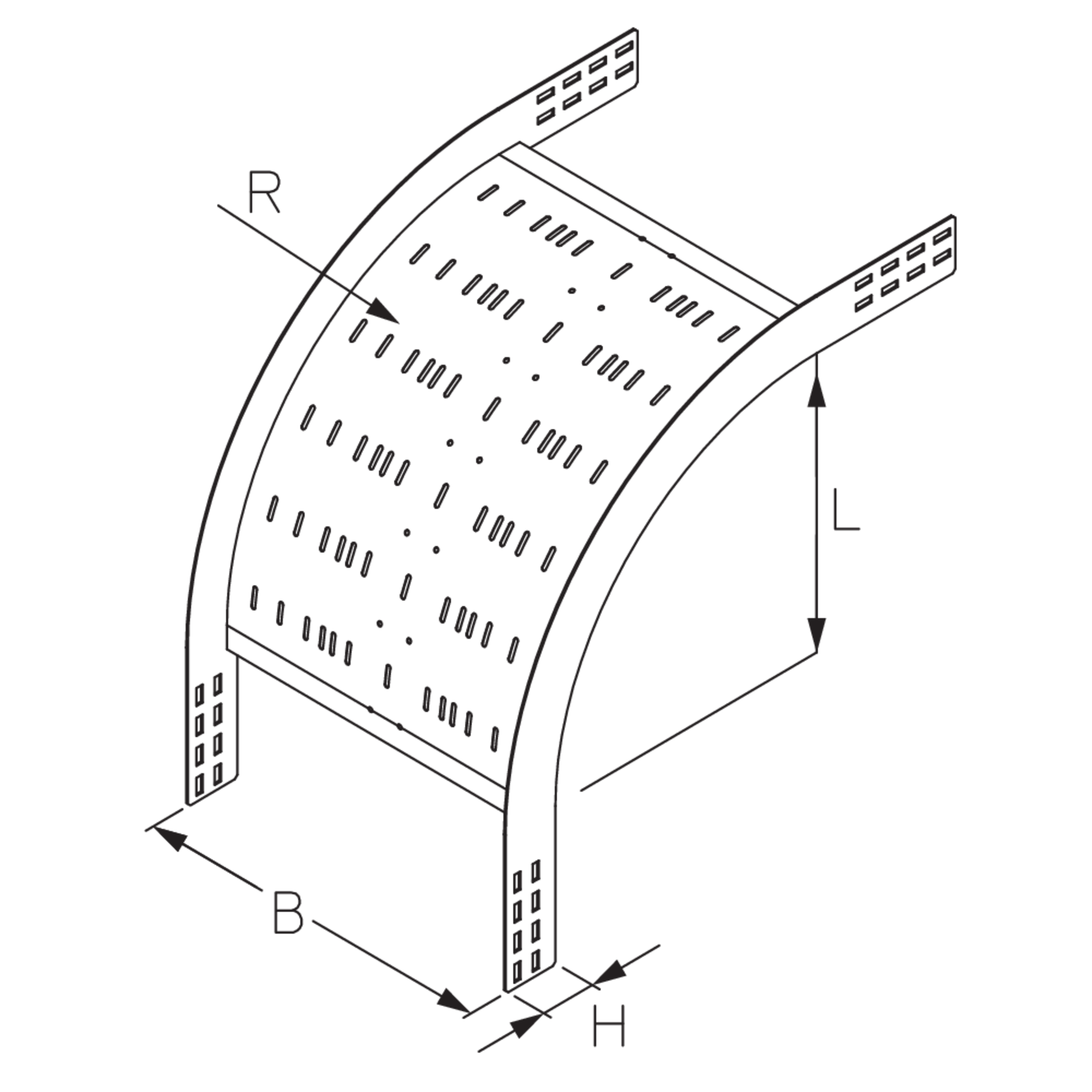

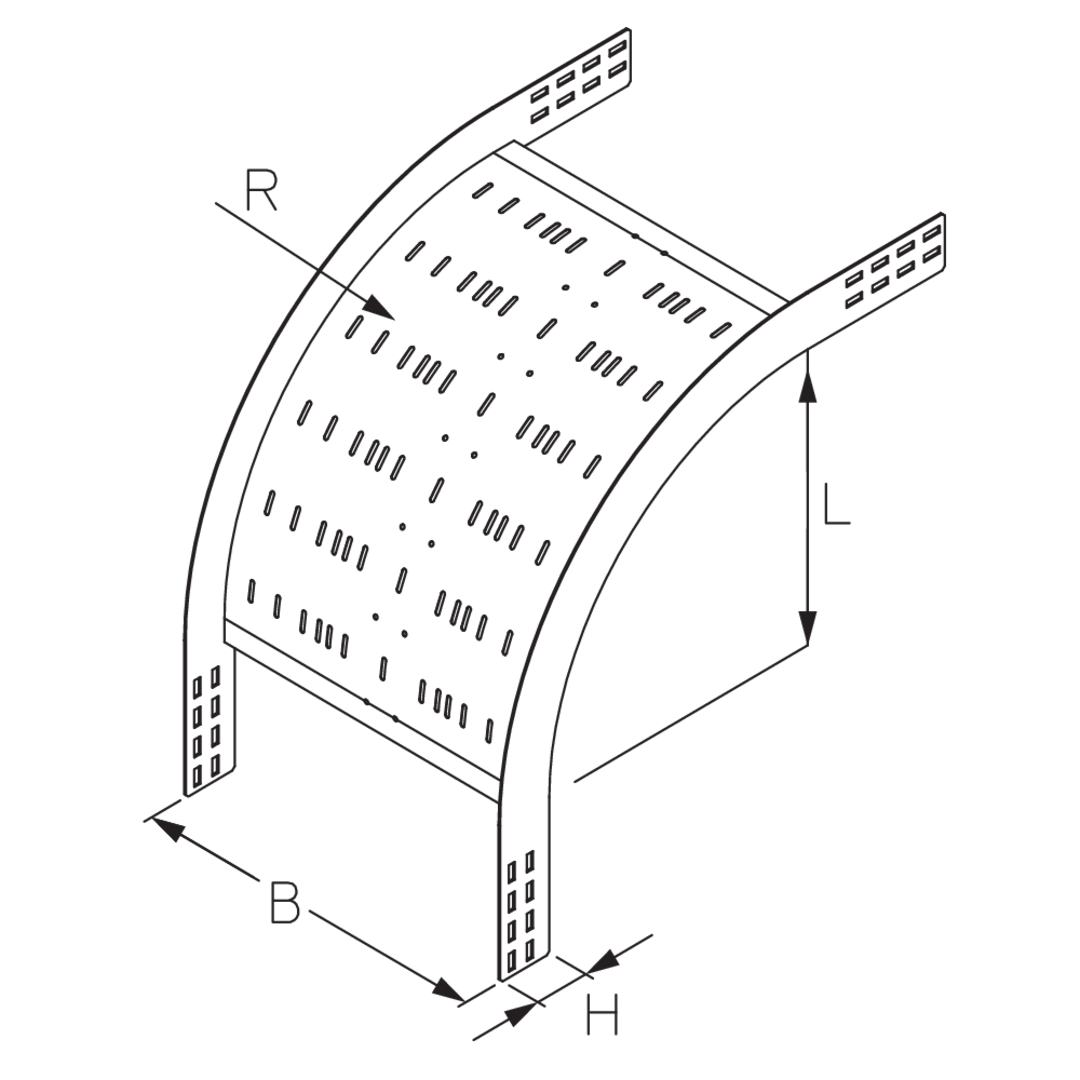

H

height

HH

Height

B

width

L

length

R

radius

direction

Direction change

W

Angle

G

Weight per storage unit
  • WPRF 100-20E
    Wide-span cable tray bend
    height
    100 mm
    Height
    100 mm
    width
    200 mm
    length
    550 mm
    radius
    510 mm
    Direction change
    vertically falling
    Angle
    90°
    Weight per storage unit
    7.938 kg
    Included accessories
    More information
  • WPRF 100-30E
    Wide-span cable tray bend
    height
    100 mm
    Height
    100 mm
    width
    300 mm
    length
    550 mm
    radius
    510 mm
    Direction change
    vertically falling
    Angle
    90°
    Weight per storage unit
    8.608 kg
    Included accessories
    More information
  • WPRF 100-40E
    Wide-span cable tray bend
    height
    100 mm
    Height
    100 mm
    width
    400 mm
    length
    550 mm
    radius
    510 mm
    Direction change
    vertically falling
    Angle
    90°
    Weight per storage unit
    9.288 kg
    Included accessories
    More information
  • WPRF 100-50E
    Wide-span cable tray bend
    height
    100 mm
    Height
    100 mm
    width
    500 mm
    length
    550 mm
    radius
    510 mm
    Direction change
    vertically falling
    Angle
    90°
    Weight per storage unit
    9.978 kg
    Included accessories
    More information
  • WPRF 100-60E
    Wide-span cable tray bend
    height
    100 mm
    Height
    100 mm
    width
    600 mm
    length
    550 mm
    radius
    510 mm
    Direction change
    vertically falling
    Angle
    90°
    Weight per storage unit
    10.658 kg
    Included accessories
    More information
