Art.-Nr. WPLS 100-30E

Wide-span cable ladder inside riser WPLS

Wide-span cable ladder riser, height = 100 mm

slide 1 of 2

The wide-span floor duct riser WPLS 100 with integrated connectors allows the direction of cable routing to be changed vertically by 90° upwards. It is suitable for wide-span cable ladders with rails 100 mm high and is 200 to 600 mm wide. The riser is pushed into the wide-span cable ladder and then bolted in place. The connecting rack is then mounted on the riser. It has a radius of 450 mm. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Art.-Nr.
WPLS 100-30E
height
100 mm
Height
100 mm

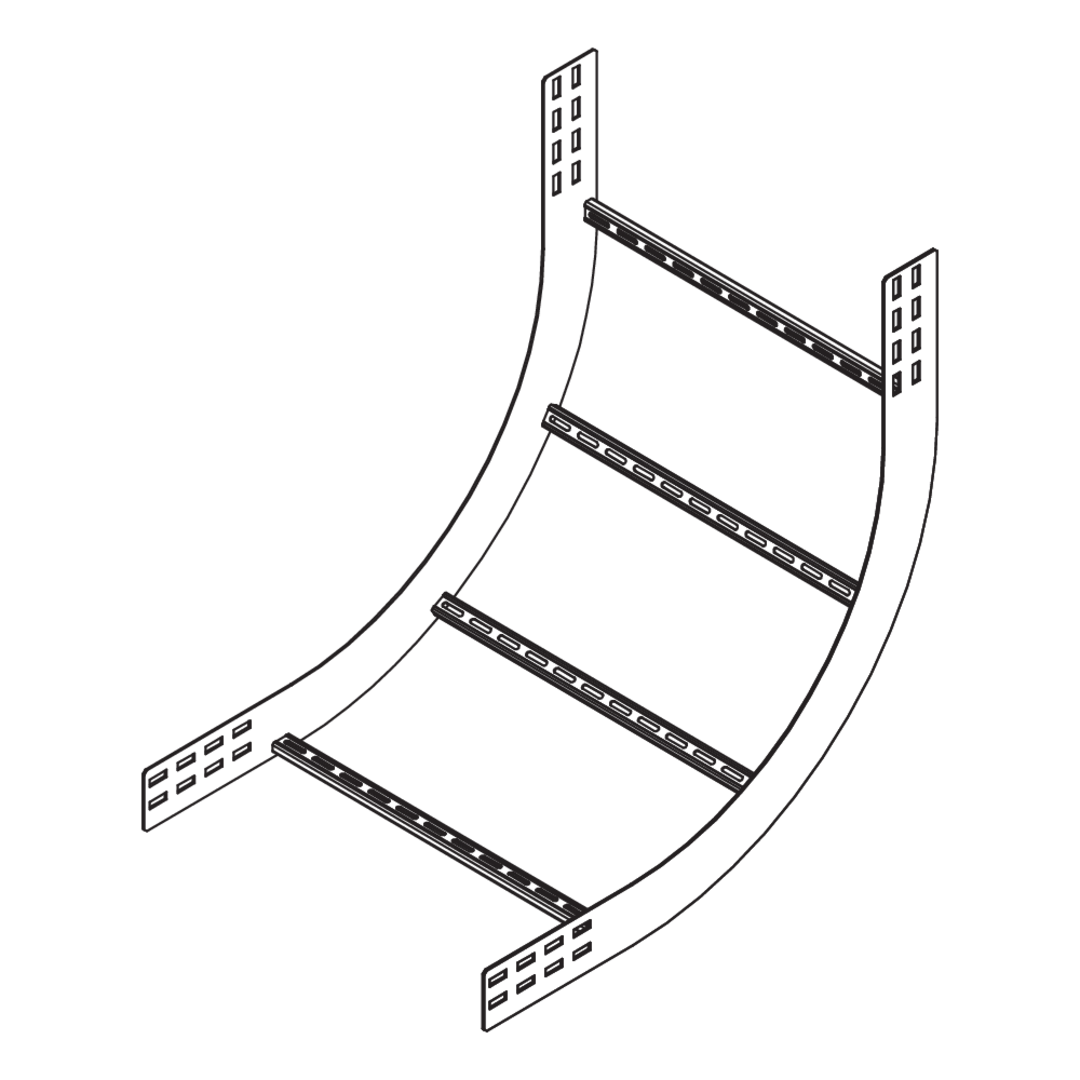

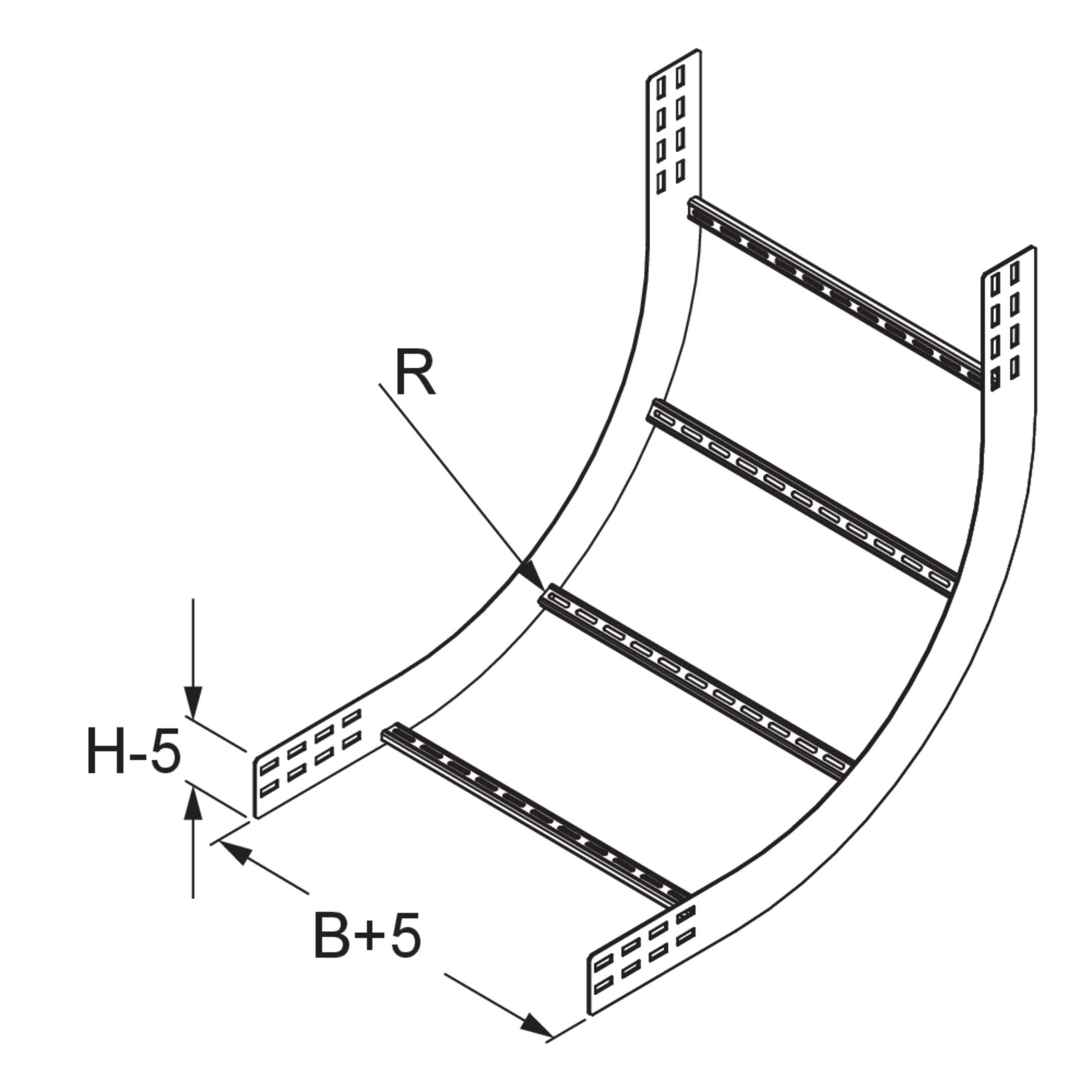

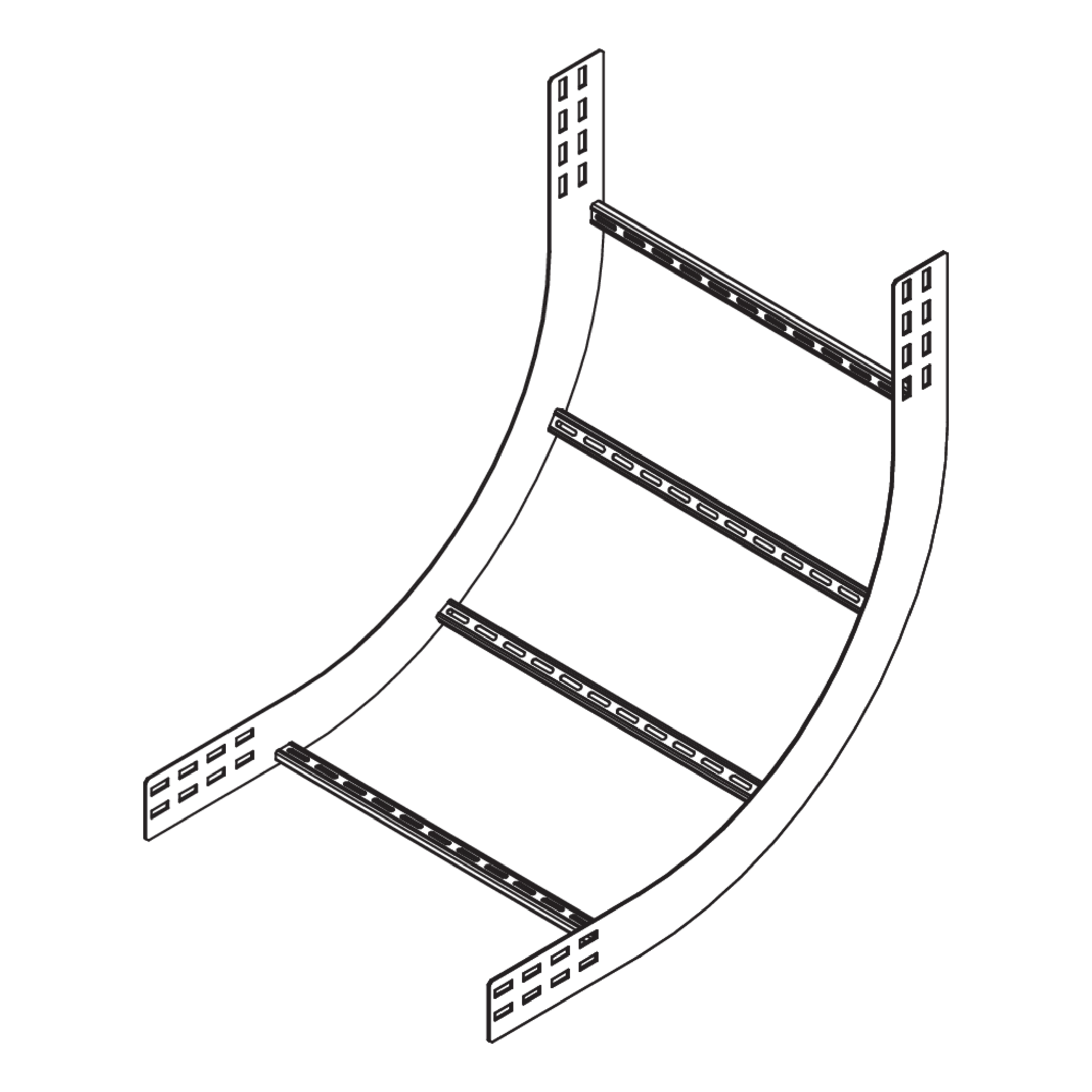

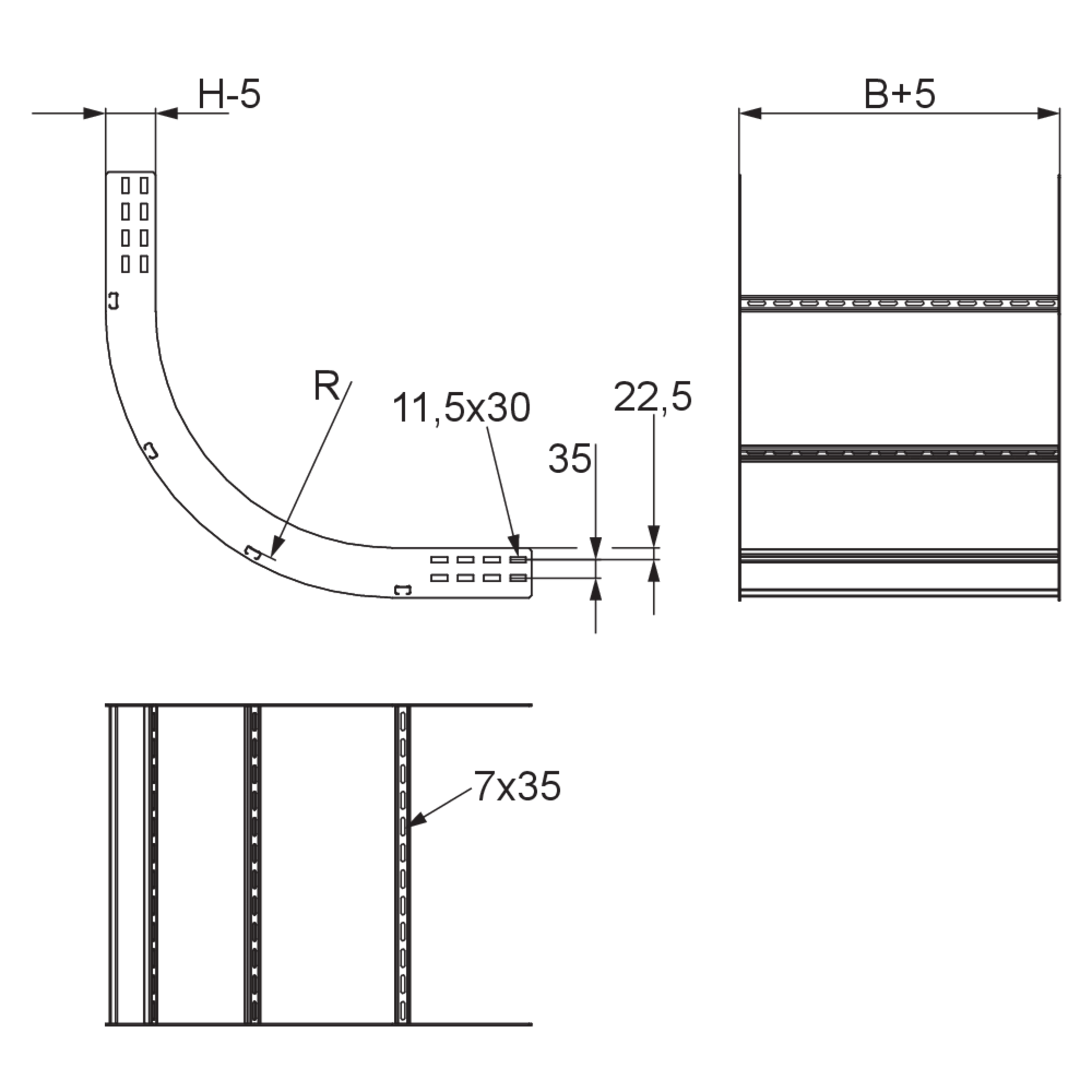

width
300 mm
radius
450 mm
Richtungsänderung
vertically rising
Winkel
90°
Weight per storage unit
7.040 kg
Get in touch Download datasheet

Variants

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

H

HH

B

R

Richtung

W

G

Included accessories

  • WPLS 100-20E
    Weitspannkabelleiter-Steigstück
    100 mm
    100 mm
    200 mm
    450 mm
    Vertikal steigend
    90°
    6.770 kg
    Included accessories
    More information
  • WPLS 100-30E
    Weitspannkabelleiter-Steigstück
    100 mm
    100 mm
    300 mm
    450 mm
    Vertikal steigend
    90°
    7.040 kg
    Included accessories
    More information
  • WPLS 100-40E
    Weitspannkabelleiter-Steigstück
    100 mm
    100 mm
    400 mm
    450 mm
    Vertikal steigend
    90°
    7.320 kg
    Included accessories
    More information
  • WPLS 100-50E
    Weitspannkabelleiter-Steigstück
    100 mm
    100 mm
    500 mm
    450 mm
    Vertikal steigend
    90°
    7.600 kg
    Included accessories
    More information
  • WPLS 100-60E
    Weitspannkabelleiter-Steigstück
    100 mm
    100 mm
    600 mm
    450 mm
    Vertikal steigend
    90°
    7.870 kg
    Included accessories
    More information

Details

  • Changes the cable routing direction vertically by 90° upwards
  • Cable-friendly guide
