UVBUWI-3P

Socket component, Wieland

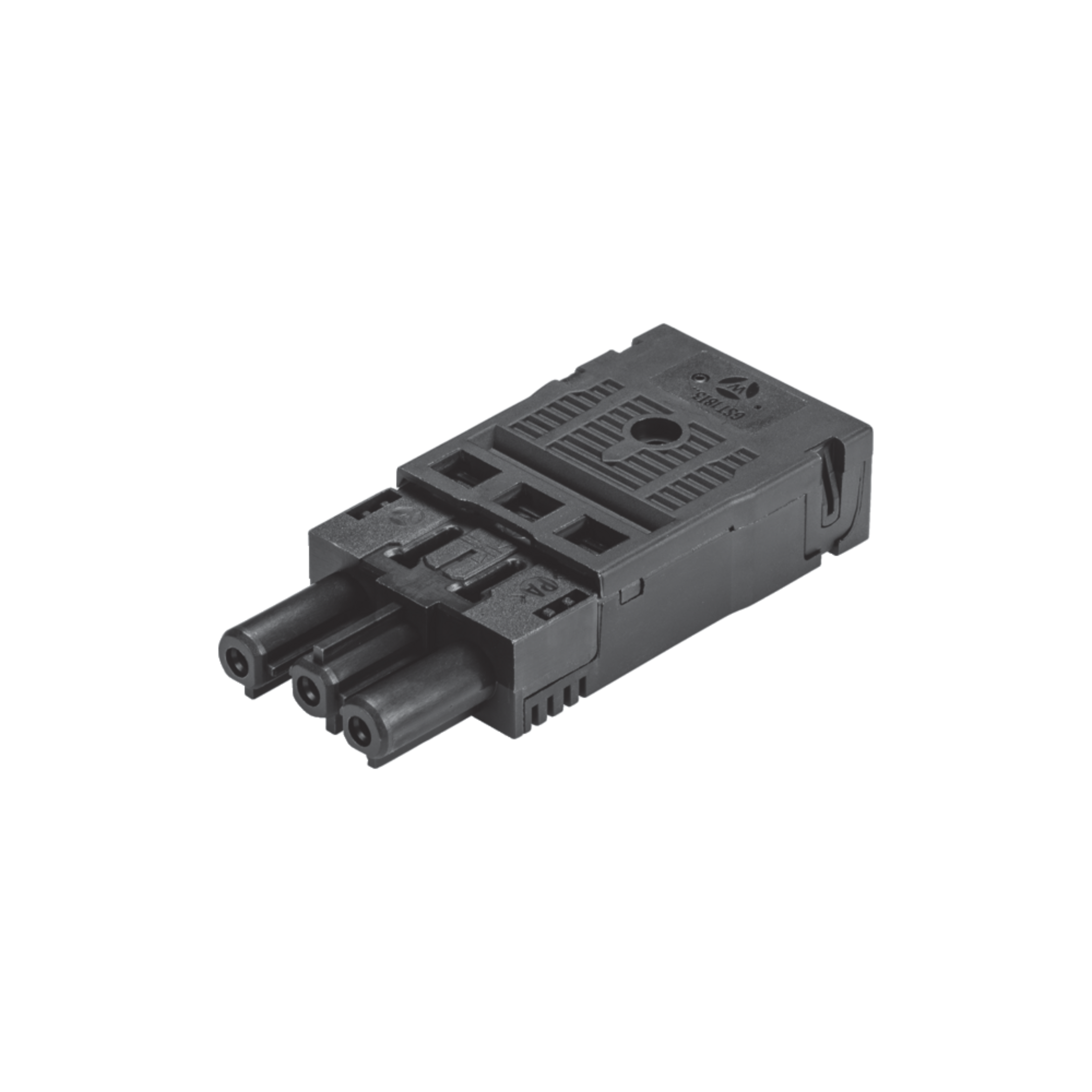

UVBUWI-3P components are Wieland socket parts of the type gesis GST 18i3. The plugs have a spring-loaded connection, a strain relief device for fine-stranded conductors with wire end ferrules and a 3-pole output. The solid-wire conductors have a connection cross-section of 1.5 to 2.5 mm², the cross-section of the fine-stranded conductors is 1.5 mm². Suitable for 250 V/4 kV/20 A

Get in touch Download datasheet

Variants

UVBUWI-S-3P
Wieland socket section

Connection cross-section

2.5 mm²

Output

3-polig

color

black

Weight per storage unit

0.027 kg

More information
UVBUWI-W-3P
Wieland socket section

Connection cross-section

2.5 mm²

Output

3-polig

color

white

Weight per storage unit

0.027 kg

More information
