UVABUWI

Plug-to-socket connecting line, Wieland

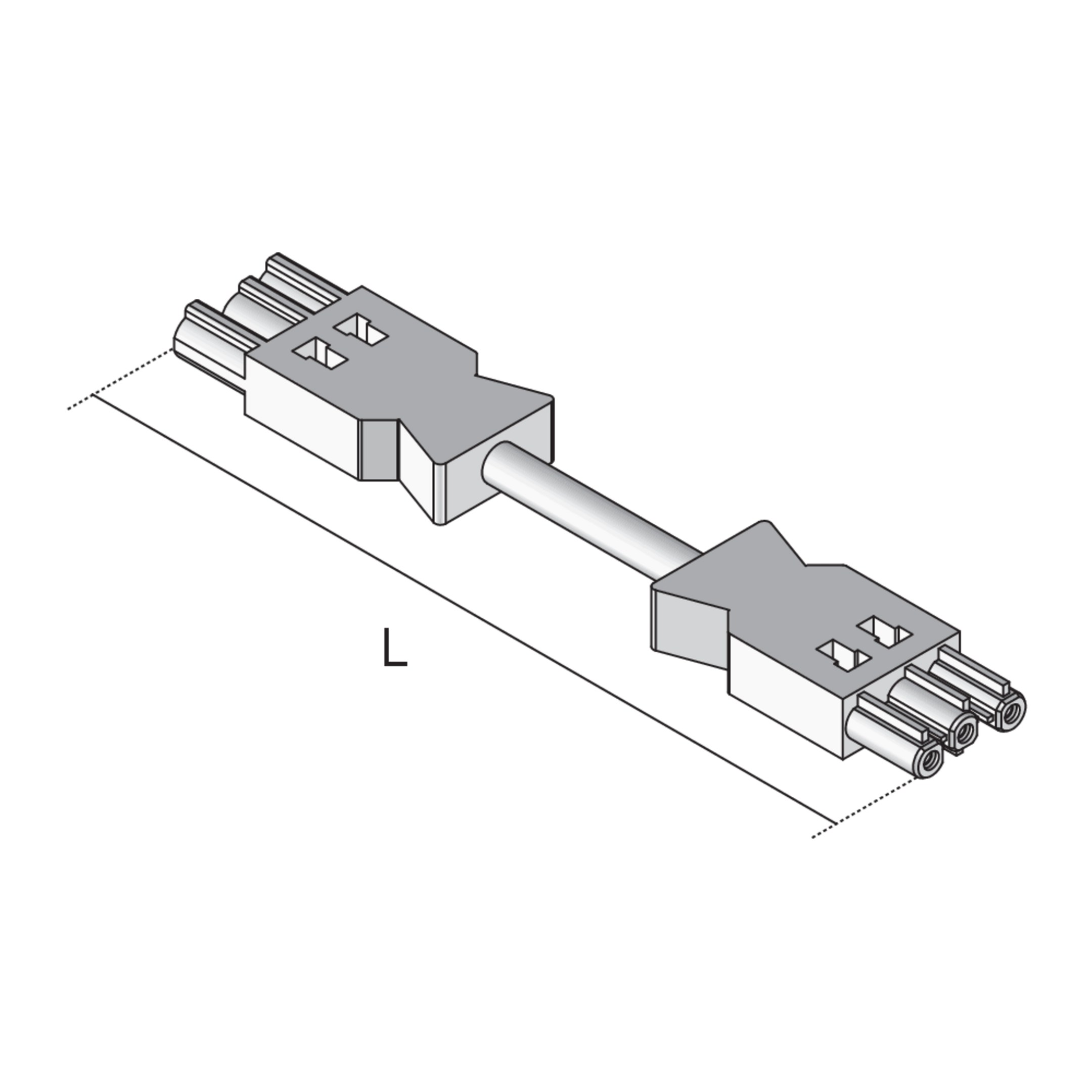

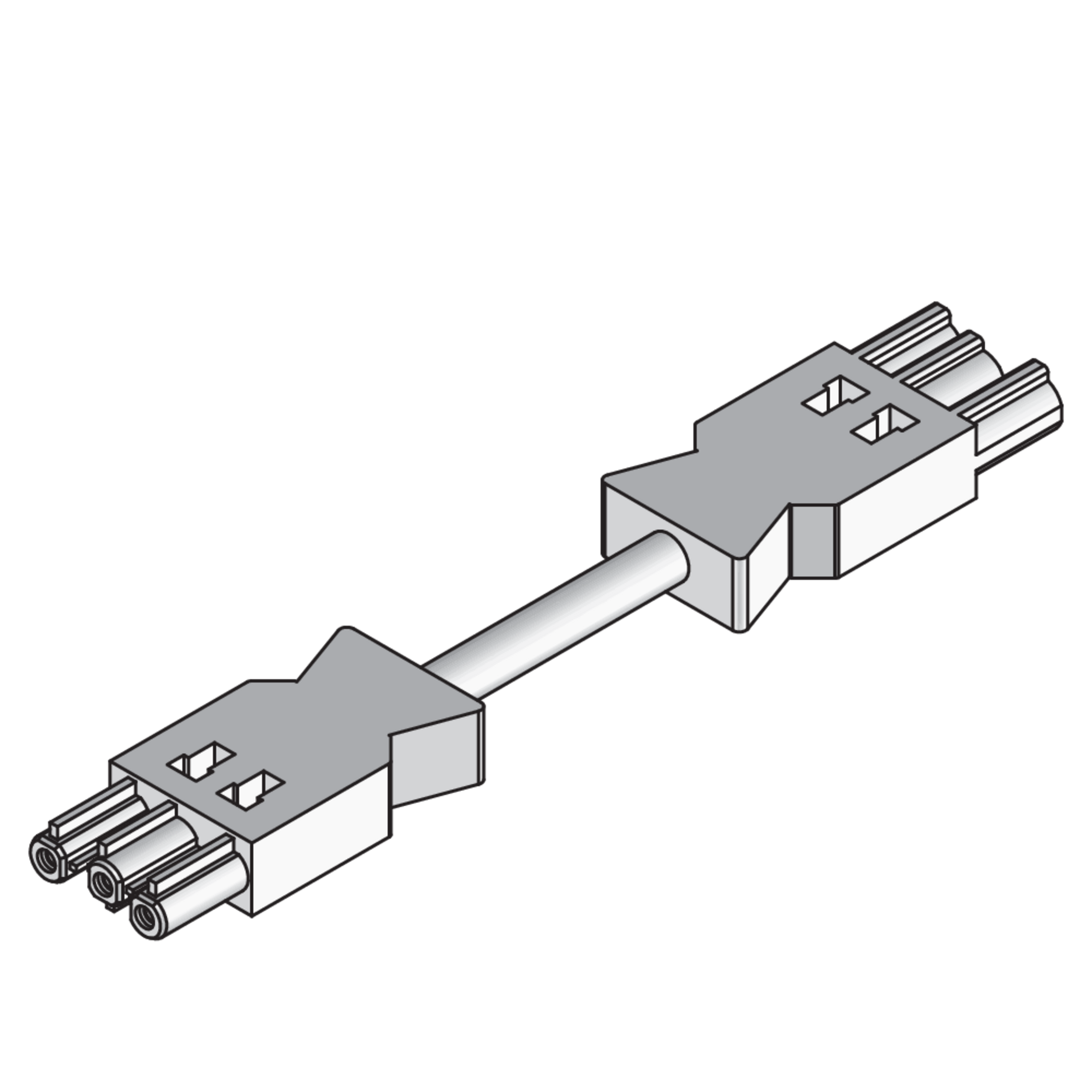

UVABUWI components are prefabricated Wieland connection cables with plug, socket and a 3-pole input and output. The connection cables are selected according to colour (black: normal mains, white: IT network) and length and their socket part is then inserted into the snap-in plugs of the pre-assembled mounting boxes. The cables correspond to type H05 VV-F with a cable cross-section of 2.5 mm² and a mains voltage/current of 250 V/16 A.

Get in touch Download datasheet

Variants

Article

Ausgang

Eingang

colour

KQ

W

  • UVABUWI-S-2.5-100
    Wieland connecting line
    3-polig
    3-polig
    black
    2.5 mm2
    0.202 kg
    More information
  • UVABUWI-S-2.5-400
    Wieland connecting line
    3-polig
    3-polig
    black
    2.5 mm2
    0.675 kg
    More information
  • UVABUWI-S-2.5-600
    Wieland connecting line
    3-polig
    3-polig
    black
    2.5 mm2
    1.006 kg
    More information
  • UVABUWI-S-2.5-800
    Wieland connecting line
    3-polig
    3-polig
    black
    2.5 mm2
    1.325 kg
    More information
  • UVABUWI-W-2.5-100
    Wieland connecting line
    3-polig
    3-polig
    white
    2.5 mm2
    0.202 kg
    More information
  • UVABUWI-W-2.5-400
    Wieland connecting line
    3-polig
    3-polig
    white
    2.5 mm2
    0.675 kg
    More information
  • UVABUWI-W-2.5-600
    Wieland connecting line
    3-polig
    3-polig
    white
    2.5 mm2
    1.006 kg
    More information
  • UVABUWI-W-2.5-800
    Wieland connecting line
    3-polig
    3-polig
    white
    2.5 mm2
    1.006 kg
    More information
