USK

Shuttering unit, angular

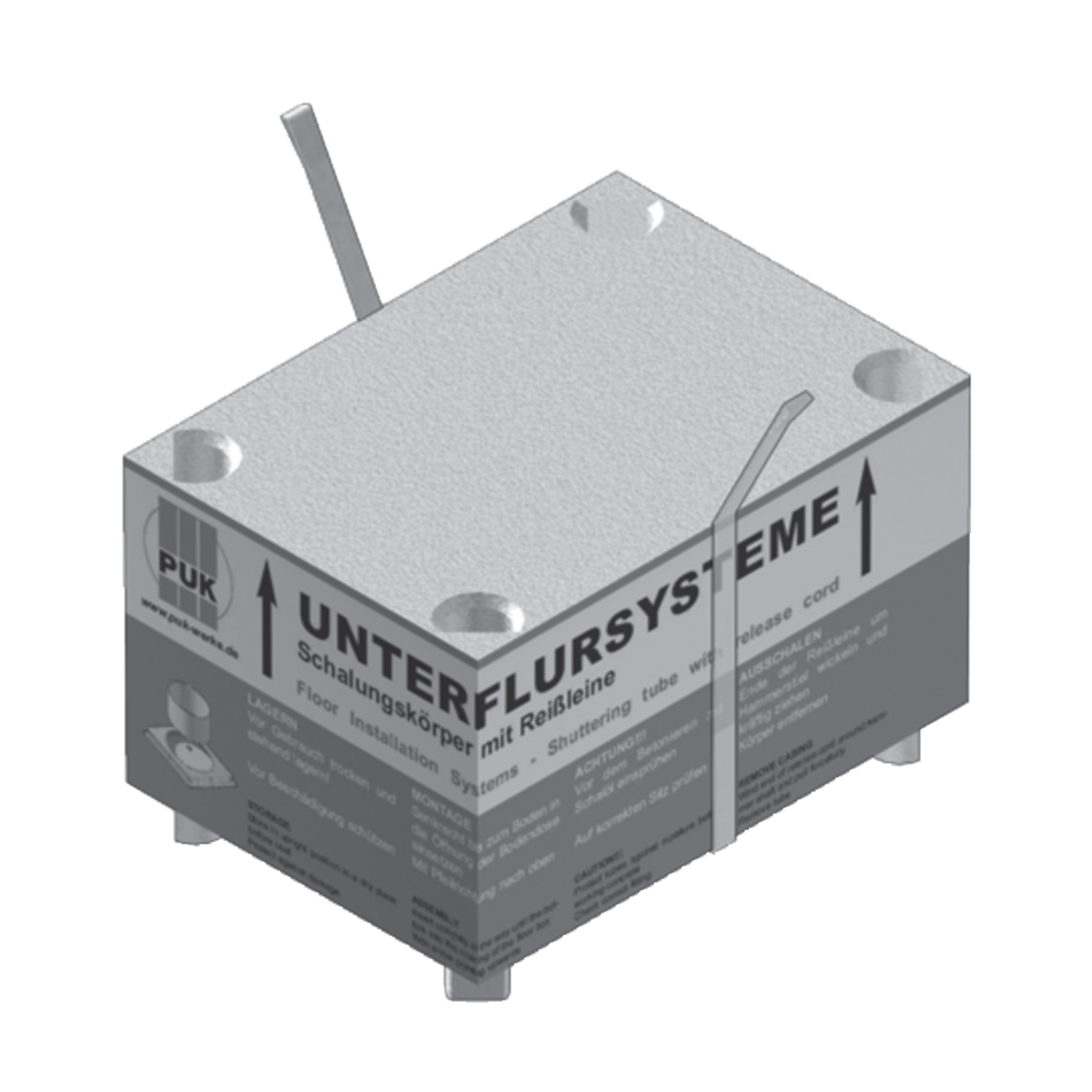

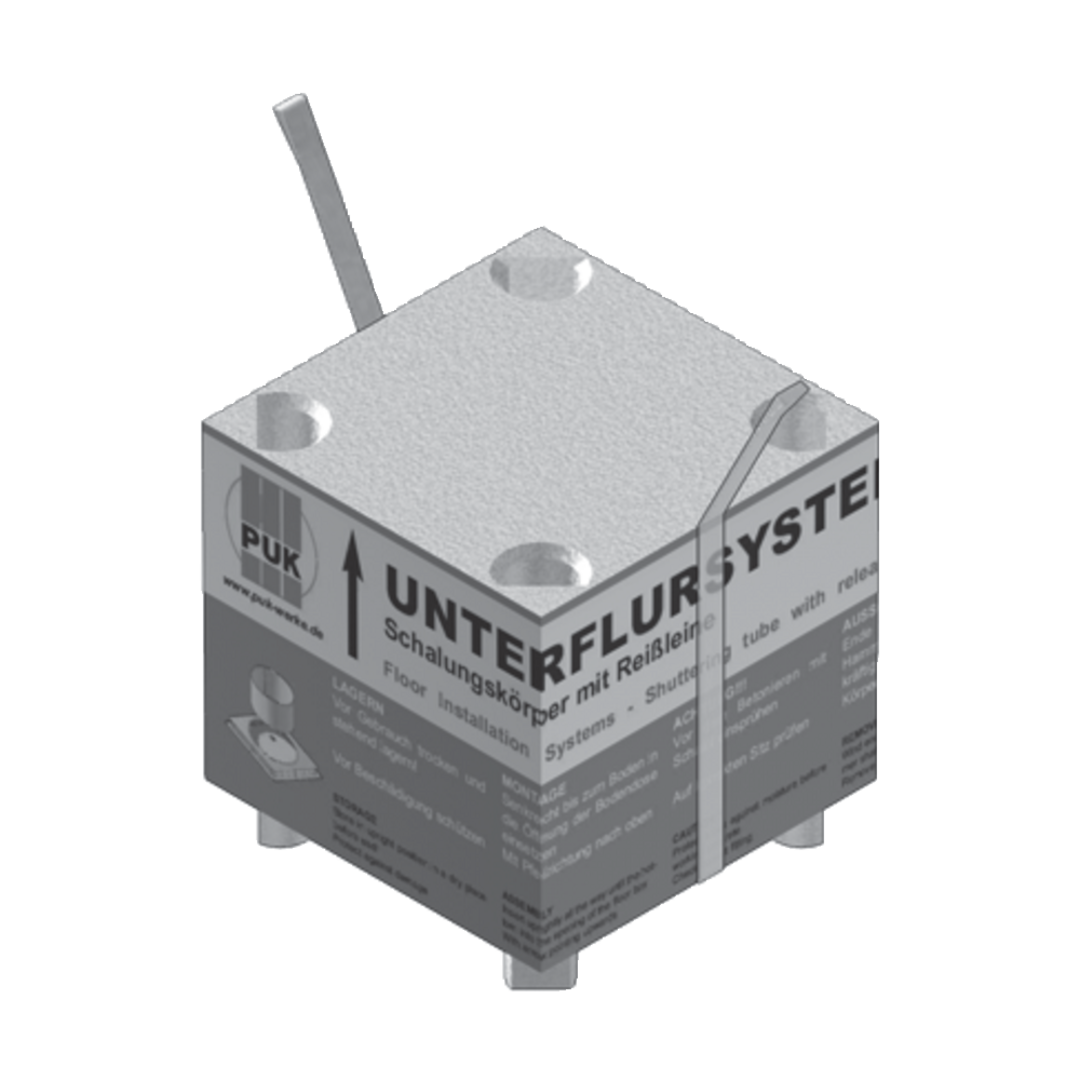

The products USK are square formwork bodies that are inserted into screed-covered underfloor ducts. The hollow bodies are installed in UBDHB false floor sockets or in UKDA assembly covers as lost formwork. After being inserted into the opening of the cover plate, they form solid units with the floor sockets. The pipes are removed again after the screed has hardened using an integrated ripcord. The formwork bodies are made of plastic-coated airpop® (polystyrene) and are free of hexabromocyclododecane (HBCD). They are available in heights of 150 and 225 mm and measure 163 and 163 mm across.

Get in touch Download datasheet

Variants

Article

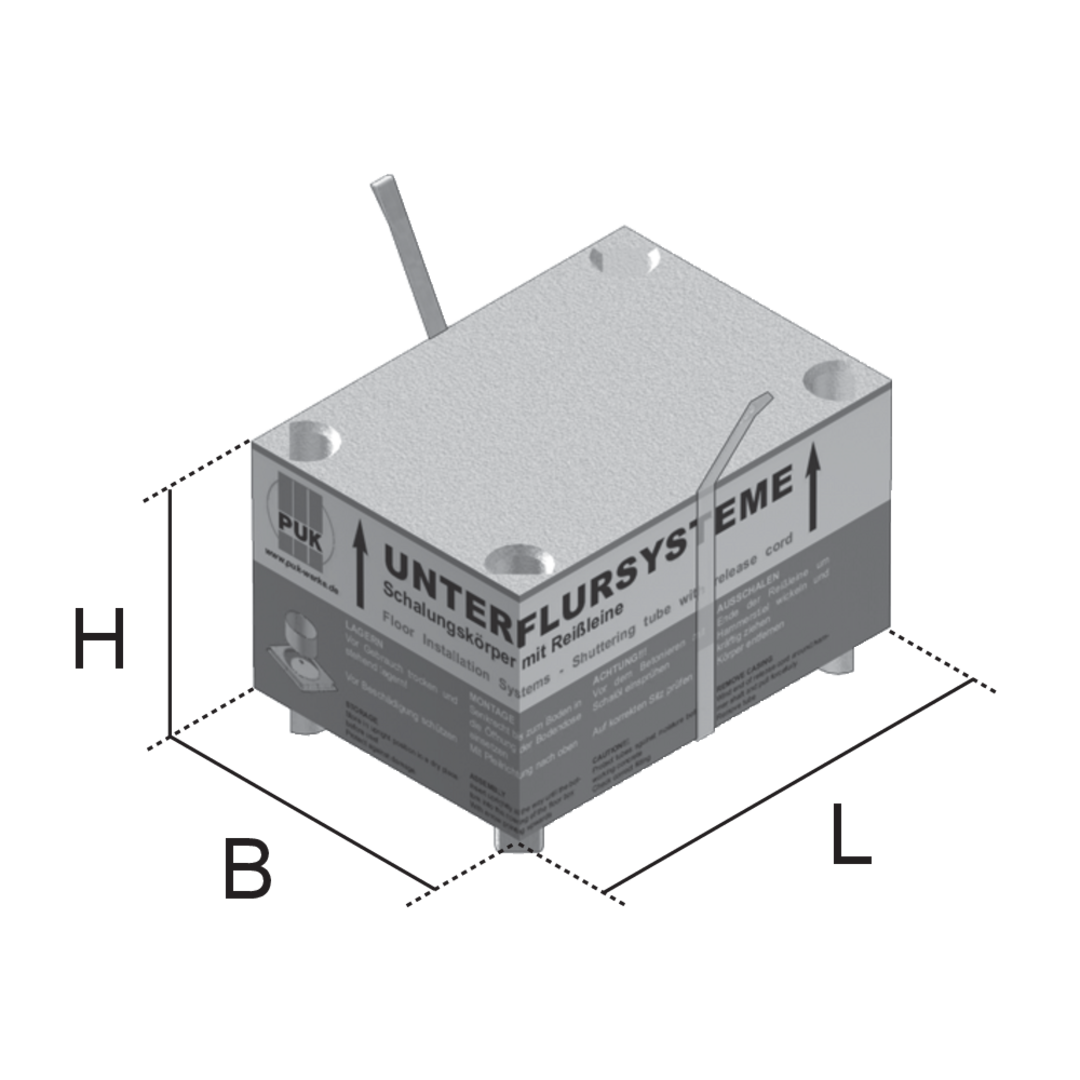

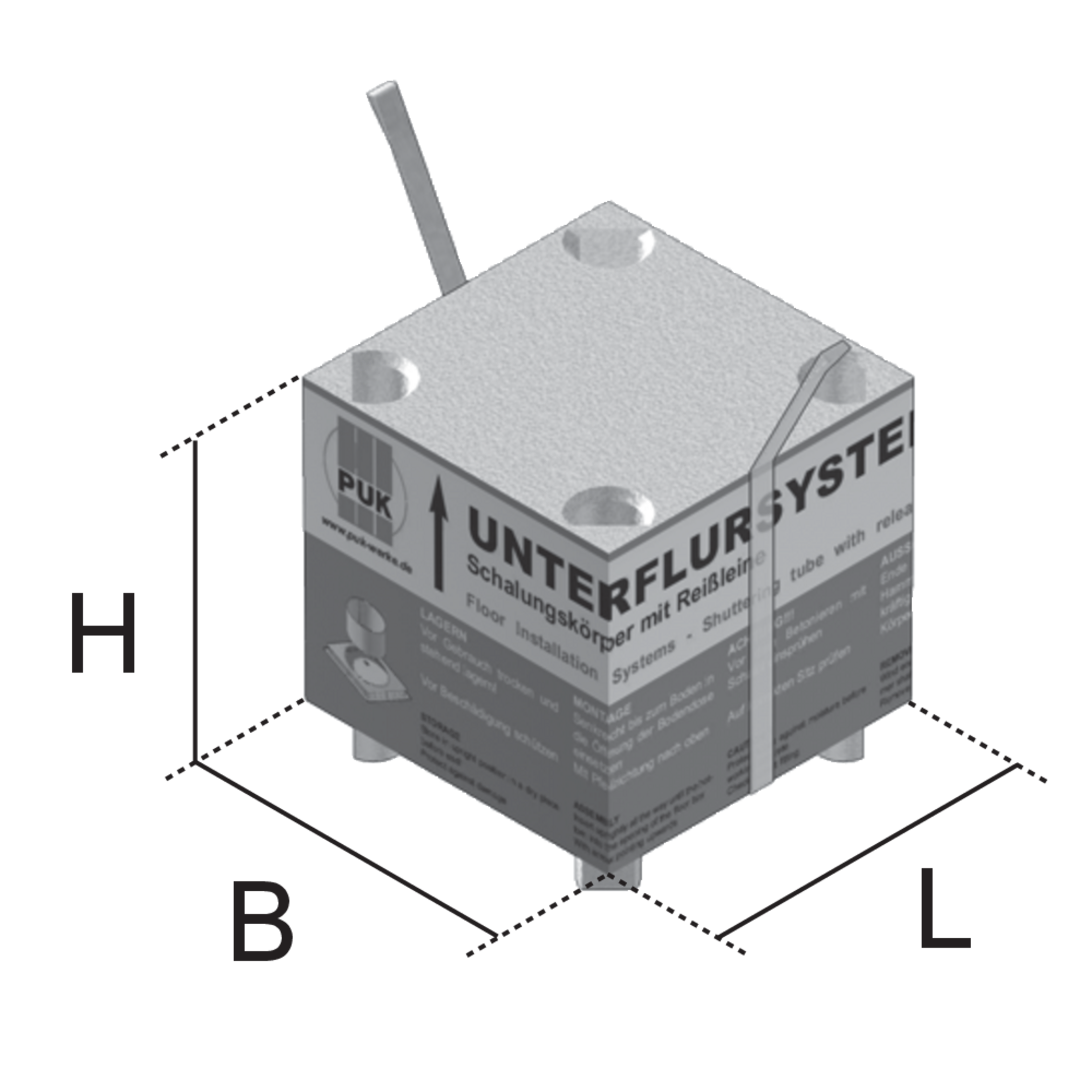

H

height

B

width

L

length

E

fitting dimension

G

Weight per storage unit
  • USK 160V-150
    shuttering unit, LxW=164x164mm, H=150mm,
    height
    150 mm
    width
    163 mm
    length
    163 mm
    fitting dimension
    165 x 165 mm
    Weight per storage unit
    0.082 kg
    More information
  • USK 185V-150
    shuttering unit, LxW=186x262mm, H=150mm,
    height
    150 mm
    width
    262 mm
    length
    186 mm
    fitting dimension
    187 x 262 mm
    Weight per storage unit
    0.146 kg
    More information
  • USK 259V-150
    shuttering unit, LxW=262x262mm, H=150mm,
    height
    150 mm
    width
    262 mm
    length
    262 mm
    fitting dimension
    262 x 262 mm
    Weight per storage unit
    0.167 kg
    More information
  • USK 259V-225
    shuttering unit, LxW=262x262mm, H=225mm,
    height
    225 mm
    width
    262 mm
    length
    262 mm
    fitting dimension
    262 x 262 mm
    Weight per storage unit
    0.220 kg
    More information
