UNSKH V

Heat-resistant formwork unit, height-adjustable, angular

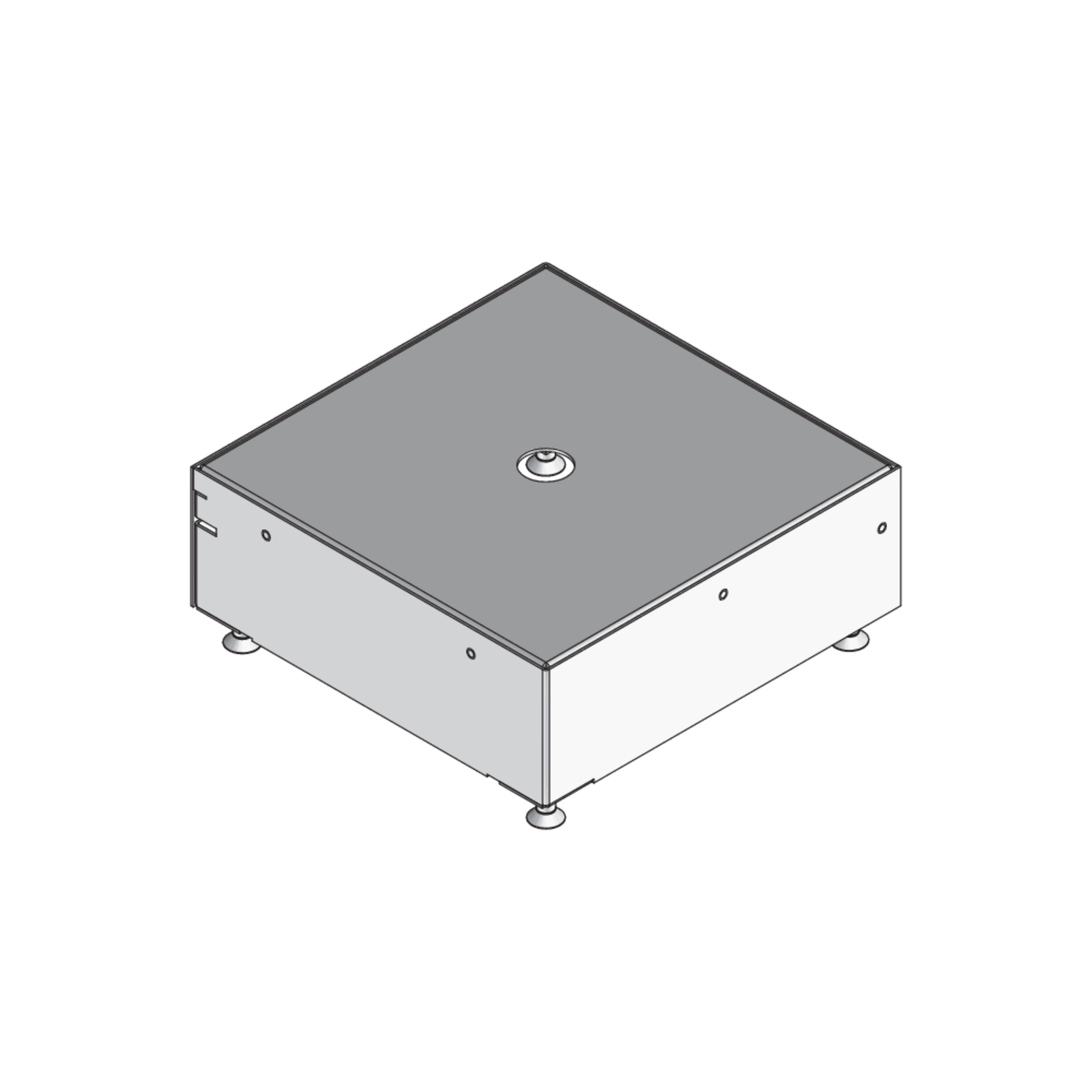

UNSKH V products are square formwork bodies. These are inserted into the floor sockets or cable duct assembly covers of screed-covered underfloor ducts and used as lost formwork for round installation units. They are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346, can be sanded, are heat-resistant and have internal level adjusters with levelling bases and covers. The formwork bodies are suitable for use in asphalt and terrazzo and are mounted on the raw concrete slab. They have VDE/TÜV approval and are available in various dimensions.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

H

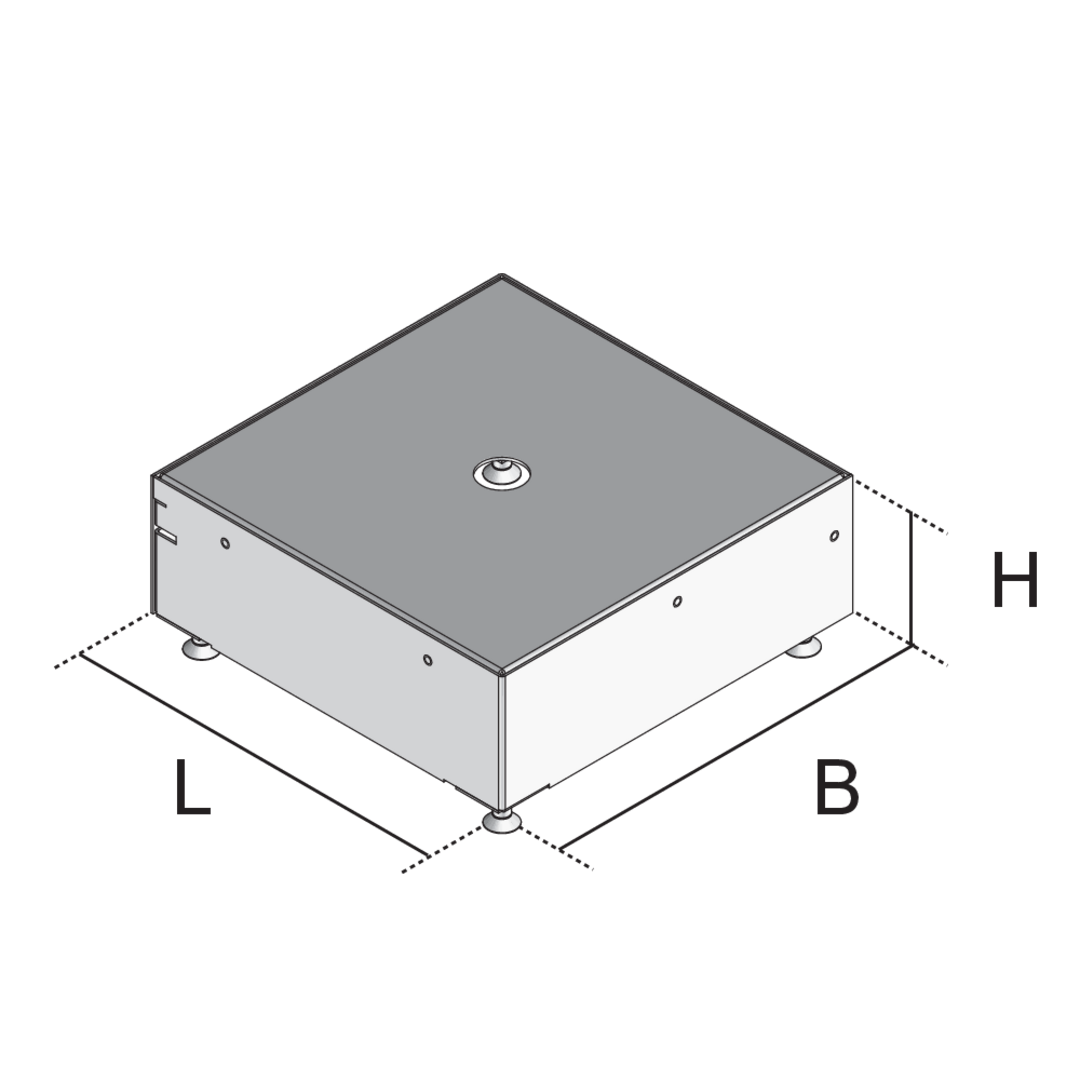

Höhe

Hmin

min. Einbauhöhe

B

Breite

L

Länge

N

Nivellierbereich

G

Gewicht je Lagermengeneinheit
  • UNSKH 260V-100S
    Schalungskörper nivellierbar,
    Höhe
    88 mm
    min. Einbauhöhe
    100 mm
    Breite
    259 mm
    Länge
    259 mm
    Nivellierbereich
    55 mm
    Gewicht je Lagermengeneinheit
    2.563 kg
    More information
  • UNSKH 260V-155S
    Schalungskörper nivellierbar,
    Höhe
    88 mm
    min. Einbauhöhe
    155 mm
    Breite
    259 mm
    Länge
    259 mm
    Nivellierbereich
    70 mm
    Gewicht je Lagermengeneinheit
    2.639 kg
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Technical Information Screed-Covered Duct Systems

    Technische Information

    PDF, 1 MB

    de en

  • Grindable shuttering unit - Assembly instruction

    Montageanleitung

    PDF, 476 KB

    de en

BIM- and CAD-Data

  • BIM Data Screed-Covered Duct Systems

    BIM Data Screed-Covered Duct Systems

    ZIP, 9 MB

    de en
