UKEB

End plate

UKEB products are end plates used to close screed-covered cable ducts. The components of the underfloor systems are made of sendzimir hot-dip galvanised sheet steel according to DIN EN 10346. They are available widths of 300 to 500 mm. Versions from 20 to 45 mm high are supplied with one KLR clamp fixing set and versions 70 mm high and above come with two sets.

Get in touchDownload datasheet

Variants

Article

H

height

B

width

G

Weight per storage unit

  • UKEB 110-40S
    duct end piece UKEB 110-40S H=110mm,
    height
    115 mm
    width
    400 mm
    Weight per storage unit
    0.931 kg
    Included accessories
    More information
  • UKEB 110-50S
    duct end piece UKEB 110-50S H=110mm,
    height
    115 mm
    width
    500 mm
    Weight per storage unit
    1.080 kg
    Included accessories
    More information
  • UKEB 35-30S
    duct end piece UKEB 35-30S
    height
    35 mm
    width
    300 mm
    Weight per storage unit
    0.146 kg
    Included accessories
    More information
  • UKEB 35-40S
    duct end piece UKEB 35-40S H=35mm,
    height
    35 mm
    width
    400 mm
    Weight per storage unit
    0.177 kg
    Included accessories
    More information
  • UKEB 35-50S
    duct end piece UKEB 35-50S H=35mm,
    height
    35 mm
    width
    500 mm
    Weight per storage unit
    0.209 kg
    Included accessories
    More information
  • UKEB 60-40S
    duct end piece UKEB 60-40S H=60mm,
    height
    60 mm
    width
    400 mm
    Weight per storage unit
    0.408 kg
    Included accessories
    More information
  • UKEB 60-50S
    duct end piece UKEB 60-50S H=60mm,
    height
    60 mm
    width
    500 mm
    Weight per storage unit
    0.479 kg
    Included accessories
    More information
  • UKEB 85-40S
    duct end piece UKEB 85-40S H=85mm,
    height
    85 mm
    width
    400 mm
    Weight per storage unit
    0.644 kg
    Included accessories
    More information
  • UKEB 85-50S
    duct end piece UKEB 85-50S H=85mm,
    height
    85 mm
    width
    500 mm
    Weight per storage unit
    0.754 kg
    Included accessories
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    • de

    • en

    Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Declaration

    PDF, 106.06 KB

    • de

    Download

    EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    • de

    • en

    Underfloor Systems - Catalogue

    Catalogue

    • de

    • en

    Technical Information Screed-Covered Duct Systems

    Technical Information

    • de

    • en

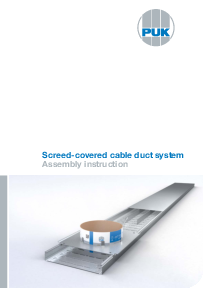

    Installation Instructions UKR
