UKE160 V

Stainless steel hinged cover compact single outlet, 4-way, angular

UKE160 V are hinged cover compact single outlets consisting of a floor socket, a height-adjustable single outlet and a formwork body. The square components are inserted directly into the screed and are used to accommodate up to four installation devices. In addition, M25 pipes can be routed through the perforated side walls of the floor socket. The single outlets are made of stainless steel (V2A) or brass and are suitable for use in dry-cleaned and damp-cleaned rooms with office traffic loads. They are available with installation dimensions of 166 x 166 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

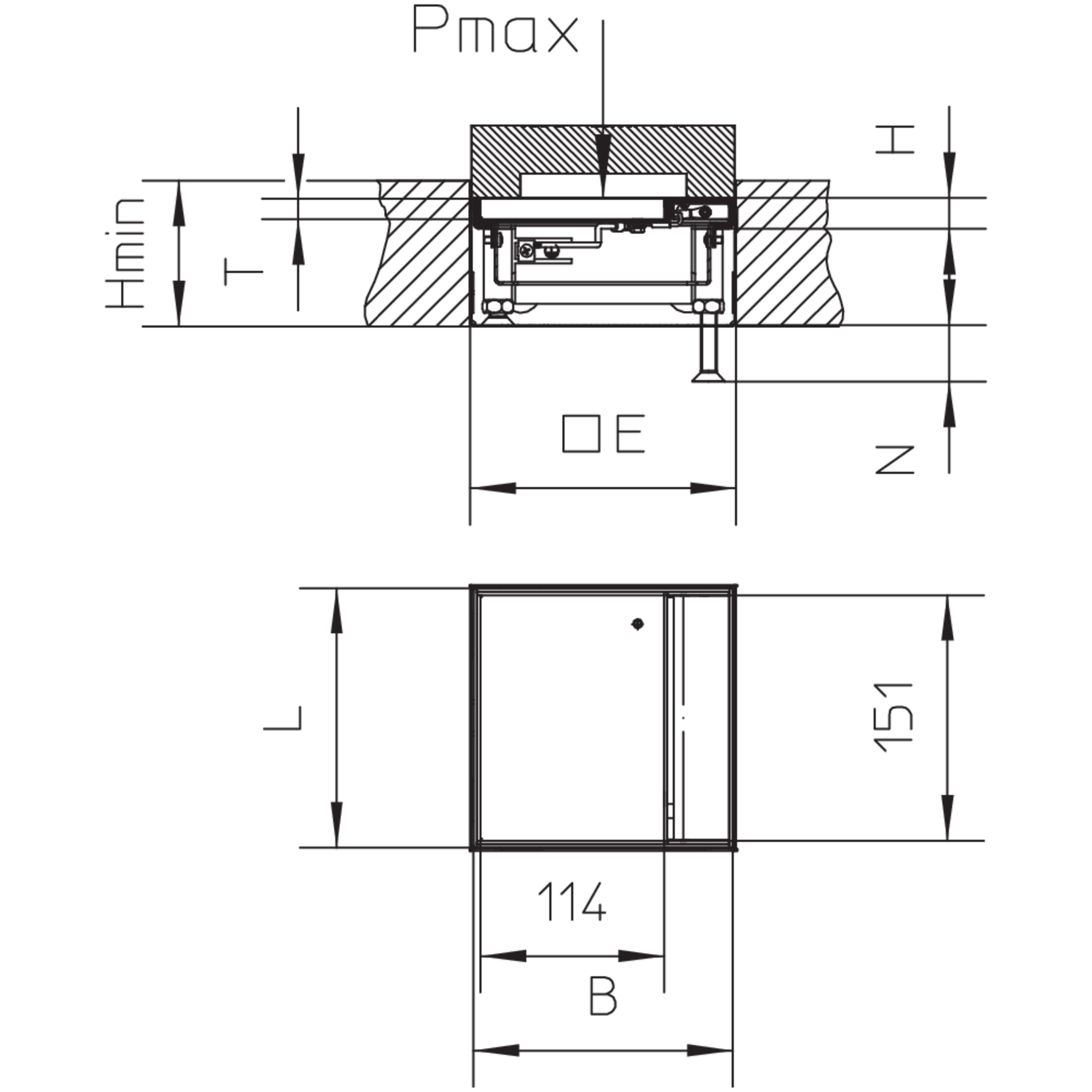

Variants

Article

H

Hmin

B

L

N

Pmax

E

IPg

IPn

W

  • UKE160 15-V E
    Compact single outlet
    19 mm
    90 mm
    160 mm
    160 mm
    35 mm
    2.00 kN
    166 x 166 mm
    IP 20
    IP 30
    2.264 kg
    More information
  • UKE160 25-V E
    Compact single outlet
    29 mm
    100 mm
    160 mm
    160 mm
    35 mm
    2.00 kN
    166 x 166 mm
    IP 20
    IP 30
    2.481 kg
    More information
  • UKE160 25-V MS
    Compact single outlet
    29 mm
    100 mm
    160 mm
    160 mm
    35 mm
    2.00 kN
    166 x 166 mm
    IP 20
    IP 30
    3.005 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
