UKE125 VP WD

Stainless steel tube cover compact single outlet, 2x, angular

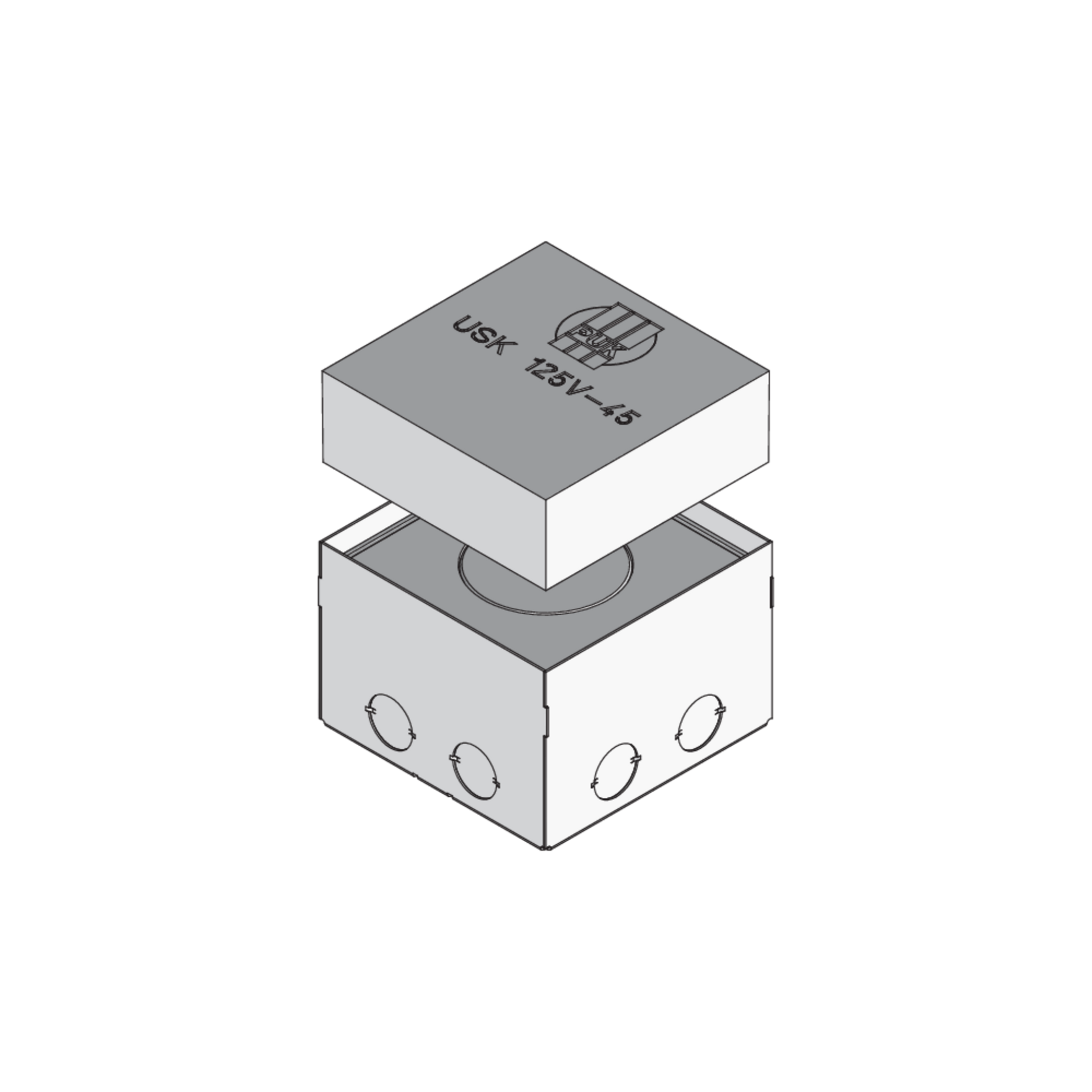

UKE125 VP WD are tube cover compact single outlets consisting of a floor socket, a height-adjustable single outlet and a formwork body. The square components are inserted directly into the screed and are used to accommodate up to two installation devices and individual data jacks. In addition, M25 pipes can be routed through the perforated side walls of the floor socket. The outlets are made of flat stainless steel (V2A) and are suitable for use in wet-cleaned rooms with high traffic loads. They are available with installation dimensions of 131 x 131 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

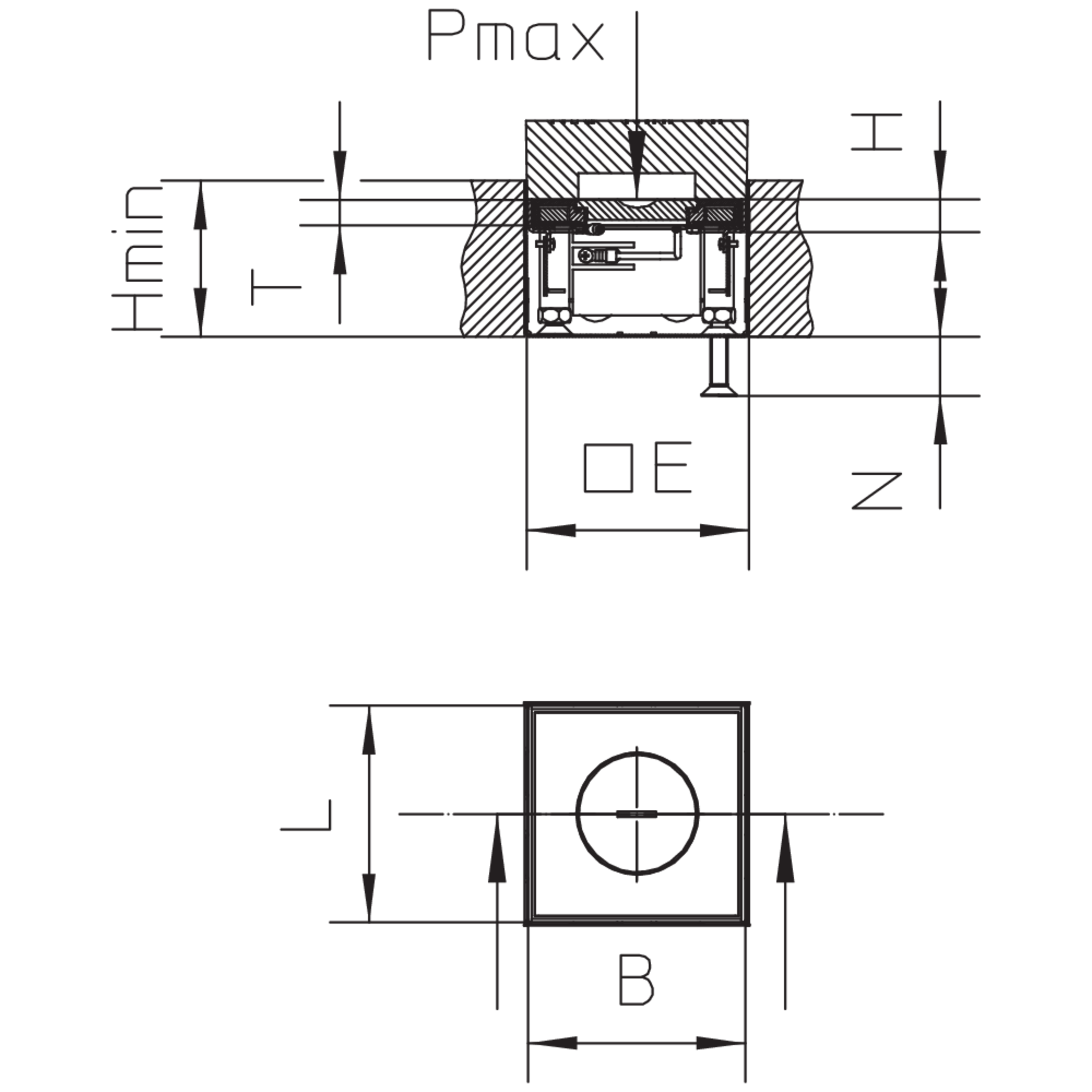

Article

H

height

Hmin

minimum installation height

B

width

L

length

N

levelling range

Pmax

maximum load

E

fitting dimension

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

G

Weight per storage unit
  • UKE125 15-VP-WD
    Compact single outlet
    height
    19 mm
    minimum installation height
    90 mm
    width
    125 mm
    length
    125 mm
    levelling range
    35 mm
    maximum load
    20.00 kN
    fitting dimension
    131 x 131 mm
    IP protection level in used condition
    IP 22
    IP protection level in unused condition
    IP 54
    Weight per storage unit
    2.508 kg
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
