UKD

Cable duct dummy cover

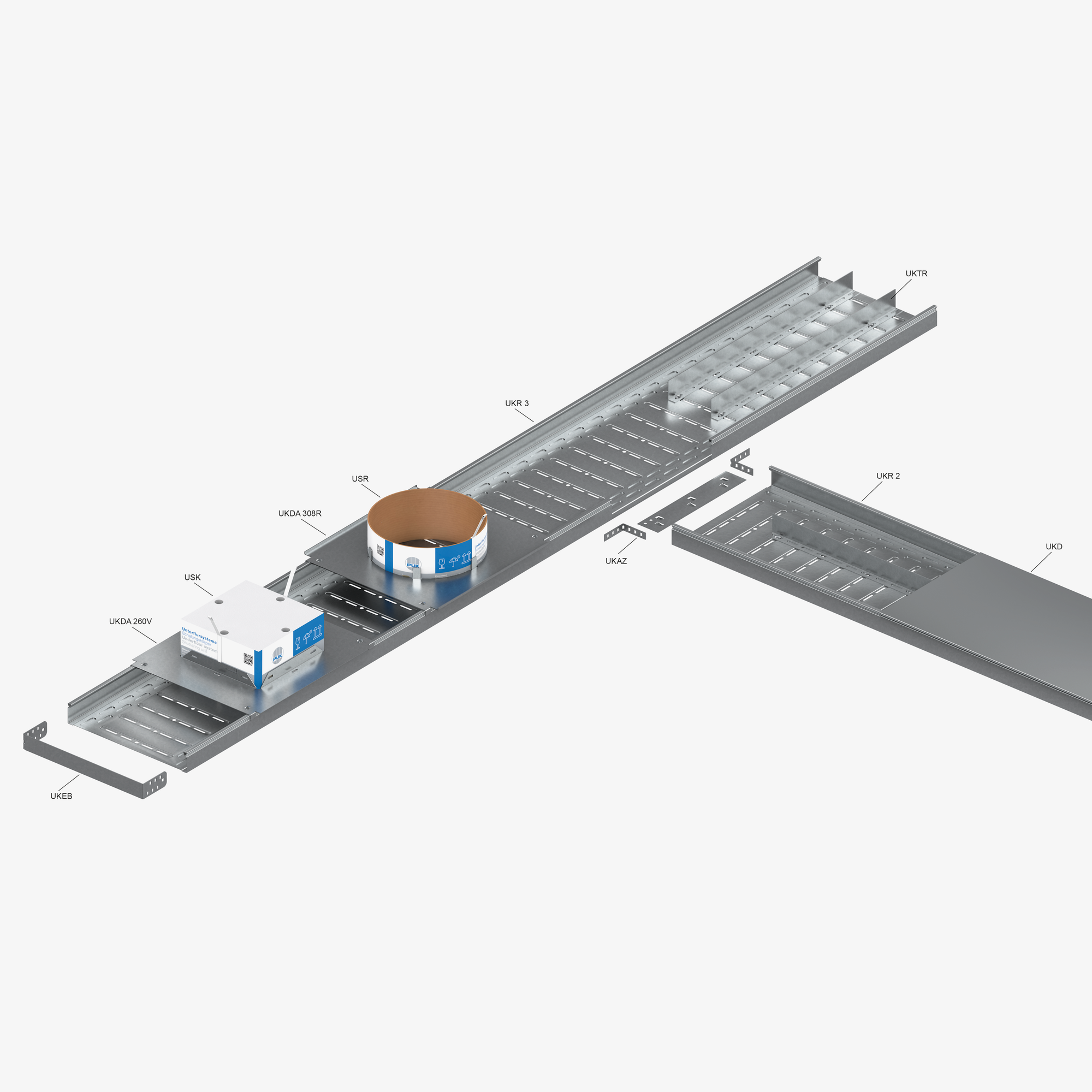

UKD products are dummy covers for open, screed-covered cable duct systems. These components close the duct and protect cables and lines. They are snapped onto the side profiling of the bottom part of the UKR and mounted there with an offset. The dummy covers are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346. They are 300 to 500 mm wide, 3000 mm long and can withstand a maximum load of 0.75 kN.

Get in touch Download datasheet

Variants

Article

B

width

L

length

Pmax

maximum load

G

Weight per storage unit
  • UKD 30S
    dummy cover UKD 30S, W=300mm,
    width
    300 mm
    length
    3000 mm
    maximum load
    0.75 kN
    Weight per storage unit
    7.910 kg
    More information
  • UKD 40S
    dummy cover UKD 40S, W=400mm,
    width
    400 mm
    length
    3000 mm
    maximum load
    0.75 kN
    Weight per storage unit
    10.270 kg
    More information
  • UKD 50S
    dummy cover UKD 50S, W=500mm,
    width
    500 mm
    length
    3000 mm
    maximum load
    0.75 kN
    Weight per storage unit
    18.930 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Technical Information Screed-Covered Duct Systems

    Technische Information

    PDF, 1 MB

    de en

  • Installation Instructions UKR

    Montageanleitung

    PDF, 464 KB

    de en

BIM- and CAD-Data

  • BIM Data Screed-Covered Duct Systems

    BIM Data Screed-Covered Duct Systems

    ZIP, 9 MB

    de en
